Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

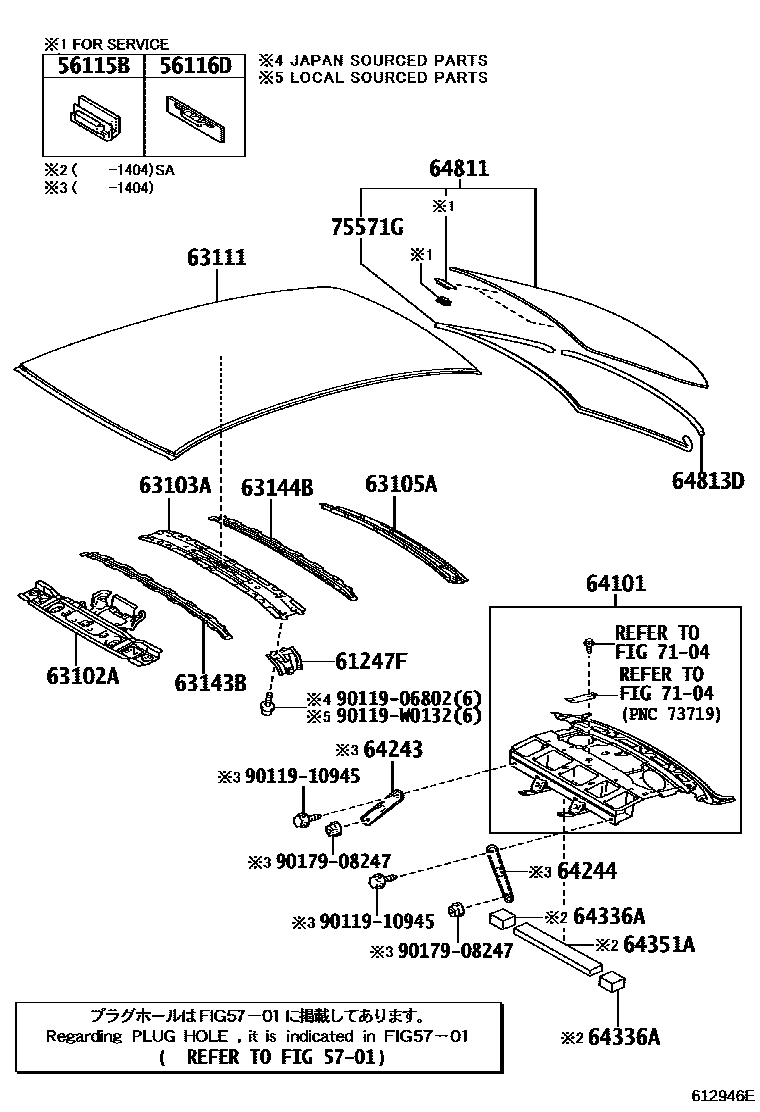

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 61247F | Roof inner longitudinal beam reinforcement | 61247-12050 |
| 63102A | Windshield roof sub-assembly | 63102-12230 |
| 63103A | Roof panel reinforcement sub-assembly | 63141-02070 |
| 63105A | Back door opening frame sub-assembly | 63105-12290 |
| 63111 | roof panel | 63111-02250 |
| 63143B | No. 3 roof panel reinforcement | 63143-02040 |
| 63144B | No. 4 roof panel reinforcement | 63144-02050 |
| 64101 | Upper back panel sub-assembly | 64101-02120 · 64101-02540 |
| 64243 | No. 2 right compartment partition | 64243-02010 |
| 64244 | No. 2 left compartment partition | 64244-02010 |
| 64336A | Glove box decorative panel side silencer pad | 64336-02020 |
| 64351A | No. 1 glove box decorative mat | 64351-02020 |
| 64811 | back window glass | 64801-02010 · 64801-02011 |
| 64813D | Back window glass adhesive seal | 64813-12180 |
| 75571G | No. 1 rear window outer upper protective strip | 75571-12A10 |
