Toyota COROLLA 地板垫和地毯 — Figure 5804

Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 2 images and 6 PNC and OE references.

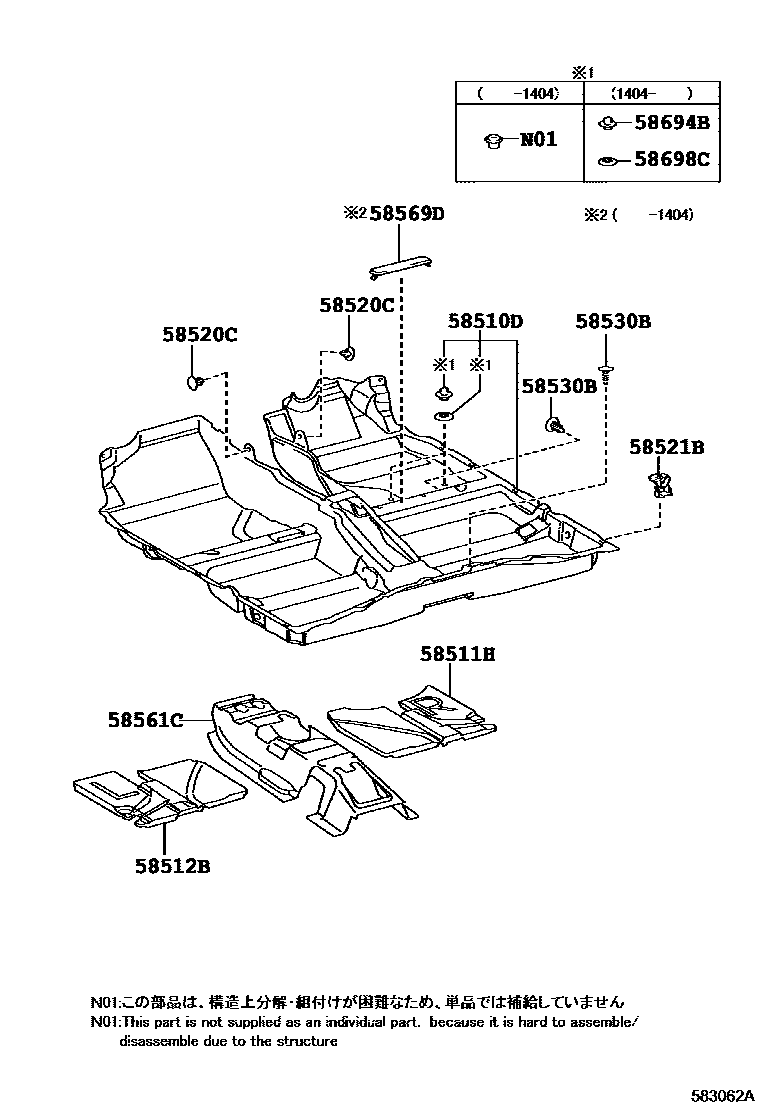

Toyota COROLLA 地板垫和地毯 EPC diagram — 583062A
地板垫和地毯 — 583062A (200707 – 999999)

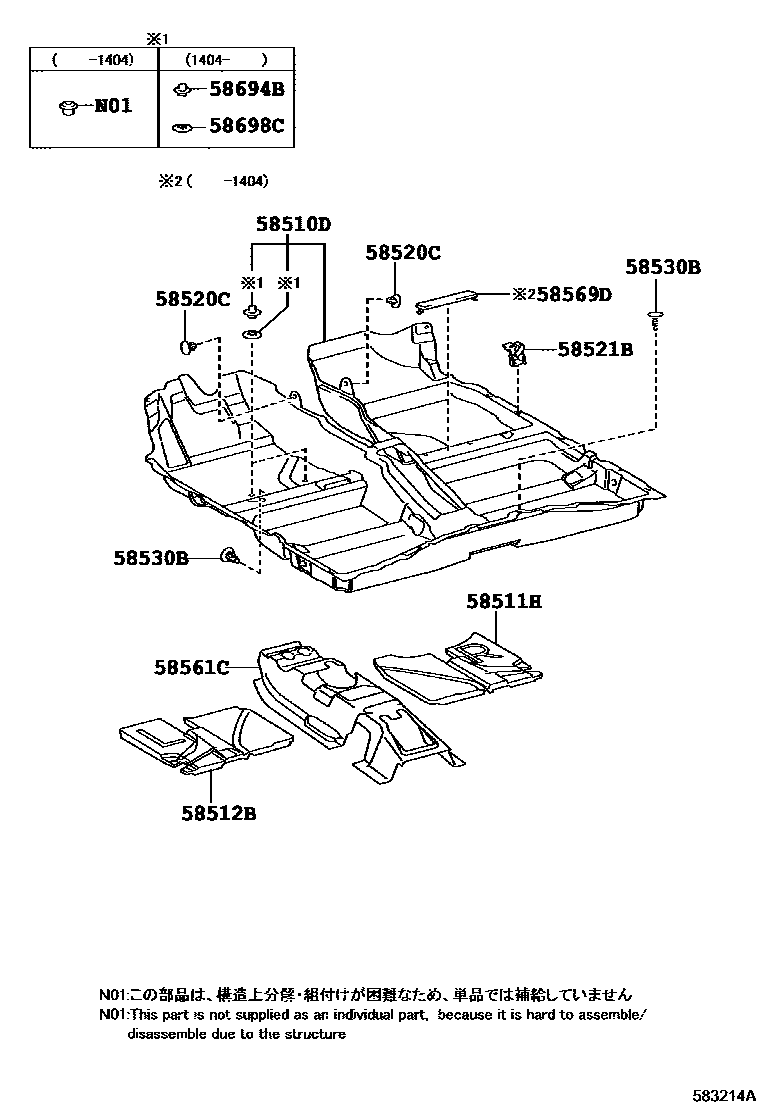

Toyota COROLLA 地板垫和地毯 EPC diagram — 583214A
地板垫和地毯 — 583214A (200710 – 999999)

PNC and OE references

PNCPart nameOE numbers
58511HFront floor right mat58512-02040
58512BFront floor left mat58511-02050
58521Bcarpet hook58521-02060
58561CFront floor silencer No. 158561-02130
58694BPad the fixing plate58694-76010
58698CFixing plate under the pad58698-76010
