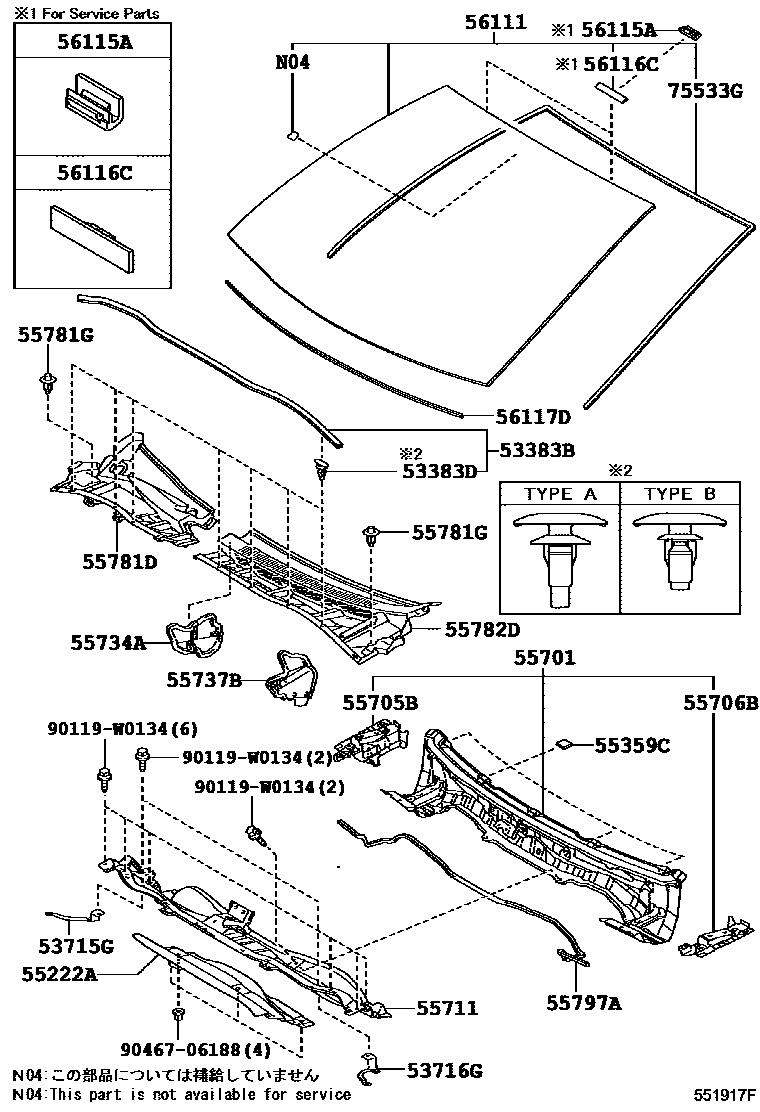

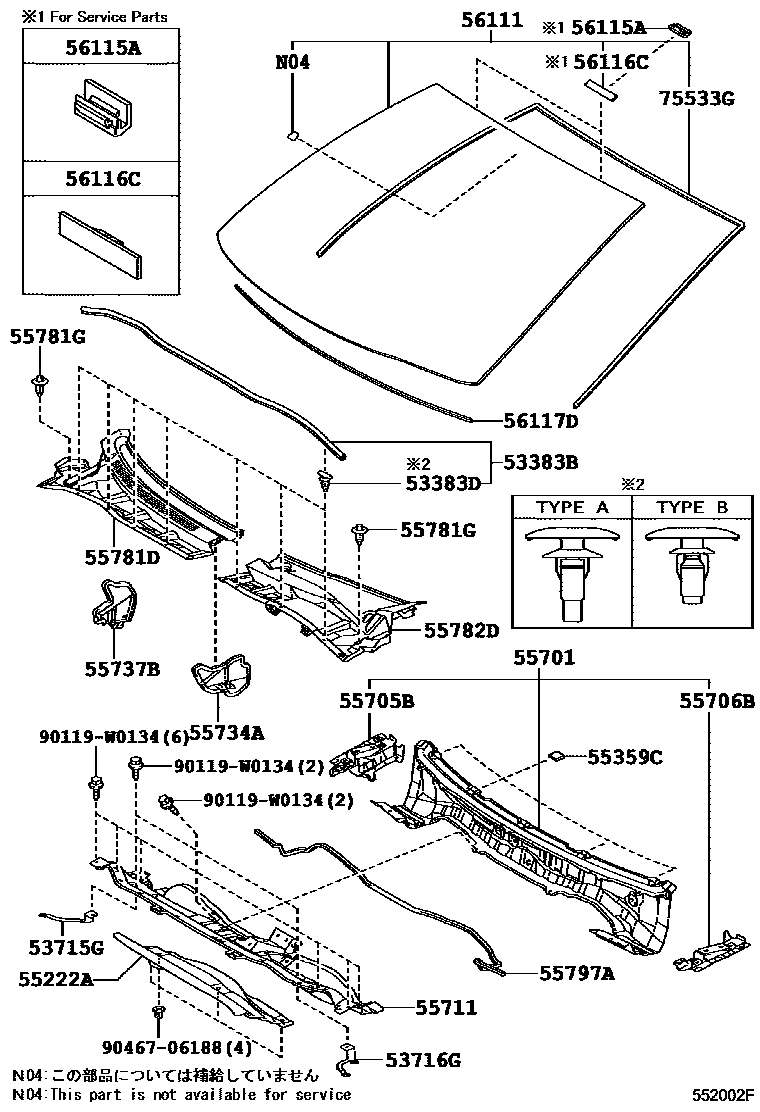

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-02110 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 67867-12150 · 67867-52030 |
| 53715G | Right front fender fender rear extension | 53715-12071 |
| 53716G | Left front fender fender rear extension | 53716-12081 |
| 55222A | Center heat insulation pad on outer side of front cowl | 55224-02040 · 55224-02041 |
| 55359C | Dashboard No. 5 Cushion Pad | 55359-02140 |
| 55701 | Front apron sub-assembly | 55700-02310 · 55700-02330 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-12080 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-12090 |
| 55711 | Front outer panel | 55701-02190 · 55701-02200 |
| 55734A | Right waterproof cover | 55734-02030 · 55734-02040 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-02020 · 55737-02030 |
| 55781D | Ventilation grille on right front apron | 55708-02350 · 55708-02370 · 55708-12330 |
| 55782D | Ventilation grille on left front apron | 55709-02250 · 55709-02260 |
| 55797A | Front wall pumping device seal | 55797-02020 |
| 56111 | windshield | 56101-02330 · 56101-02331 · 56101-02340 · 56101-02341 · 56101-02360 · 56101-02361 · 56101-02410 · 56101-02411 · 56101-02A00 · 56101-02A10 · 56101-02J40 · 56101-02J50 · 56101-0Z490 · 56101-0Z500 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117D | windshield adhesive seal | 56117-12300 |
| 75533G | Windshield outer protective strip | 75531-12690 |
