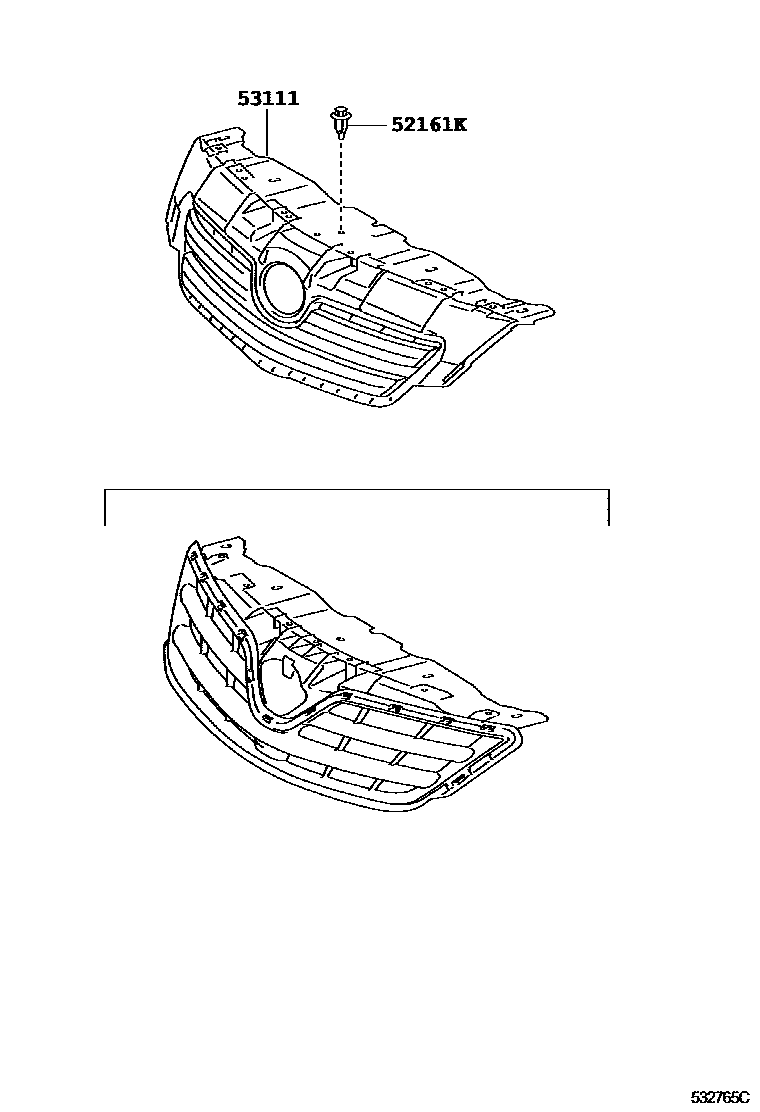

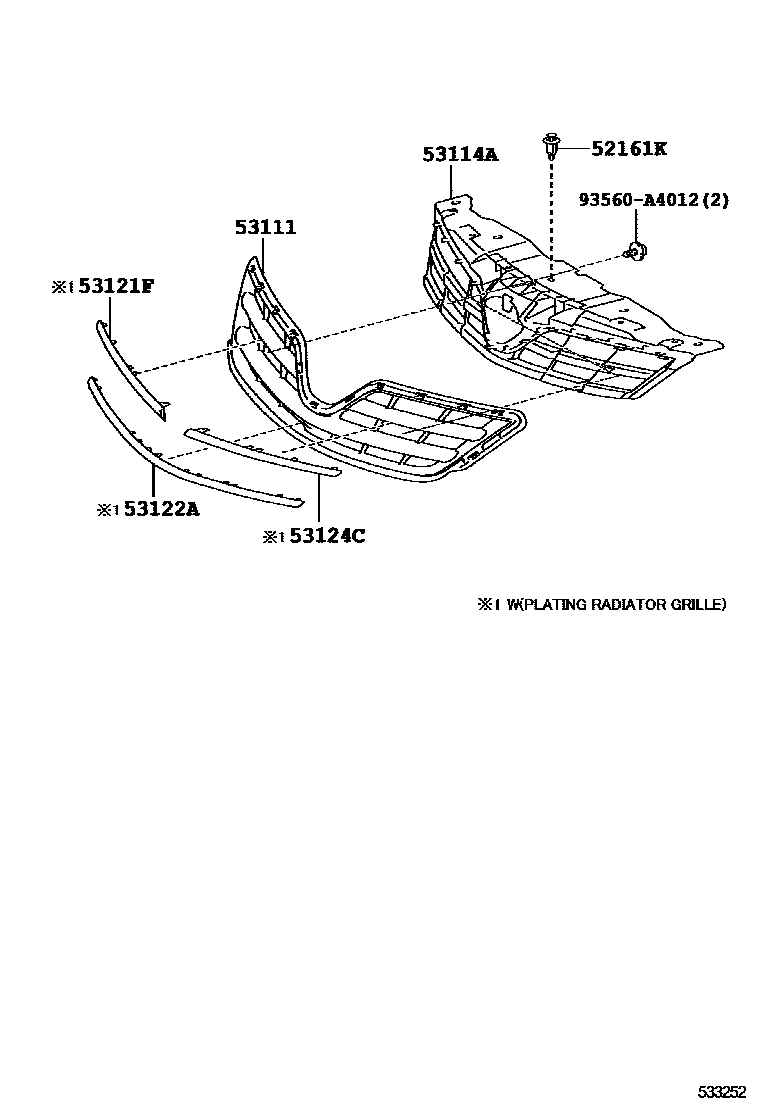

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161K | front bumper insert | 52161-0K040 · 52161-16010 |
| 53111 | radiator grille | 53100-02190 · 53100-02200 · 53111-02570 · 53111-02860 · 53111-02909 |
| 53114A | inner radiator grille | 53114-02180 |
| 53121F | Radiator grille upper right protective strip | 53121-02080 |
| 53122A | Radiator grille lower protective strip | 53122-02080 |
| 53124C | Radiator grille upper left protective strip | 53124-02080 |
