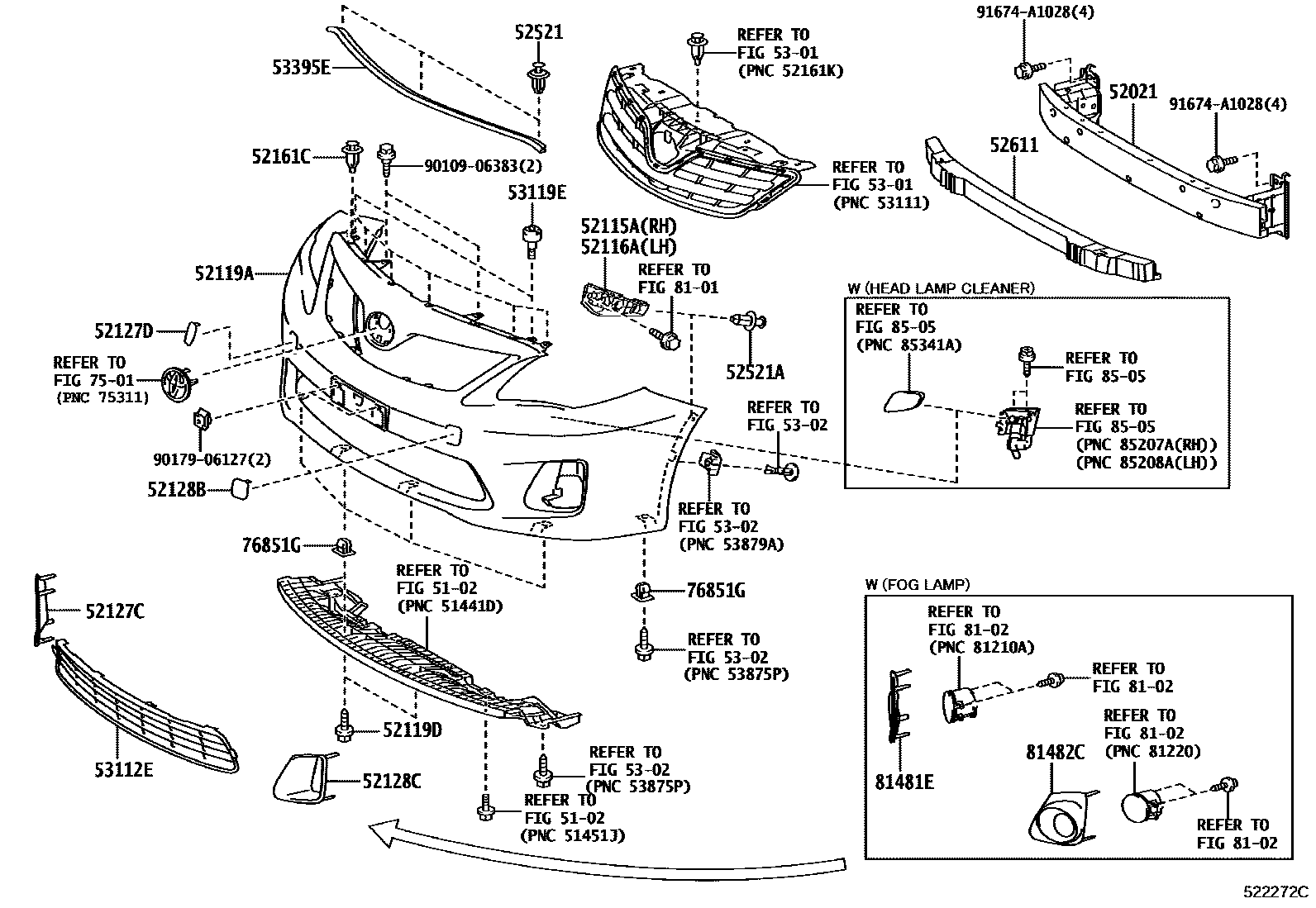

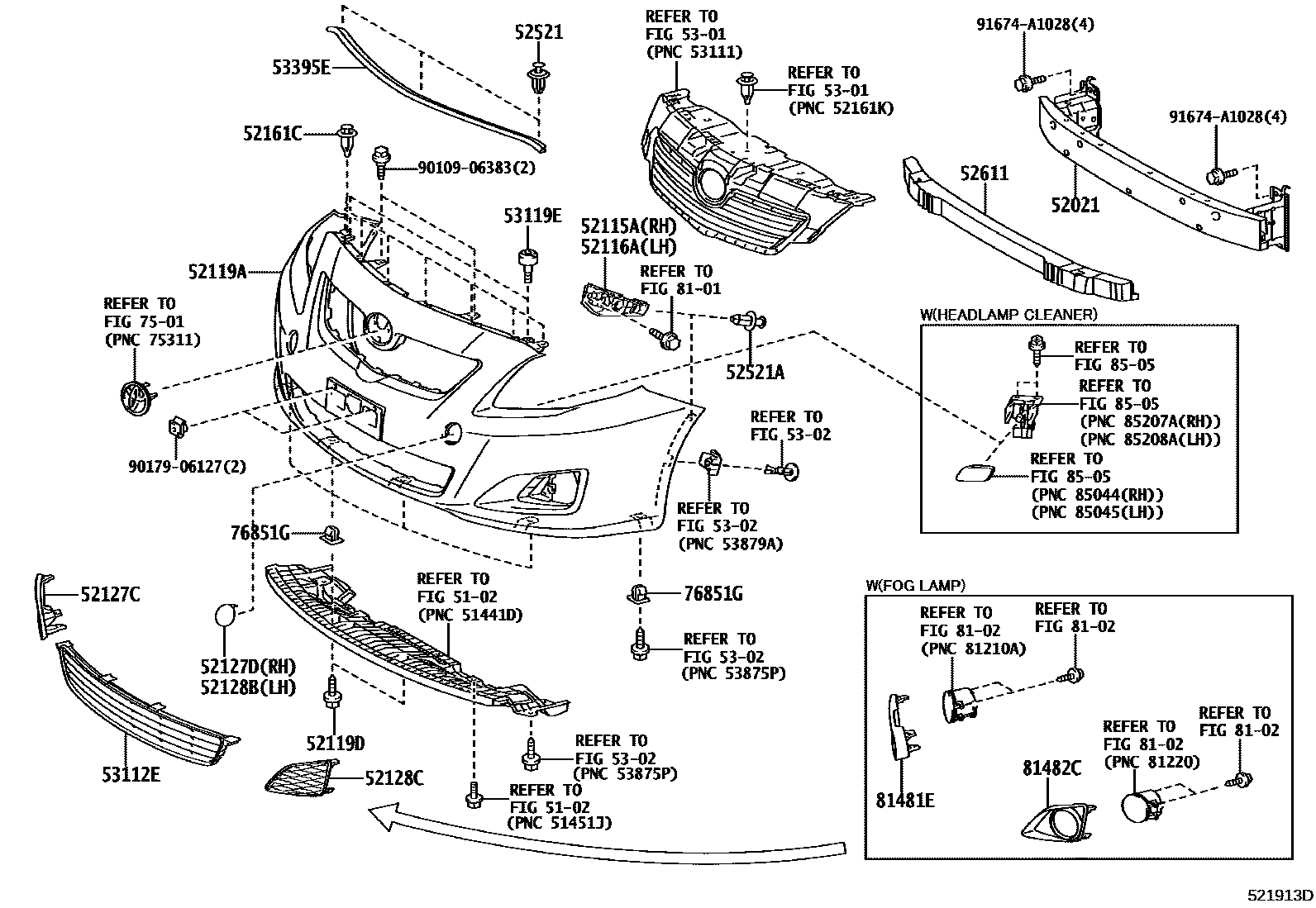

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-12240 |
| 52115A | Front bumper right side bracket | 52115-02100 · 52115-02180 · 52115-02181 |
| 52116A | Front bumper left bracket | 52116-02100 · 52116-02180 · 52116-02181 |
| 52119A | front bumper cover | 52119-02979 · 52119-02980 · 52119-0Z908 · 52119-0Z909 |
| 52119D | Screw No. 1 | 90159-60488 |
| 52127C | Front bumper hole cover | 81481-02060 · 81481-02170 |
| 52127D | Front bumper right hole cover | 52127-02909 · 52127-02914 |
| 52128B | Front bumper left hole cover | 52128-02909 · 52128-02914 |
| 52128C | Front bumper left hole cover | 81482-02050 · 81482-02160 |
| 52161C | front bumper insert | 52161-0K040 · 52161-16010 |
| 52521A | Clip (for front bumper mount) | 90467-05170 |
| 52611 | front bumper energy absorber | 52611-02140 · 52611-02200 |
| 53112E | No. 1 radiator lower grille | 53112-02090 · 53112-02260 |
| 53119E | Radiator grille protector | 53119-42020 |
| 53395E | Engine cover to front end plate seal | 53395-02020 |
| 76851G | No. 1 screw seal | 90189-06193 |
| 81481E | Right fog light cover | 81481-02070 · 81481-02180 |
| 81482C | Left fog light cover | 81482-02060 · 81482-02170 |
