Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

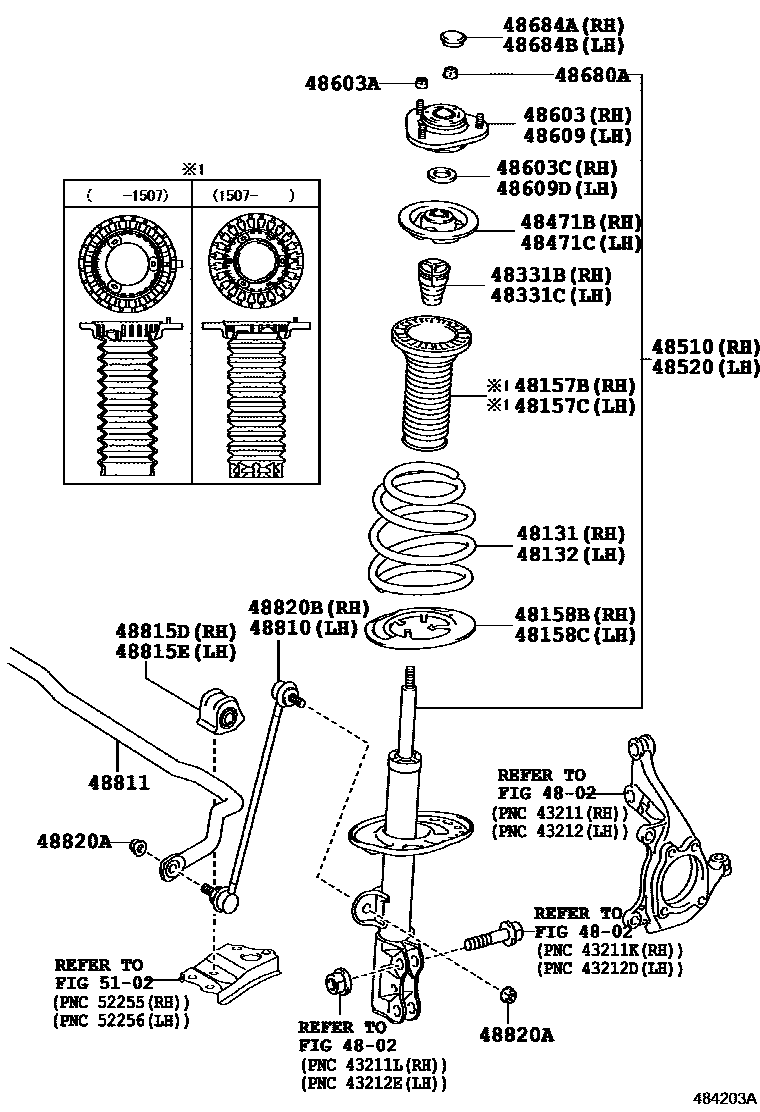

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-02B90 · 48131-02C00 · 48131-02C10 · 48131-02C20 · 48131-02C30 · 48131-02C40 · 48131-02K90 |
| 48132 | Left front coil spring | 48131-02B90 · 48131-02C00 · 48131-02C10 · 48131-02C20 · 48131-02C30 · 48131-02C40 · 48131-02K90 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-02100 · 48157-02170 · 48157-02230 · 48157-02231 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-02100 · 48157-02170 · 48157-02230 · 48157-02231 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-02090 · 48158-02190 · 48158-02230 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-02090 · 48158-02190 · 48158-02230 |
| 48331B | Right front spring buffer block | 48331-02070 |
| 48331C | Left front spring buffer block | 48331-02070 |
| 48471B | Front coil spring upper right seat | 48044-02100 |
| 48471C | Front coil spring upper left seat | 48044-02100 |
| 48510 | Right front shock absorber assembly | 48510-09R50 · 48510-09R60 · 48510-09R70 · 48510-09R80 · 48510-09S40 · 48510-09W30 · 48510-09W31 · 48510-09W32 · 48510-09W50 · 48510-09W60 · 48510-09W61 · 48510-09W62 · 48510-09Y31 · 48510-8Z050 · 48510-8Z051 · 48510-8Z097 · 48510-8Z098 · 48510-8Z099 · 48510-8Z283 · 48510-8Z284 |
| 48520 | Left front shock absorber assembly | 48520-09K10 · 48520-09K20 · 48520-09K30 · 48520-09K40 · 48520-09L00 · 48520-09P30 · 48520-09P31 · 48520-09P32 · 48520-09P50 · 48520-09P60 · 48520-09P61 · 48520-09P62 · 48520-09R41 · 48520-09X50 · 48520-09X60 · 48520-8Z008 · 48520-8Z009 · 48520-8Z010 · 48520-8Z141 · 48520-8Z142 |
| 48603 | Right front suspension bearing sub-assembly | 48609-02160 · 48609-02161 · 48609-02170 · 48609-02171 |
| 48603A | Nut (for front suspension mount) | 90178-10030 |
| 48603C | Dust seal (for right front suspension mount) | 90303-22002 |
| 48609 | Left front suspension bearing sub-assembly | 48609-02160 · 48609-02161 · 48609-02170 · 48609-02171 |
| 48609D | Dust seal (for left front suspension mount) | 90303-22002 |
| 48680A | Nut (for front mount to front shock absorber) | 90179-14015 |
| 48684A | Right front suspension support dust cover | 48684-05020 |
| 48684B | Left front suspension support dust cover | 48684-05020 |
| 48810 | Left front stabilizer bar link assembly | 48820-02070 |
| 48811 | front stabilizer bar | 48811-02210 |
| 48815D | Right front stabilizer bar bushing | 48815-02150 |
| 48815E | Left front stabilizer bar bushing | 48815-02140 |
| 48820A | Nut (for front stabilizer bar link) | 90179-12151 |
| 48820B | Right front stabilizer bar link assembly | 48820-02070 |
