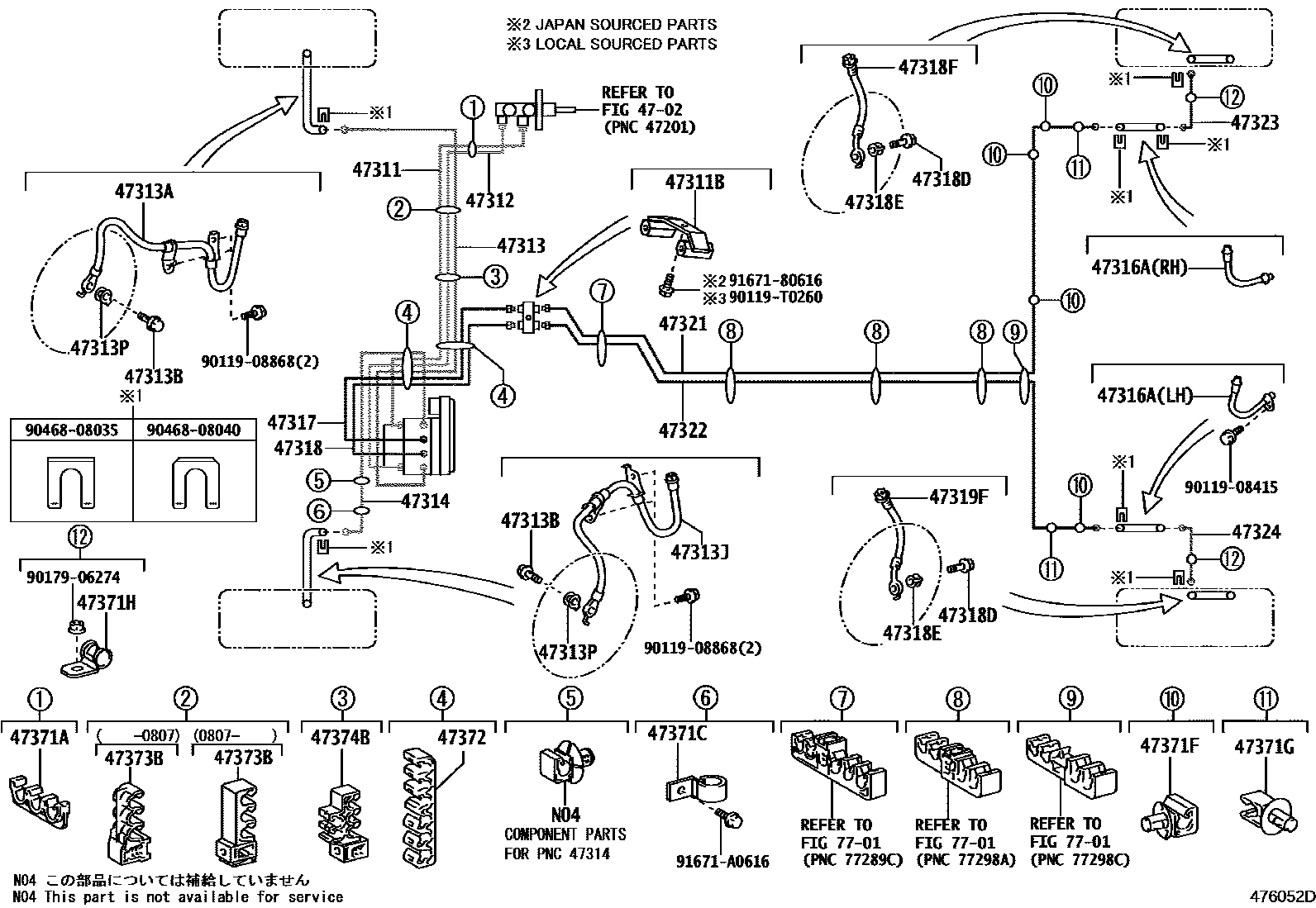

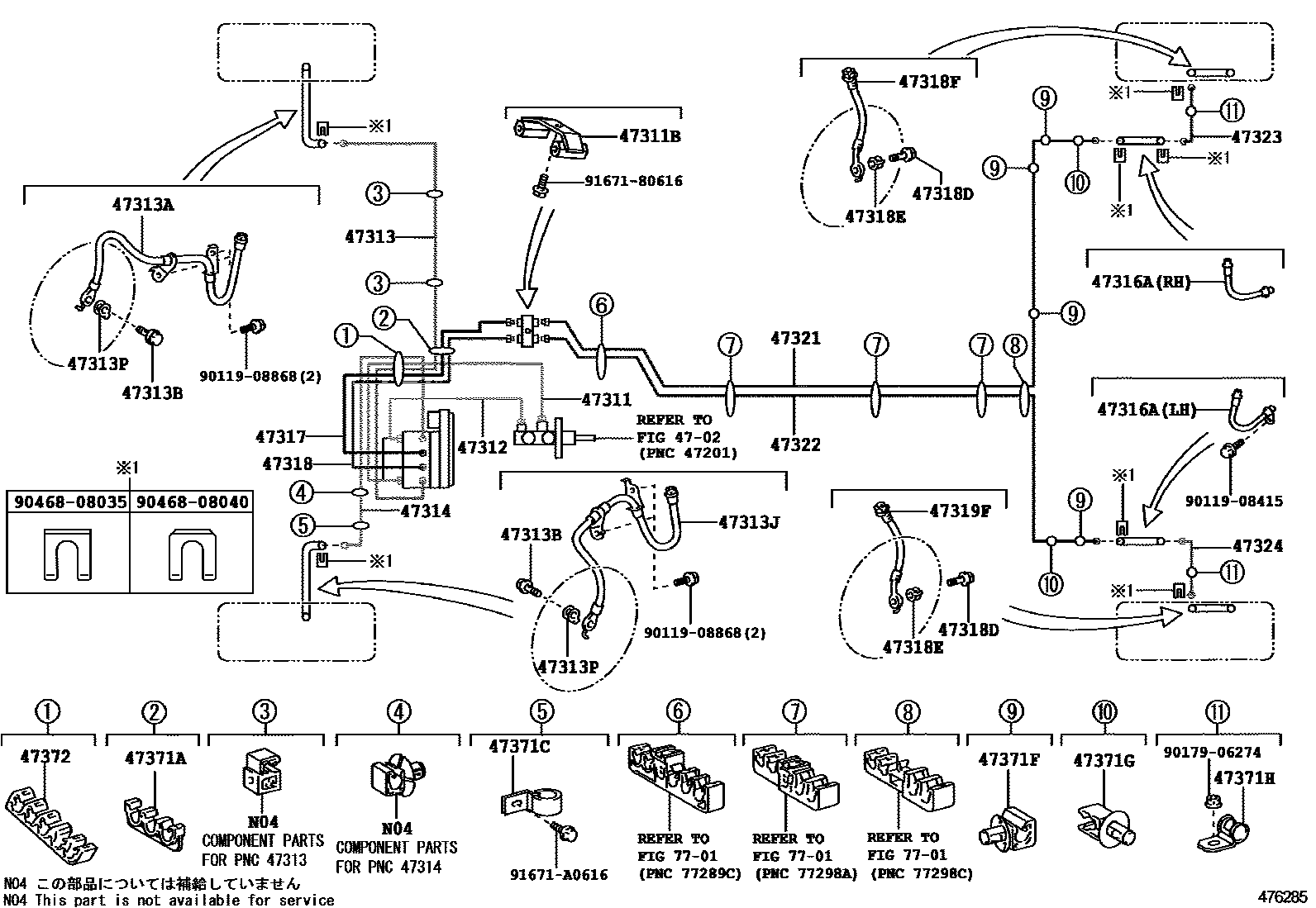

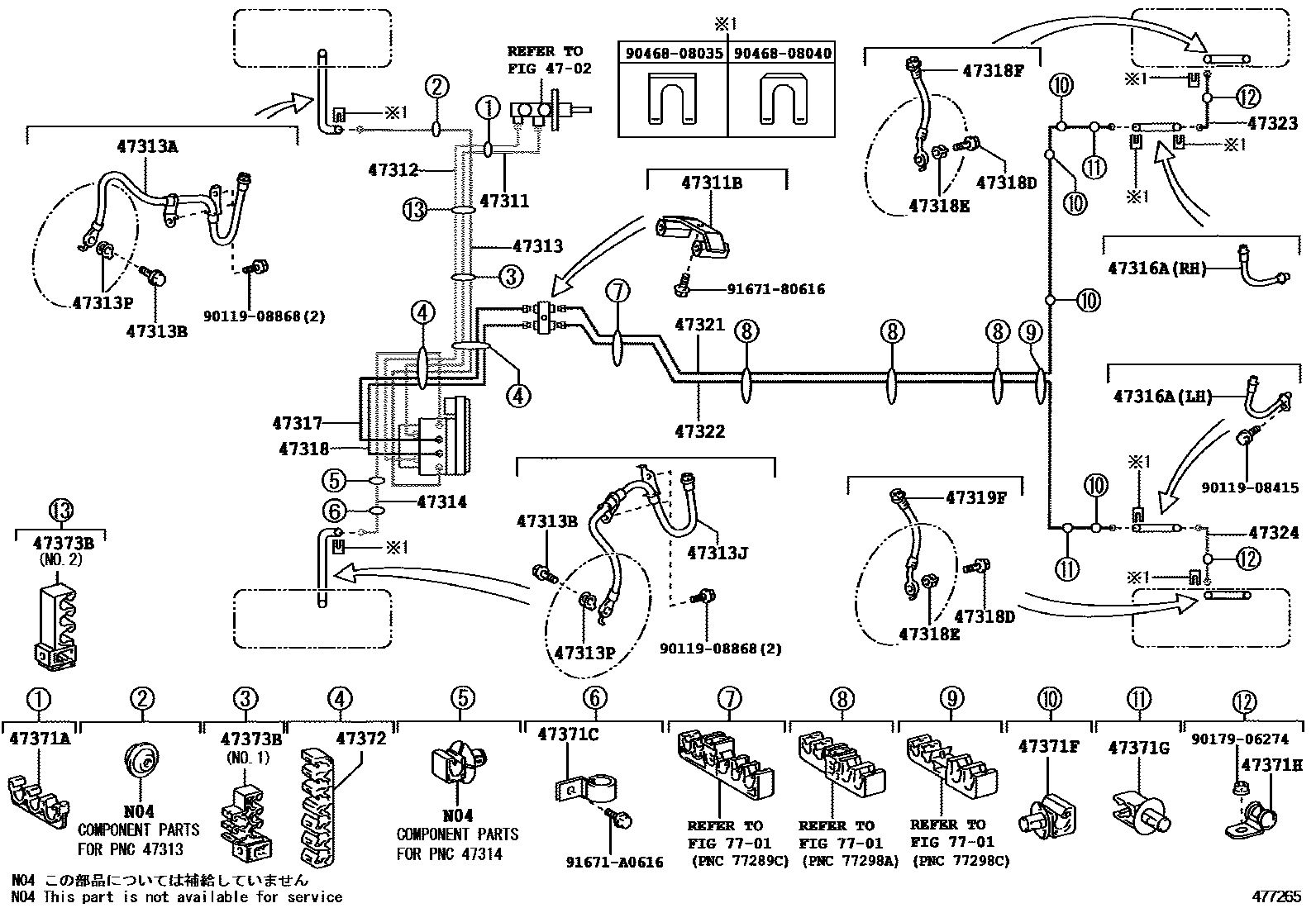

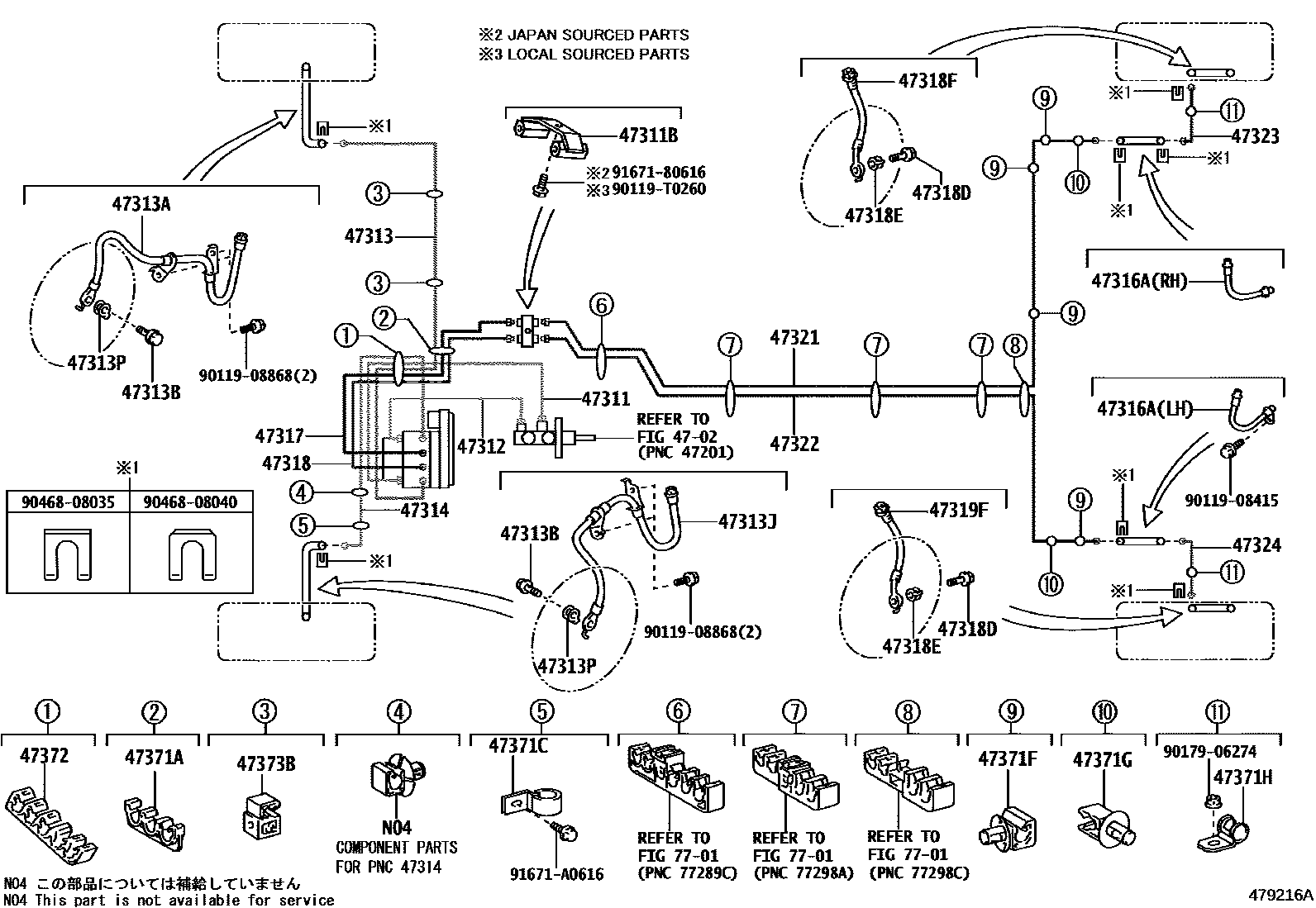

Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 5 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

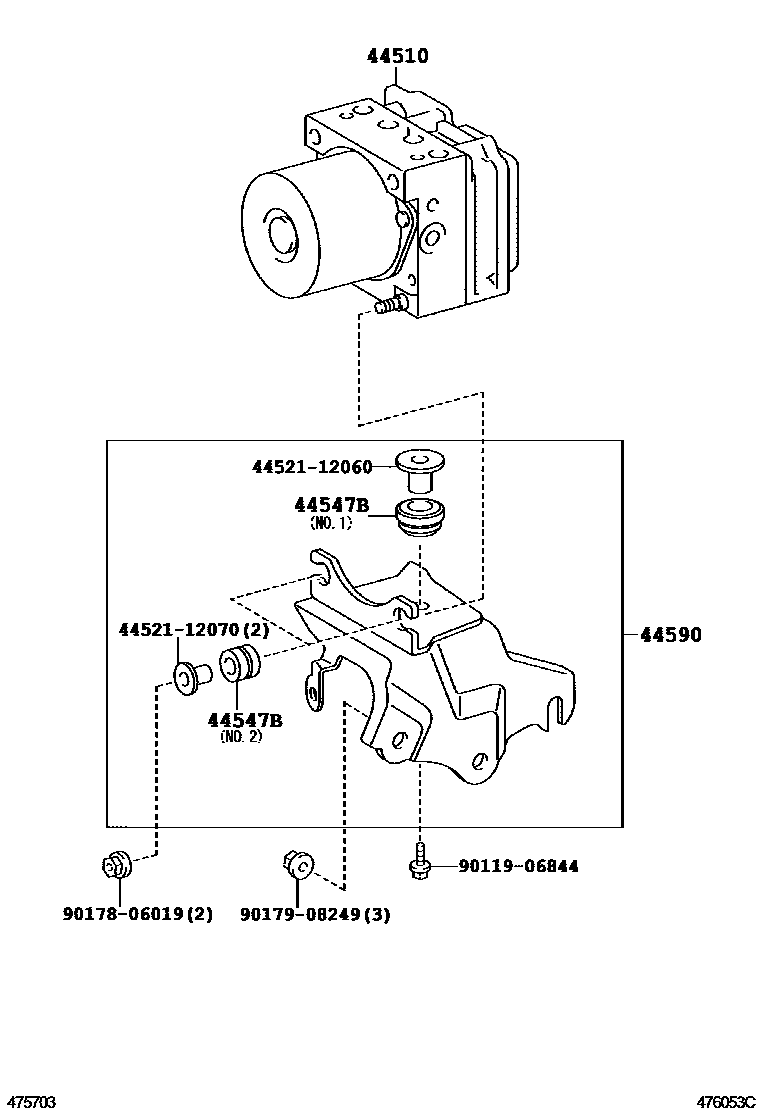

| 44510 | brake actuator assembly | 44050-02190 · 44050-02360 · 44050-02420 · 44050-02620 |
| 44547B | brake actuator bracket cushion | 44547-12010 · 44547-12030 |
| 44590 | Brake actuator bracket assembly | 44590-12120 · 44590-12130 |
| 47311 | No. 1 front brake pipe | 47311-02420 · 47311-02490 · 47311-02500 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10255 · 90412-10285 |
| 47312 | No. 2 front brake pipe | 47312-02290 · 47312-02370 · 47312-02380 |
| 47313 | No. 3 front brake pipe | 47313-02370 · 47313-02440 · 47313-02450 · 47313-02810 · 47313-02820 |
| 47313A | No. 1 front flexible hose | 90947-W2012 · 90947-W2042 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-W2013 · 90947-W2043 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-02420 · 47314-02440 · 47314-02450 · 47314-02B80 · 47314-02B90 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-W2014 · 90947-W2015 · 90947-W2045 · 90947-W2046 |
| 47317 | No. 7 front brake pipe | 47317-02340 · 47317-02360 · 47317-02371 · 47317-02B20 · 47317-02B30 |
| 47318 | No. 8 front brake pipe | 47318-02360 · 47318-02380 · 47318-02391 · 47318-02B40 · 47318-02B50 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-W2016 · 90947-W2044 |
| 47319F | Left rear flexible hose | 90947-W2016 · 90947-W2044 |
| 47321 | No. 1 rear brake pipe | 47321-02210 · 47321-02550 |
| 47322 | No. 2 rear brake pipe | 47322-02210 · 47322-02550 |
| 47323 | No. 3 rear brake pipe | 47323-02090 · 47323-02190 |
| 47324 | No. 4 rear brake pipe | 47324-02090 · 47324-02190 |
| 47371A | No. 1 brake pipe clamp | 90464-00868 · 90464-00884 |
| 47371C | No. 7 brake pipe clamp | 90461-10781 · 90461-10843 |
| 47371F | No. 10 brake pipe clamp | 90949-01D17 |
| 47371G | No. 11 brake pipe clamp | 90949-01D29 |
| 47371H | No. 12 brake pipe clamp | 90461-10837 · 90461-10843 |
| 47372 | No. 2 brake pipe clamp | 90464-00890 · 90464-00895 · 90464-00900 |
| 47373B | No. 3 brake pipe clamp | 90949-01C82 · 90949-01D05 · 90949-01D42 · 90949-01D69 · 90949-01D70 |
| 47374B | No. 4 brake pipe clamp | 90949-01D45 |
