Toyota COROLLA 制动助力器和真空管 — Figure 4703

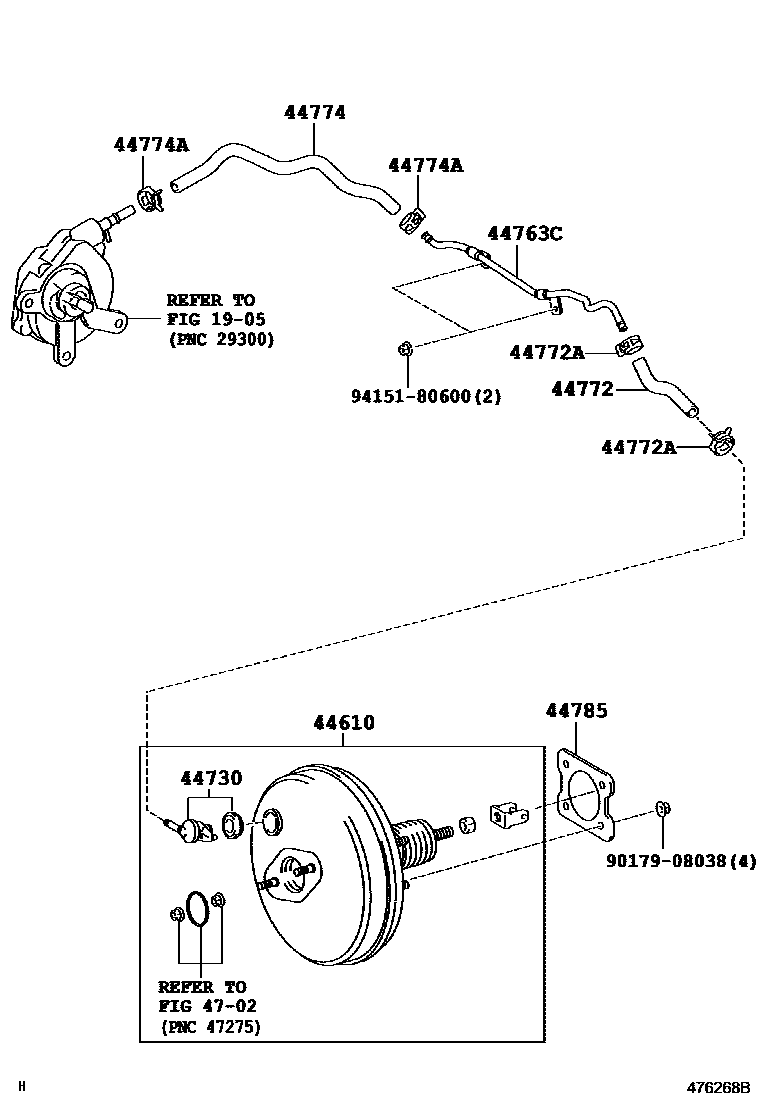

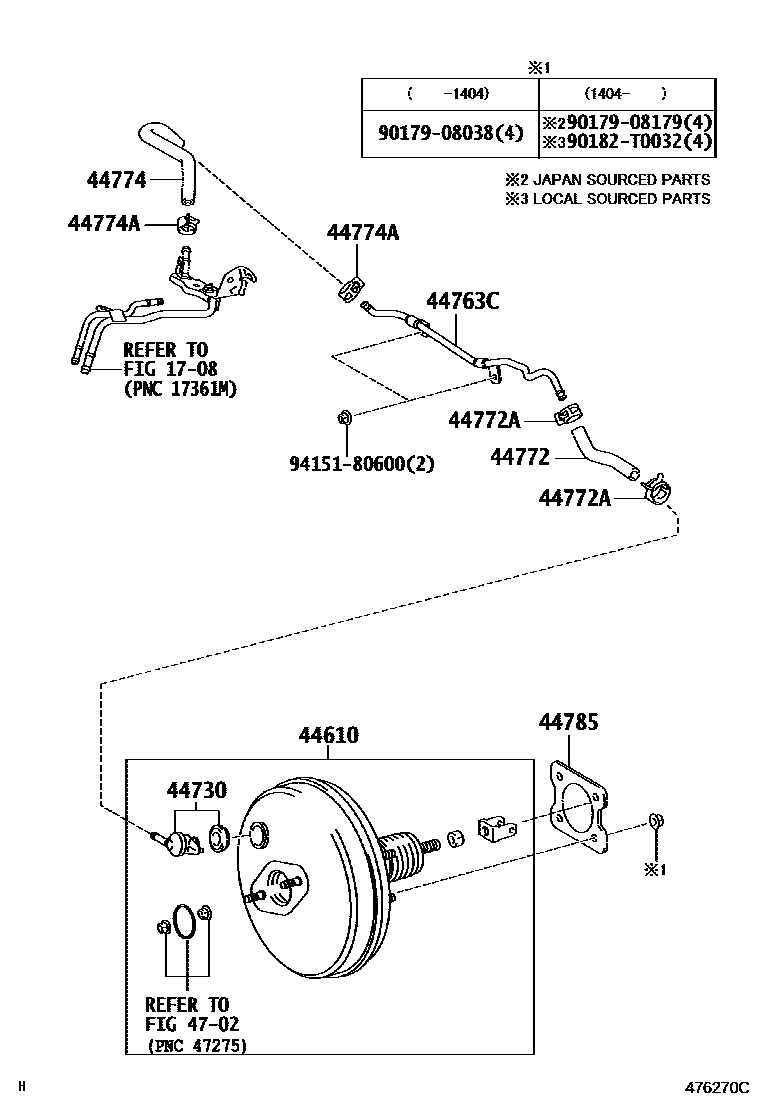

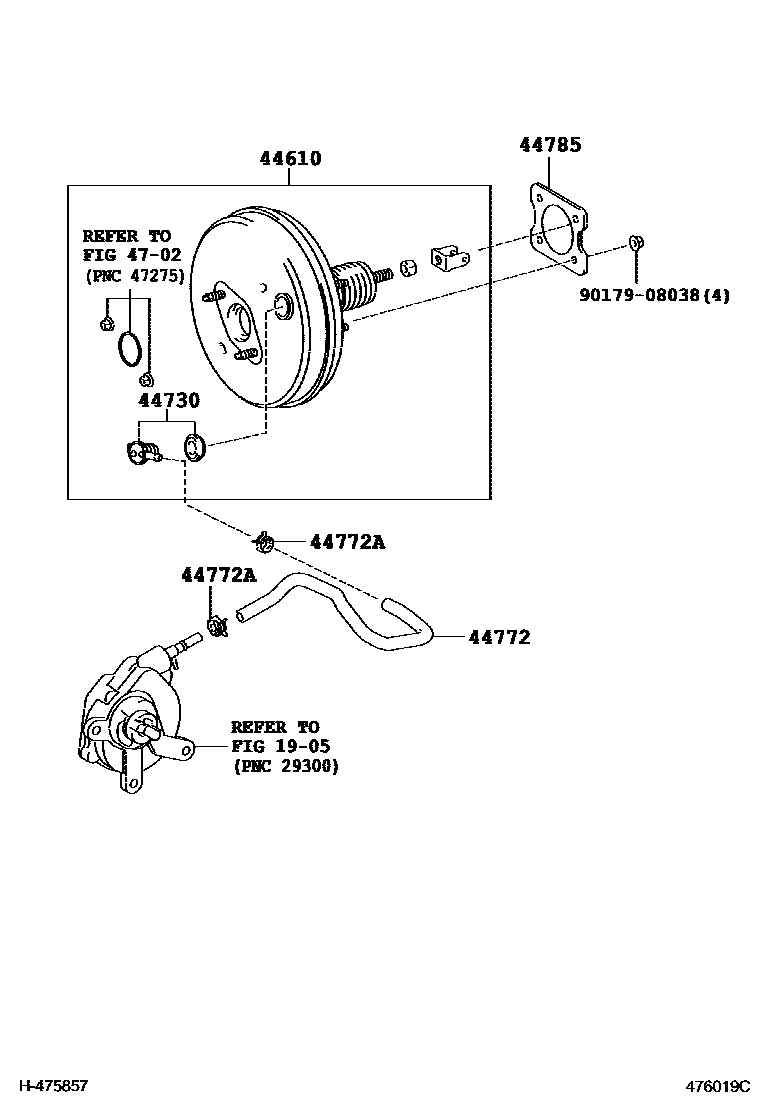

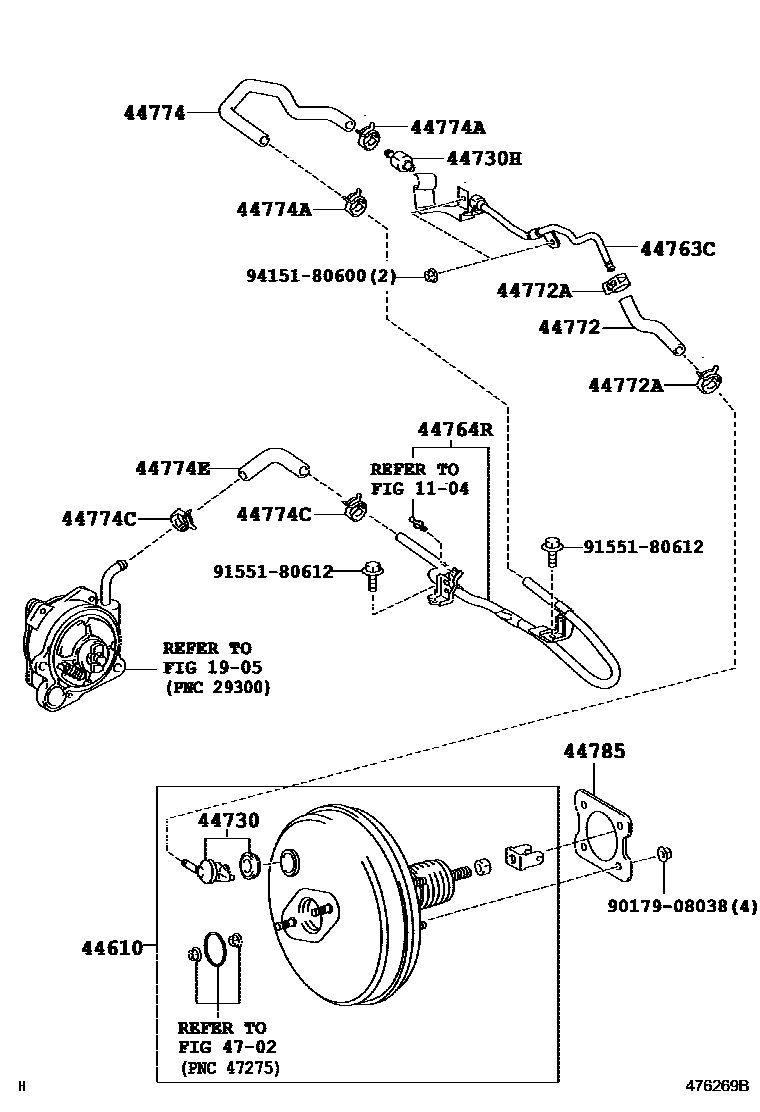

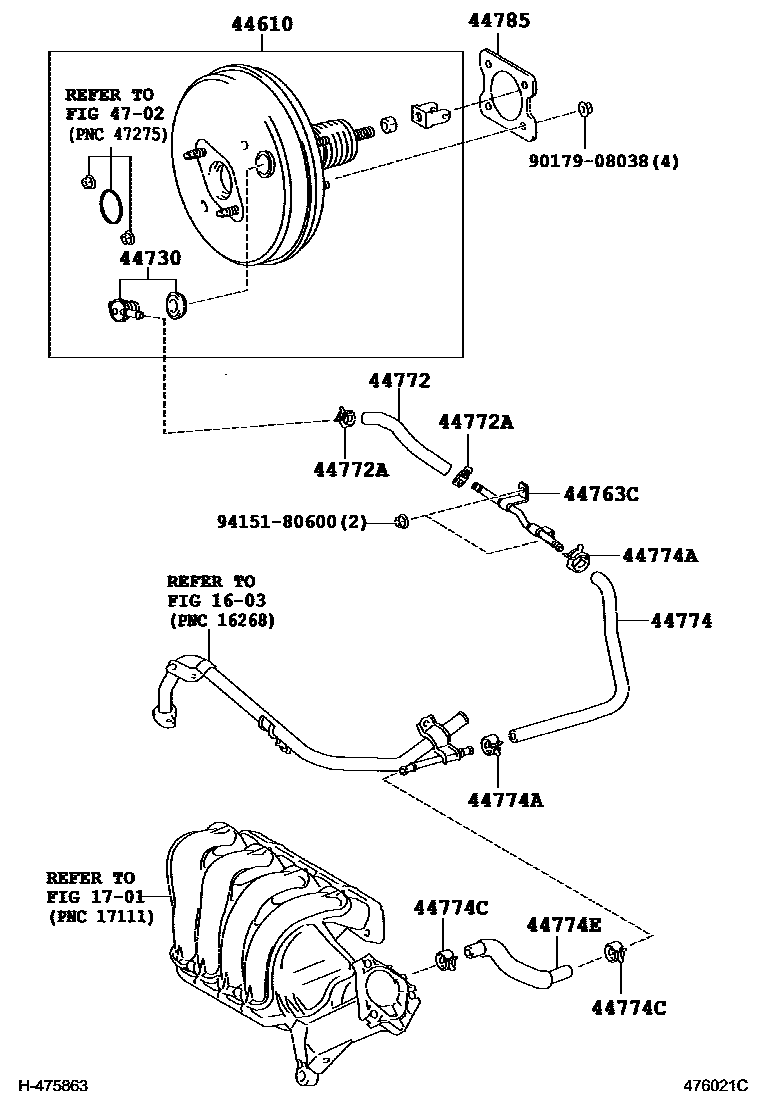

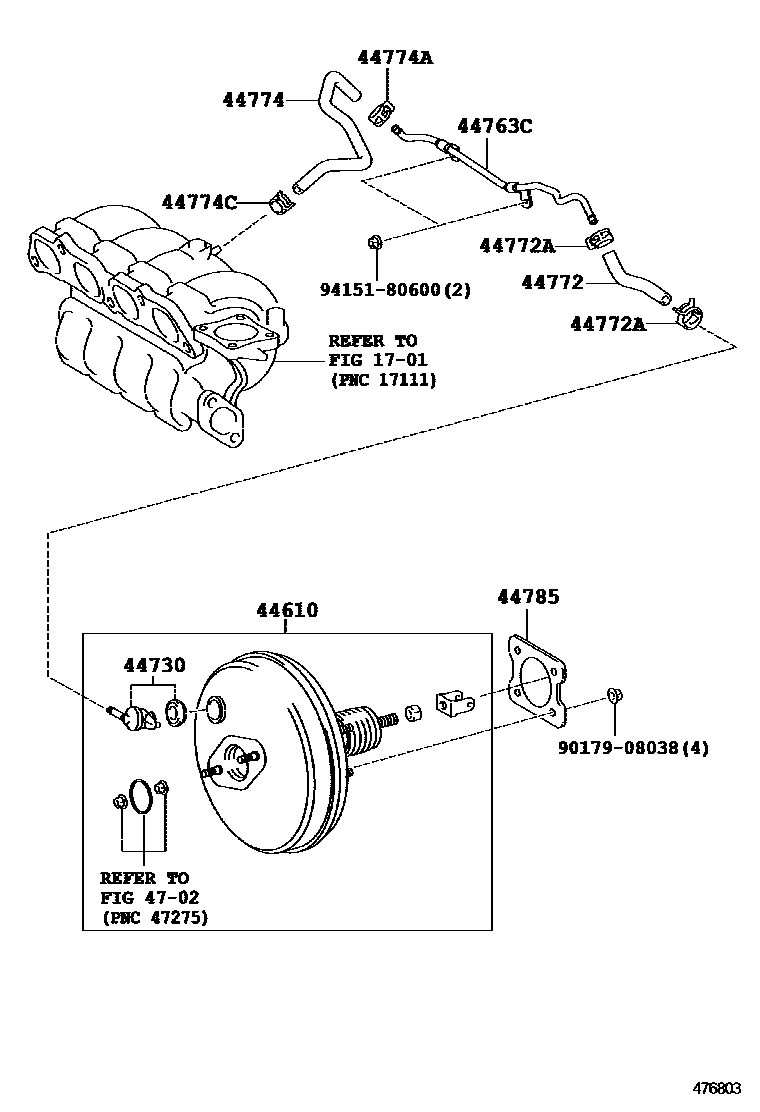

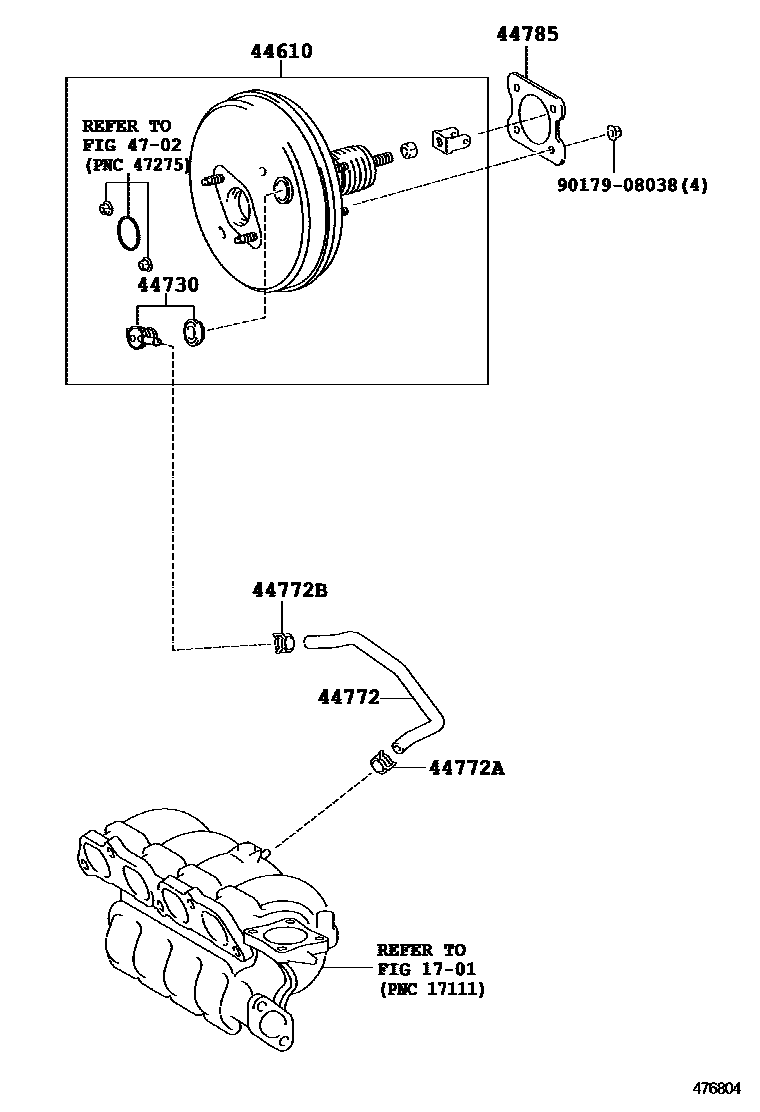

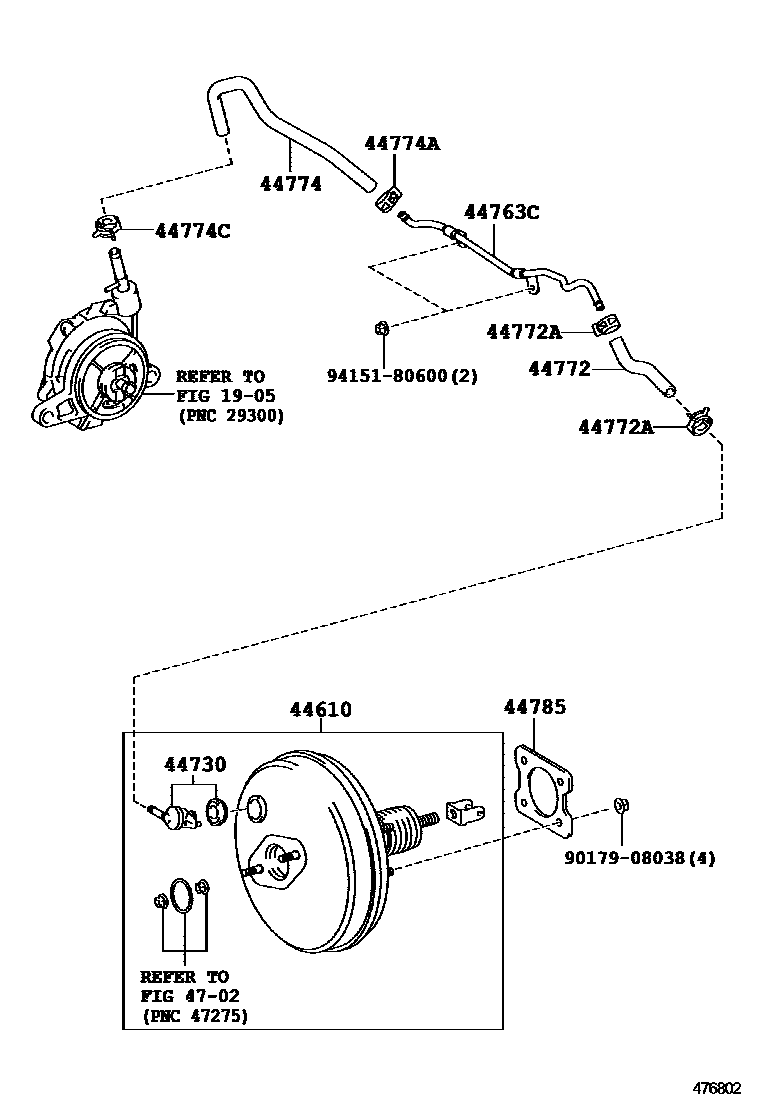

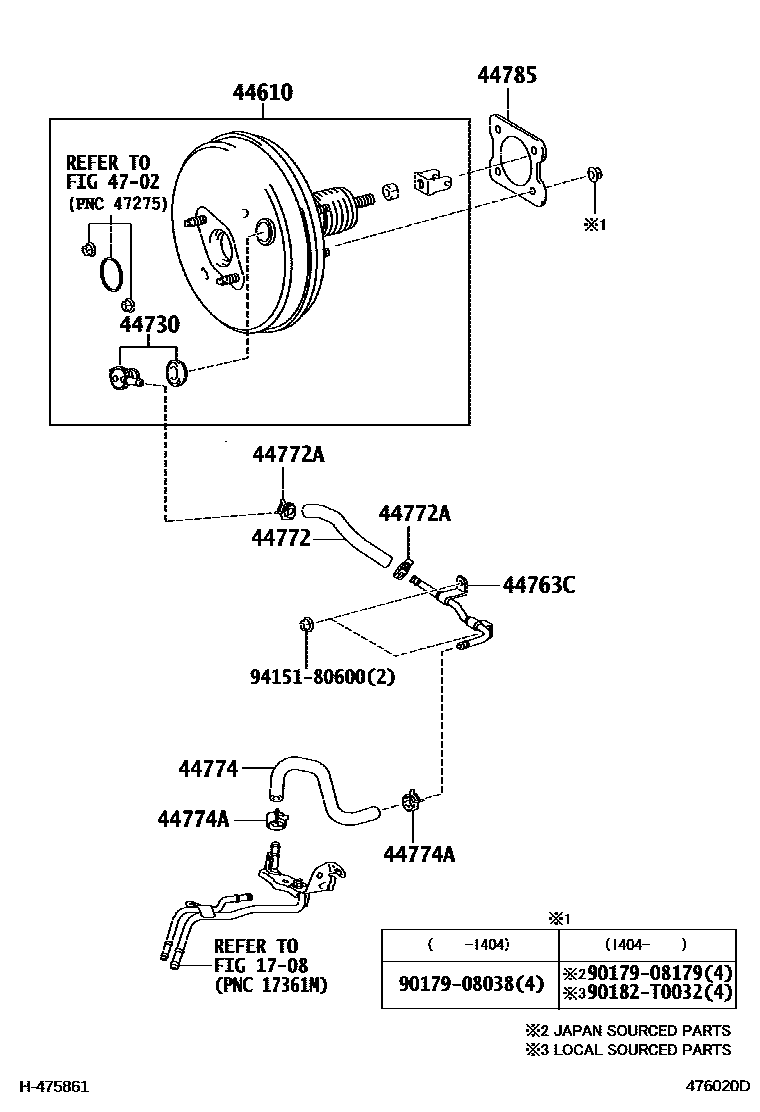

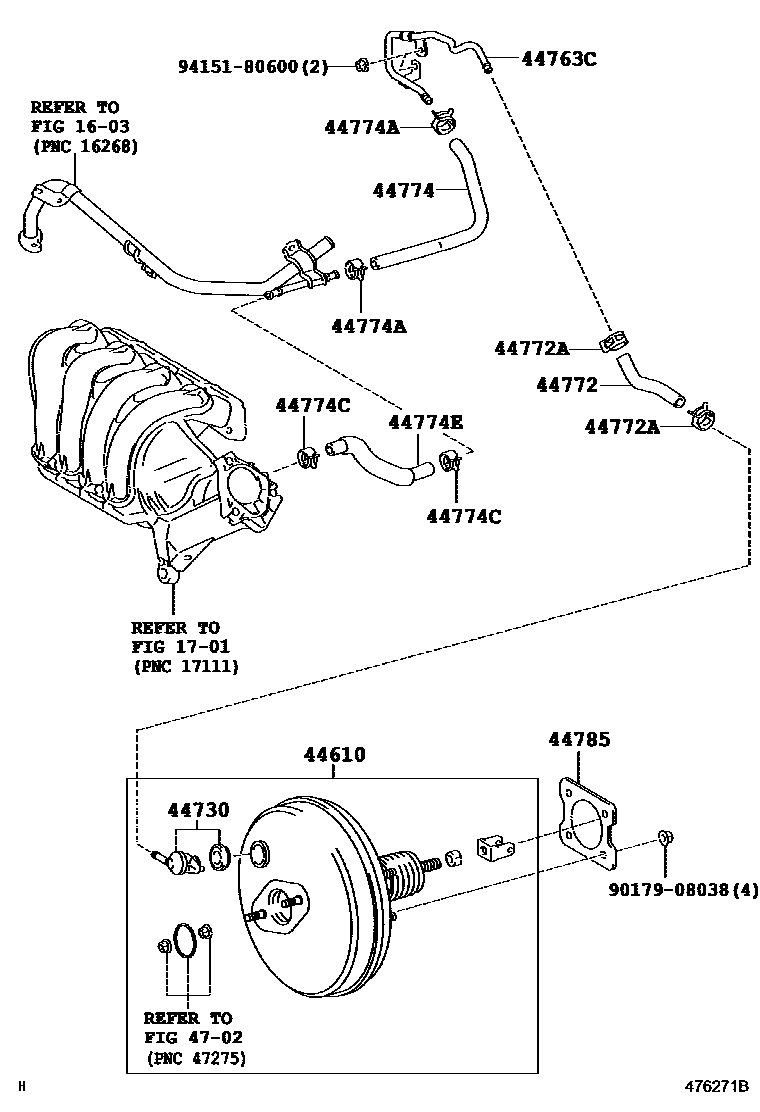

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 10 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-09400 · 44610-09420 · 44610-09430 · 44610-09440 · 44610-09441 · 44610-09450 · 44610-09710 · 44610-09711 · 44610-09720 · 44610-09721 · 44610-09730 · 44610-09731 · 44610-09740 · 44610-09741 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-09020 |
| 44730H | Vacuum check valve assembly (for vacuum reservoir) | 44730-12080 |
| 44763C | Pipe No. 2 (hose to hose) | 44763-12400 · 44763-12420 · 44763-12430 · 44763-12440 · 44763-12470 |
| 44764R | Tubing (connector to vacuum reservoir) | 44764-12010 |
| 44772 | Hoses (check valve to connector tube) | 44772-02340 · 44772-02350 · 44772-12580 · 44772-12620 · 44772-12640 · 44772-12700 · 44772-12710 |
| 44772A | Clip (for check valve to connector tube) | 90466-W0008 · 90467-16014 · 96133-41500 |
| 44772B | Hoses (check valve to brake booster) | 96133-41500 |
| 44774 | Hoses (joints to connector tubes) | 44774-02410 · 44774-02430 · 44774-12530 · 44774-12540 · 44774-12560 · 44774-12580 · 44774-12590 · 44774-12630 · 44774-12740 · 44774-12750 · 44774-12751 |
| 44774A | Clip (for fitting to connector tube hose) | 90466-W0008 · 96133-41500 |
| 44774C | Clip (for fitting to connector tube hose) | 90467-16014 · 96133-41500 |
| 44774E | Hoses (joints to connector tubes) | 44774-12470 · 44774-52021 |
| 44785 | brake booster pad | 44785-05020 · 44785-12040 |
