Toyota COROLLA 车轮和车轮盖 — Figure 4103

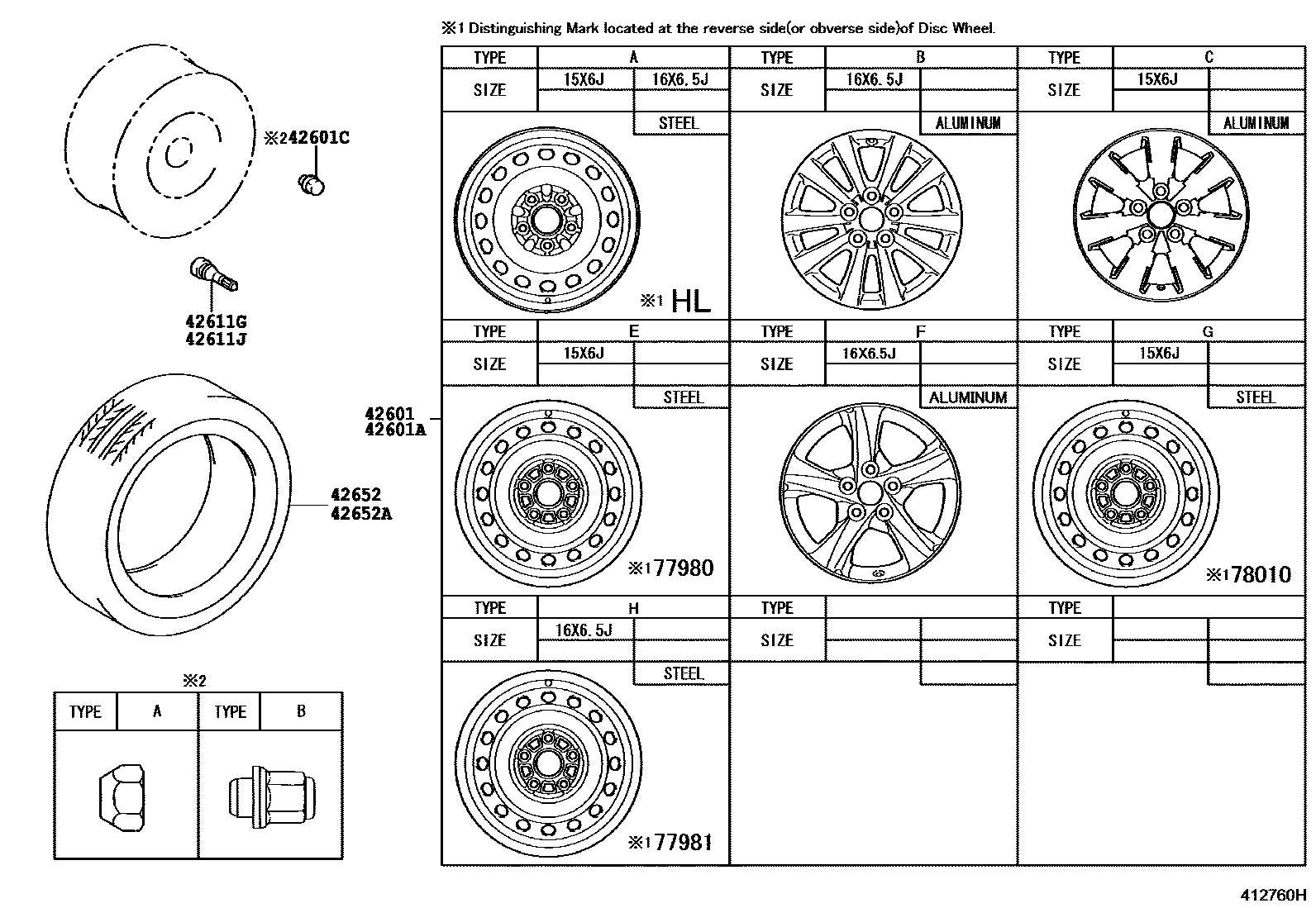

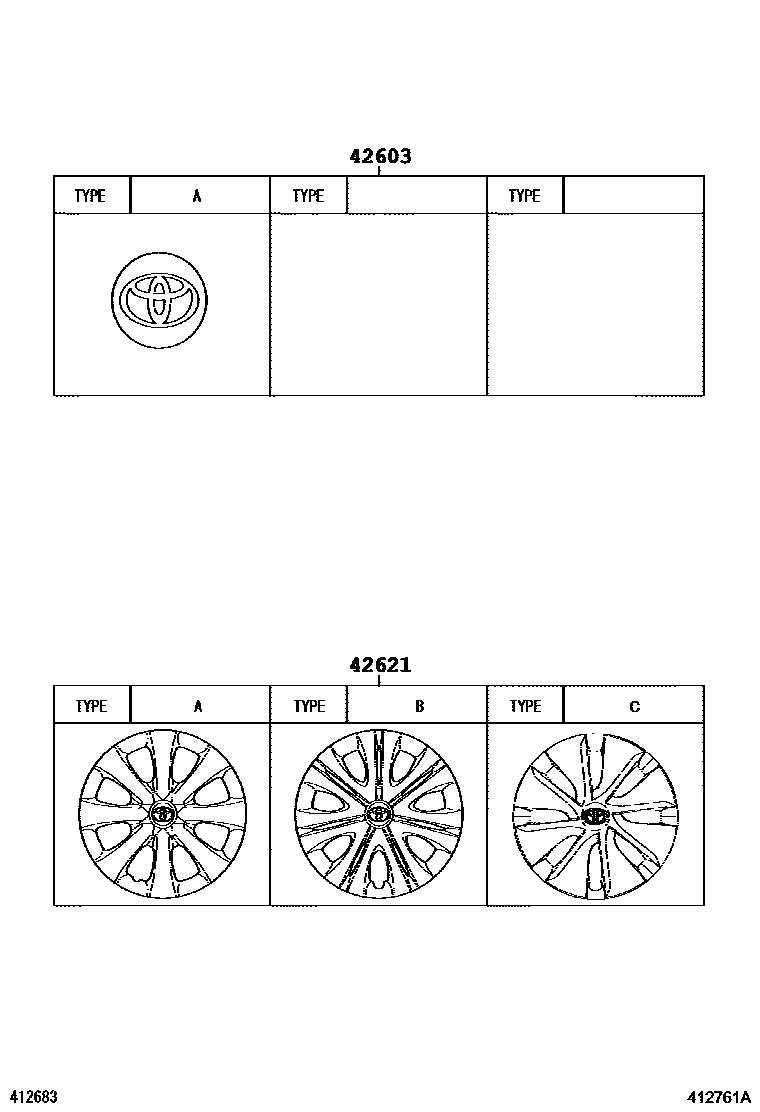

Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-02740 · 42611-02750 · 42611-02800 · 42611-02810 · 42611-02C90 · 42611-02D20 · 42611-02D30 · 42611-02G00 |
| 42601A | Spoke wheel (for spare tire) | 42611-02740 · 42611-02750 · 42611-02D20 · 42611-02D30 · 42611-02G00 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-02210 · 42603-12760 |
| 42611G | Valve (for tubeless tires) | 90080-94180 · 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90080-94180 · 90942-05009 |
| 42621 | wheel cover | 42602-02240 · 42602-02250 · 42602-02340 |
| 42652 | tires | 42652-02E40 · 42652-02E50 · 42652-02E80 · 42652-02F00 · 42652-02K30 · 42652-12D31 |
| 42652A | Tire (for Spare Wheel) | 42652-02E40 · 42652-02E50 · 42652-02E80 · 42652-02F00 · 42652-02K30 · 42652-12D31 |
