Toyota COROLLA 行星齿轮、倒档活塞和中间轴齿轮(ATM) — Figure 3510

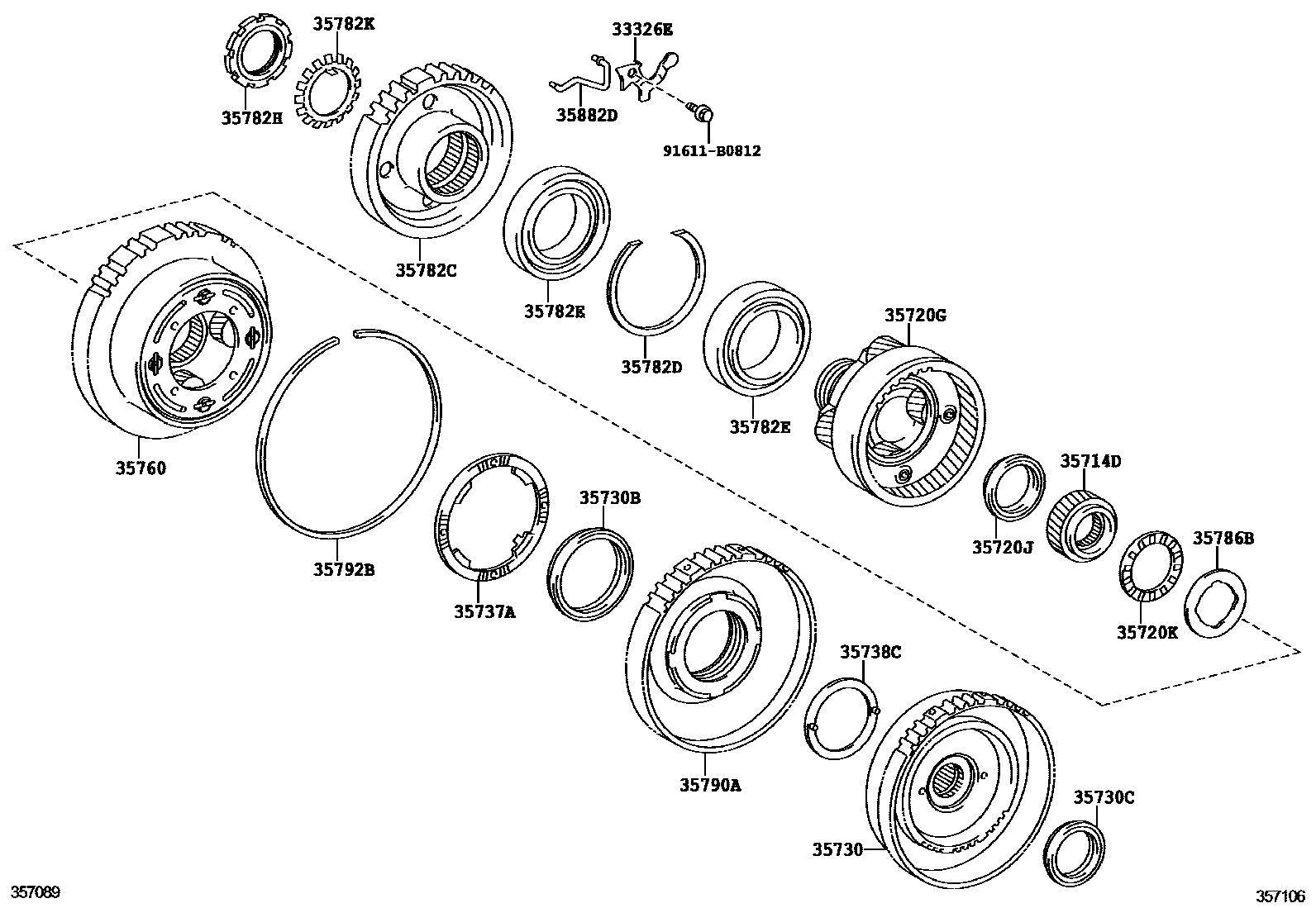

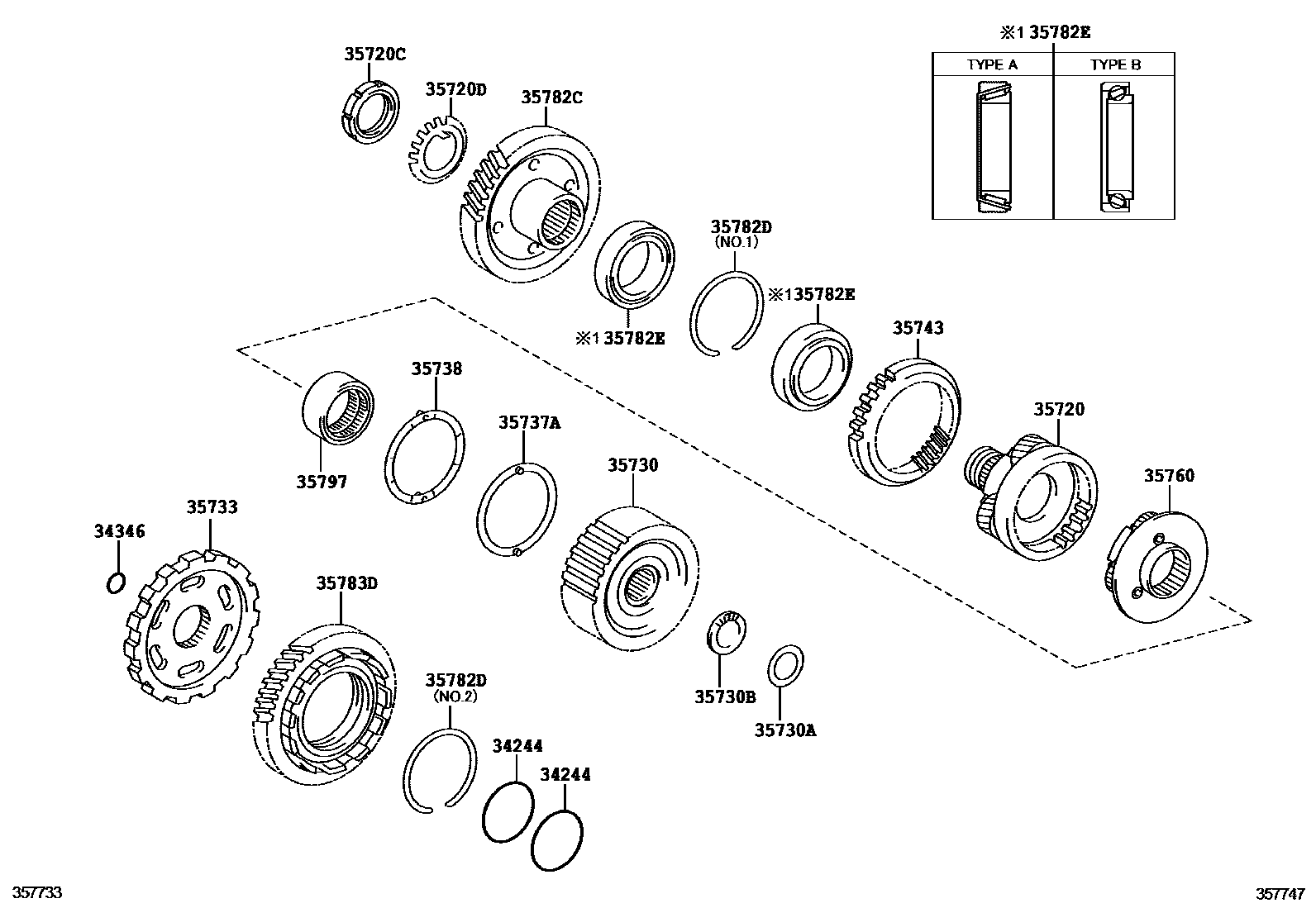

Toyota COROLLA EPC diagram 3510, 行星齿轮、倒档活塞和中间轴齿轮(ATM), with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33326E | Bearing locking plate | 33326-20010 · 33326-52010 |
| 34244 | Low gear clutch drum oil protection ring | 34244-21010 |
| 34346 | Low speed gear output shaft oil protector ring | 34346-21011 |
| 35714D | Front planetary gear train sun gear | 35714-52020 |
| 35720 | Front planetary gear assembly | 35720-28080 |
| 35720C | Nut (for front planetary gear) | 90179-46001 |
| 35720D | Washer (for front planetary gear) | 90209-46001 |
| 35720G | Planetary gear assembly | 35720-52021 · 35720-52022 |
| 35720J | Front thrust needle roller bearing (for planetary gears) | 90374-33006 |
| 35720K | Rear thrust needle roller bearing (for planetary gears) | 90374-33007 |
| 35730 | Rear planetary gear train sun gear assembly | 35730-28020 · 35730-52020 |
| 35730A | Thrust bearing race (for rear planetary gear train sun gear) | 35789-21010 |
| 35730B | Thrust needle roller bearing (for rear planetary gear train sun gear) | 90374-33003 · 90374-43003 |
| 35730C | Thrust needle roller bearing (for No. 2 rear planetary gear train sun gear) | 90374-29002 |
| 35733 | Parking lock gear | 35733-32030 |
| 35737A | No. 1 planetary gear carrier thrust washer | 35737-21010 · 35737-52020 |
| 35738 | No. 2 planetary gear carrier thrust washer | 35737-21010 |
| 35738C | No. 2 planetary gear carrier thrust washer | 35738-52010 |
| 35743 | Front planetary ring gear | 35743-28010 |
| 35760 | Rear planetary gear assembly | 35760-28010 · 35760-52011 |
| 35782C | countershaft driving gear | 35782-32031 · 35782-52020 |
| 35782D | Hole snap ring (for countershaft drive gear) | 90520-83001 · 90520-84001 · 90520-89004 |
| 35782E | Bearings (for countershaft drive gear) | 90363-52002 · 90363-52005 · 90366-60009 · 90369-59001 |
| 35782H | Nut (for countershaft drive gear) | 90179-40009 |
| 35782K | Lock washer (for countershaft drive gear lock nut) | 90215-40002 |
| 35783D | countershaft driven gear | 35783-33040 |
| 35786B | No. 2 thrust bearing race | 35787-52010 |
| 35790A | One-way clutch assembly | 35790-52020 |
| 35792B | Hole snap ring (for No. 2 one-way clutch) | 90520-99053 |
| 35797 | One-way clutch inner race | 35797-21010 |
| 35882D | Differential gear lubricant oil supply pipe | 35882-52020 |
