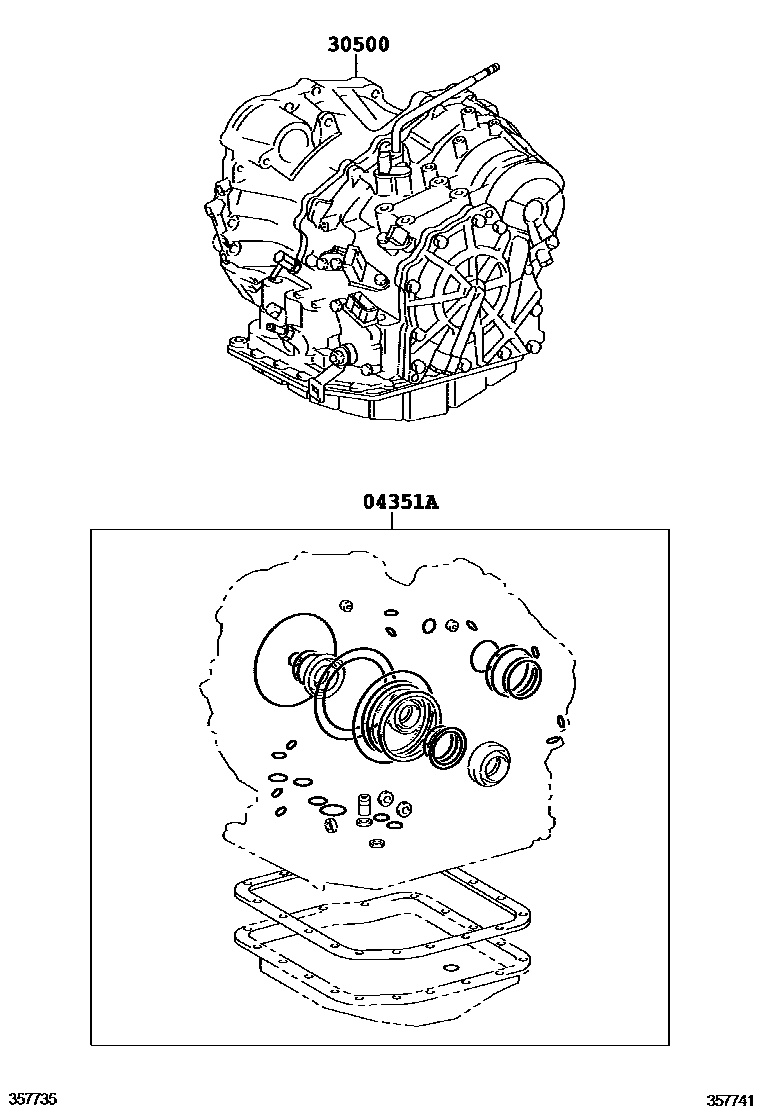

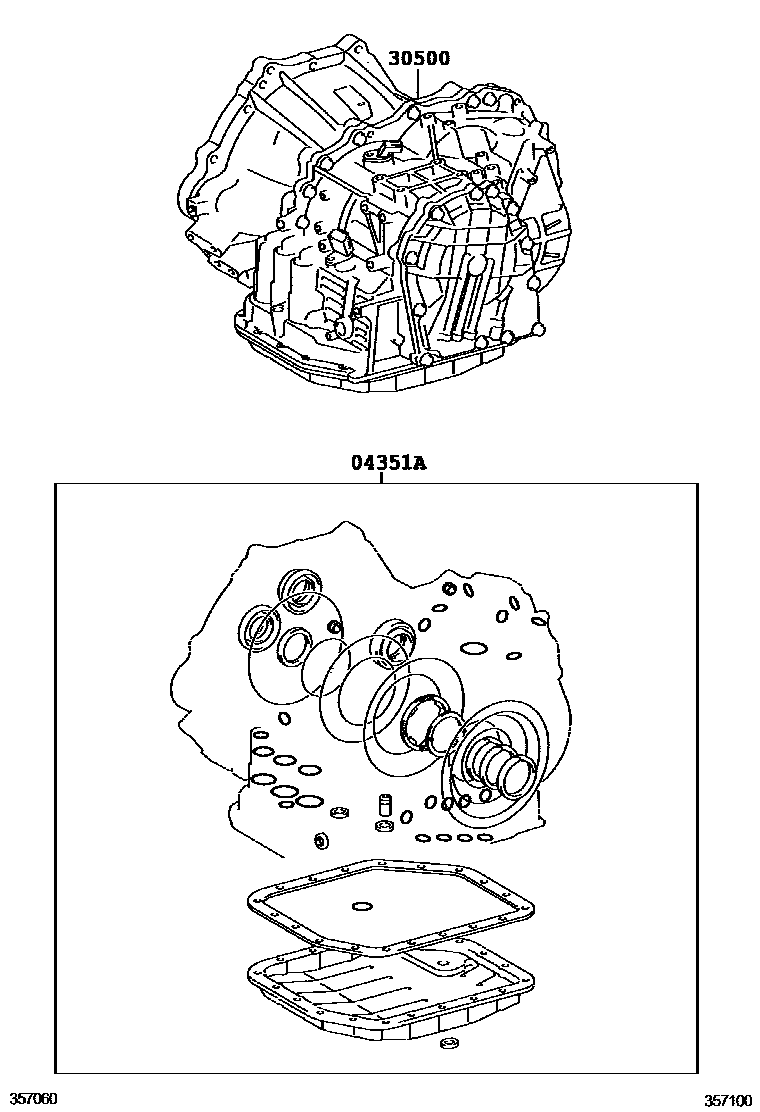

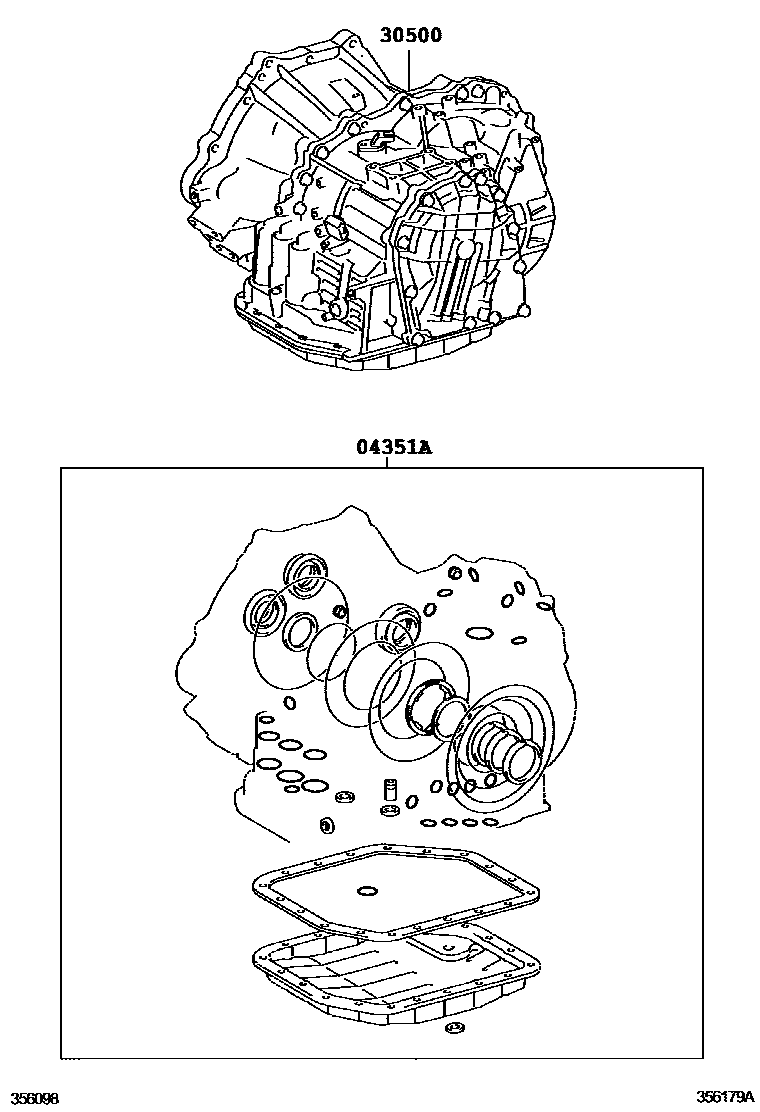

Toyota COROLLA 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota COROLLA EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 3 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-12750 · 04351-12751 · 04351-12752 · 04351-12753 · 04351-48151 · 04351-48152 · 04351-48153 · 04351-48154 · 04351-52510 · 04351-52511 · 04351-52512 · 04351-52513 · 04351-52514 |
| 30500 | Automatic transmission axle assembly | 30500-12B80 · 30500-12D30 · 30500-20A50 |
