Toyota COROLLA 离合器壳和变速器壳(MTM) — Figure 3302

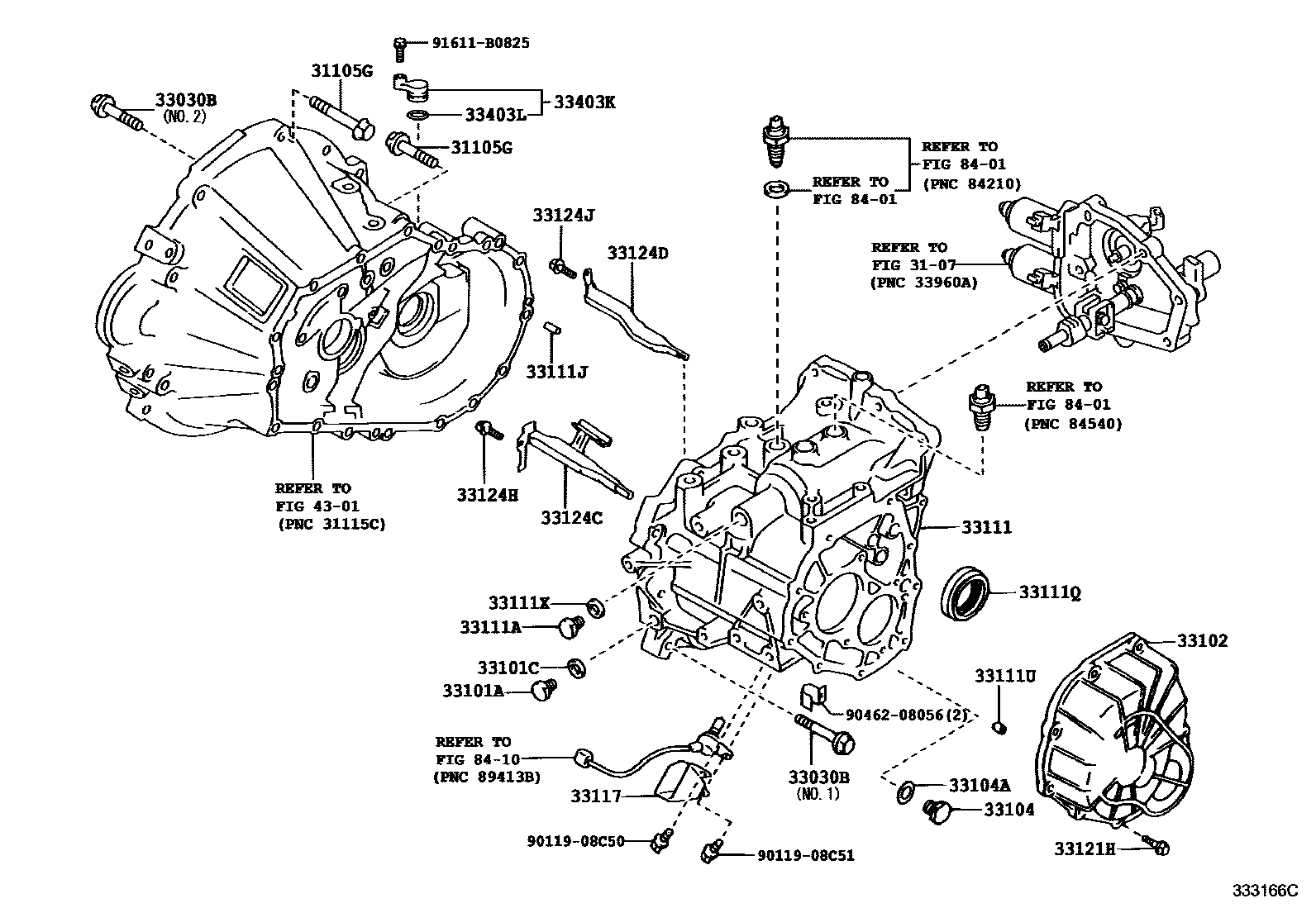

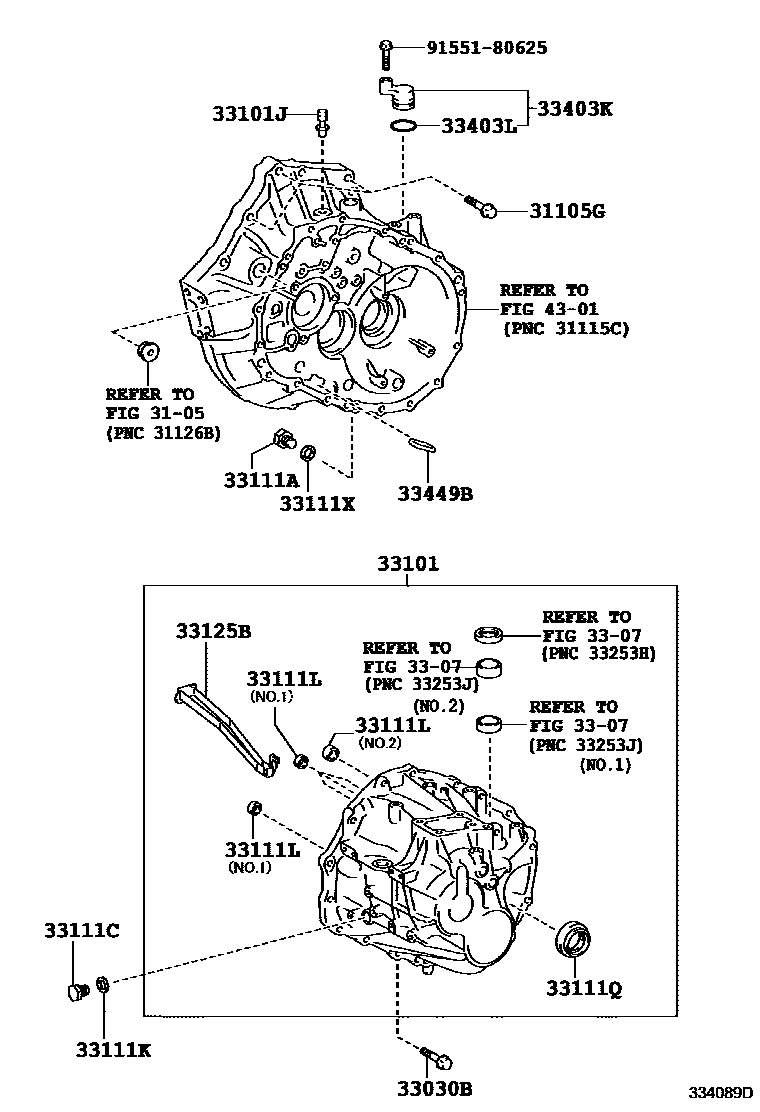

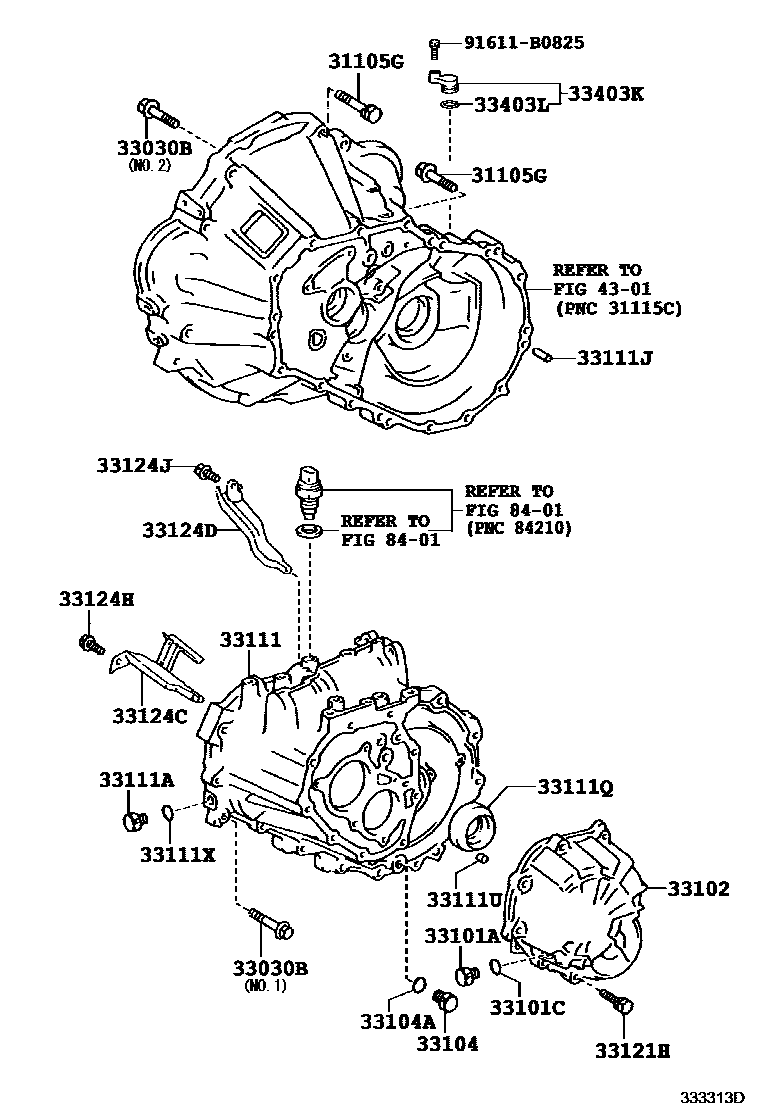

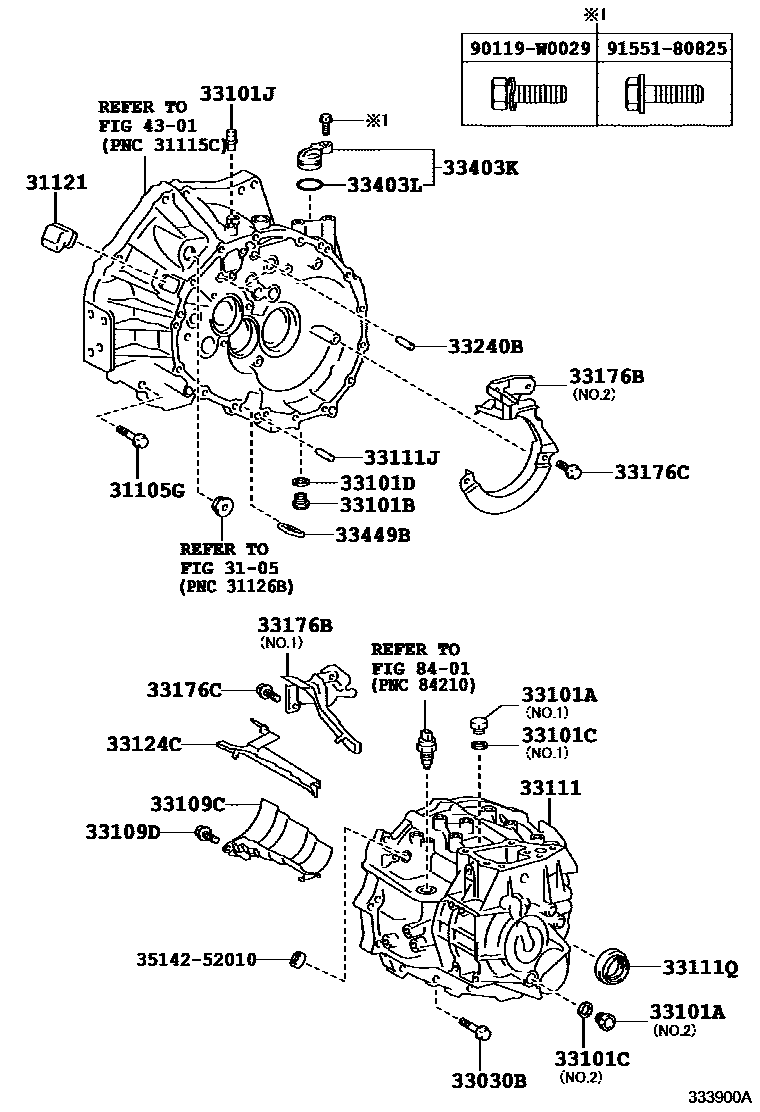

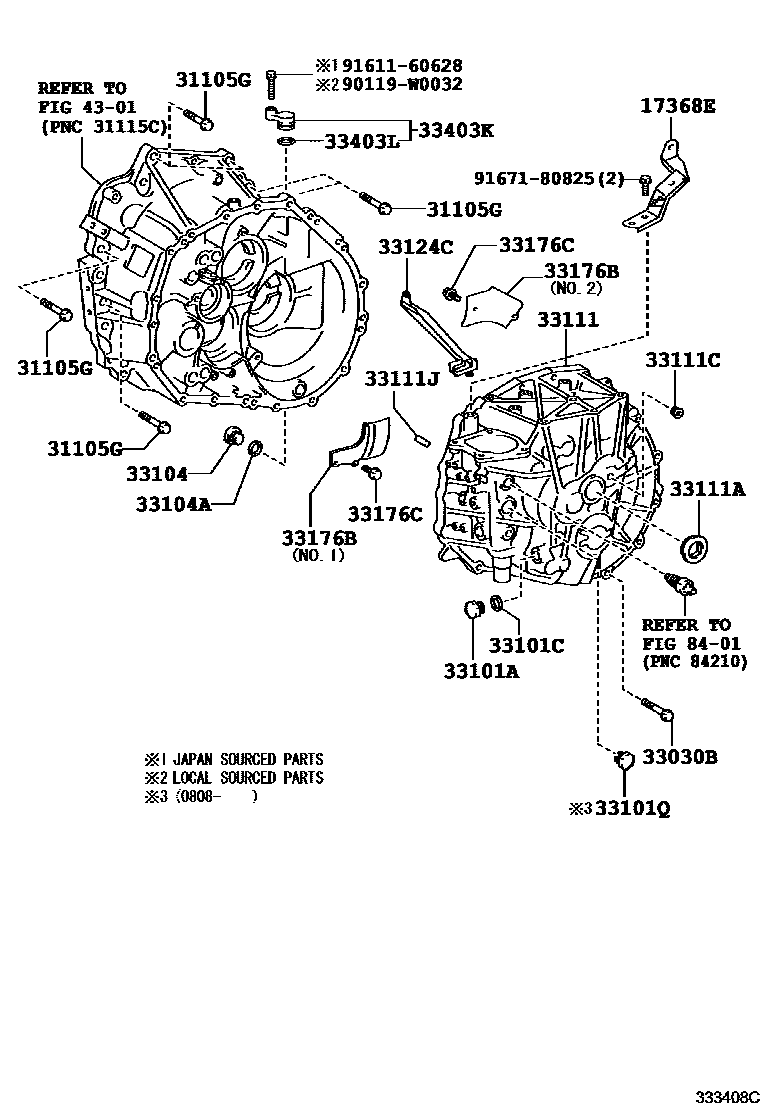

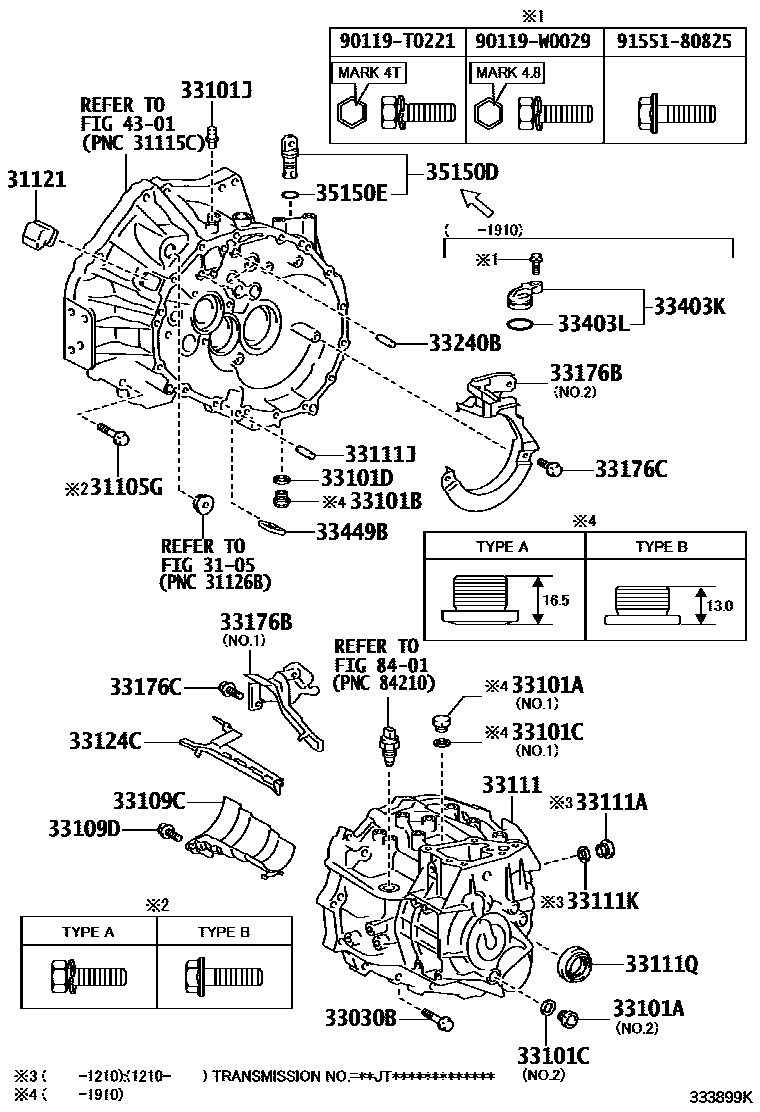

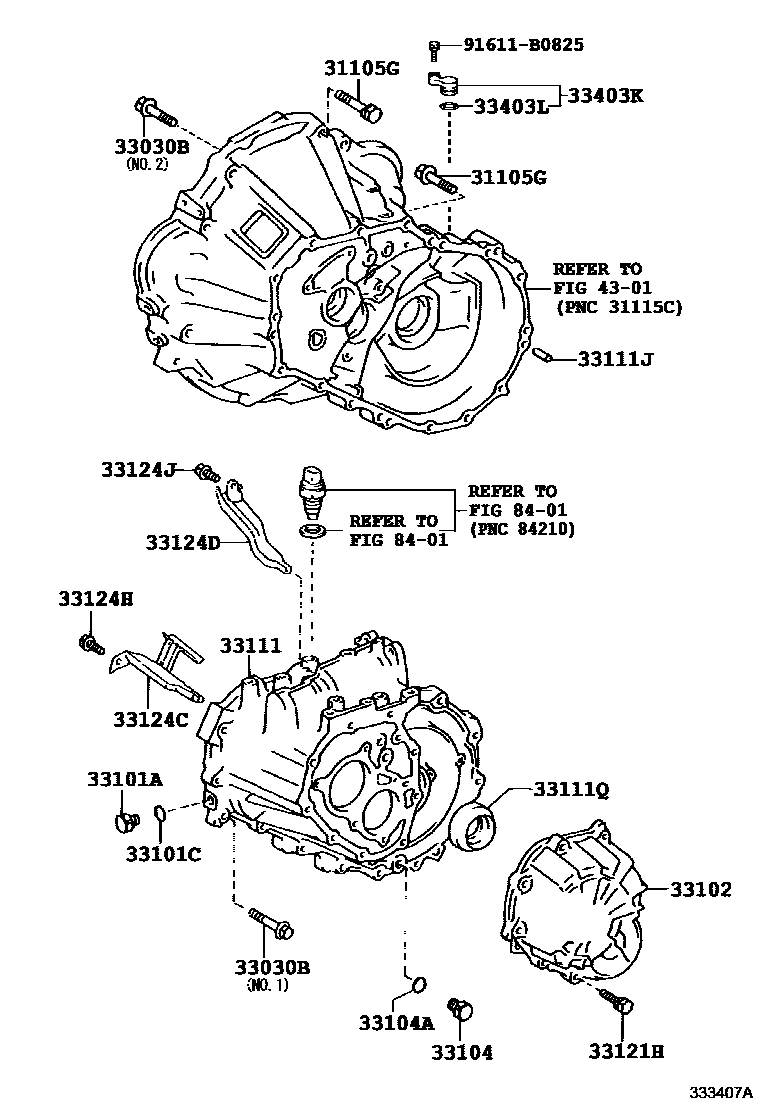

Toyota COROLLA EPC diagram 3302, 离合器壳和变速器壳(MTM), with 7 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17368E | Air tube support | 17368-26030 |
| 31105G | Bolts (for securing transaxle housing and engine) | 90105-W0181 · 90105-W0182 · 90119-12042 · 90119-12168 · 90119-12252 · 90119-W0049 · 90119-W0080 · 90119-W0097 · 90119-W0162 · 90119-W0163 · 91512-61045 · 91512-61060 · 91512-61065 · 91552-81045 · 91552-81080 · 91552-81245 · 91552-81280 · 91612-61045 · 91642-81055 |
| 31121 | No. 1 clutch housing cover | 31121-05010 · 31121-52020 |
| 33030B | Bolts (for securing transaxle housing and gearbox) | 90105-08086 · 90105-08353 · 90105-08430 · 90105-W0209 · 91551-10840 |
| 33101 | Manual transmission housing sub-assembly | 33101-20100 |
| 33101A | Screw plug (for manual transmission oil filler port) | 90341-14032 · 90341-18033 · 90341-18038 |
| 33101B | Screw plug (for manual transmission drain port) | 90341-18016 · 90341-18023 |
| 33101C | Gasket (for manual transmission filler plug) | 12157-10010 · 90430-14003 · 90430-18008 · 90430-W0001 |
| 33101D | Gasket (for manual transmission drain plug) | 12157-10010 · 90430-18008 · 90430-W0001 |
| 33101J | vent plug | 90930-03085 · 90930-03133 |
| 33101Q | No. 1 screw plug (for gearbox) | 90341-18019 |
| 33102 | Manual transmission cover sub-assembly | 33102-0D010 · 33102-12021 · 33102-20050 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18006 · 90341-18033 |
| 33104A | Drain plug gasket (MTM) | 90430-18008 · 90430-W0001 |
| 33109C | Manual transmission oil separator sub-assembly | 33109-0D010 · 33109-0D011 · 33109-20020 |
| 33109D | Bolt (for manual transmission oil separator) | 90105-W0035 · 91551-80816 |
| 33111 | Manual transmission housing | 33111-02020 · 33111-02050 · 33111-02052 · 33111-05040 · 33111-05041 · 33111-12240 · 33111-20220 · 33111-20221 · 33111-42050 · 33111-42060 · 33111-52130 · 33111-52131 · 33111-64011 |
| 33111A | Manual transmission plug | 90341-18006 · 90341-18023 · 90341-42002 |
| 33111C | Screw plug (for gearbox) | 90341-12004 · 90341-18033 |
| 33111J | Direct sales (for manual transmission) | 90250-08054 |
| 33111K | Gasket (for gearbox) | 12157-10010 · 90430-18008 · 90430-W0001 |
| 33111L | Bimetallic bushing (for gearbox) | 90384-14008 · 90384-16005 |
| 33111Q | Oil seal (for gearbox) | 90311-34034 · 90311-34042 · 90311-35058 · 90311-35061 · 90311-35066 · 90311-35075 · 90311-50032 · 90311-50046 · 90311-W0004 · 90311-W0016 |
| 33111U | Ring pin (for manual transmission) | 90253-11001 |
| 33111X | Gearbox plug gasket | 12157-10010 · 90430-18008 |
| 33117 | manual transmission protector | 33117-17020 |
| 33121H | Bolt with washer (for gearbox cover) | 90119-08429 · 90119-08782 |
| 33124C | No. 1 oil collecting pipe (MTM) | 33124-0D050 · 33124-20040 · 33124-20050 · 33124-20080 · 33124-52030 |
| 33124D | No. 2 oil collecting pipe (MTM) | 33124-12021 · 33124-20060 |
| 33124H | Bolt (for oil collection pipe) | 91611-G0820 |
| 33124J | Bolts with washers | 91611-G0820 |
| 33125B | Manual gearbox oil collector | 33125-20020 |
| 33176B | Transmission oil separator (MTM) | 33176-0D020 · 33176-0D030 · 33176-20010 · 33176-20020 · 33176-20080 · 33176-20090 |
| 33176C | Bolt (for transmission oil separator) | 90105-W0035 · 91551-80816 · 91611-B0616 |
| 33240B | Direct sale (for reverse shift arm bracket) | 90250-08054 |
| 33403K | Speedometer driven gear hole cover sub-assembly | 33403-0D020 · 33403-20230 · 33403-35230 |
| 33403L | O-ring | 96711-24018 · 96711-24030 |
| 33449B | derailleur magnet | 33449-20010 · 33449-60010 |
| 35150D | gearbox plug assembly | 35150-44010 |
| 35150E | O-ring (for gearbox plug) | 90301-09173 |
