Toyota COROLLA 离合器总泵 — Figure 3103

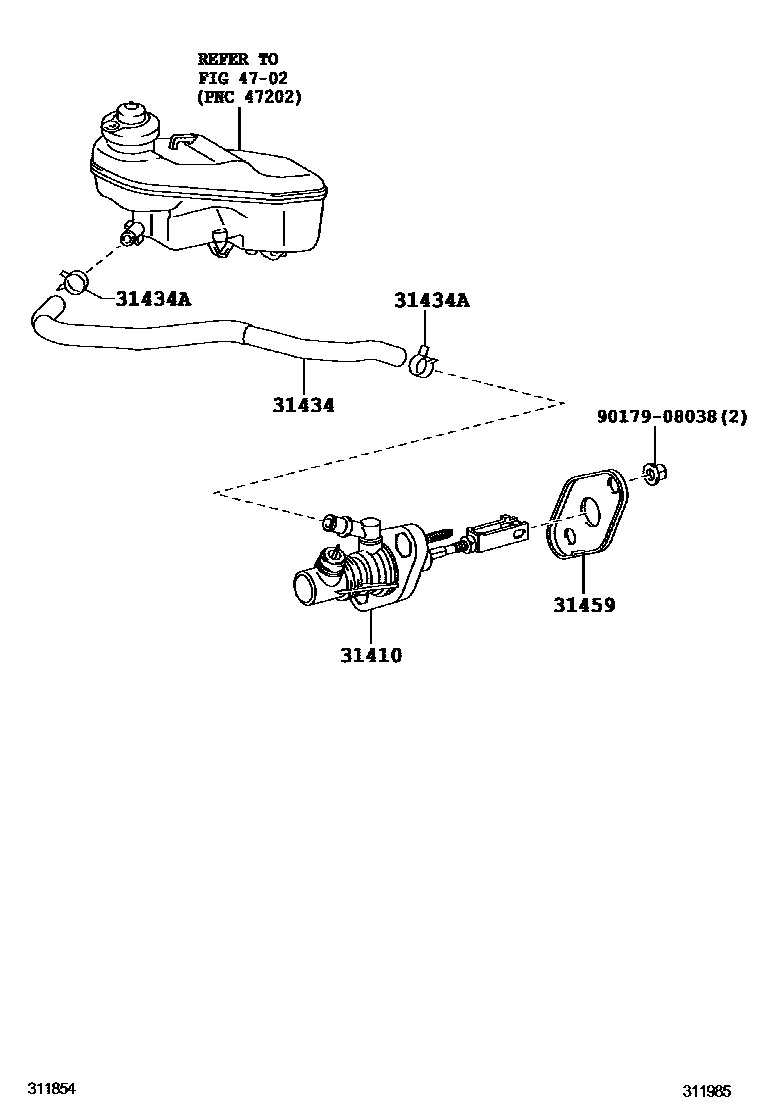

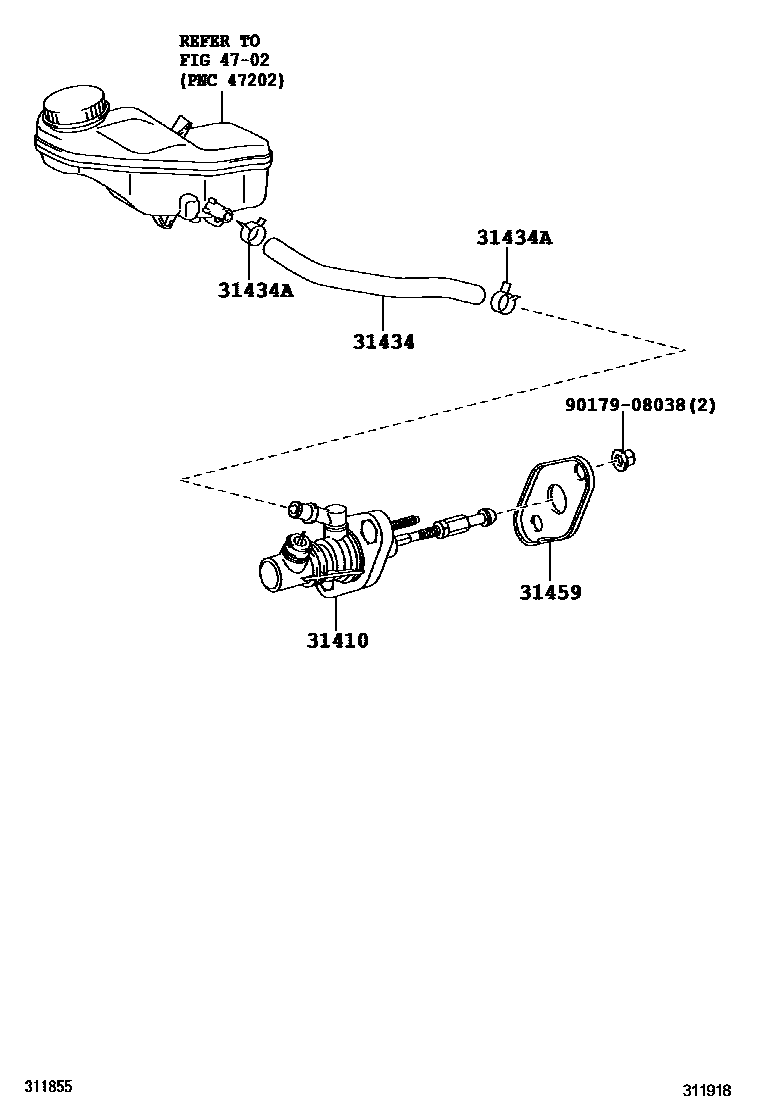

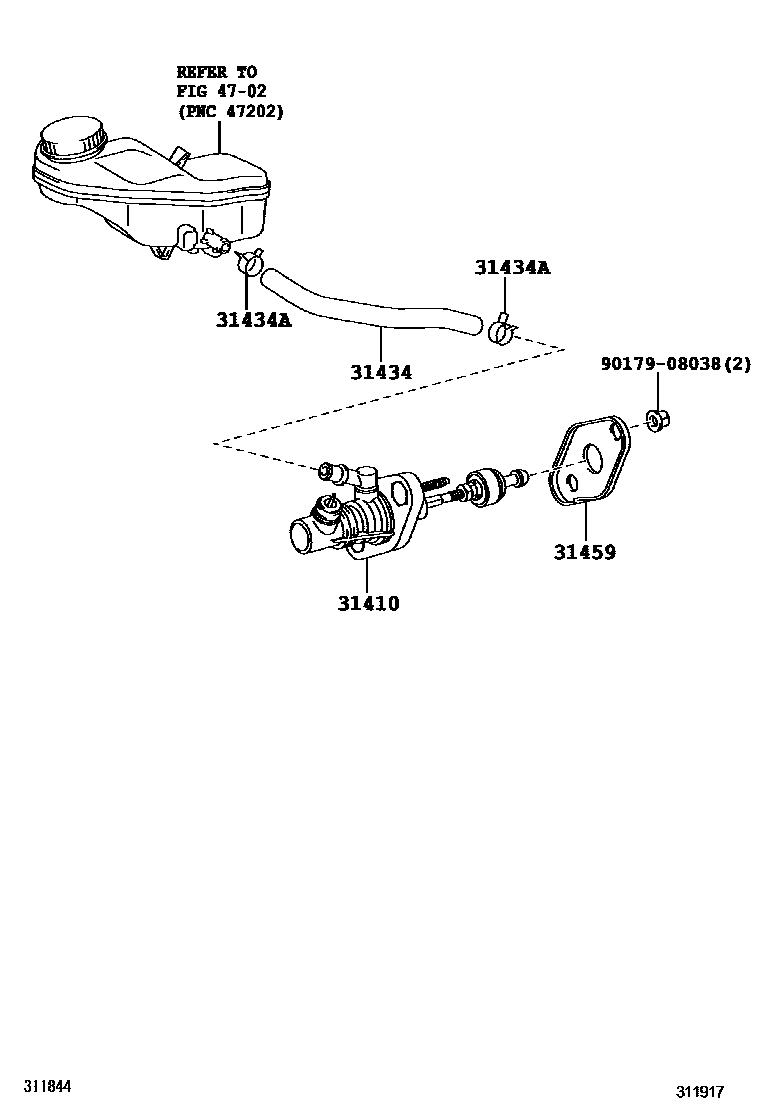

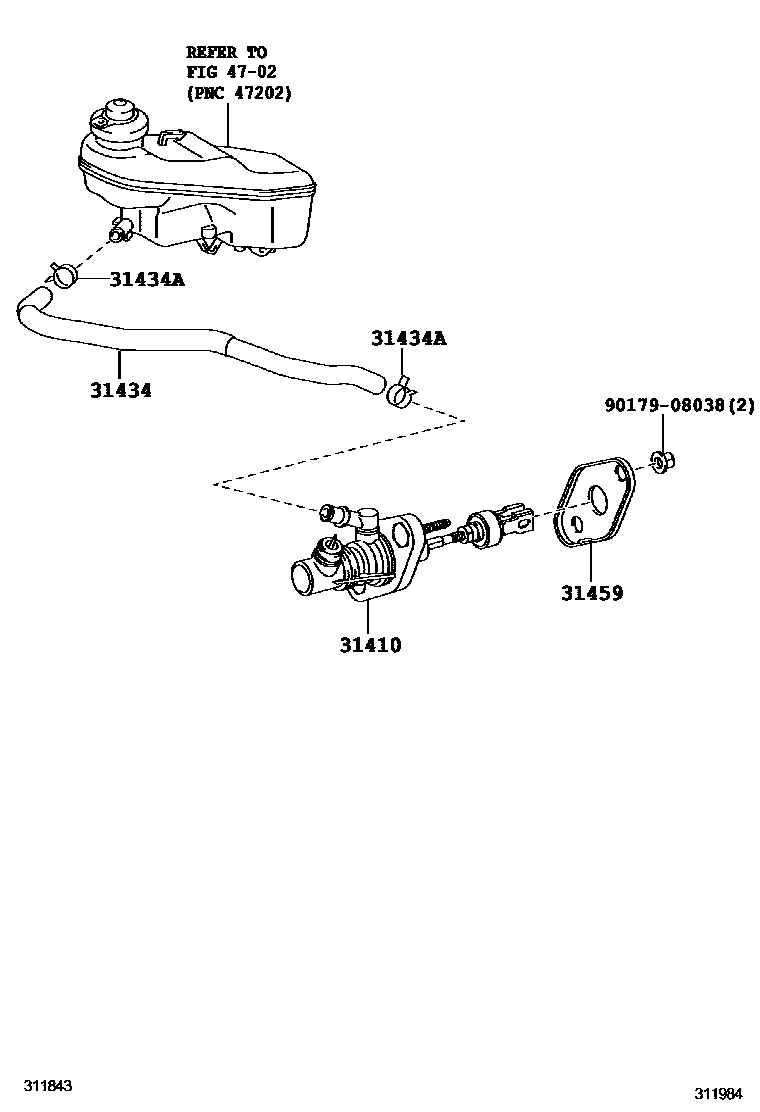

Toyota COROLLA EPC diagram 3103, 离合器总泵, with 4 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31410 | Clutch master cylinder assembly | 31420-02031 · 31420-02032 · 31420-02041 · 31420-02042 · 31420-02043 · 31420-02051 · 31420-02061 · 31420-02062 |
| 31434 | Clutch reservoir connecting pipe | 31434-02030 · 31434-02040 |
| 31434A | Clamp (for clutch reservoir connecting pipe) | 96136-41801 |
| 31459 | Clutch master cylinder bracket | 31459-42040 |
