Toyota COROLLA Alternator — Figure 1903

Toyota COROLLA EPC diagram 1903, Alternator, with 6 images and 16 PNC and OE references.

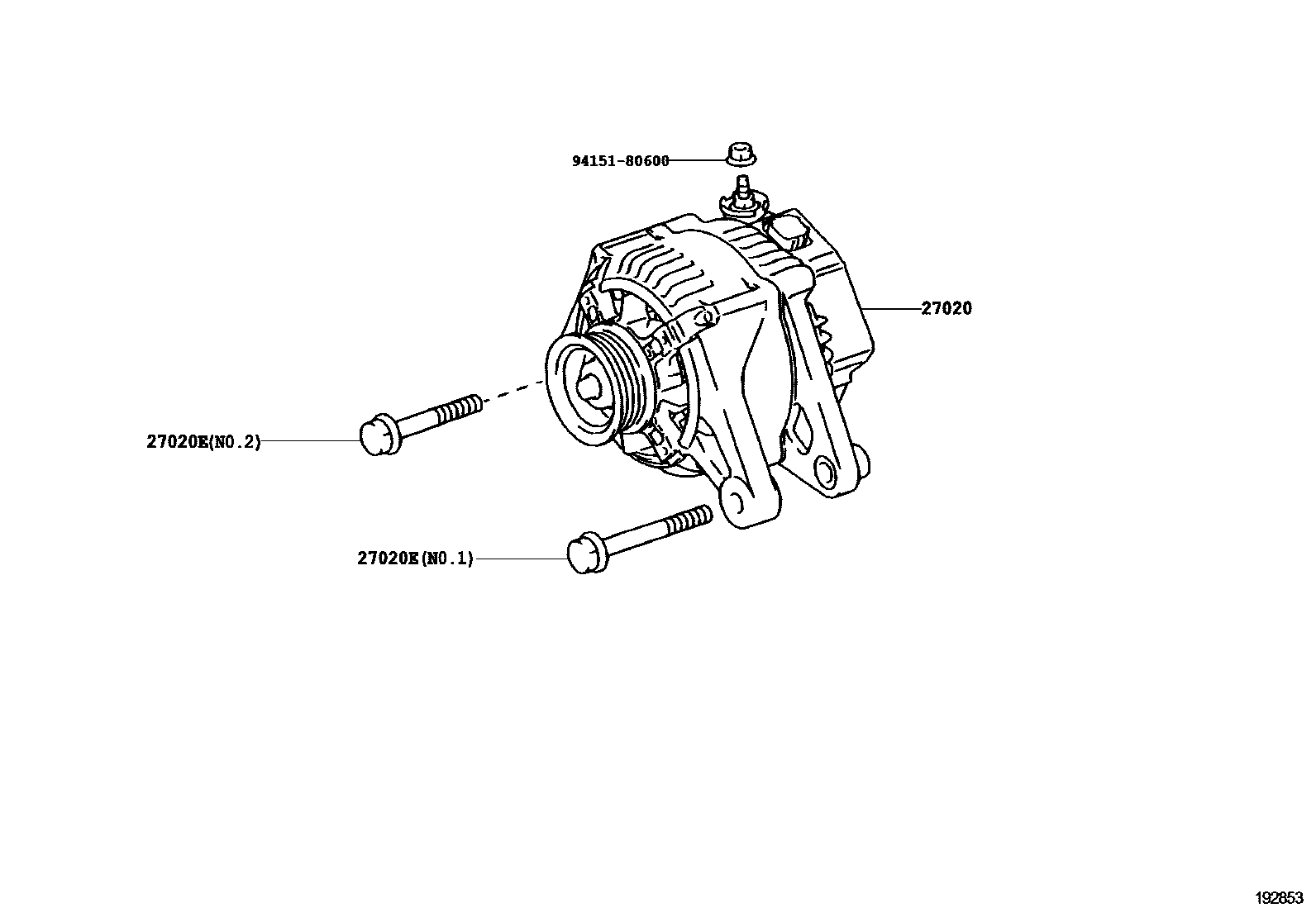

Toyota COROLLA Alternator EPC diagram — 192853
Alternator — 192853 (200707 – 999999)

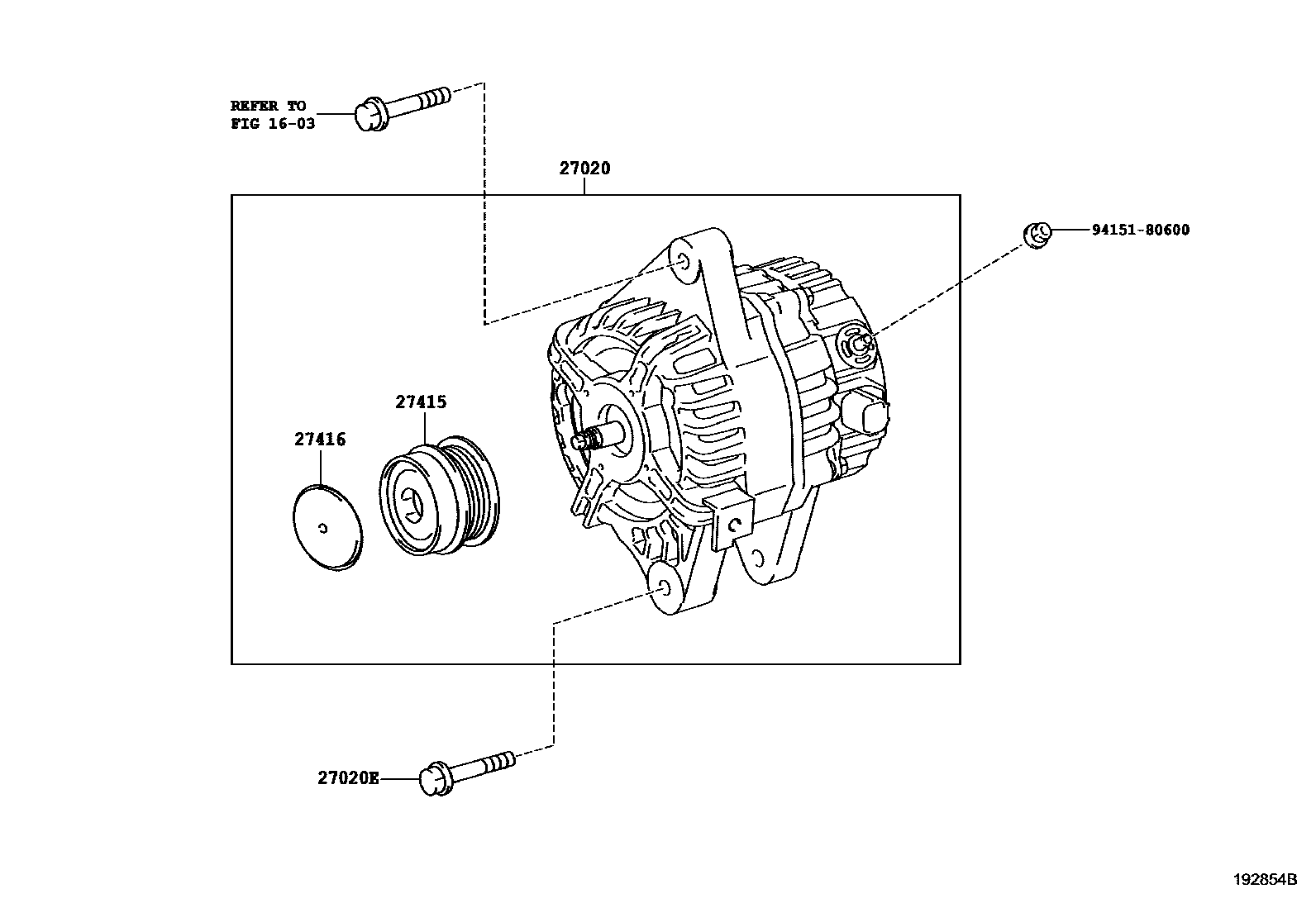

Toyota COROLLA Alternator EPC diagram — 192854B
Alternator — 192854B (200707 – 999999)

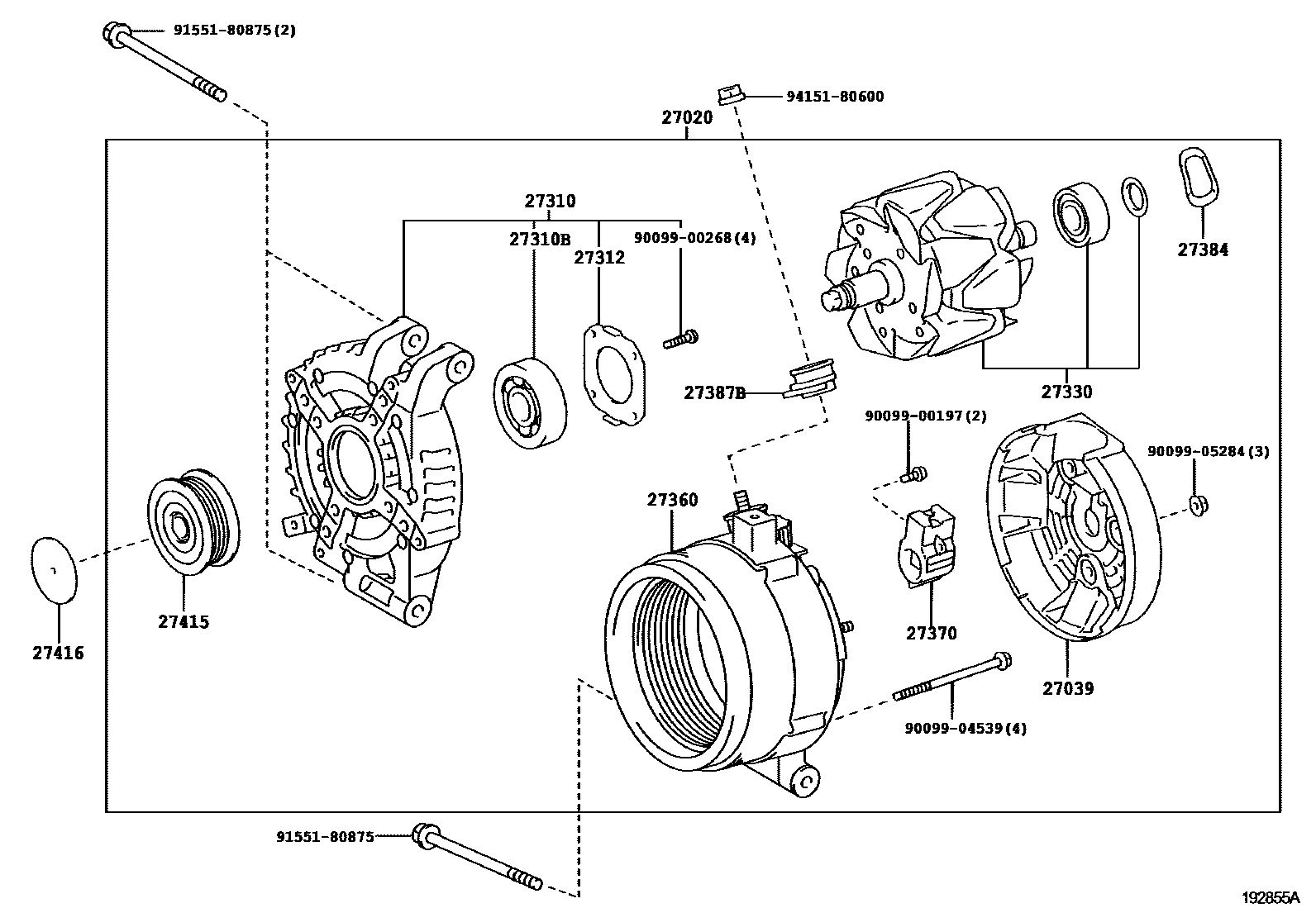

Toyota COROLLA Alternator EPC diagram — 192855A
Alternator — 192855A (200707 – 999999)

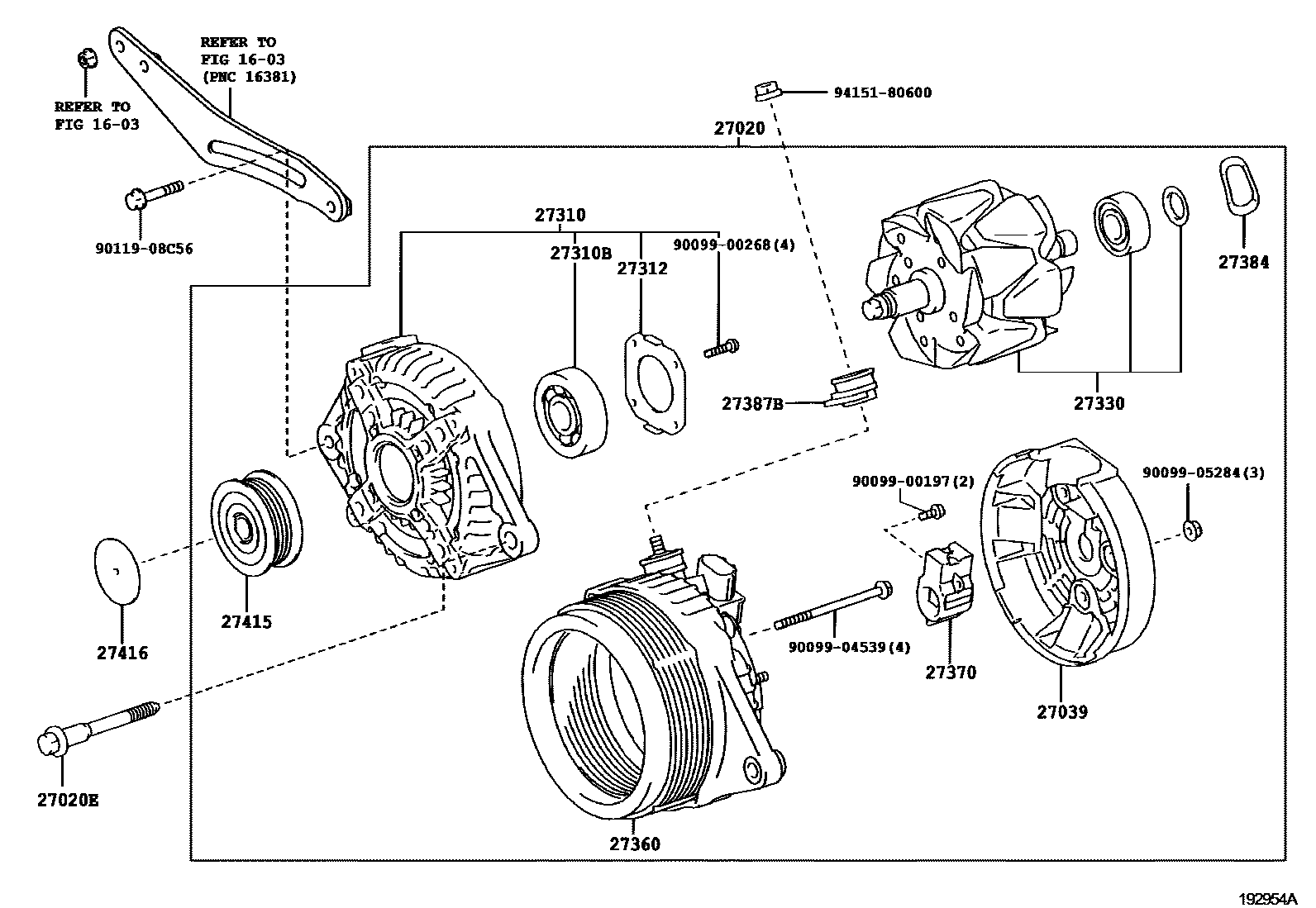

Toyota COROLLA Alternator EPC diagram — 192954A
Alternator — 192954A (200710 – 200902)

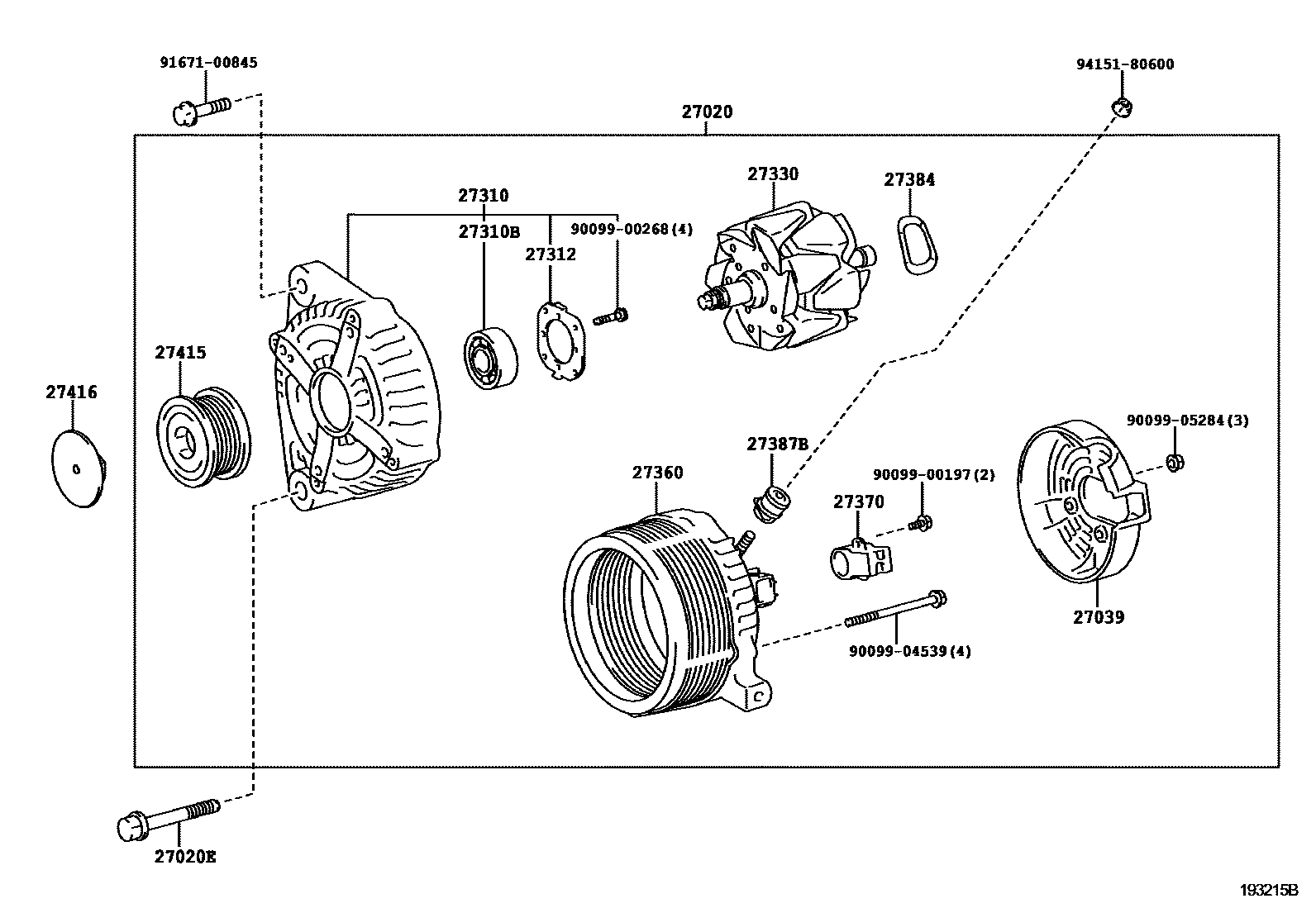

Toyota COROLLA Alternator EPC diagram — 193215B
Alternator — 193215B (200902 – 999999)

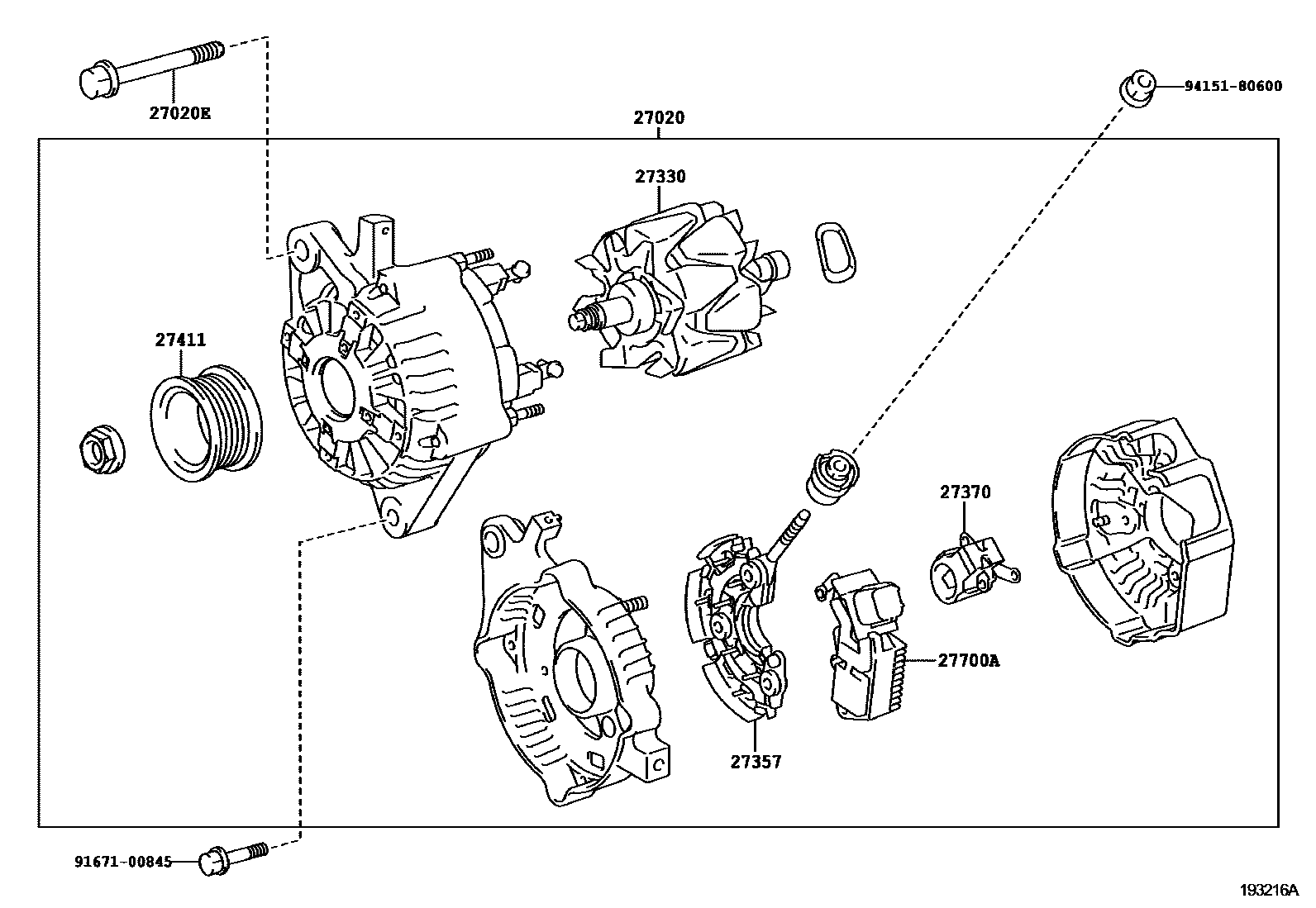

Toyota COROLLA Alternator EPC diagram — 193216A
Alternator — 193216A (200902 – 999999)

PNC and OE references

PNCPart nameOE numbers
27020Alternator Assembly27060-0D190 · 27060-0D191 · 27060-0N030 · 27060-0N031 · 27060-0N060 · 27060-0R050 · 27060-0R060 · 27060-0T010 · 27060-0T012 · 27060-0Y070
27020EBolts (for generator)90105-10075 · 90105-10111 · 90105-10307 · 90105-10520 · 90105-10571 · 91511-80830 · 91552-81075
27039Alternator Rear End Cover27039-26170 · 27039-27060 · 27039-27090 · 27039-31390
27310Alternator Drive End Frame Assembly27310-27090 · 27310-33110 · 27310-33180
27310BBearing (for Alternator Drive End Frame)90099-10223 · 90099-10231
27312Retainer Plate27312-72100
27330Alternator Rotor Assembly27330-30070 · 27330-30130 · 27330-62220
27357Generator rectifier frame27357-22200
27360Alternator Stator Coil Assembly27360-0N050 · 27360-26160 · 27360-27090 · 27360-33110
27370Alternator Brush Holder Assembly27370-23120 · 27370-31220 · 27370-58460
27384Washer27384-50030
27387BGenerator terminal insulation pad27387-20130
27411Alternator Pulley27411-22210
27415PULLEY, ALTERNATOR W/CLUTCH27415-0T020 · 27415-0T021 · 27415-0T022 · 27415-26010 · 27415-33050 · 27415-33070
27416Generator pulley cover27416-0W020 · 27416-0W050 · 27416-27010
27700AGenerator voltage regulator assembly27700-75030
