Toyota COROLLA vacuum tube — Figure 1708

Toyota COROLLA EPC diagram 1708, vacuum tube, with 9 images and 33 PNC and OE references.

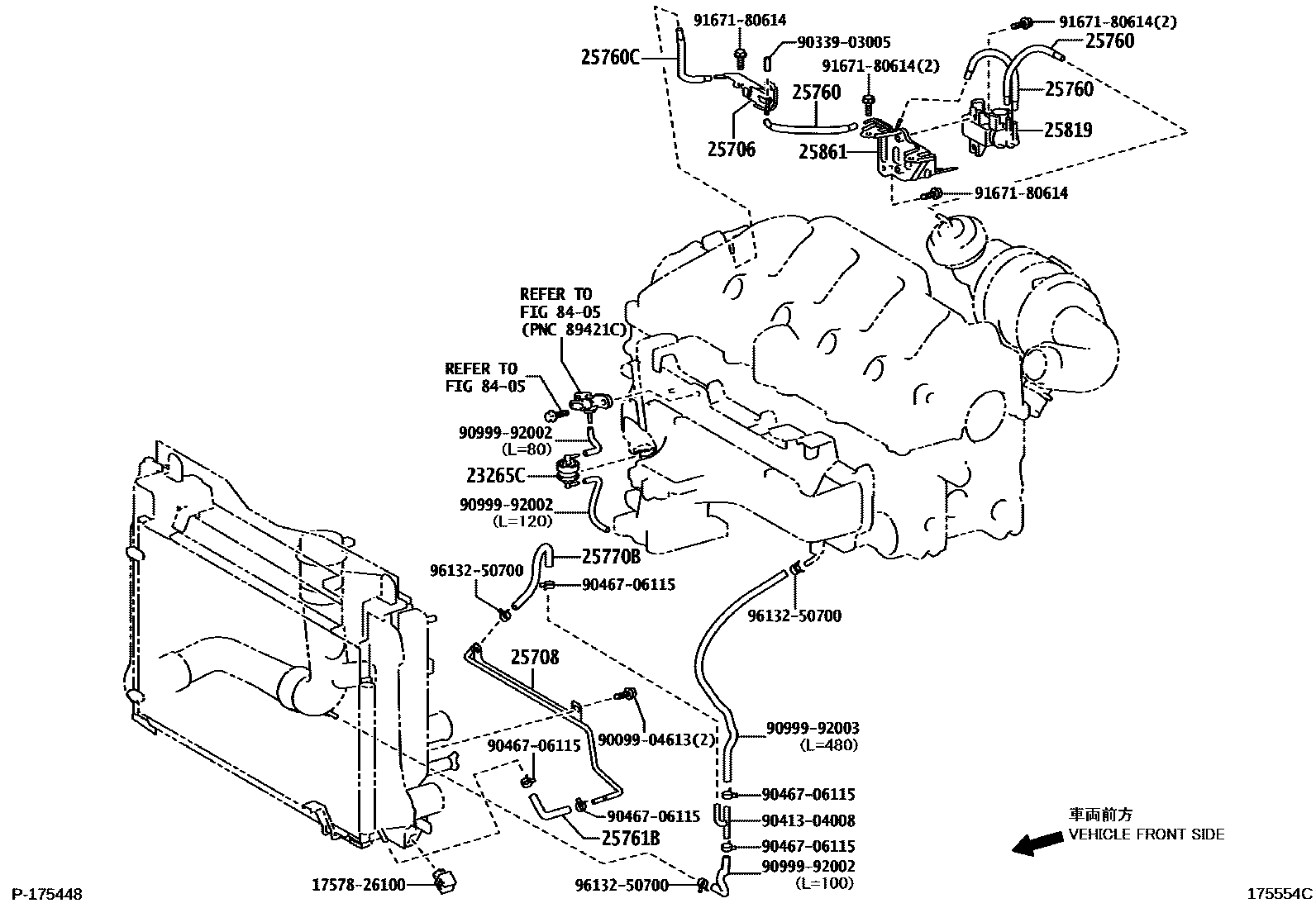

Toyota COROLLA vacuum tube EPC diagram — 175554C — vacuum tube — 175554C (200707 – 200903)

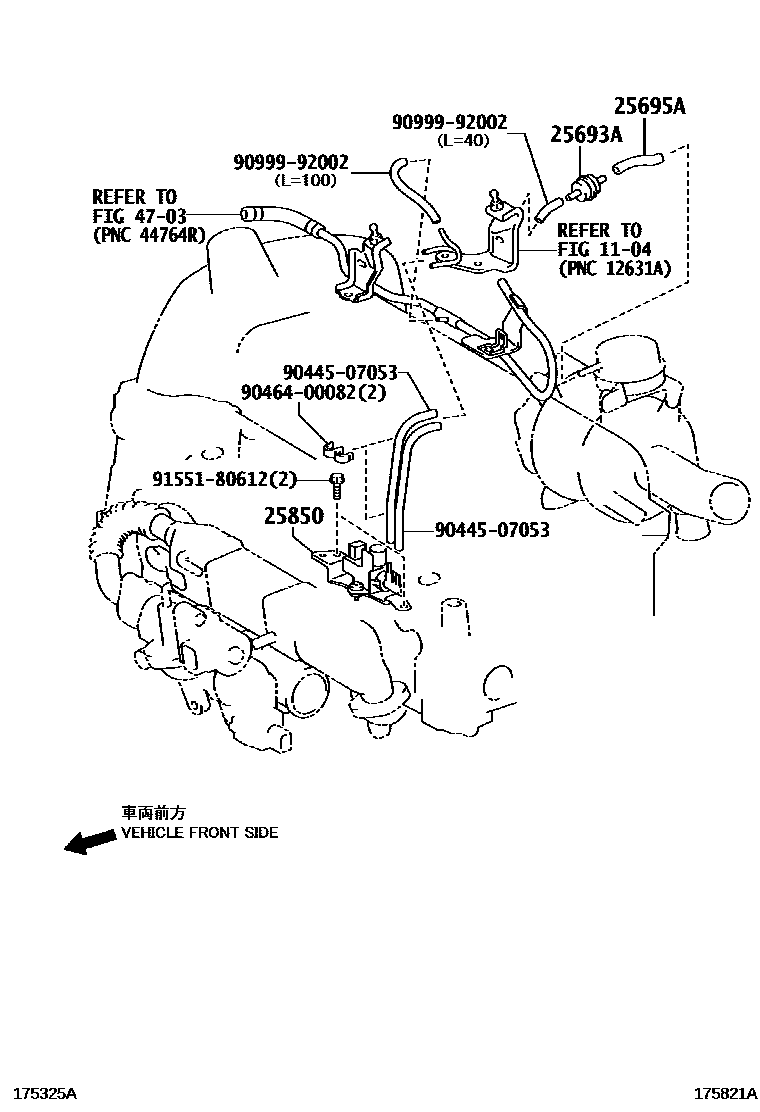

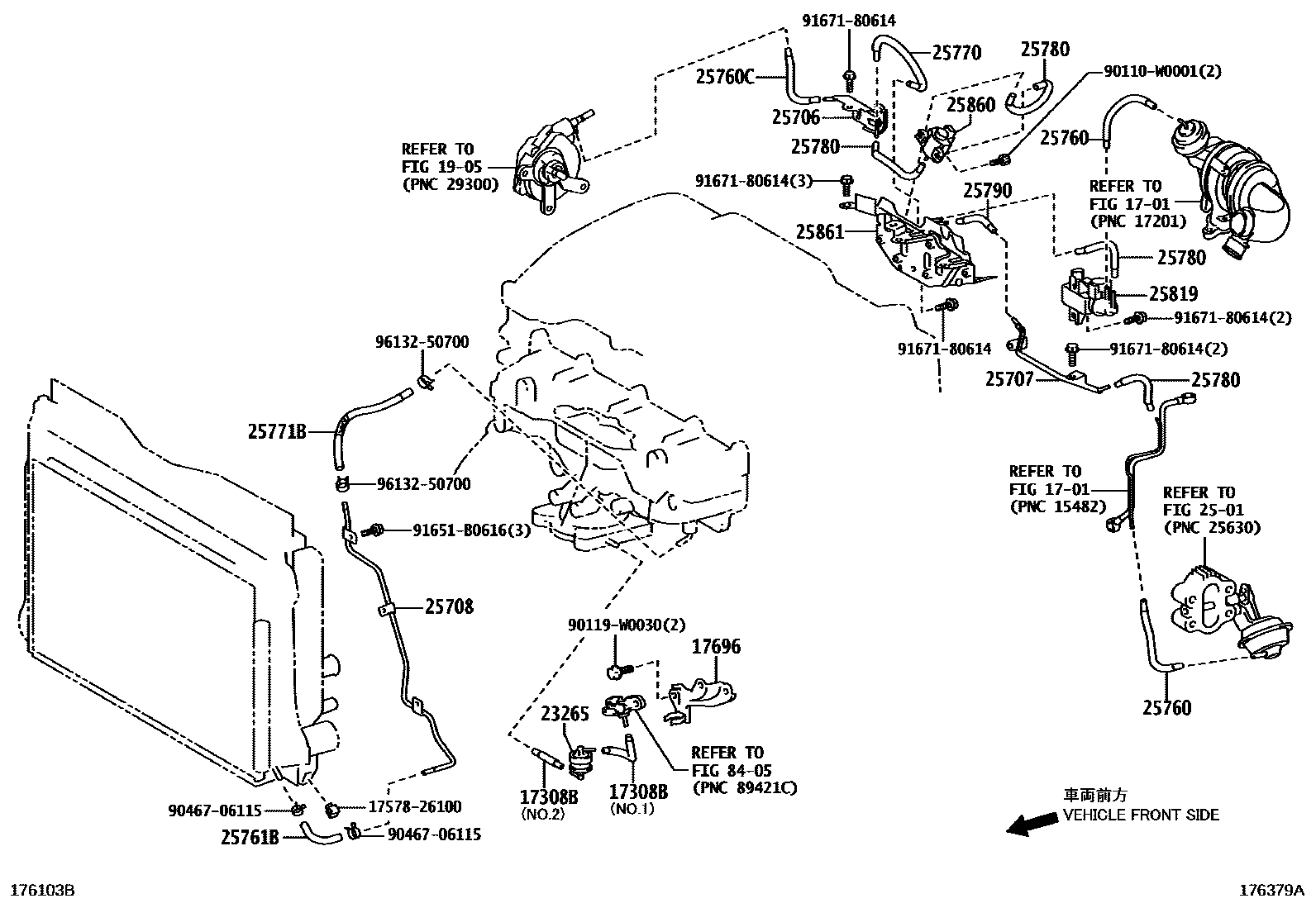

Toyota COROLLA vacuum tube EPC diagram — 175821A — vacuum tube — 175821A (200710 – 200902)

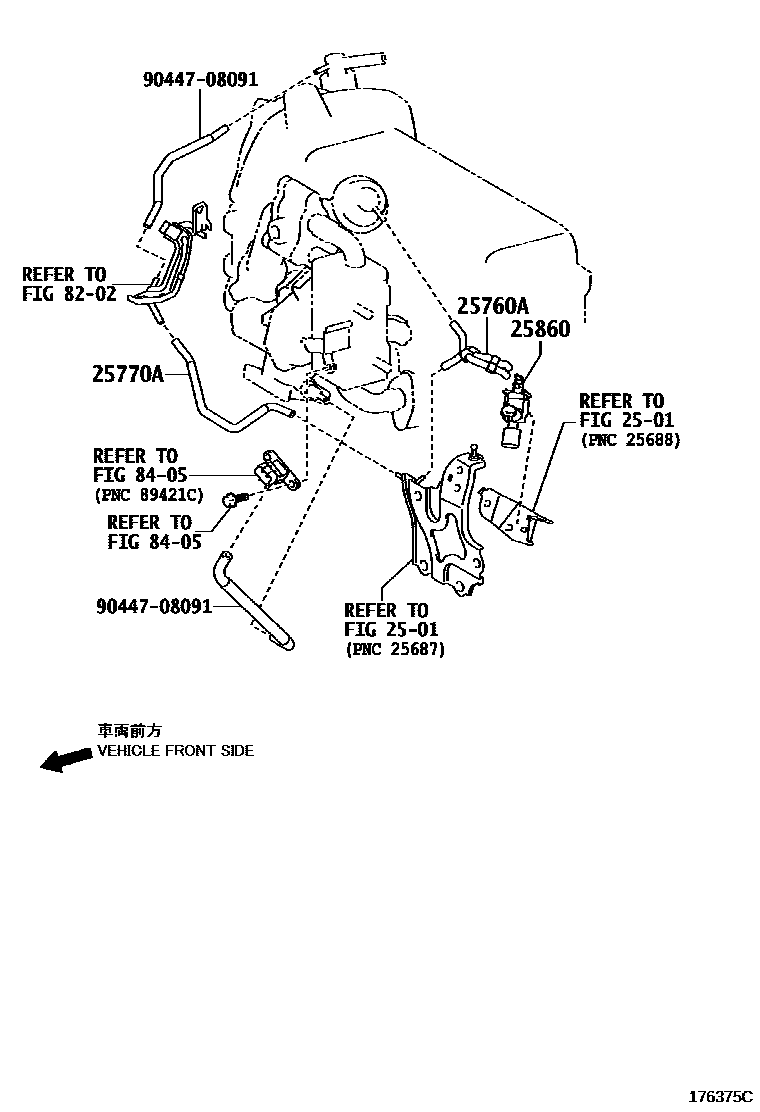

Toyota COROLLA vacuum tube EPC diagram — 176375C — vacuum tube — 176375C (200902 – 999999)

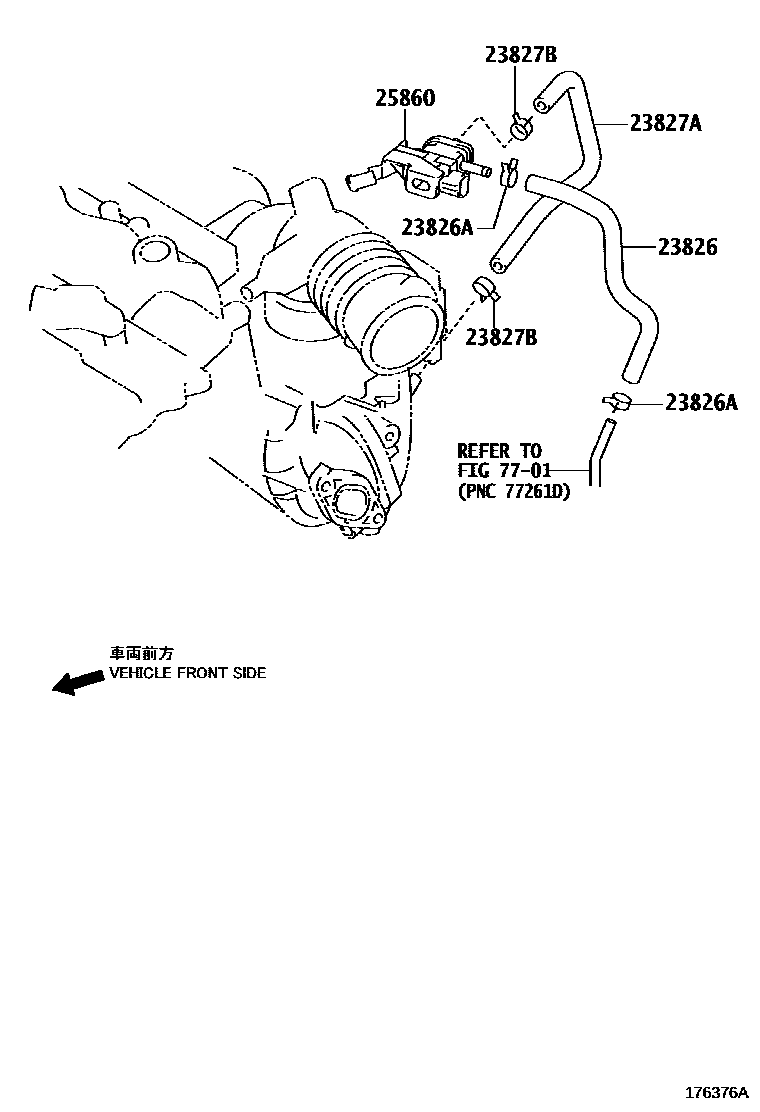

Toyota COROLLA vacuum tube EPC diagram — 176376A — vacuum tube — 176376A (200902 – 999999)

Toyota COROLLA vacuum tube EPC diagram — 176379A — vacuum tube — 176379A (200903 – 201110)

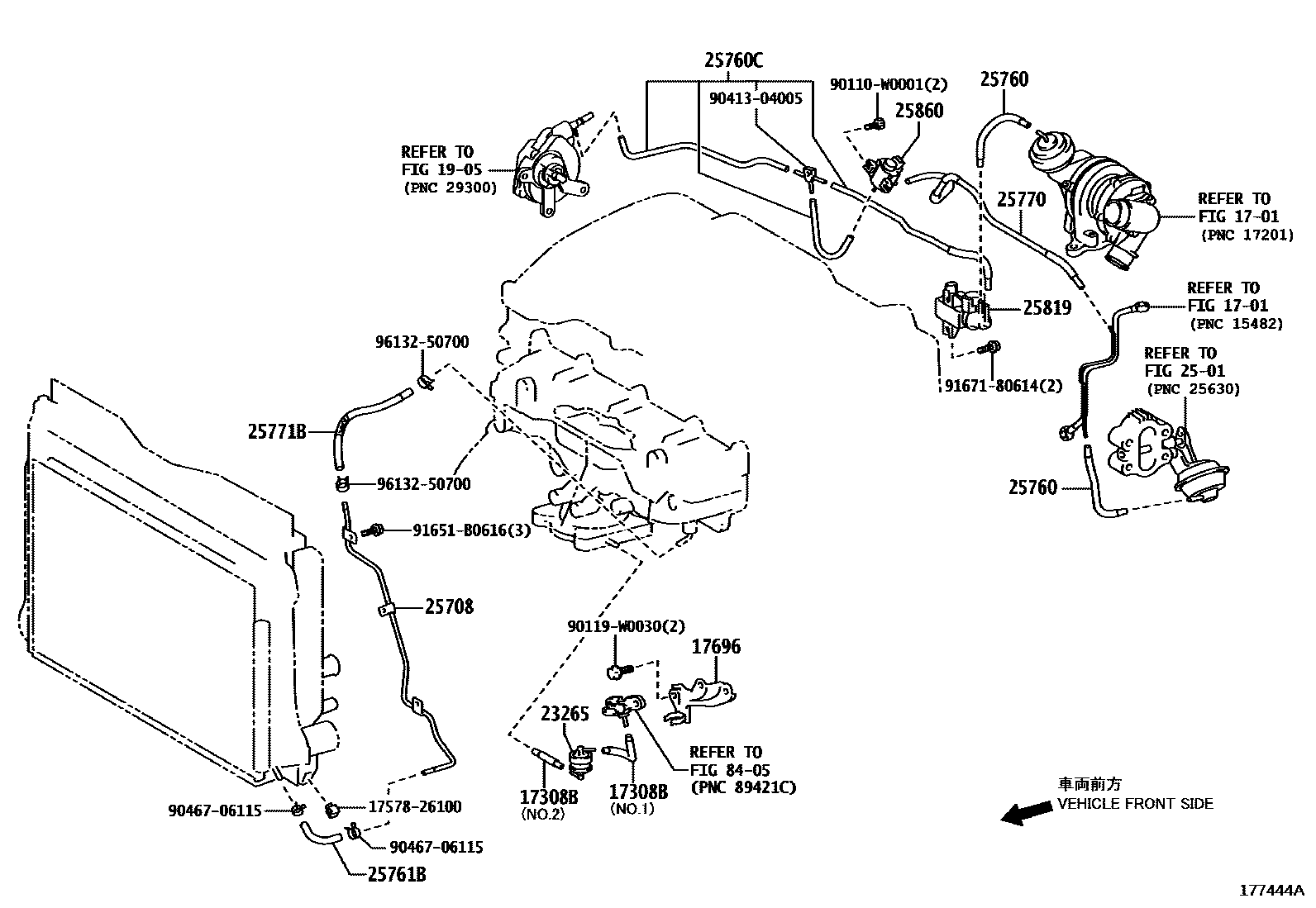

Toyota COROLLA vacuum tube EPC diagram — 177444A — vacuum tube — 177444A (201110 – 999999)

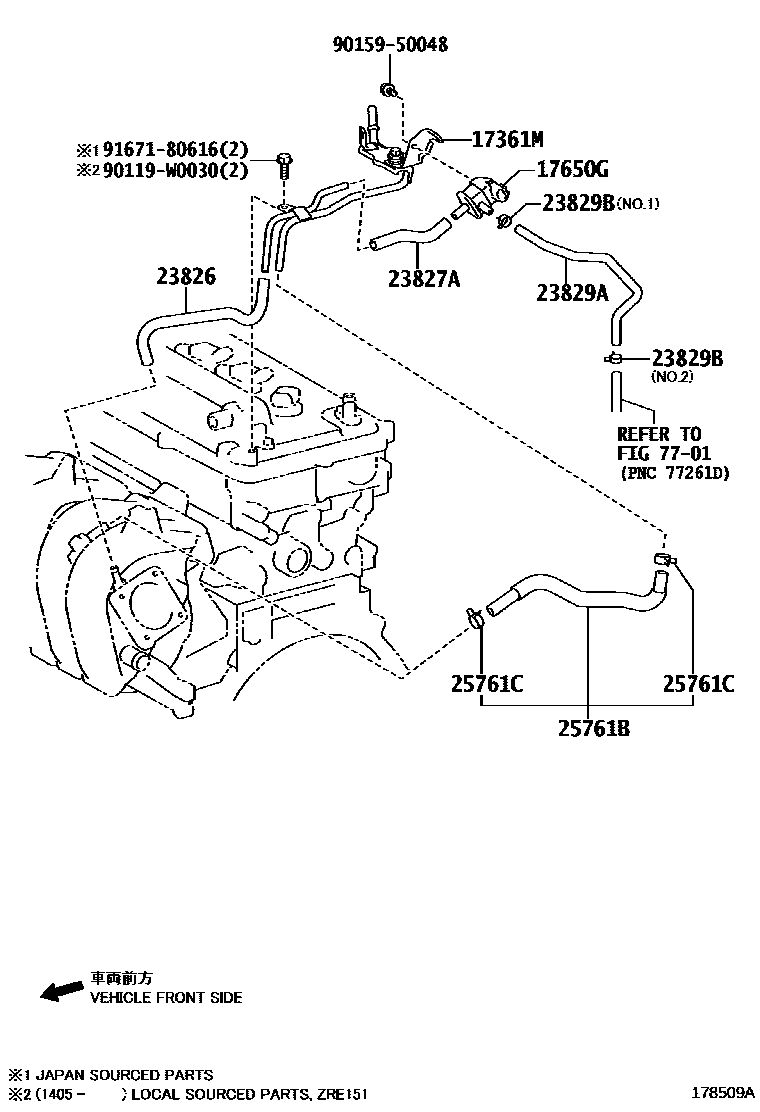

Toyota COROLLA vacuum tube EPC diagram — 178509A — vacuum tube — 178509A (200910 – 999999)

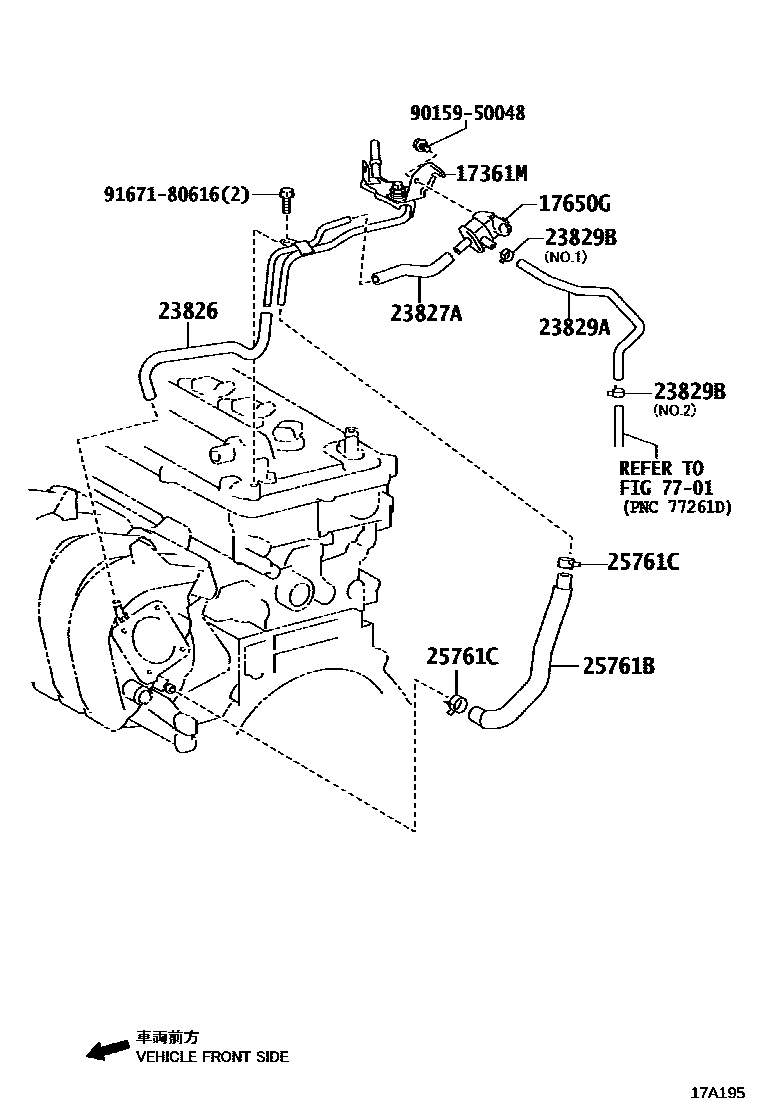

Toyota COROLLA vacuum tube EPC diagram — 17A195 — vacuum tube — 17A195 (200707 – 200909)

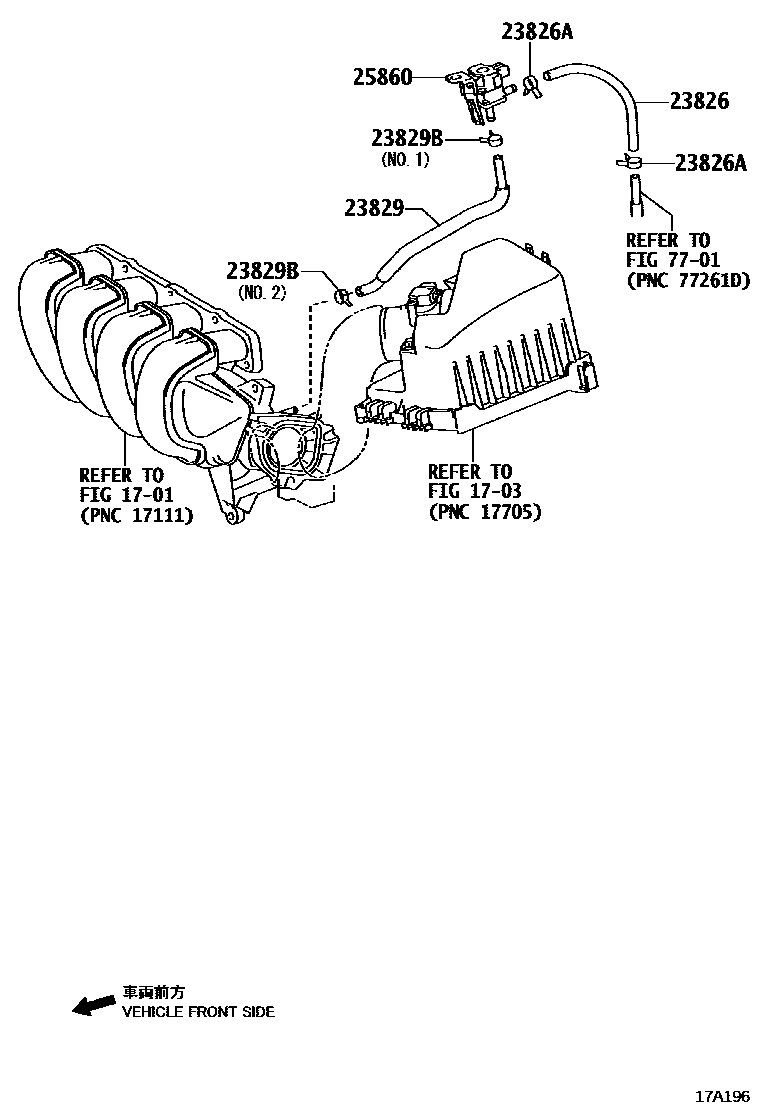

Toyota COROLLA vacuum tube EPC diagram — 17A196 — vacuum tube — 17A196 (200707 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17308B	Vacuum hose sub-assembly	17308-26030 · 17308-26040
17361M	air tube	17361-37010 · 17361-37011
17650G	Duty cycle controlled vacuum switching valve	90910-12276 · 90910-TC001
17696	Gas filter bracket	17696-26010
23265	No. 1 gas filter	90917-11044
23265C	gas filter	90917-11036
23826	No. 1 fuel vapor supply hose	23826-0D070 · 23826-0Y021 · 23826-37020 · 23826-37021
23826A	Clamp (for No. 1 fuel vapor supply hose)	96132-51300
23827A	No. 2 fuel vapor supply hose	23827-0Y020 · 23827-37020
23827B	Clamp (for No. 2 fuel vapor supply hose)	96132-51300
23829	No. 3 fuel vapor supply hose	23829-0D090 · 23829-22150
23829A	Fuel vapor supply hose	23826-0D090 · 23826-0T051
23829B	Clamp (for fuel vapor supply hose)	90466-W0005 · 96132-51300 · 96136-41501
25693A	EGR vacuum regulator shock absorber	25693-58010
25695A	EGR vacuum regulator hose	17294-33030
25706	No. 1 vacuum transfer tube sub-assembly	25706-26010
25707	No. 2 vacuum transfer pipe sub-assembly	25707-26010
25708	No. 3 vacuum transfer tube sub-assembly	25736-0R010 · 25736-26030
25760	Vacuum transfer hose assembly	25760-26021
25760A	Vacuum transfer hose assembly	25760-33110
25760C	No. 3 vacuum transmission hose assembly	25760-26120 · 25760-26200 · 25760-26201
25761B	No. 1 Vacuum Transfer Hose	25761-26030 · 25761-37010 · 25761-37011
25761C	Clamp (No. 1 vacuum transfer hose)	96133-41500 · 96136-41801
25770	No. 2 vacuum transmission hose assembly	25770-26020 · 25770-26171 · 25770-26172
25770A	No. 2 vacuum transmission hose assembly	25760-33130
25770B	No. 3 vacuum transmission hose assembly	25770-26071
25771B	No. 2 vacuum transfer hose	25771-26060
25780	No. 3 vacuum transmission hose assembly	25780-26011
25790	No. 4 vacuum transmission hose assembly	25790-26011
25819	Vacuum regulating valve assembly	25819-0R011 · 25819-0R012
25850	Electronic vacuum regulating valve assembly	25850-33050
25860	No. 1 vacuum switch valve assembly	25860-0R010 · 25860-0R011 · 25860-21100 · 25860-30070 · 25860-47010
25861	Vacuum switch valve bracket	25861-26010 · 25861-26070
