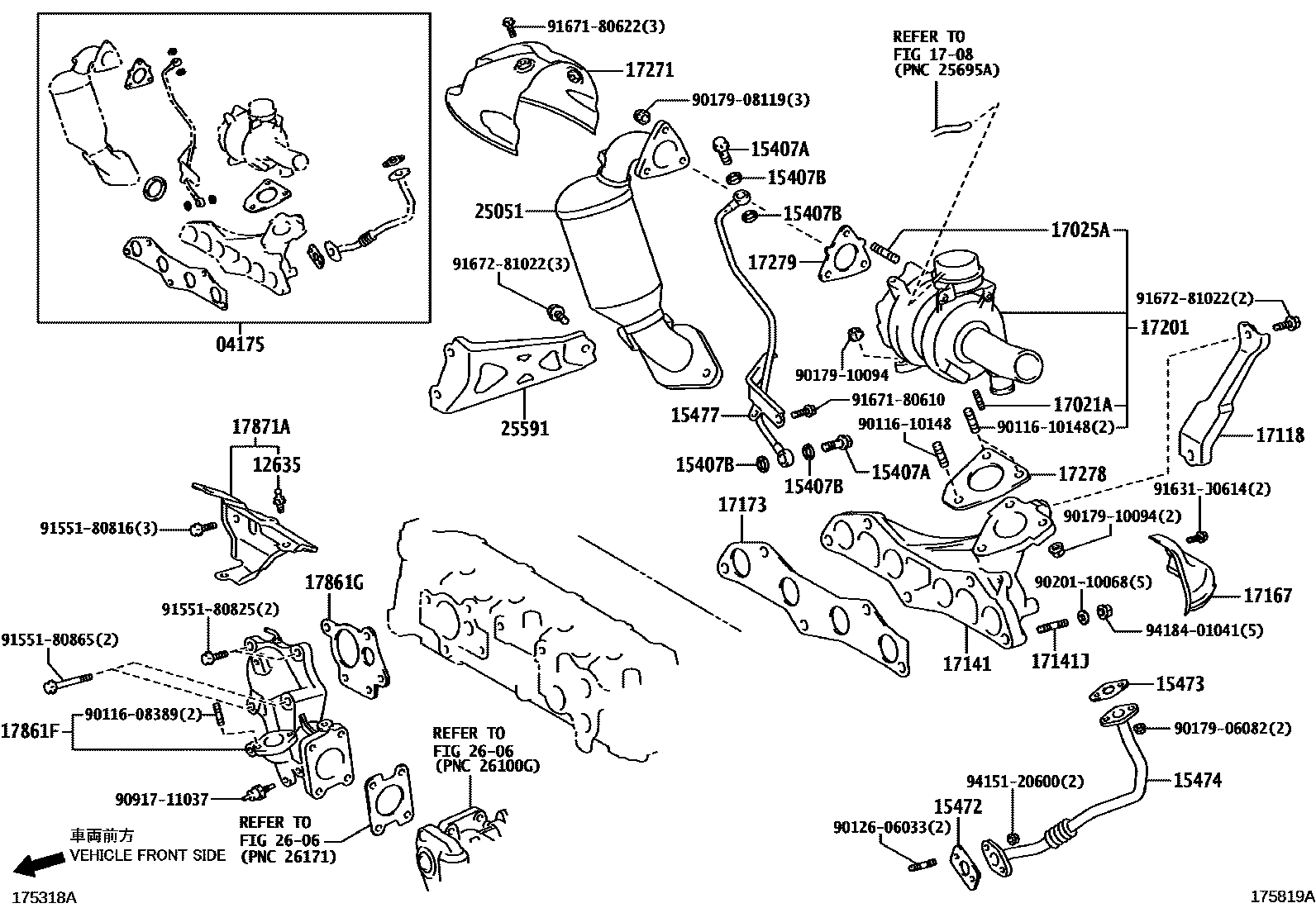

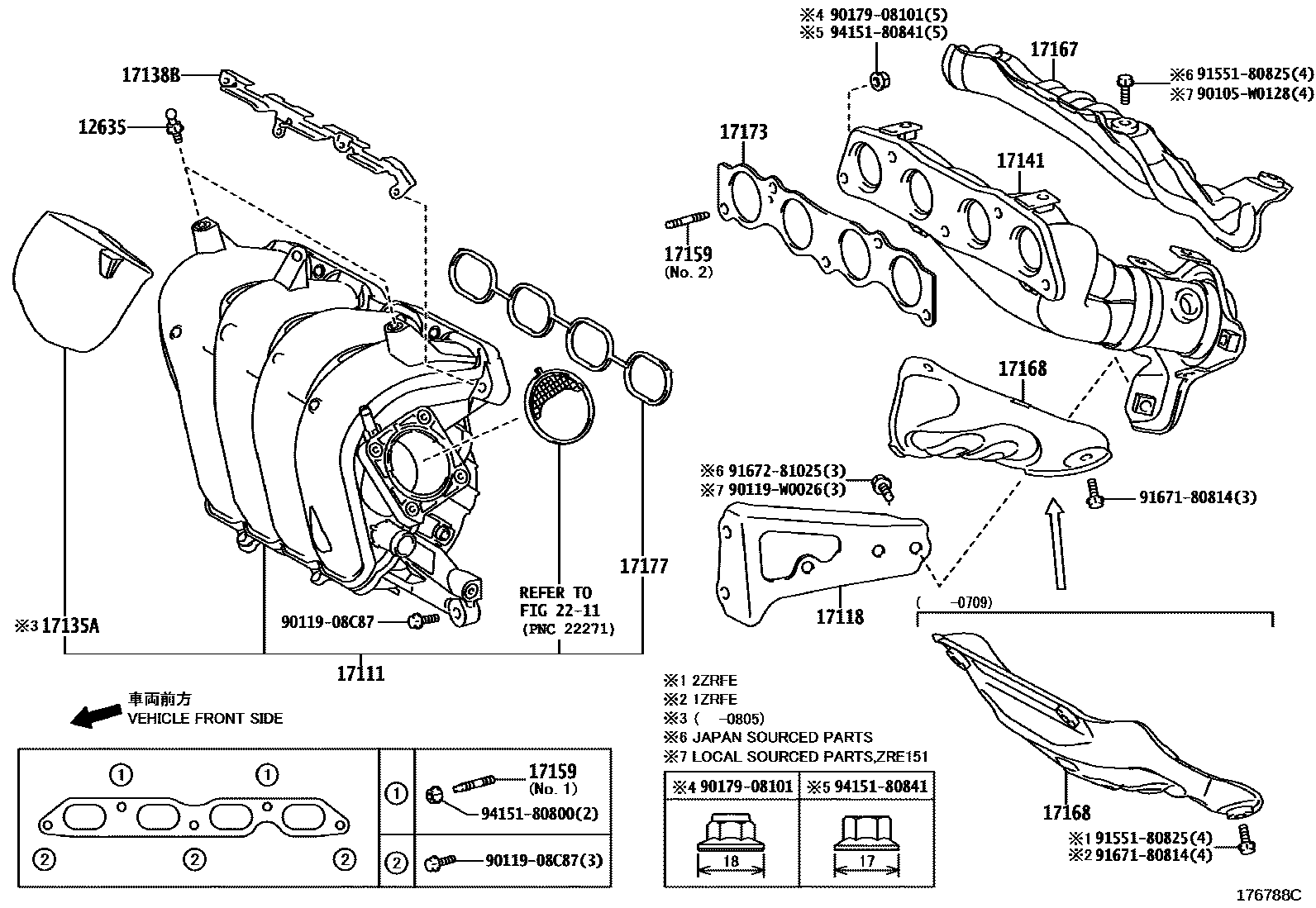

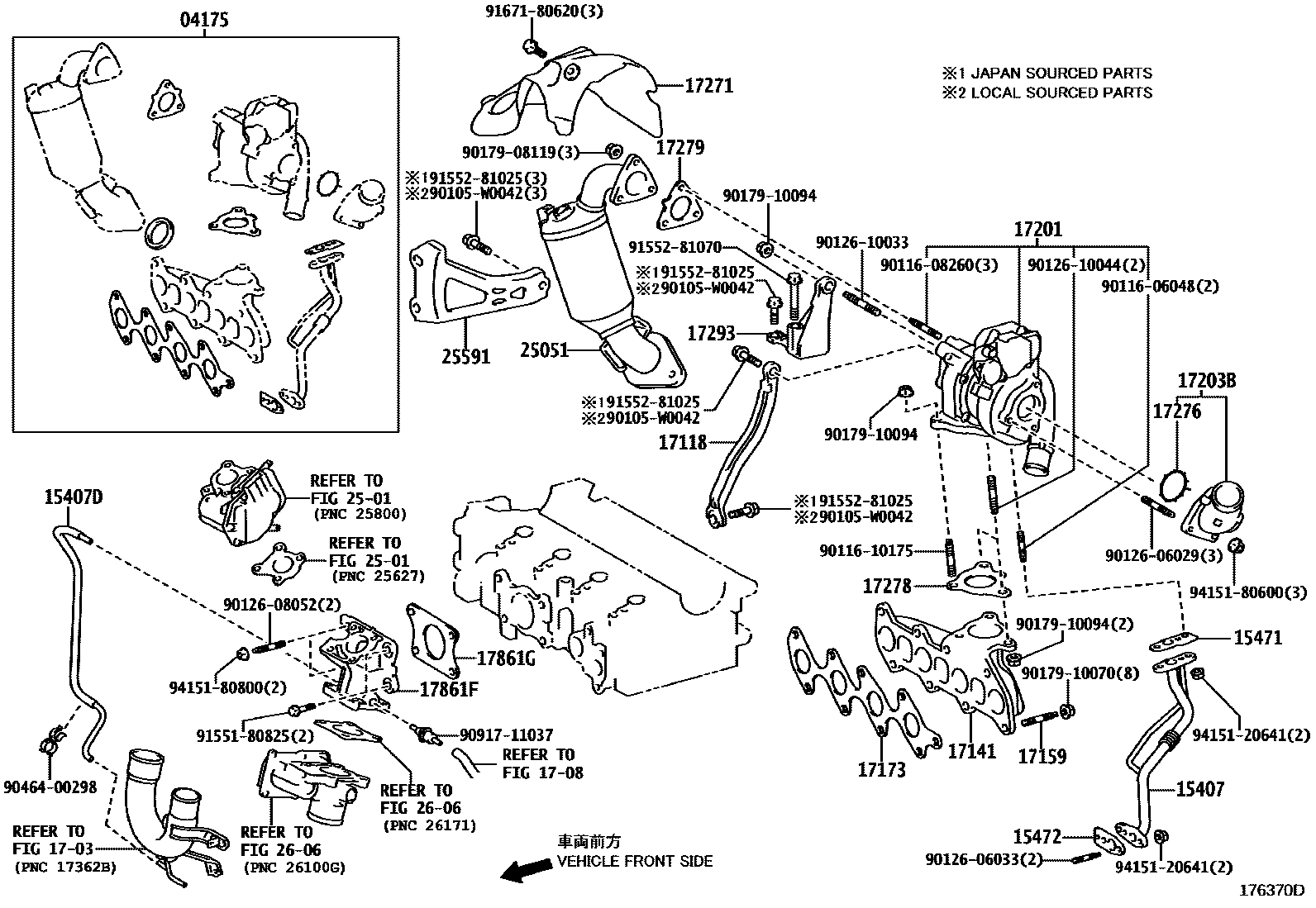

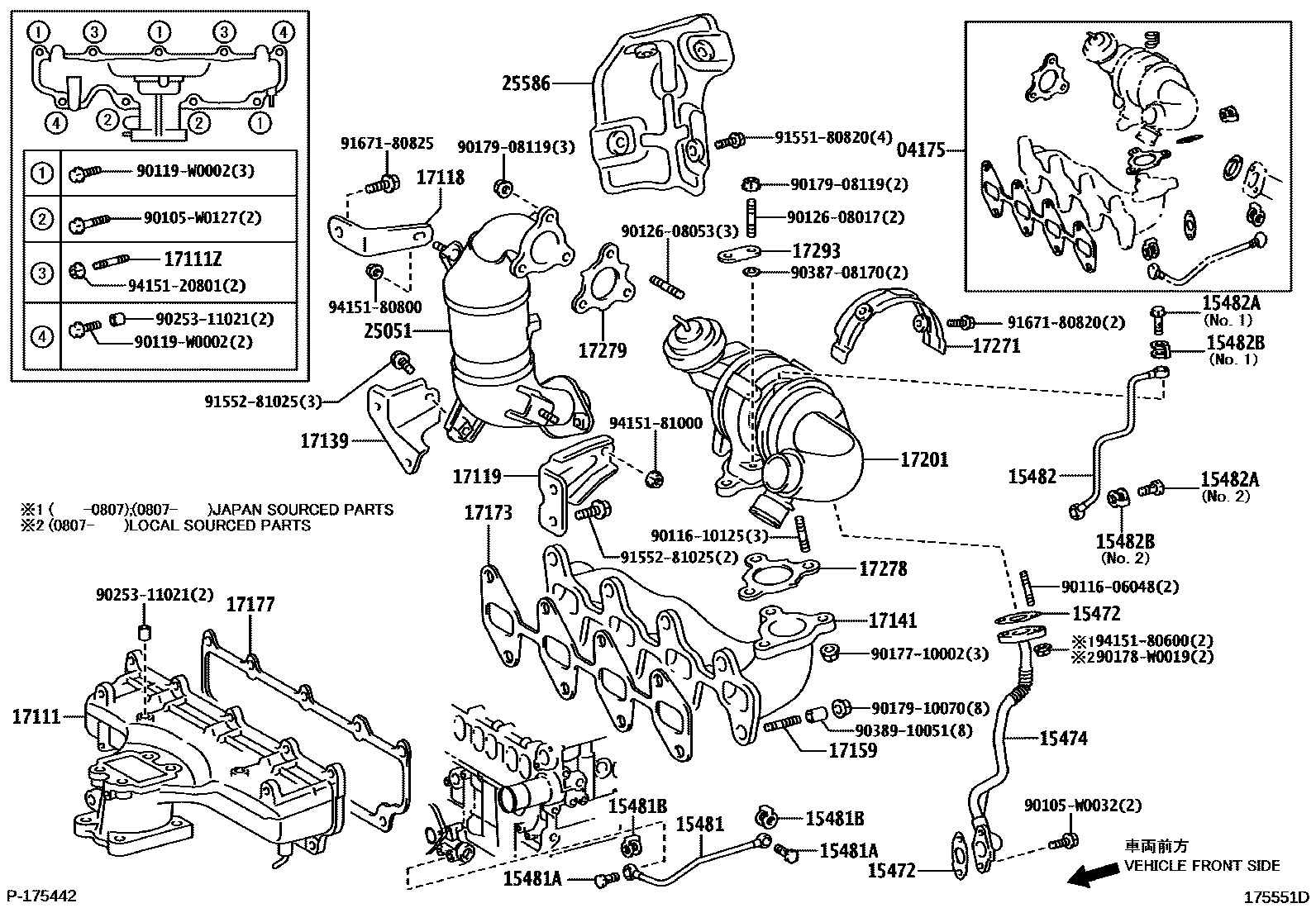

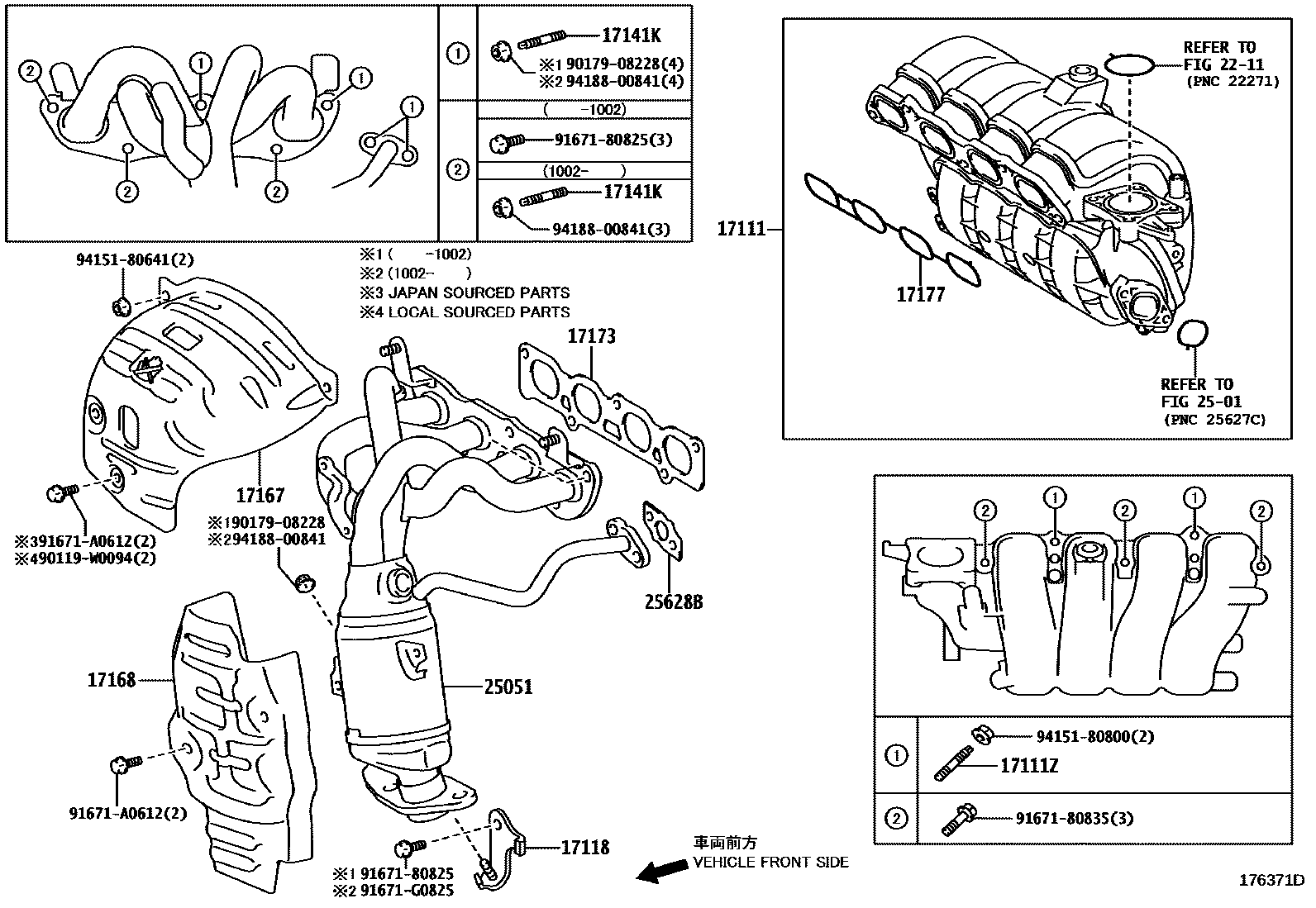

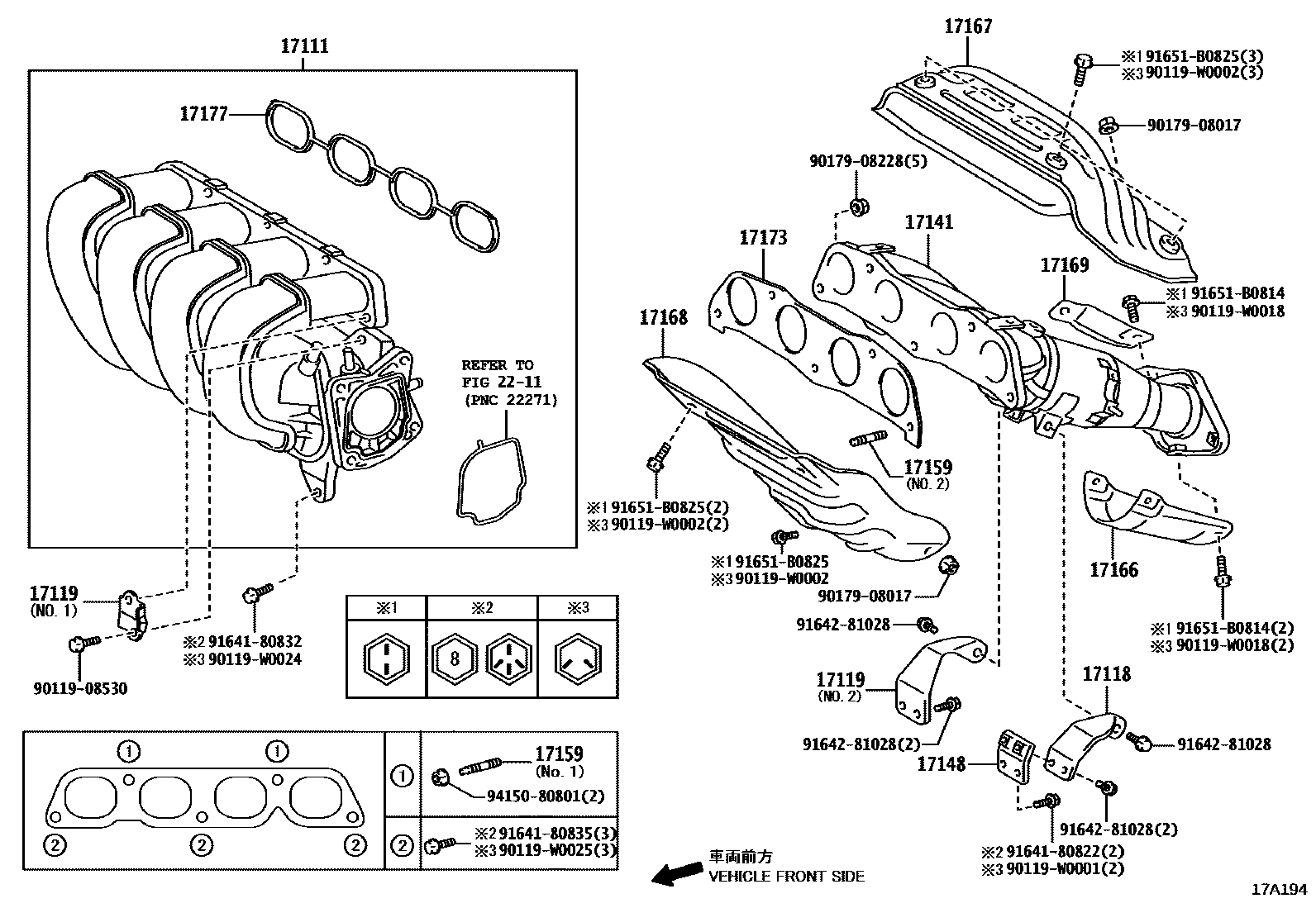

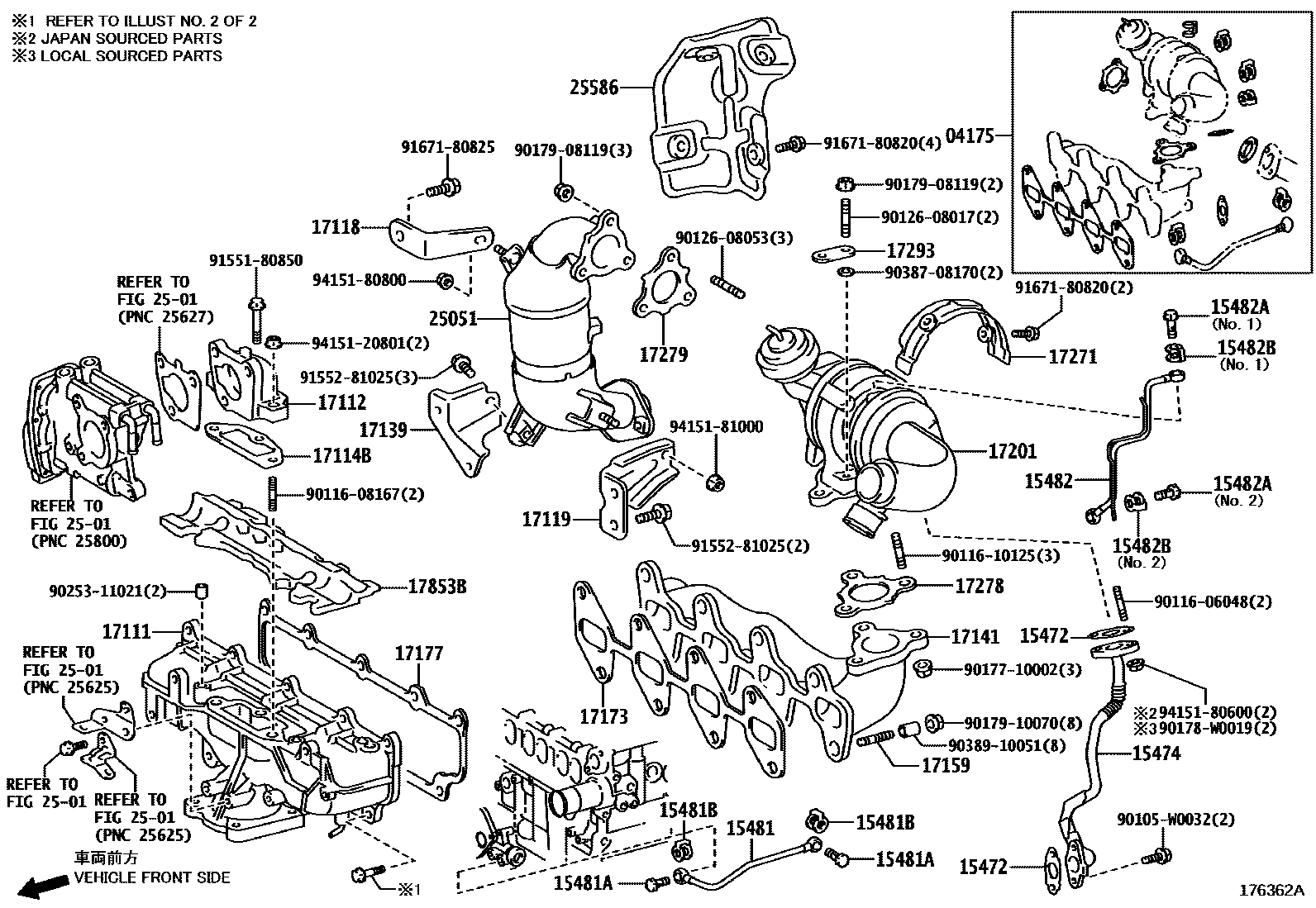

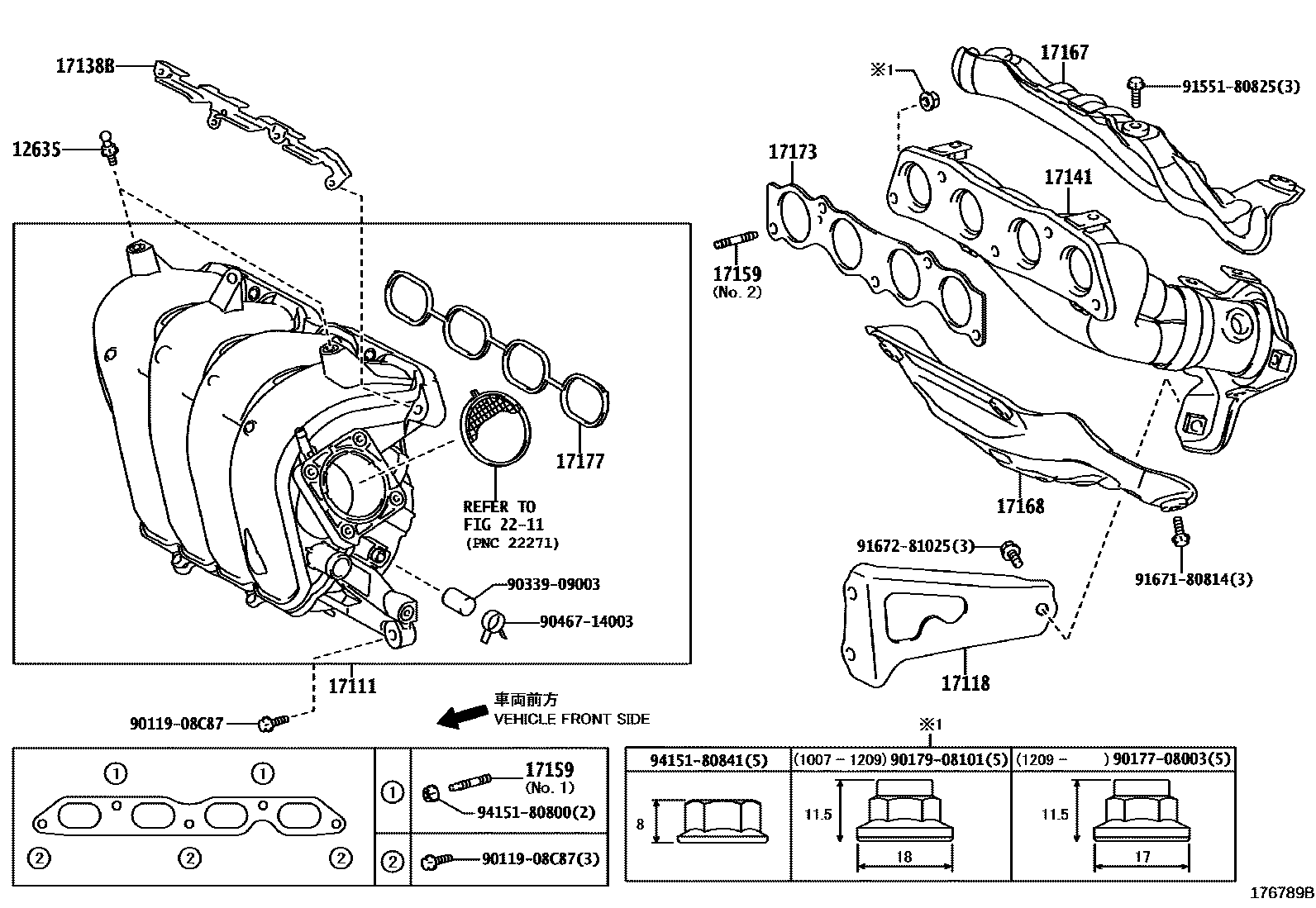

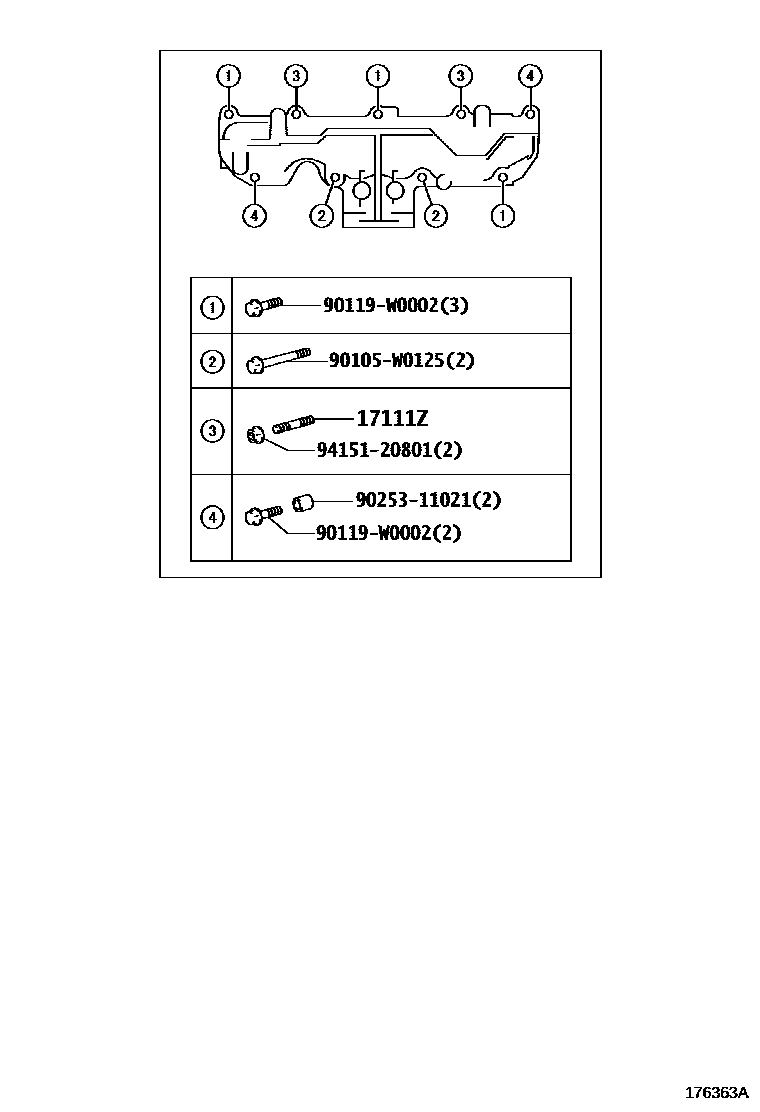

Toyota COROLLA Manifold — Figure 1701
Toyota COROLLA EPC diagram 1701, Manifold, with 9 images and 54 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04175 | Turbocharger gasket assembly | 04175-0R080 · 04175-33040 · 04175-33070 |
| 12635 | hood connector | 12635-33010 · 90109-06385 |
| 15407 | Turbine oil inlet pipe sub-assembly | 15407-33020 · 15407-33021 |
| 15407A | Connector bolt (for turbine oil inlet pipe) | 90401-10065 |
| 15407B | Gasket (for turbine oil inlet pipe) | 90430-10027 |
| 15407D | No. 1 oil hose | 12109-33020 |
| 15471 | Turbine oil inlet pipe gasket | 15471-33010 |
| 15472 | No. 1 turbine oil outlet pipe gasket | 15472-0R010 · 15472-33010 · 15472-33020 |
| 15473 | No. 2 turbine oil outlet pipe gasket | 15473-33010 |
| 15474 | Turbine oil outlet pipe | 15474-26010 · 15474-26030 · 15474-33020 |
| 15477 | Turbine oil inlet pipe | 15477-33010 |
| 15481 | No. 1 turbine oil pipe | 15481-0R010 |
| 15481A | No. 1 joint bolt | 90401-12039 |
| 15481B | Gasket (for No. 1 joint bolt) | 90430-12037 |
| 15482 | No. 2 turbine oil pipe | 15482-0R010 · 15482-0R020 · 15482-26020 |
| 15482A | No. 2 joint bolt | 90401-10068 · 90401-12039 |
| 15482B | Gasket (for No. 2 joint bolt) | 90430-12037 · 90904-30011 |
| 17021A | Stud bolts (for bearing housing) | 90116-06048 |
| 17025A | Stud bolts (for turbine housing) | 90116-08260 |
| 17111 | Intake Manifold | 17101-0R010 · 17101-0R011 · 17101-0R020 · 17120-0D031 · 17120-37020 · 17120-37021 · 17120-37022 · 17120-37031 · 17120-47010 · 17120-47011 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 90116-08167 · 90126-08060 |
| 17112 | No. 2 intake manifold | 17112-26010 |
| 17114B | Intake flange gasket | 17116-26010 |
| 17118 | Manifold stays | 17118-0R010 · 17118-0T020 · 17118-22090 · 17118-33030 · 17118-33040 · 17118-37010 · 17118-37050 · 17118-47010 |
| 17119 | No. 2 manifold stay | 17119-0R010 · 17119-0R030 · 17119-22070 · 17139-22050 |
| 17135A | Intake manifold No. 1 heat shield | 17135-37010 |
| 17138B | Intake manifold stay | 17138-0T011 · 17138-37010 · 17138-37011 |
| 17139 | No. 2 manifold stay | 17139-0R010 |
| 17141 | exhaust manifold | 17104-0D101 · 17141-0R010 · 17141-0T050 · 17141-26100 · 17141-33040 · 17141-33050 · 17141-37051 · 17141-37080 |
| 17141J | Studs (for right exhaust manifold) | 90126-10018 |
| 17141K | Stud bolts (for exhaust manifold to cylinder head) | 90126-08052 · 90126-08063 |
| 17148 | Exhaust manifold plate (for EGR intake) | 17148-22030 |
| 17159 | Studs (for manifold to cylinder head) | 90126-08026 · 90126-08043 · 90126-08052 · 90126-10024 · 90126-10033 |
| 17166 | Exhaust manifold No. 4 heat shield | 17166-22011 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-0D052 · 17167-0T020 · 17167-33010 · 17167-37011 · 17167-37050 · 17167-47010 · 17167-47011 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-0T030 · 17168-22120 · 17168-37030 · 17168-37060 · 17168-37070 · 17168-37100 · 17168-47010 |
| 17169 | Exhaust manifold No. 3 heat shield | 17169-0D010 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-0R010 · 17173-0T020 · 17173-22010 · 17173-33010 · 17173-33030 · 17173-37010 · 17173-47020 · 17173-47021 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-0D030 · 17171-0R010 · 17171-22030 · 17177-37030 · 17177-47010 · 17177-47011 |
| 17201 | Turbocharger sub-assembly | 17201-0N030 · 17201-0N041 · 17201-0N042 · 17201-0R040 · 17201-0R041 · 17201-0R070 · 17201-0R071 · 17201-26080 · 17201-26081 |
| 17203B | Compressor oil inlet elbow sub-assembly | 17203-33010 |
| 17271 | No. 1 turbine vibration isolation pad | 17271-0R020 · 17271-33030 · 17271-33060 |
| 17276 | Compressor oil inlet gasket | 17276-33010 |
| 17278 | Gasket (turbo to exhaust manifold) | 17278-0R010 · 17278-27010 · 17278-33010 |
| 17279 | Turbine outlet elbow gasket | 17279-0R010 · 17279-27020 |
| 17293 | Turbocharger stay | 17293-26010 · 17293-33010 |
| 17853B | Intake manifold heat shield | 17853-26030 |
| 17861F | Intake connecting pipe | 17861-33020 · 17861-33040 · 17861-33070 |
| 17861G | Intake connecting pipe gasket | 26171-33011 · 26171-33050 |
| 17871A | Air intake connecting pipe stay | 17872-33020 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-0R010 · 25051-0R050 · 25051-33051 · 25051-33060 · 25051-47010 |
| 25586 | No. 1 manifold three-way catalytic converter vibration isolation pad | 25586-0R011 · 25586-0R020 |
| 25591 | Manifold bracket | 25591-33020 · 25591-33030 |
| 25628B | EGR air intake gasket | 25628-47010 |
