Toyota COROLLA V-Belt — Figure 1605

Toyota COROLLA EPC diagram 1605, V-Belt, with 3 images and 1 PNC and OE references.

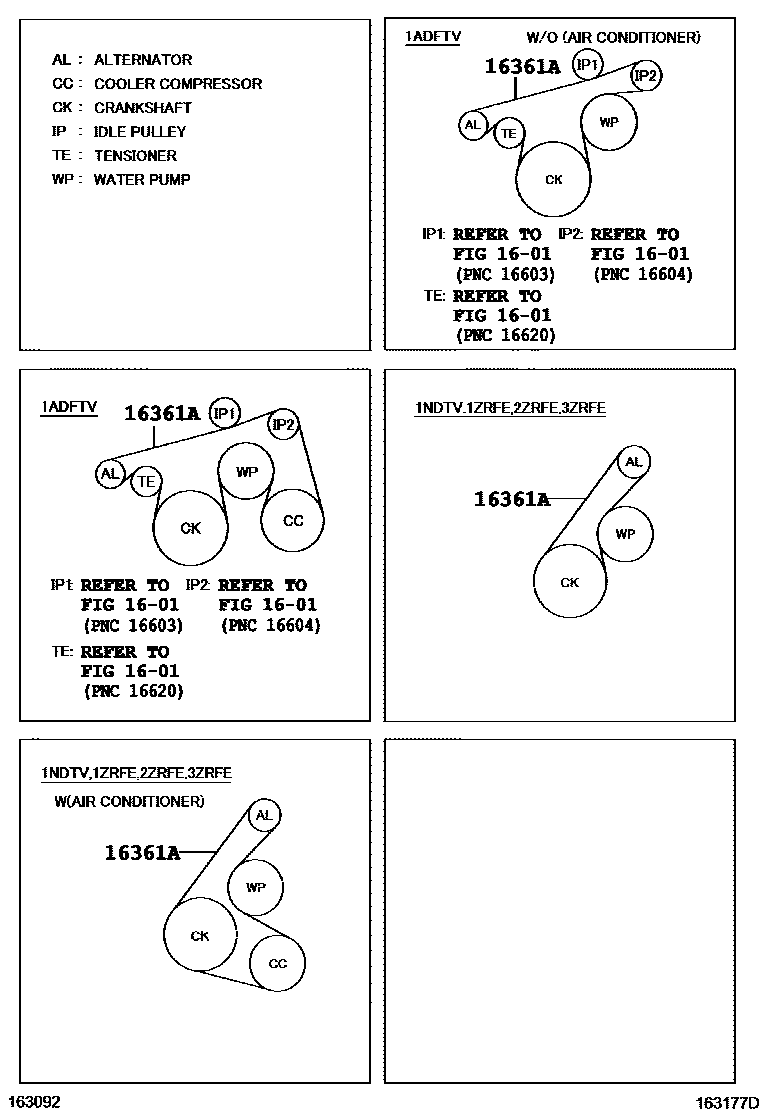

Toyota COROLLA V-Belt EPC diagram — 163177D
V-Belt — 163177D (200707 – 999999)

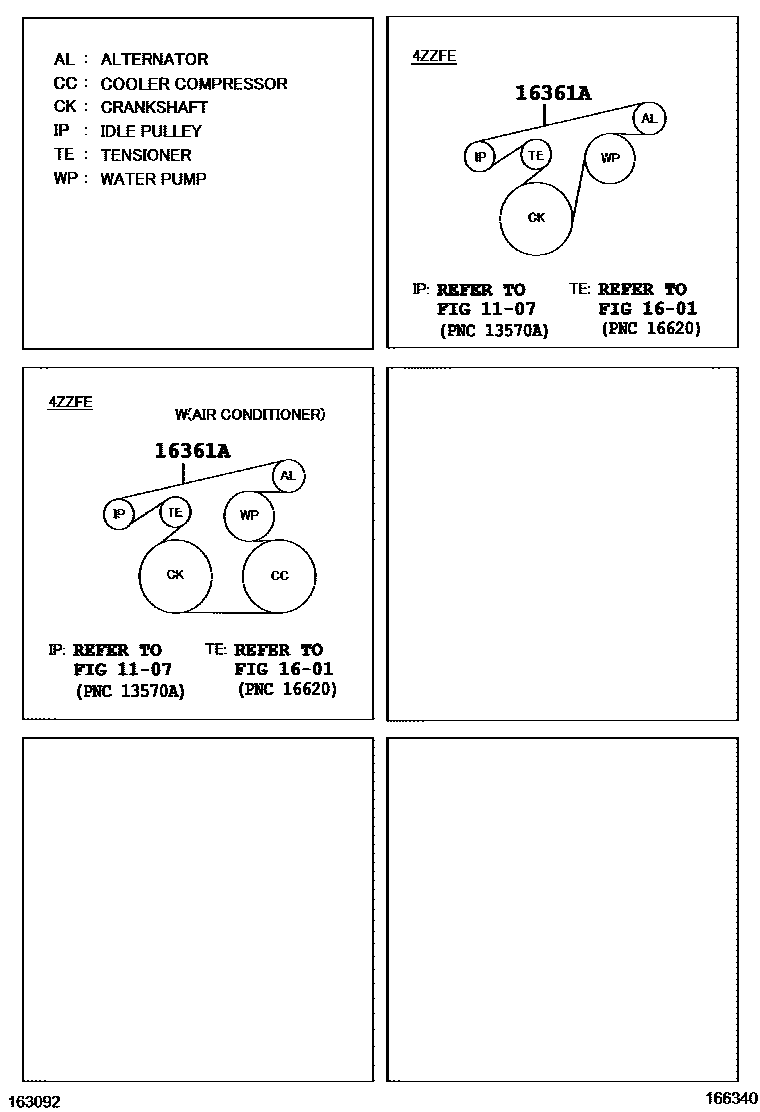

Toyota COROLLA V-Belt EPC diagram — 166340
V-Belt — 166340 (200707 – 999999)

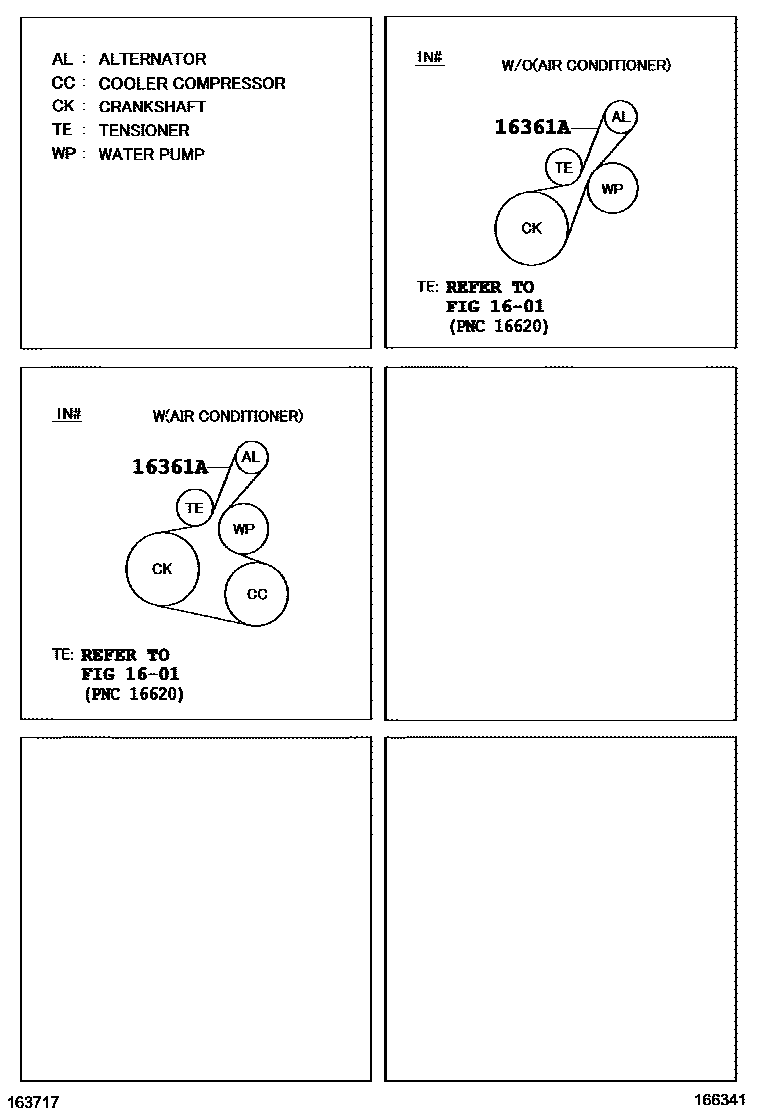

Toyota COROLLA V-Belt EPC diagram — 166341
V-Belt — 166341 (200902 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90916-02664 · 90916-02673 · 90916-02674 · 90916-02691 · 90916-02724 · 90916-W2001 · 90916-W2004 · 90916-W2007 · 90916-W2013 · 90916-W2014 · 90916-W2016 · 90916-W2018 · 90916-W2022 · 90916-W2024 · 90916-W2034 · 90916-W2035 · 99366-K0910
