Toyota COROLLA Water Pump — Figure 1601

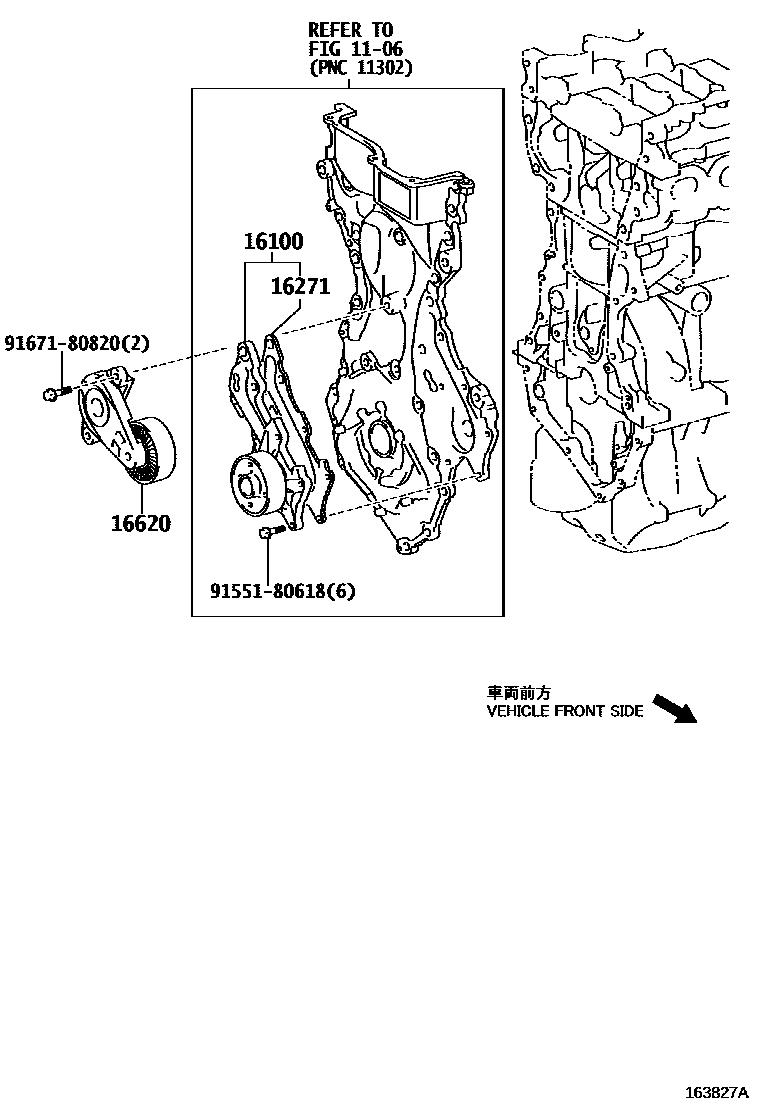

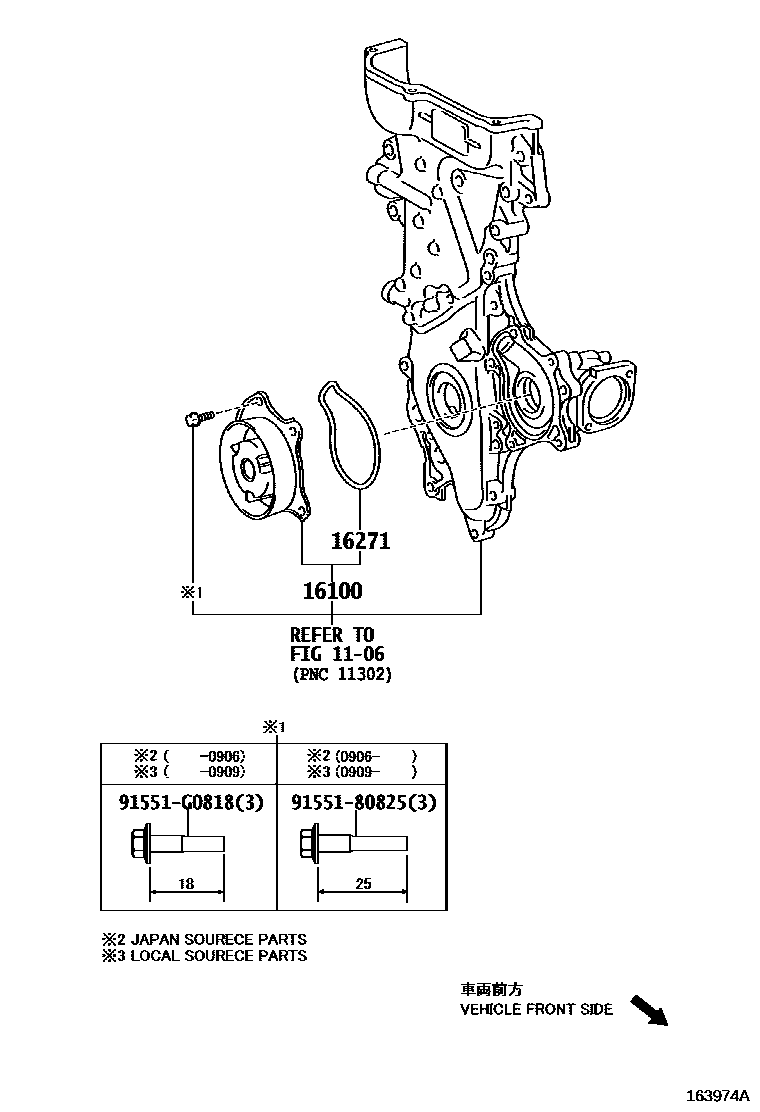

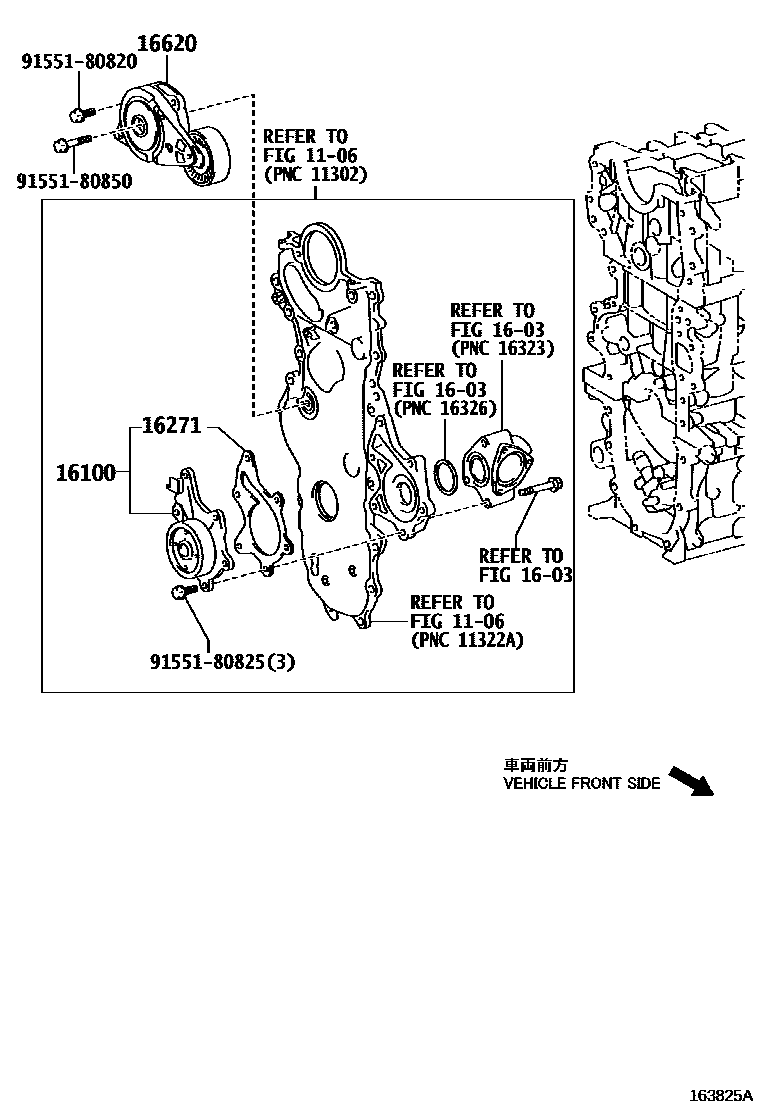

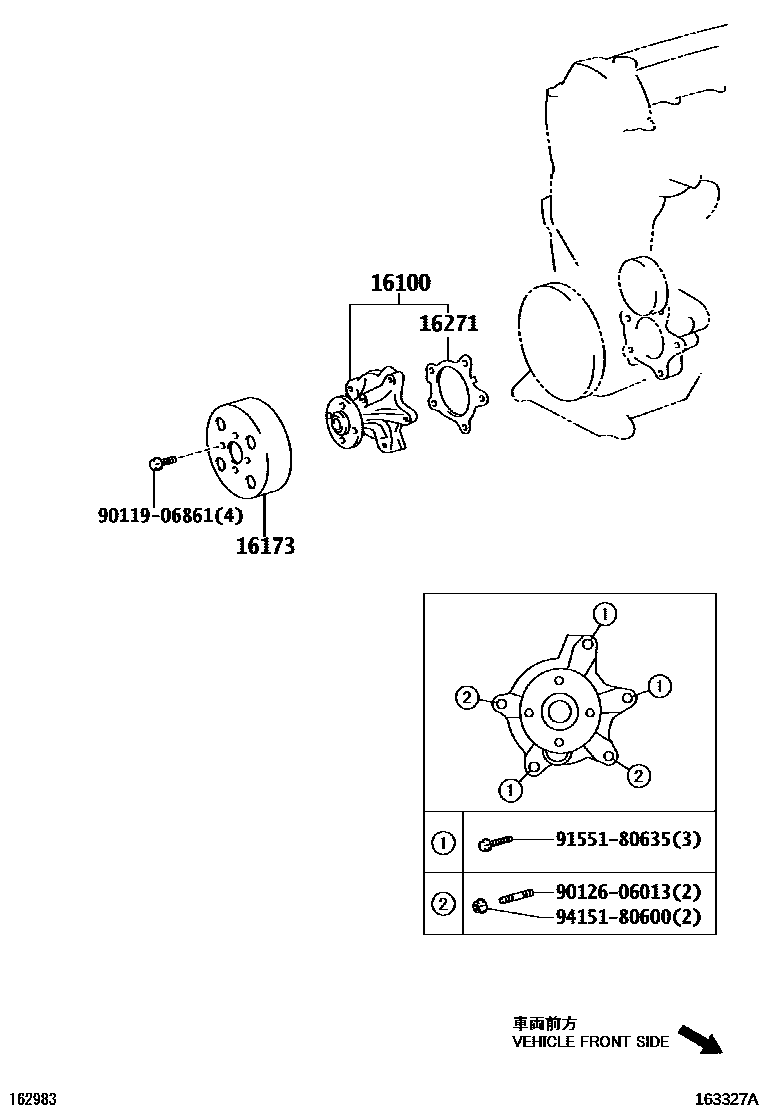

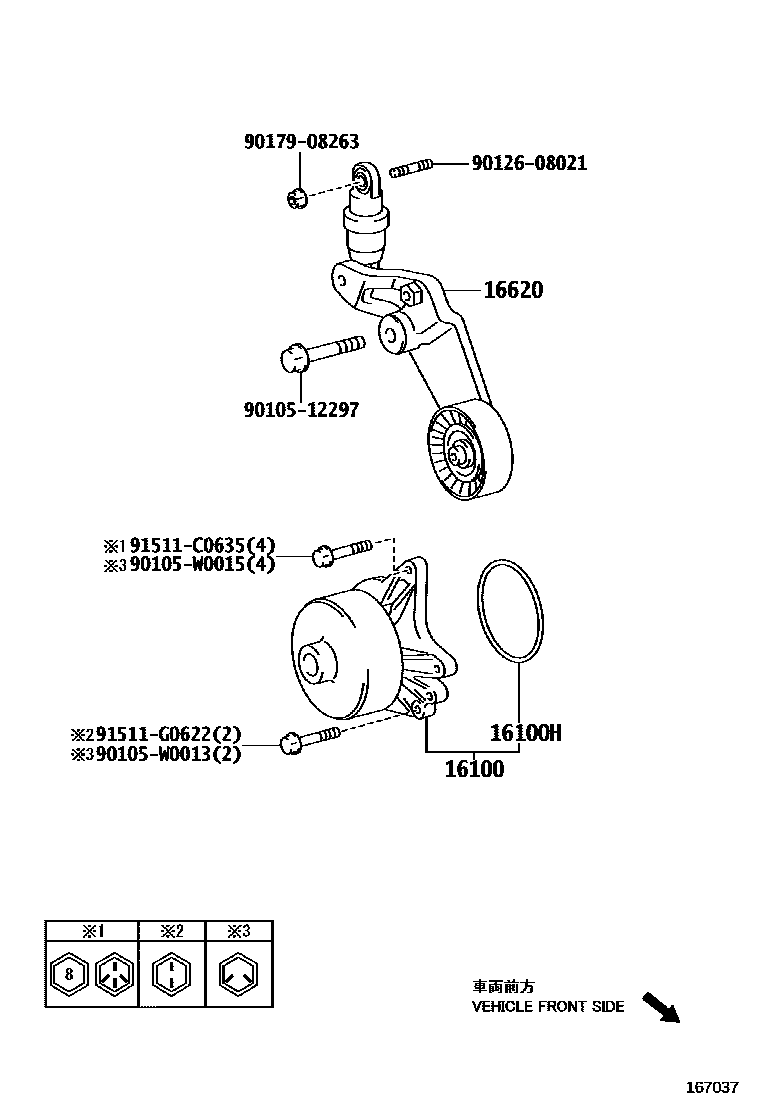

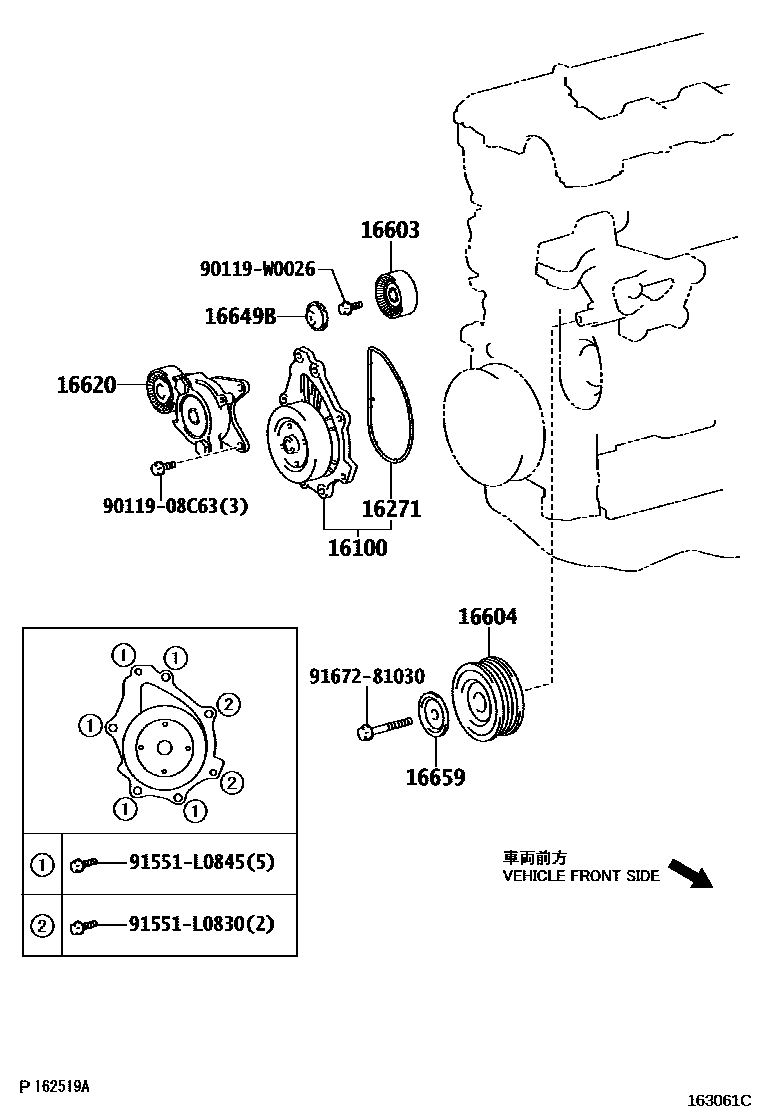

Toyota COROLLA EPC diagram 1601, Water Pump, with 6 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-09310 · 16100-09340 · 16100-09500 · 16100-09501 · 16100-29415 · 16100-39395 · 16100-39465 · 16100-39466 · 16100-39525 · 16100-80004 · 16100-80010 |
| 16100H | O-ring (for water pump) | 90301-69006 |
| 16173 | water pump pulley | 16173-33030 |
| 16271 | water pump gasket | 16271-26010 · 16271-33020 · 16271-33030 · 16271-37010 · 16271-47031 |
| 16603 | No. 1 idler pulley sub-assembly | 16603-0R010 |
| 16604 | No. 2 idler pulley sub-assembly | 16604-26011 |
| 16620 | Poly V-belt tensioner assembly | 16620-0R010 · 16620-0W093 · 16620-33020 · 16620-33021 · 16620-47010 |
| 16649B | Idler cover | 16649-0R010 |
| 16659 | No. 2 idler cover | 16659-26010 |
