Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

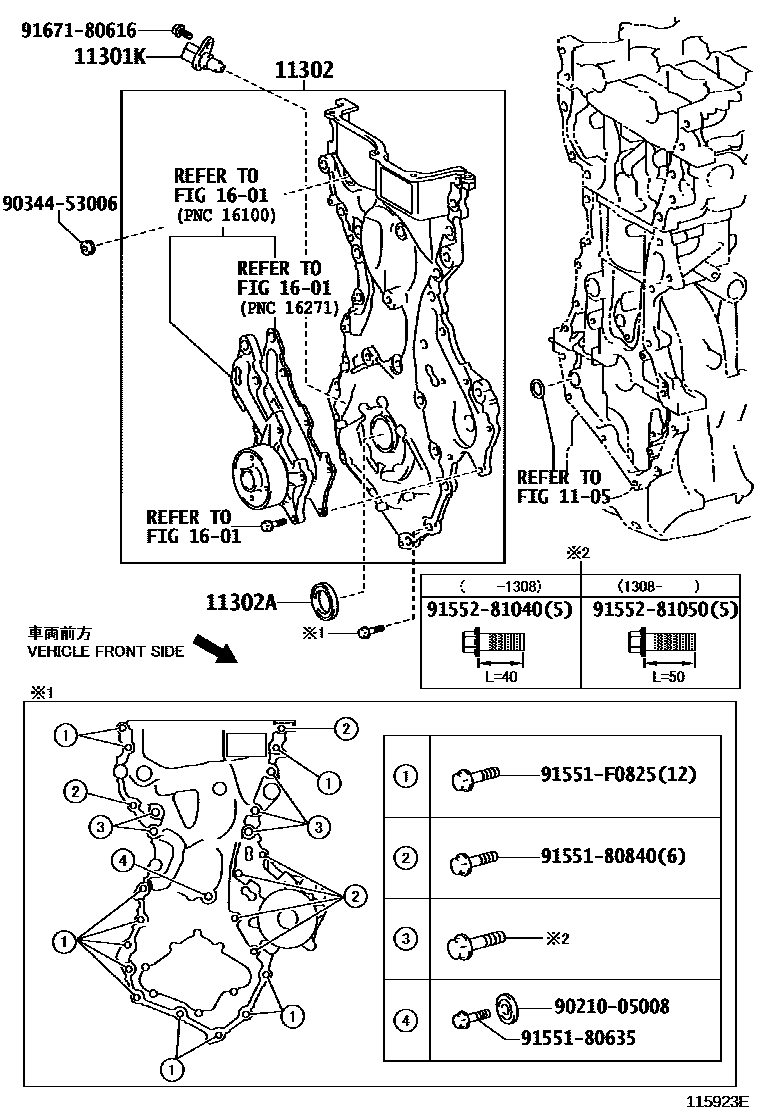

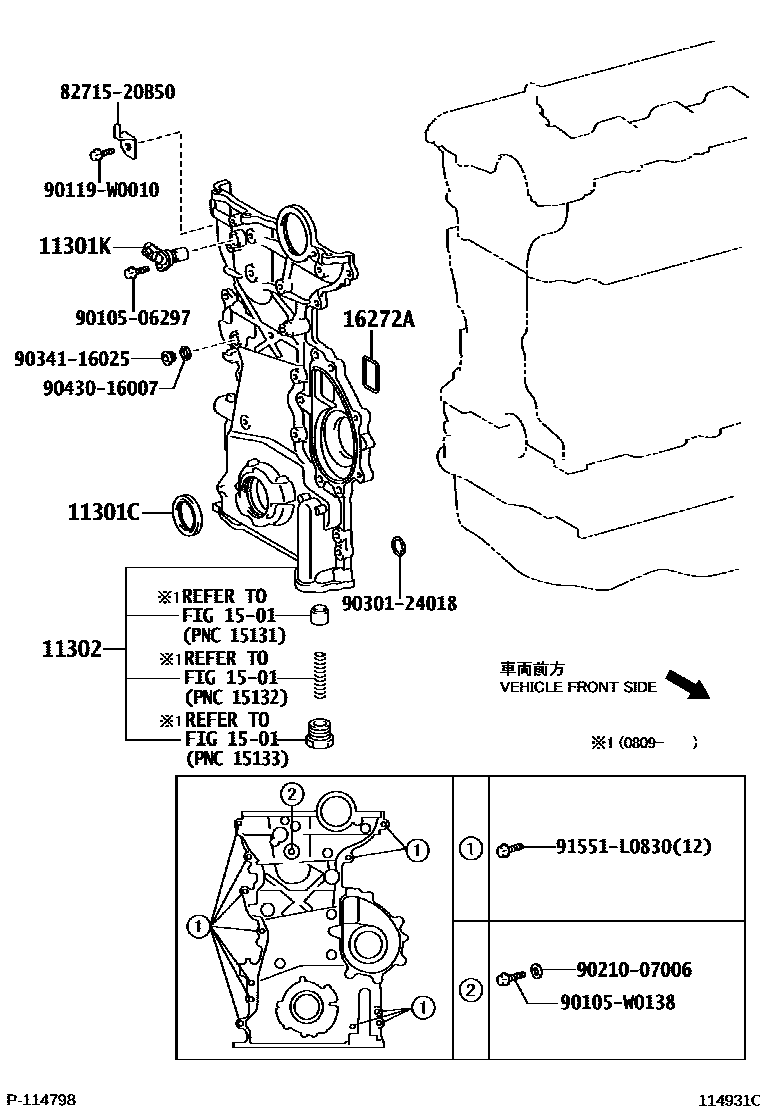

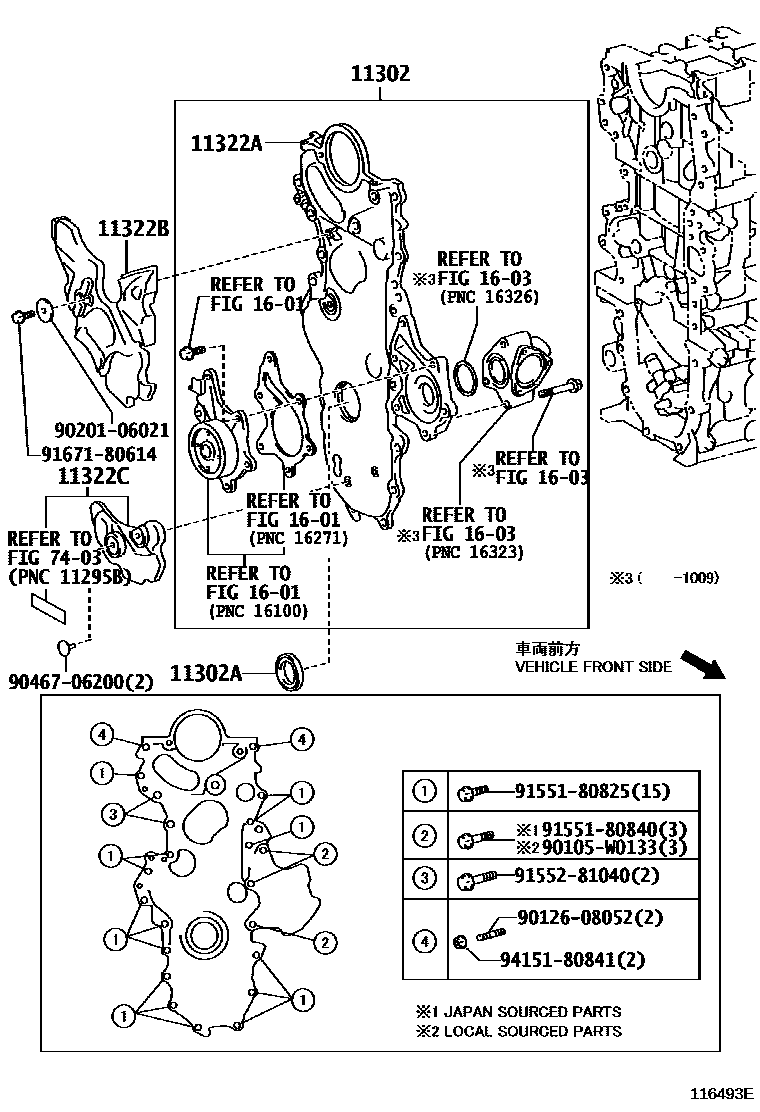

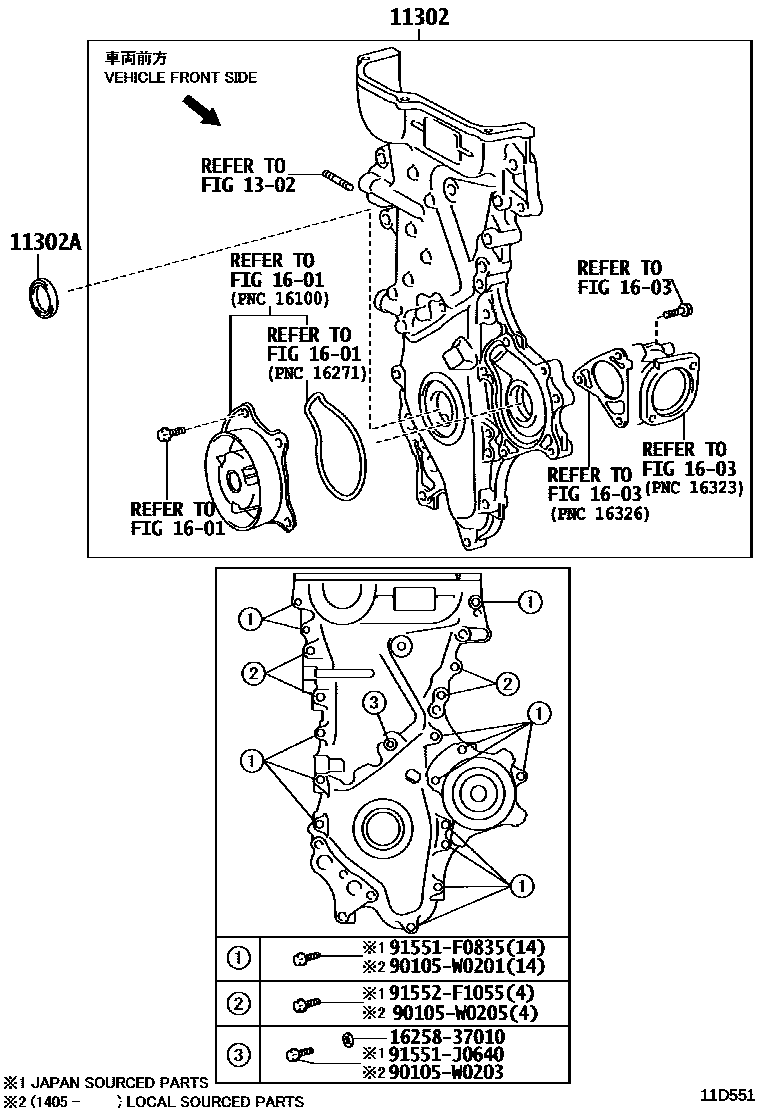

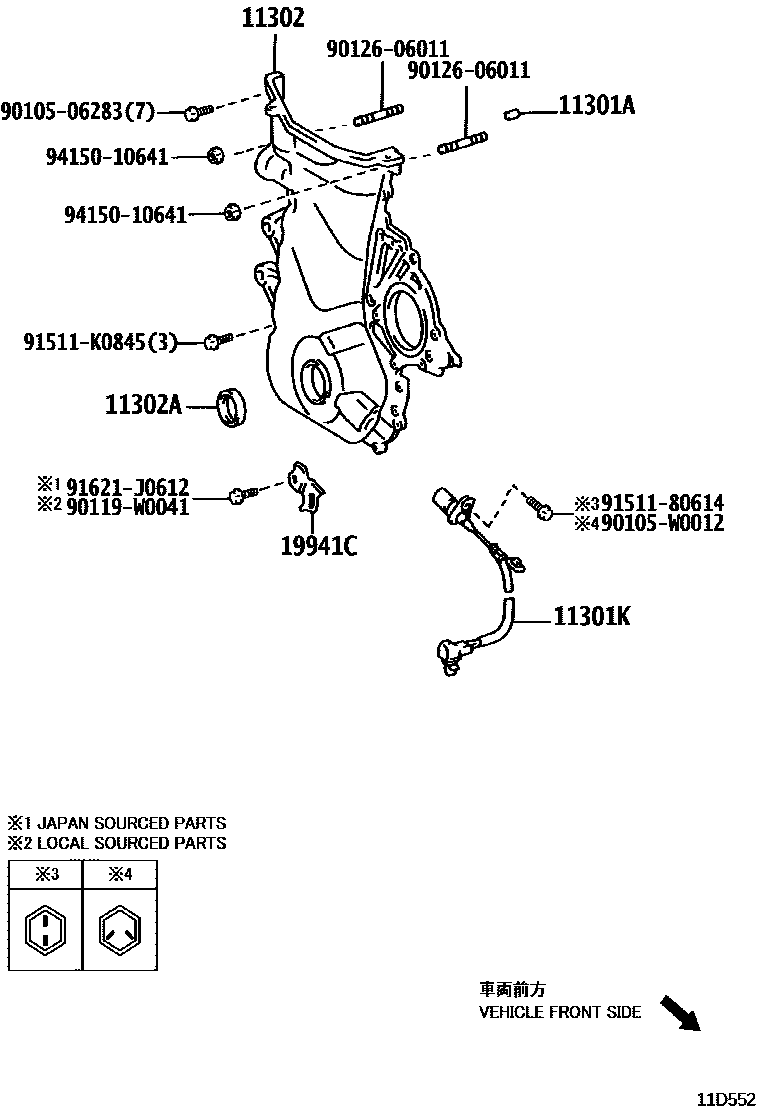

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 5 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301A | Direct sales (for timing gearbox) | 90250-08074 |
| 11301C | OIL SEAL (FOR TIMING GEAR OR CHAIN CASE) | 90311-W0005 · 90311-W0009 |
| 11301K | crankshaft position sensor | 90919-05029 · 90919-05030 · 90919-05073 |
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11302-0R011 · 11302-0R020 · 11310-0T070 · 11310-0T071 · 11310-33010 · 11310-33011 · 11310-37010 · 11310-37011 · 11310-37031 · 11310-37032 · 11310-47010 · 11310-47011 · 11310-47012 · 11321-0D020 · 11321-22021 |
| 11302A | Oil seal (for timing chain or timing belt cover) | 90080-31060 · 90311-25021 · 90311-25031 · 90311-25032 · 90311-38059 · 90311-38089 · 90311-38096 · 90311-40033 · 90311-40040 · 90311-W0012 |
| 11322A | No. 1 timing belt cover | 11321-33020 |
| 11322B | No. 2 timing belt cover | 11322-33020 |
| 11322C | No. 3 timing belt cover | 11323-33010 |
| 16272A | No. 2 water pump gasket | 16272-26010 |
| 19941C | Wire clamp (for crankshaft position sensor) | 19941-22010 |
