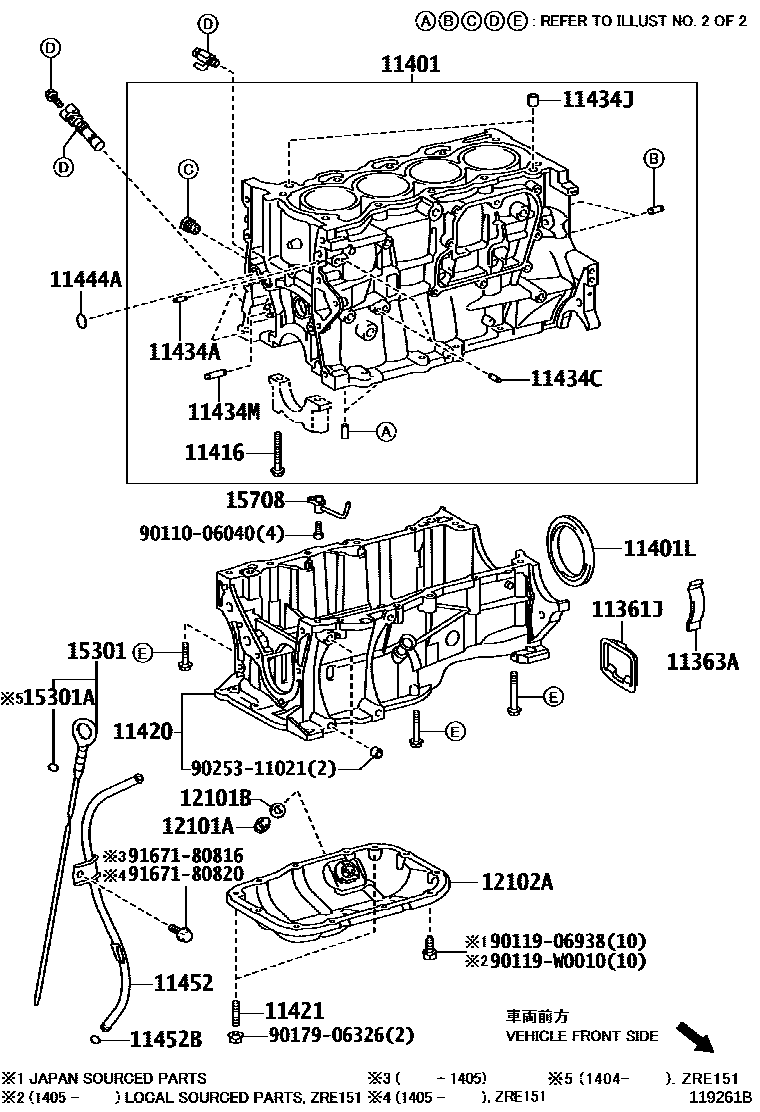

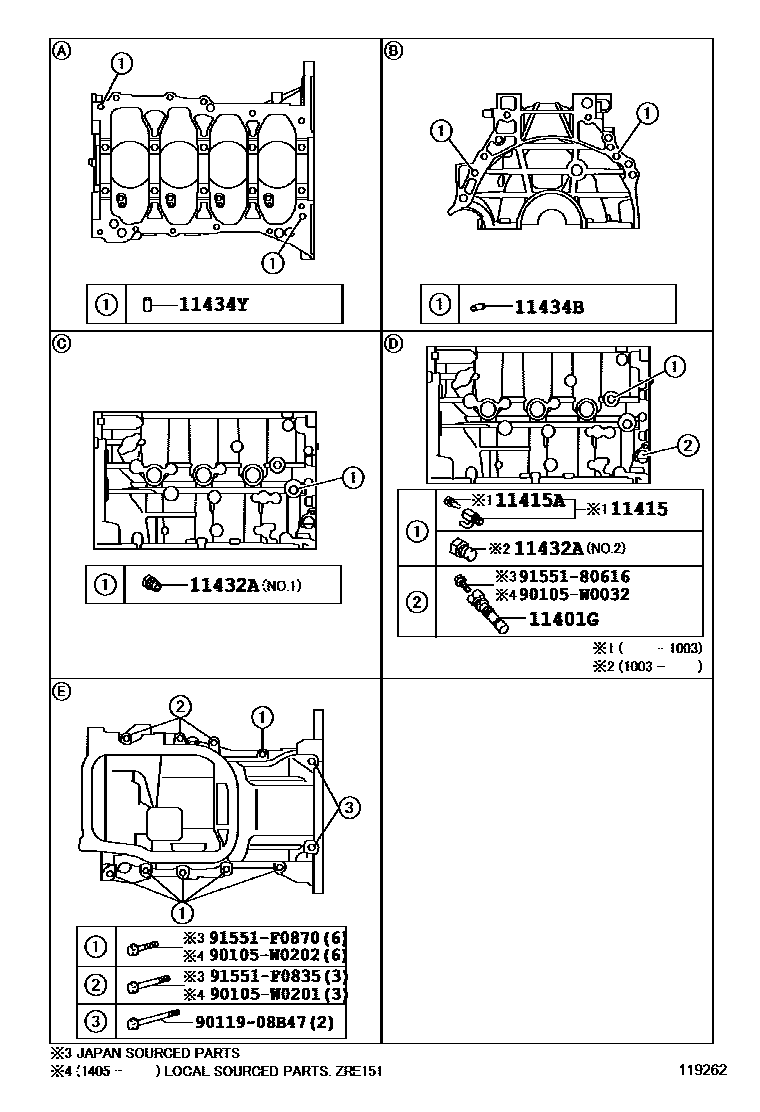

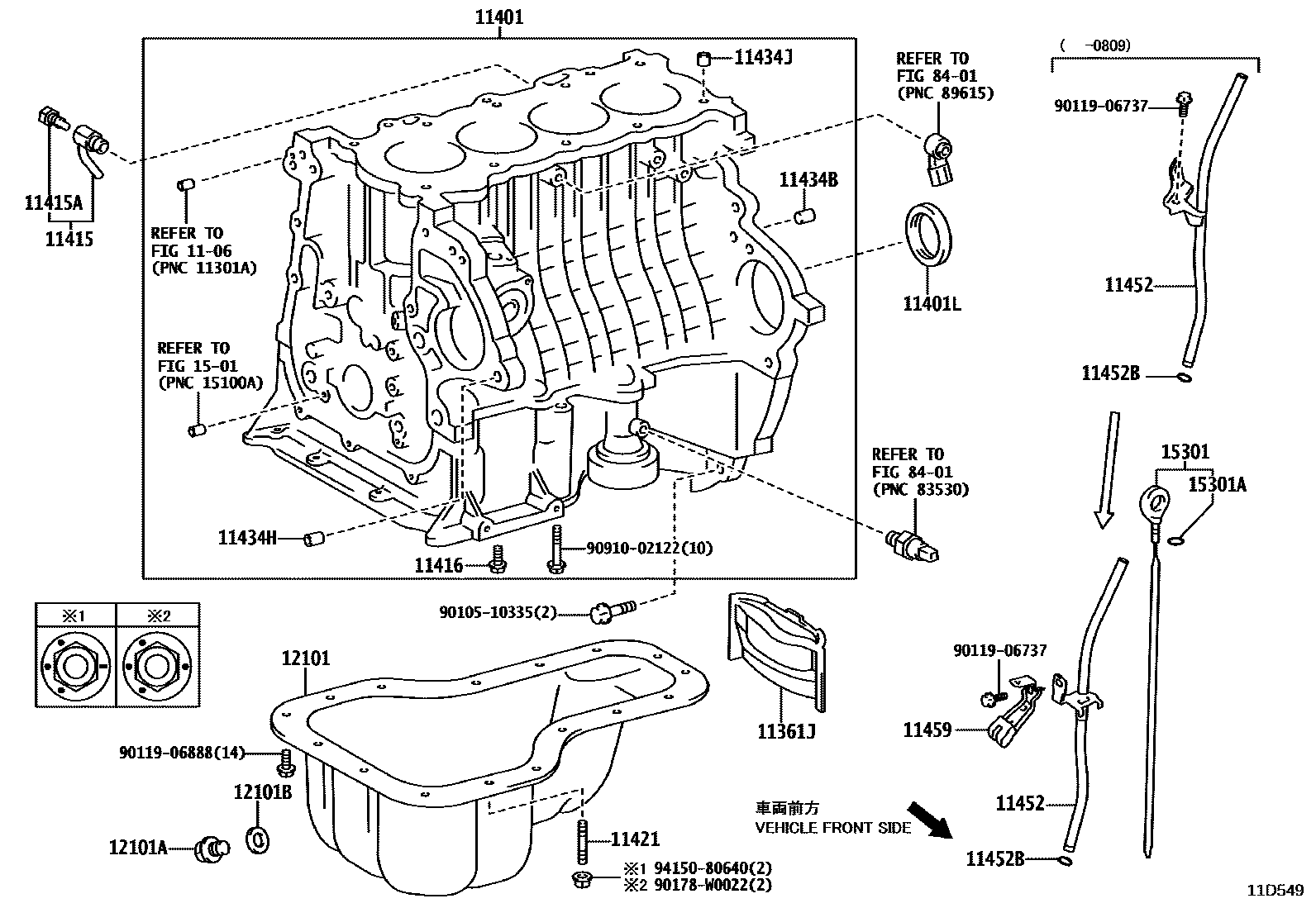

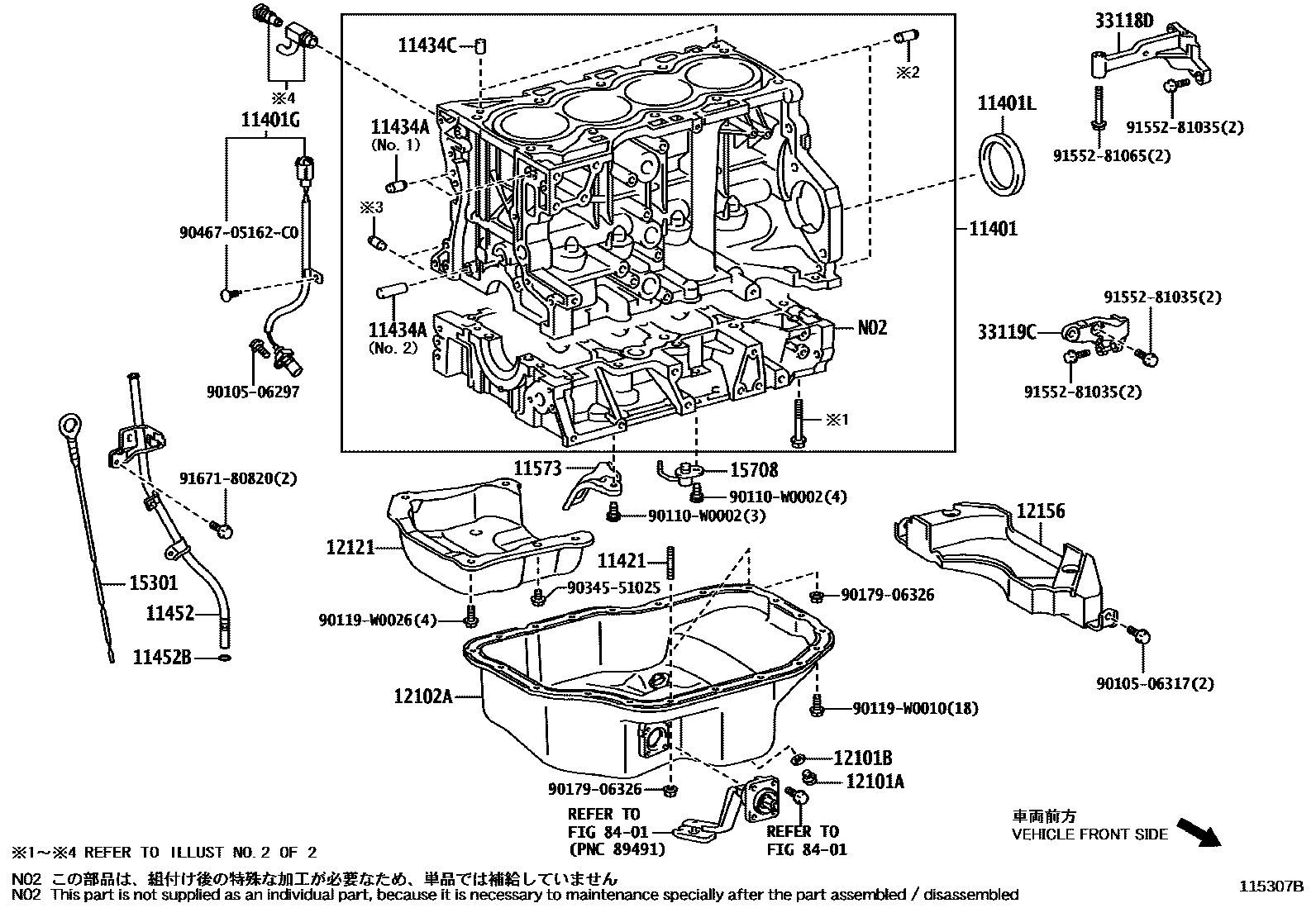

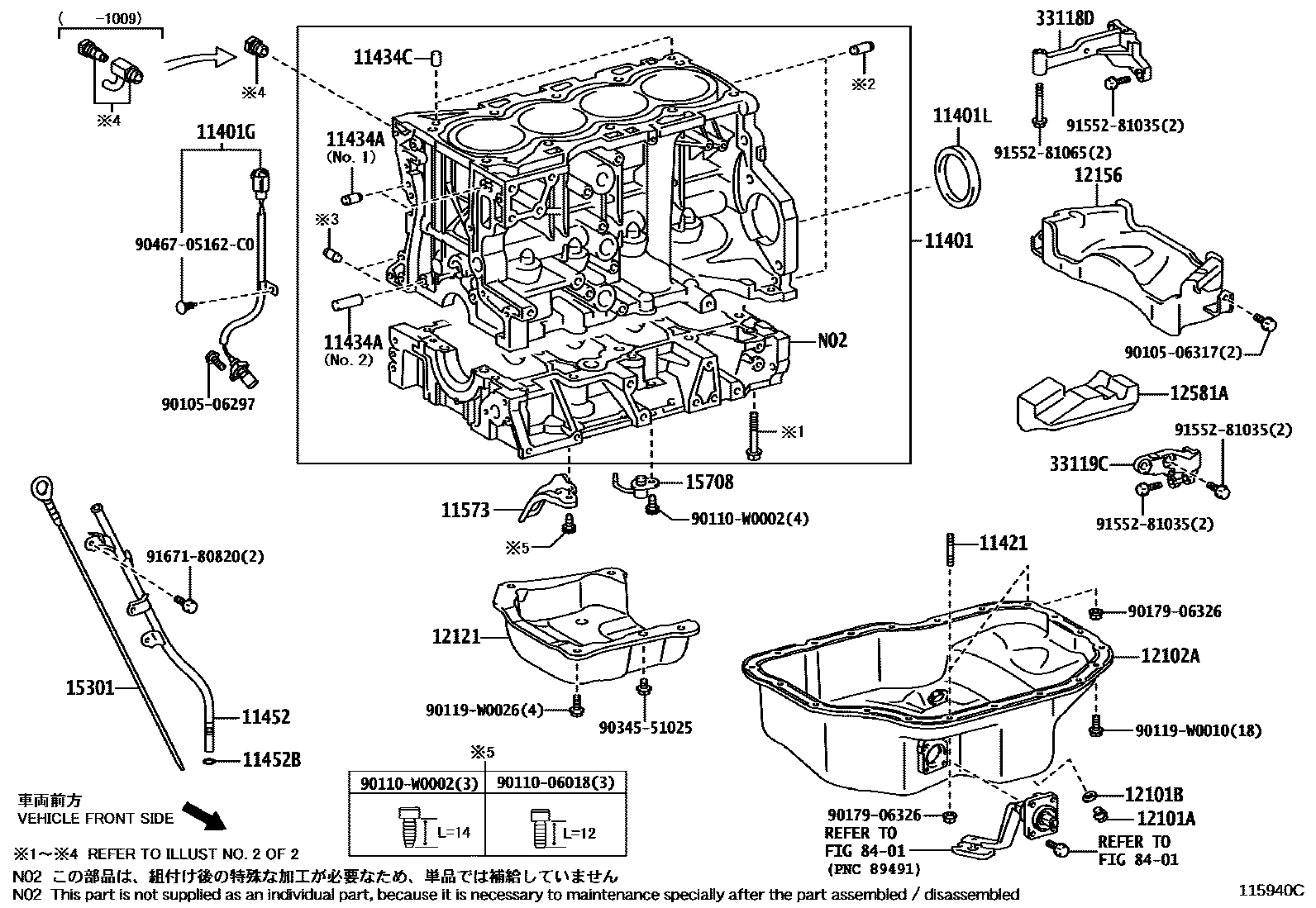

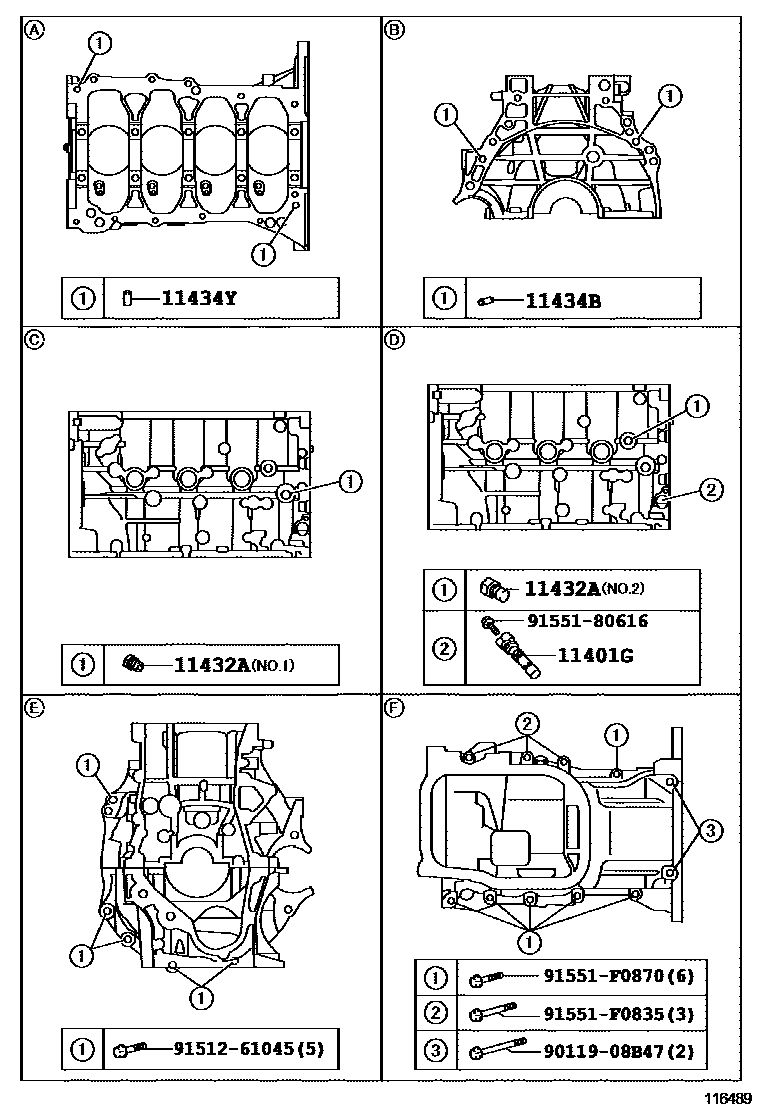

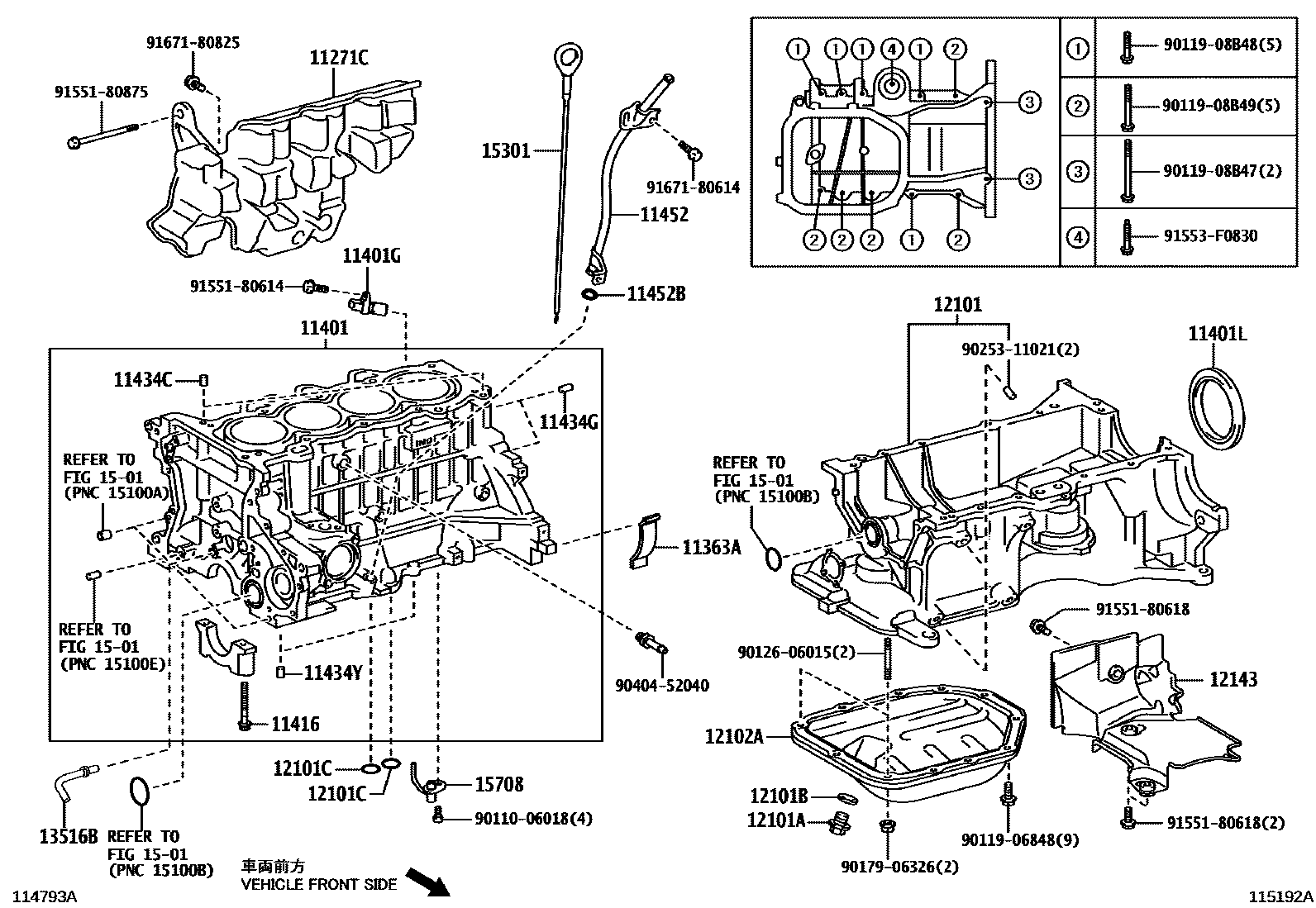

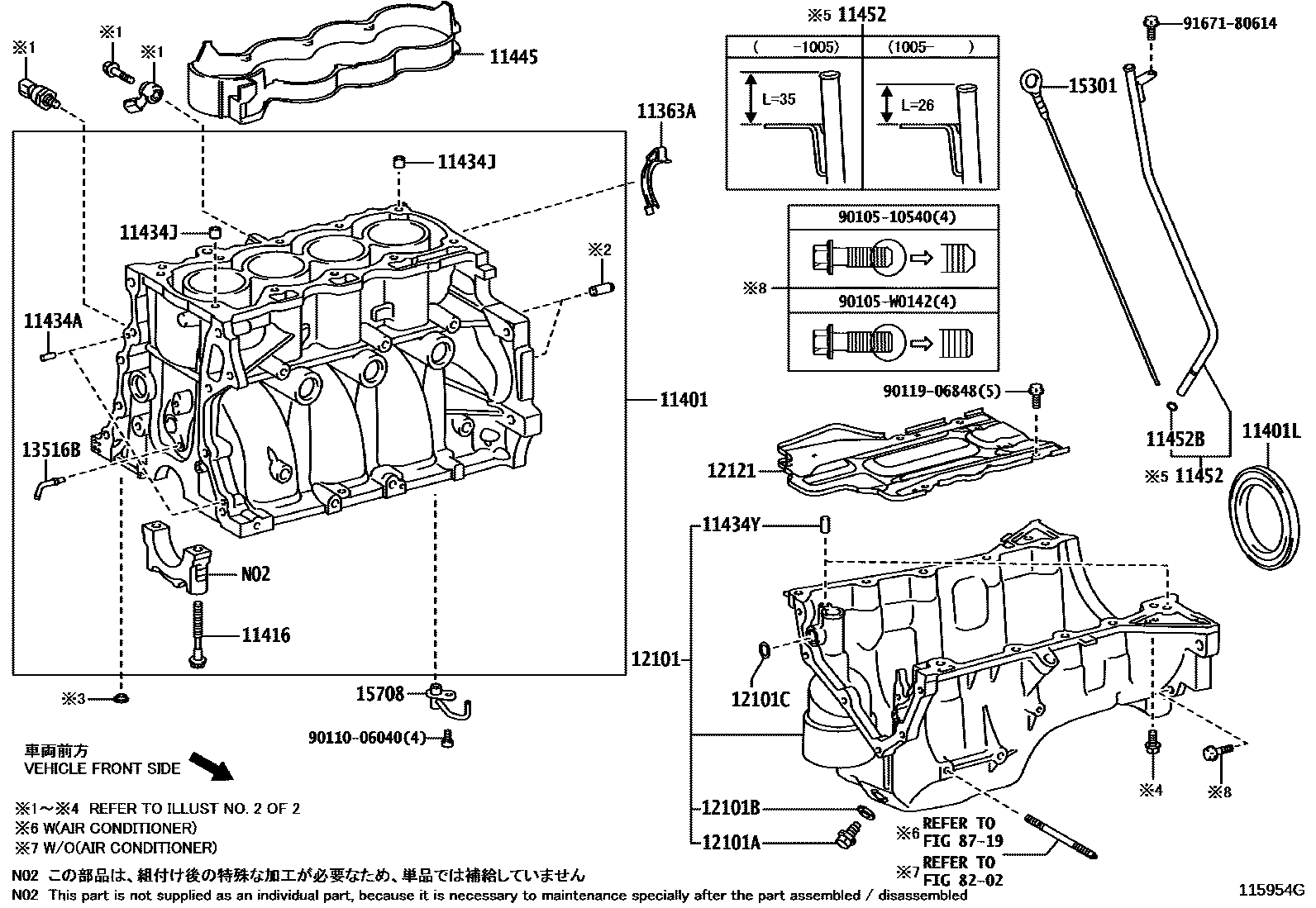

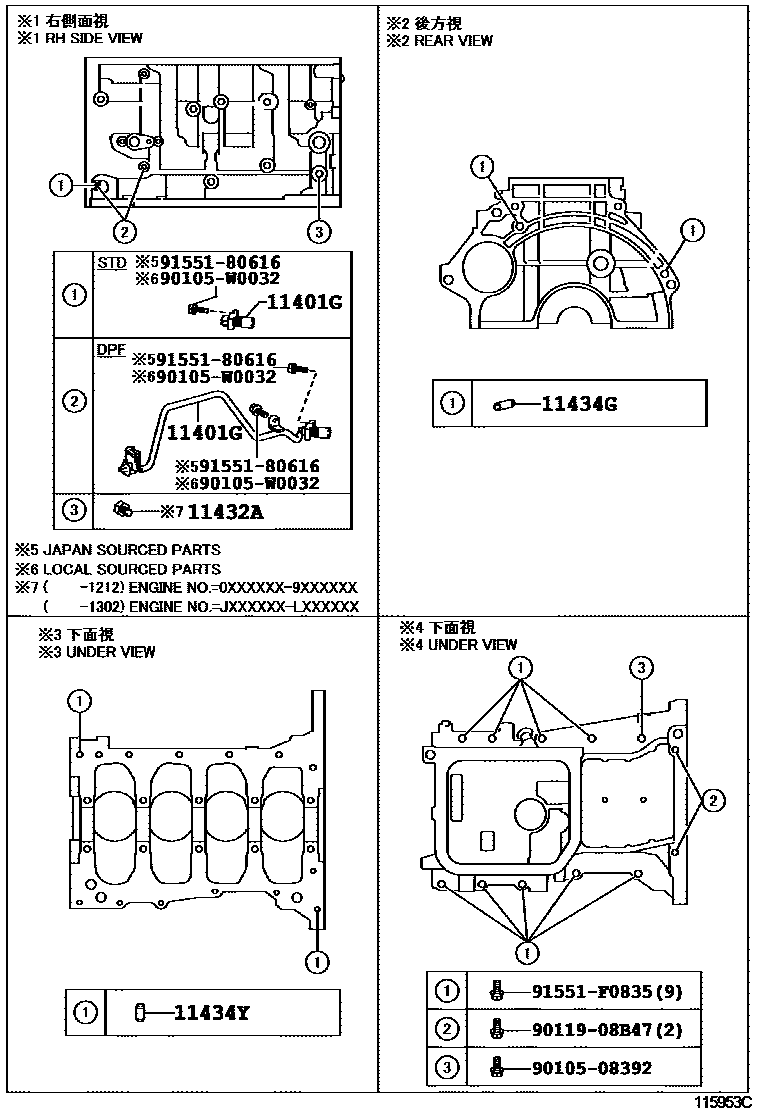

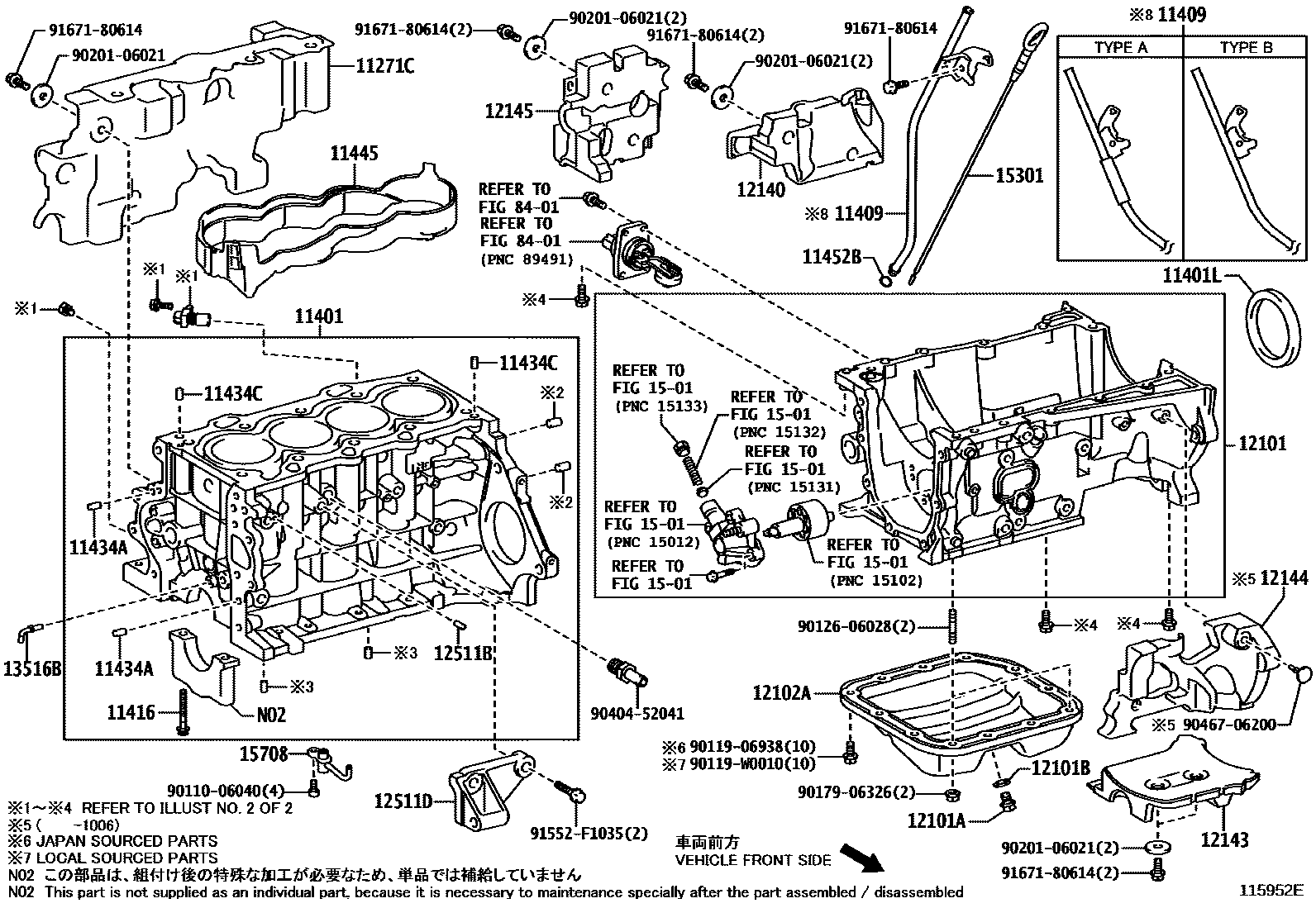

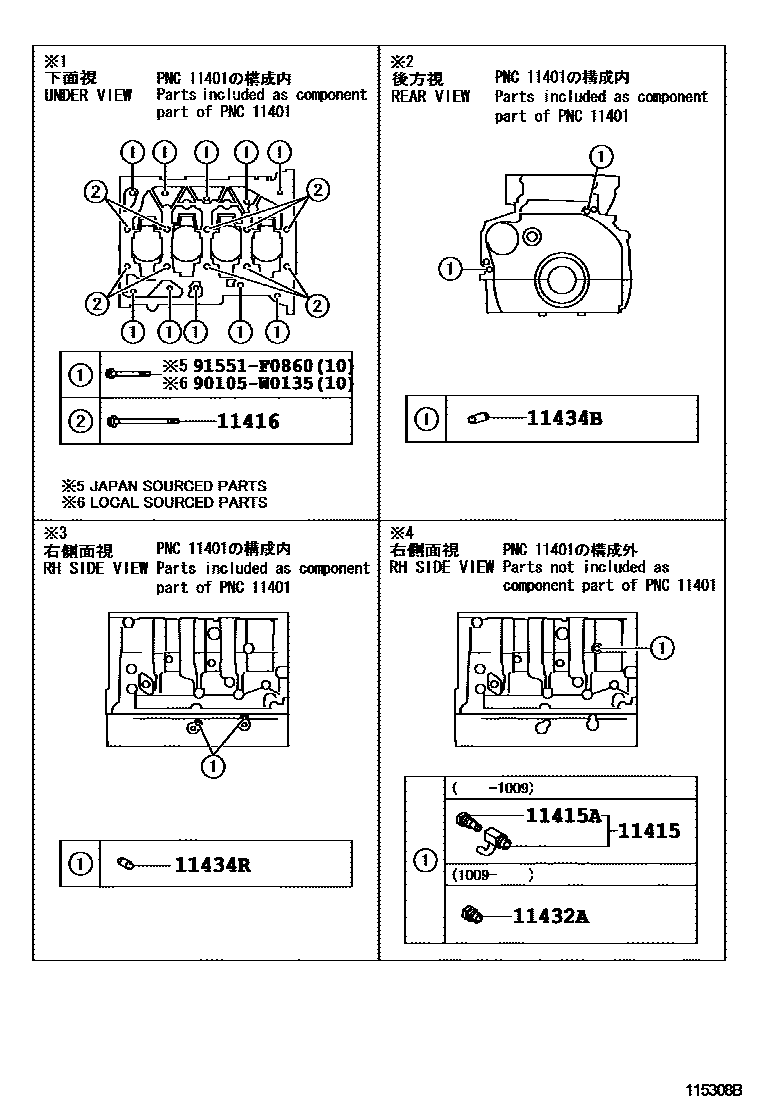

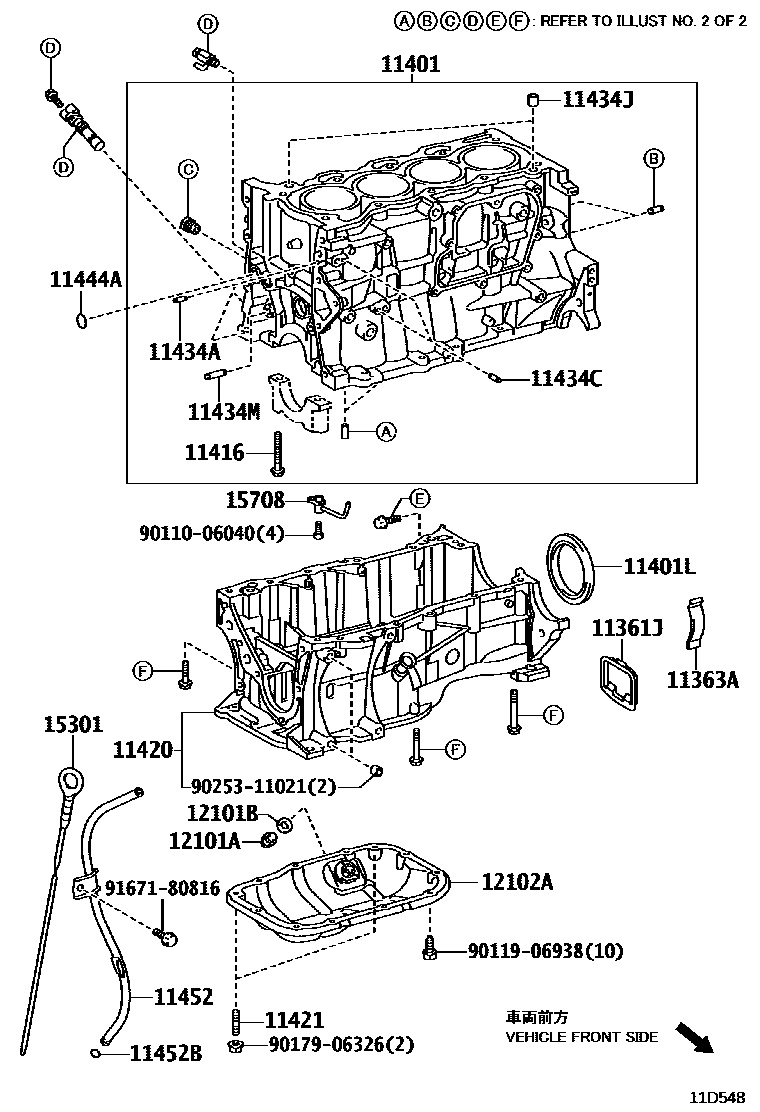

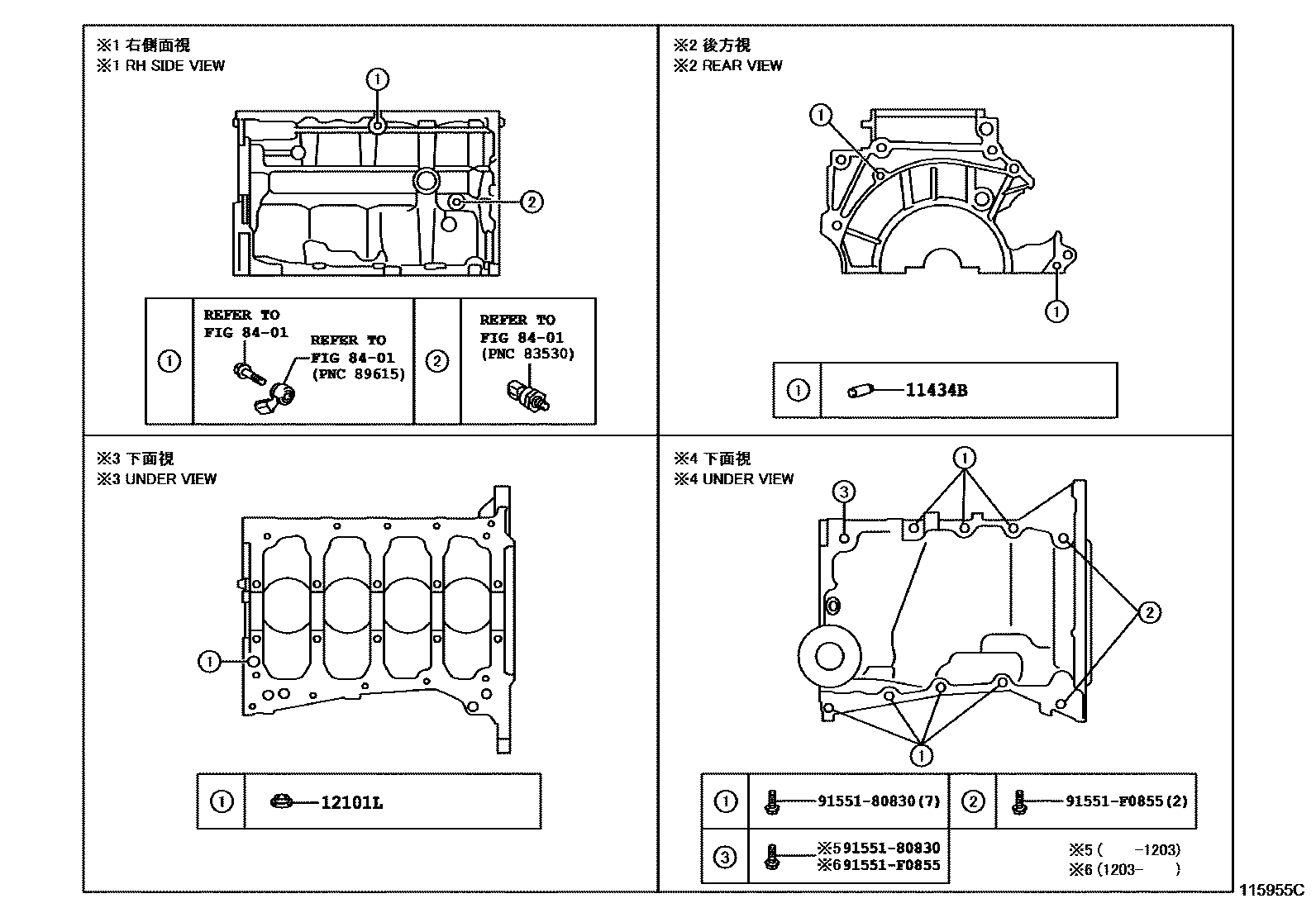

Toyota COROLLA Cylinder Block — Figure 1105
Toyota COROLLA EPC diagram 1105, Cylinder Block, with 13 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11271C | Cylinder block side cover | 11271-33021 · 11271-33030 · 11271-33031 |
| 11361J | Flywheel housing bottom cover | 11361-0D020 · 11361-21011 · 11361-22021 |
| 11363A | Flywheel housing side cover | 11363-0Q010 · 11363-33010 |
| 11401 | Cylinder block sub-assembly | 11401-39716 · 11410-09020 · 11410-09250 · 11410-09300 · 11410-09301 · 11410-09310 · 11410-09311 · 11410-09380 · 11410-09405 · 11410-09406 · 11410-09445 · 11410-09446 · 11410-09455 · 11410-29145 · 11410-29355 · 11410-29395 · 11410-29405 · 11410-29406 · 11410-39015 · 11410-39025 · 11410-39035 · 11410-39045 · 11410-39047 · 11410-39048 · 11410-39055 · 11410-39057 · 11410-39058 · 11410-39085 · 11410-39155 · 11410-39235 · 11410-49015 · 11410-49016 · 11410-49017 · 11410-49018 · 11410-49045 |
| 11401G | crankshaft position sensor | 90919-05063 · 90919-05069 · 90919-05070 |
| 11401L | SEAL, ENGINE REAR OIL | 90080-31059 · 90311-75016 · 90311-75017 · 90311-75020 · 90311-76001 · 90311-76002 · 90311-78002 · 90311-78003 · 90311-78005 · 90311-78008 · 90311-W0006 · 90311-W0010 · 90311-W0011 |
| 11409 | Engine oil level gauge guide sub-assembly | 11409-33010 · 11409-33011 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09107 · 90910-09129 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02147 · 90910-02154 · 90910-02157 · 90910-02163 · 90910-02175 · 91511-K0840 |
| 11420 | Reinforce crankcase assembly | 11420-0T030 · 11420-37010 · 11420-37020 |
| 11421 | Stud bolts (for oil pan) | 90116-06134 · 90126-06010 · 90126-06015 · 90126-06028 |
| 11432A | No. 1 headed tapered thread plug | 90345-51011 · 90345-52001 · 90345-53006 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-04097 · 90250-08120 · 90250-10030 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90250-04097 · 90250-08074 · 90250-08120 |
| 11434G | Direct sales (for end plates) | 90250-10113 |
| 11434H | Ring pin (for timing belt cover assembly) | 90253-14003 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13001 · 90253-13017 |
| 11434M | Direct pin (for chain tensioner) | 90250-10030 |
| 11434R | Direct selling (for drive shaft bearing bracket) | 90250-08120 |
| 11434Y | Direct sales (for oil pan) | 90250-08074 · 90250-08120 |
| 11444A | O-ring | 96723-24020 |
| 11445 | Cylinder block water jacket spacer | 11445-33010 · 11445-47010 |
| 11452 | Engine oil level gauge guide | 11409-47010 · 11409-47011 · 11409-47012 · 11452-22030 · 11452-22031 · 11452-26030 · 11452-26050 · 11452-26060 · 11452-33040 · 11452-37010 · 11452-37011 · 11452-37020 |
| 11452B | O-ring (for oil level gauge guide) | 96721-19010 · 96741-19010 |
| 11459 | Oil level gauge guide bracket | 11459-22010 |
| 11573 | Oil reflector baffle | 11573-26010 |
| 12101 | Oil pan sub-assembly | 12101-0D020 · 12101-22024 · 12101-33030 · 12101-33040 · 12101-47061 · 12101-47120 · 12101-47121 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 · 90341-12032 |
| 12101B | Gasket (for oil pan drain plug) | 90080-43037 · 90430-12031 |
| 12101C | O-ring (for oil pan) | 90301-19023 · 96722-24020 |
| 12101L | Gasket No. 1 (for oil pan) | 90430-12039 |
| 12102A | No. 2 oil pan sub-assembly | 12102-0R010 · 12102-0R020 · 12102-0R021 · 12102-0R022 · 12102-0T040 · 12102-21010 · 12102-33010 · 12102-37010 |
| 12121 | No. 1 oil pan baffle | 12121-26020 · 12121-47011 · 12121-B1060 |
| 12140 | oil pan cover | 12615-33010 · 12615-33011 |
| 12143 | oil pan cover | 12143-33020 · 12143-33030 · 12143-33031 |
| 12144 | Oil pan cover muffler | 12144-33010 |
| 12145 | No. 2 oil pan cover muffler | 12145-33010 · 12145-33011 |
| 12156 | Oil pan vibration isolation pad | 12156-0R010 · 12156-0R020 |
| 12511B | Ring pin (for generator bracket) | 90250-04097 |
| 12511D | Generator bracket | 12511-33020 · 12511-33021 |
| 12581A | No. 1 cylinder block vibration isolation pad | 12581-26010 |
| 13516B | oil nozzle | 13516-21020 · 13516-33030 · 13516-40010 |
| 15301 | Engine oil level scoring assembly | 15301-0D011 · 15301-22050 · 15301-26060 · 15301-26080 · 15301-33020 · 15301-33050 · 15301-37010 · 15301-37020 · 15301-37030 · 15301-37040 · 15301-47020 · 15301-47050 |
| 15301A | O-ring (for engine oil level gauge) | 96741-19005 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-0R010 · 15708-0R011 · 15708-33010 · 15708-33020 · 15708-37010 · 15708-37011 · 15708-37012 · 15708-47030 · 15708-47031 · 15708-47040 |
| 33118D | Right reinforcement plate | 33118-05010 |
| 33119C | Left reinforcement plate | 33119-05010 · 33119-05020 |
