Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 16 images and 2 PNC and OE references.

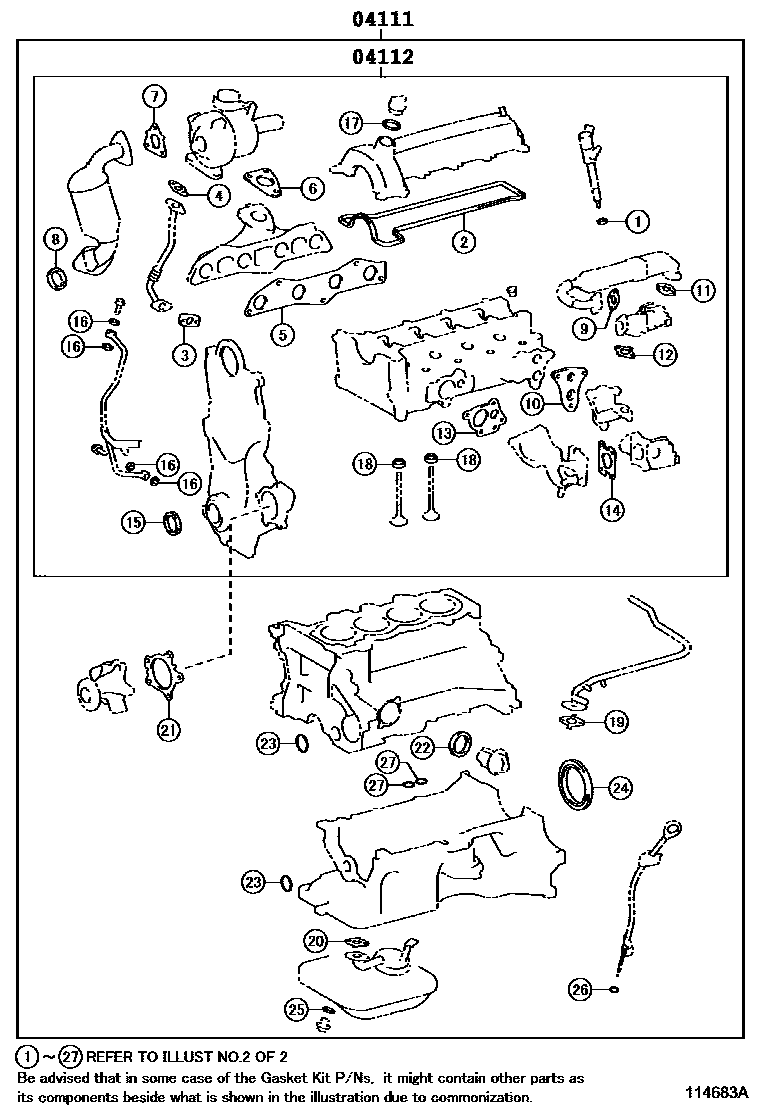

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 114683A
Engine Overhaul Gasket Kit — 114683A (200710 – 200902)

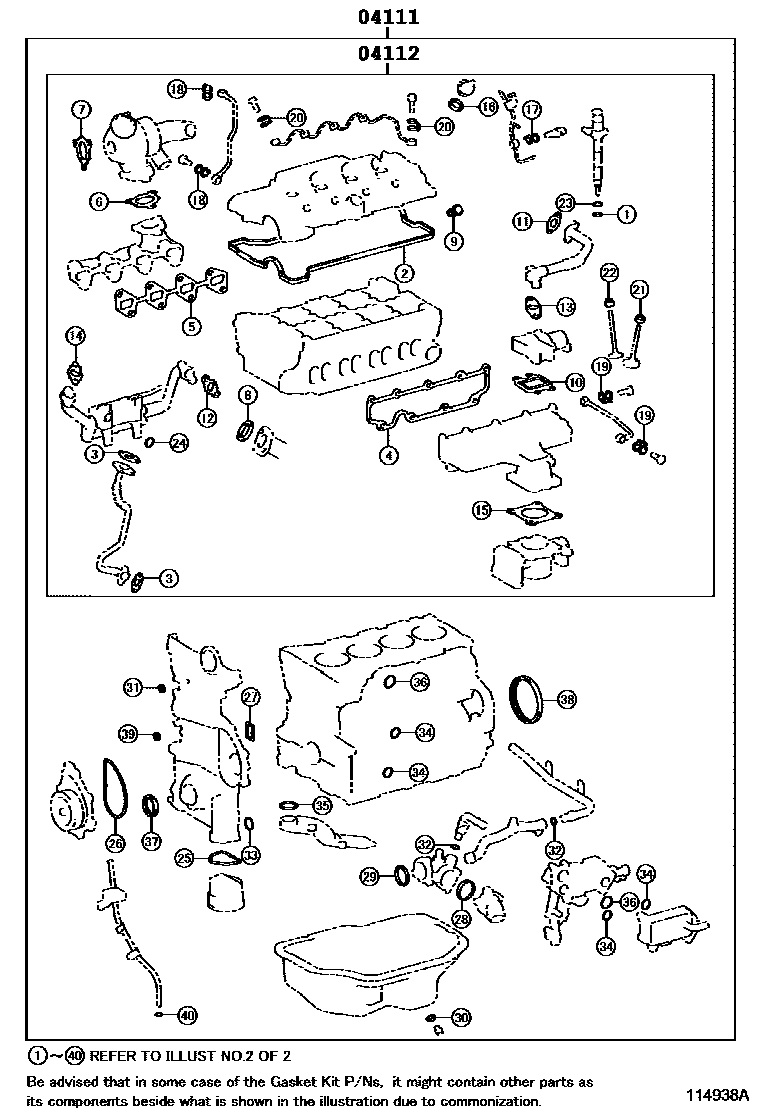

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 114938A
Engine Overhaul Gasket Kit — 114938A (200707 – 200903)

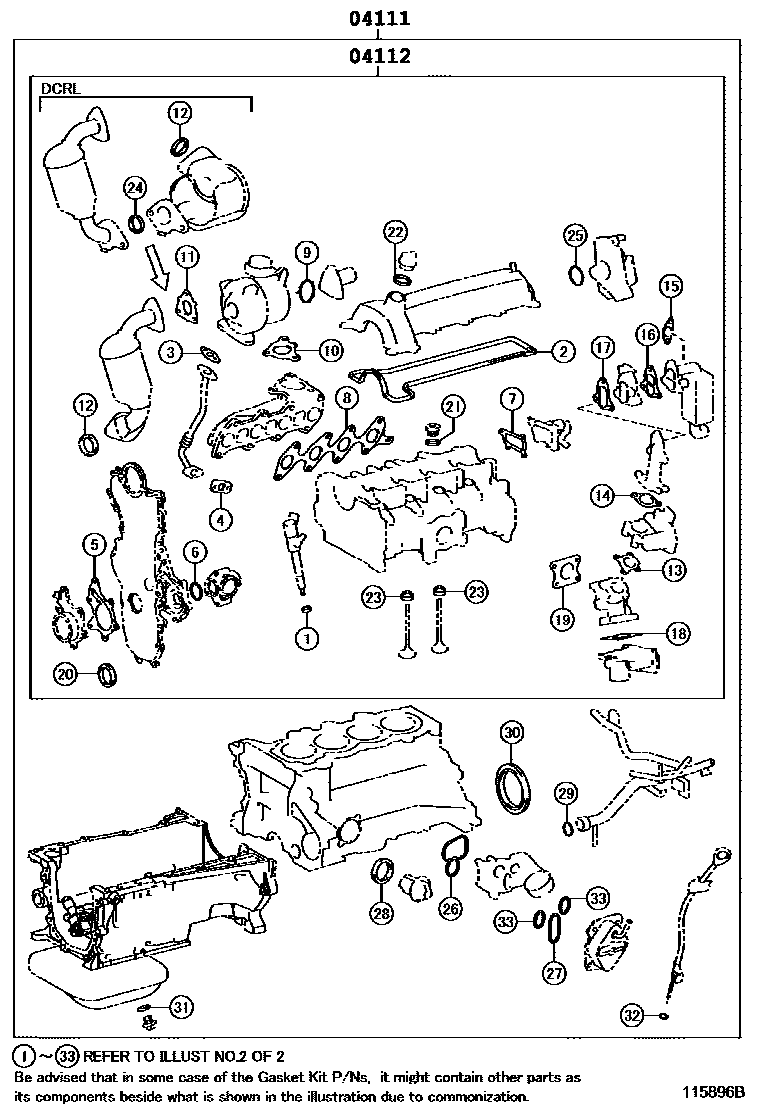

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 115896B
Engine Overhaul Gasket Kit — 115896B (200902 – 999999)

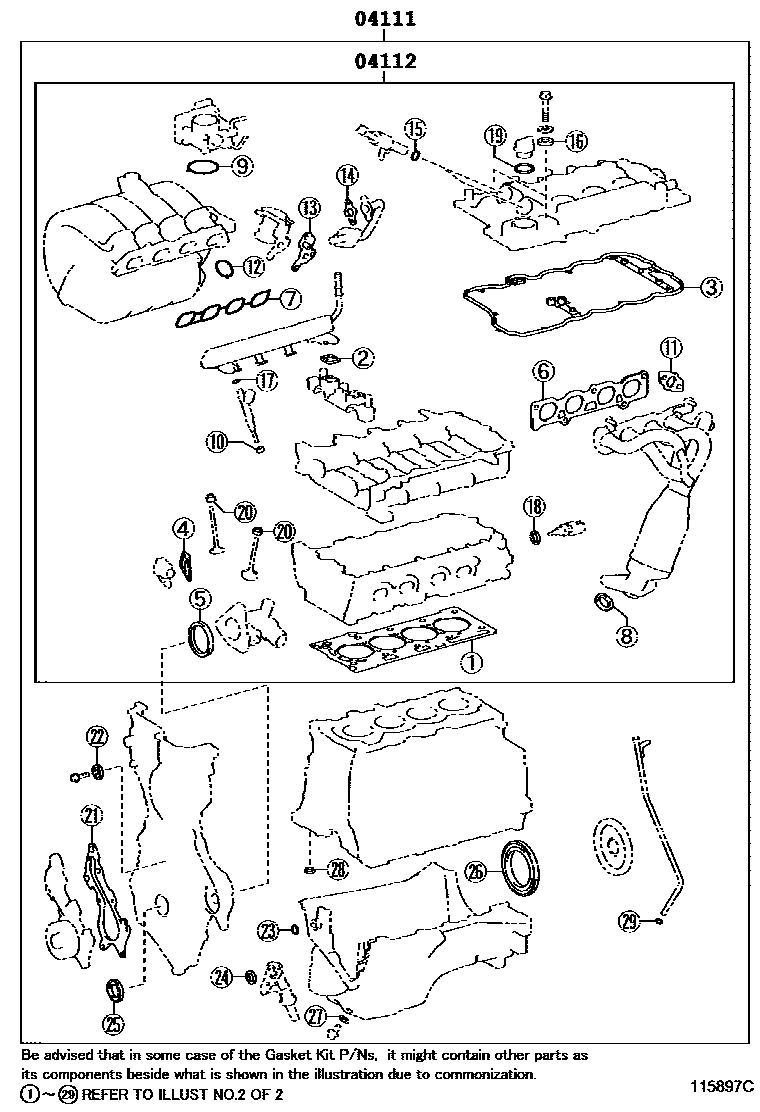

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 115897C
Engine Overhaul Gasket Kit — 115897C (200902 – 999999)

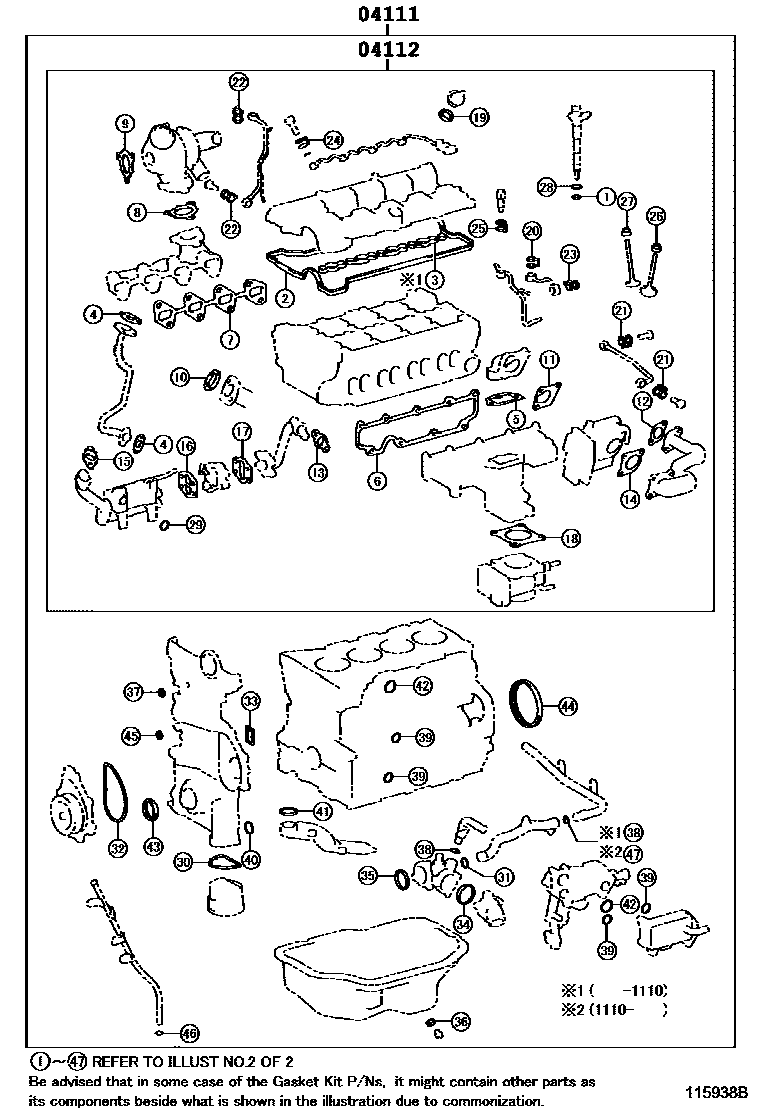

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 115938B
Engine Overhaul Gasket Kit — 115938B (200903 – 999999)

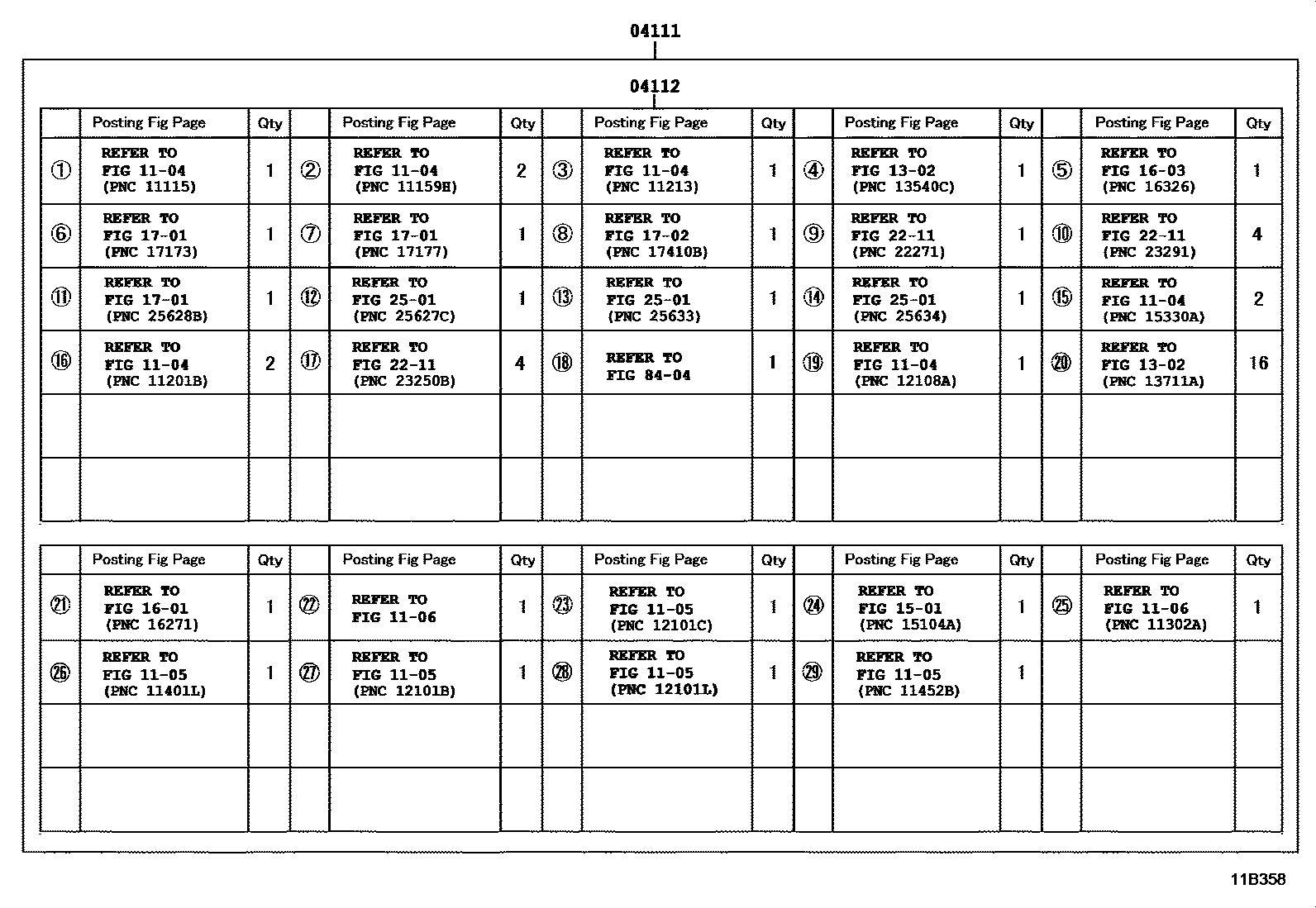

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B358
Engine Overhaul Gasket Kit — 11B358 (200902 – 999999)

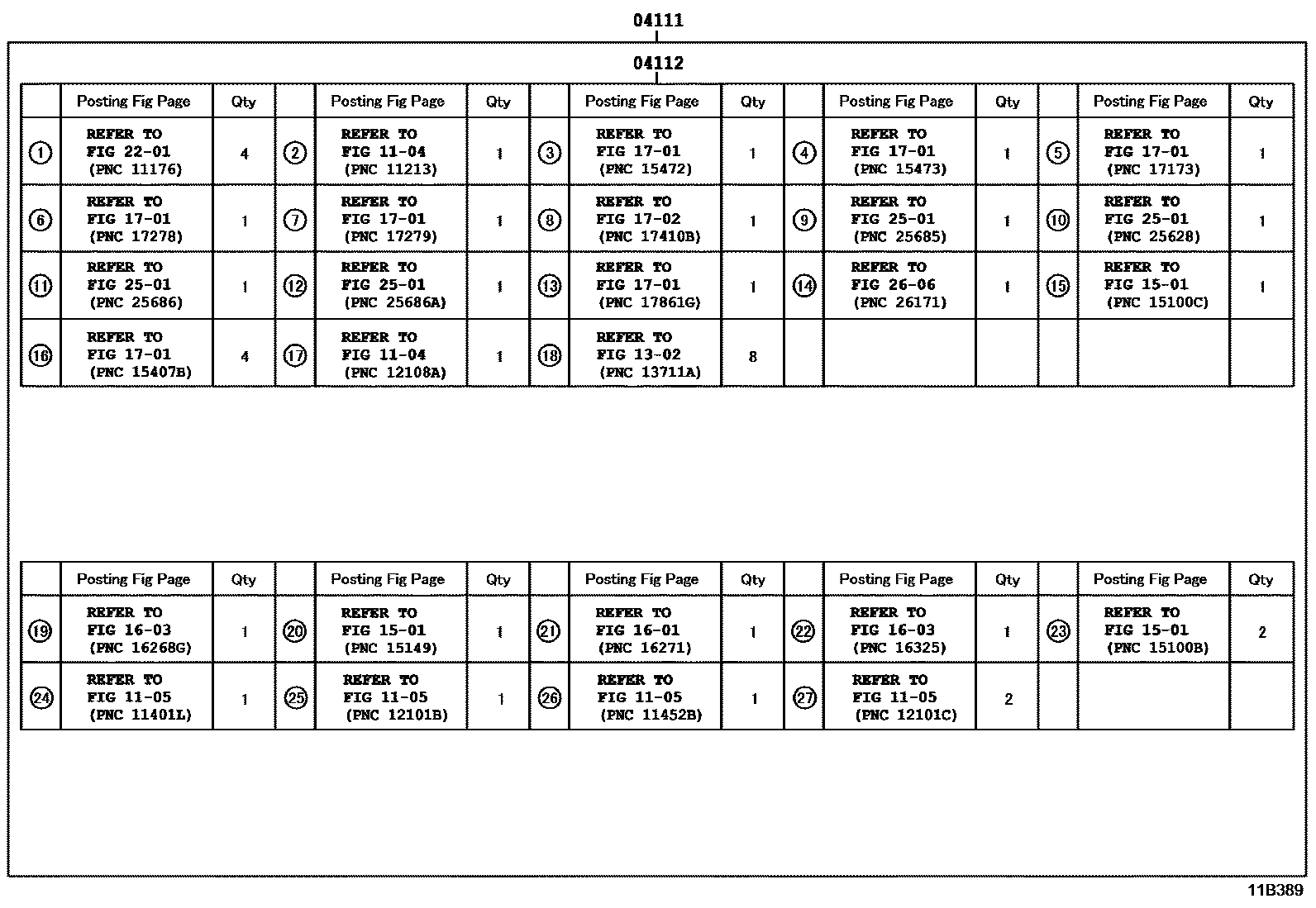

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B389
Engine Overhaul Gasket Kit — 11B389 (200710 – 200902)

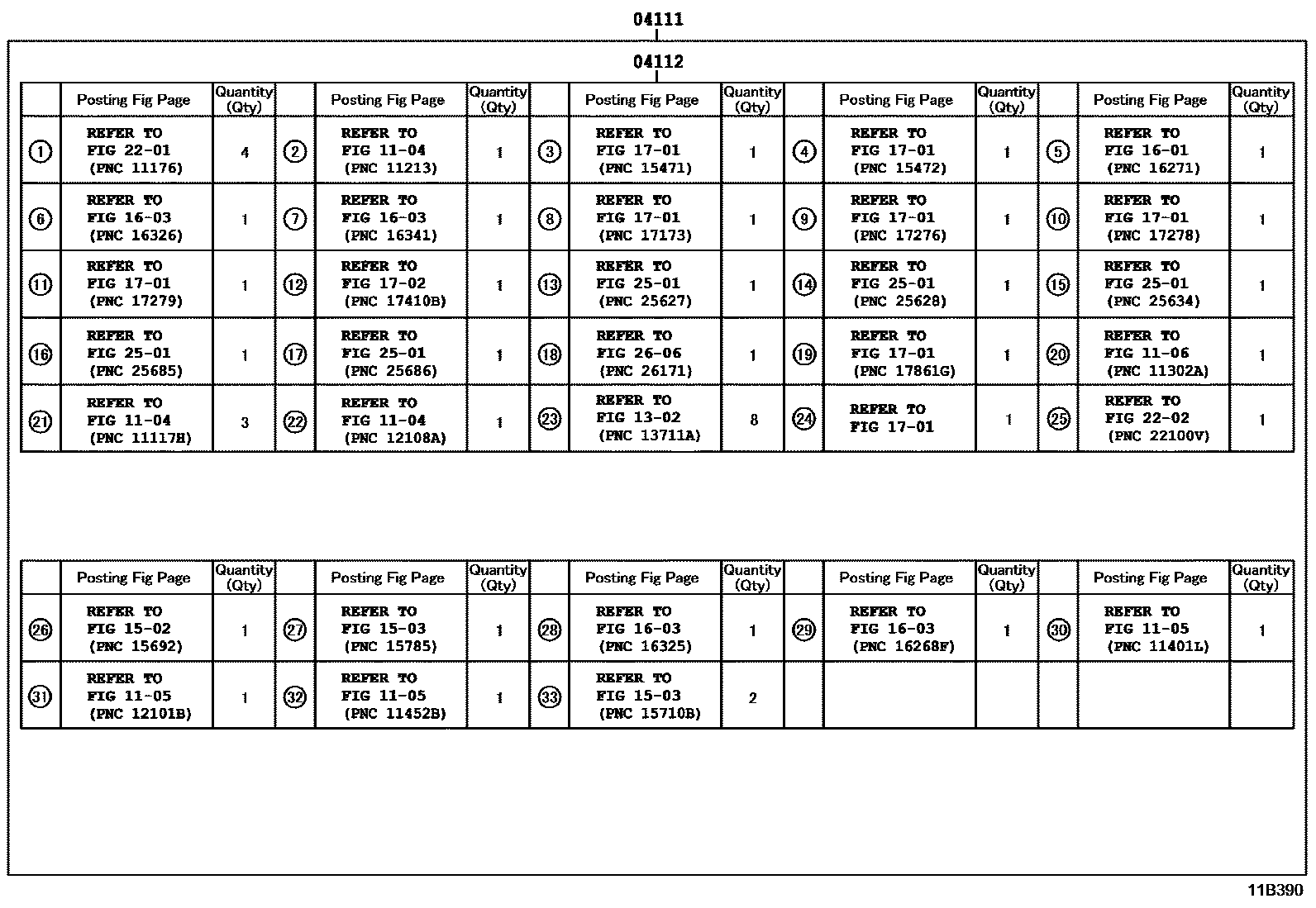

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B390
Engine Overhaul Gasket Kit — 11B390 (200902 – 999999)

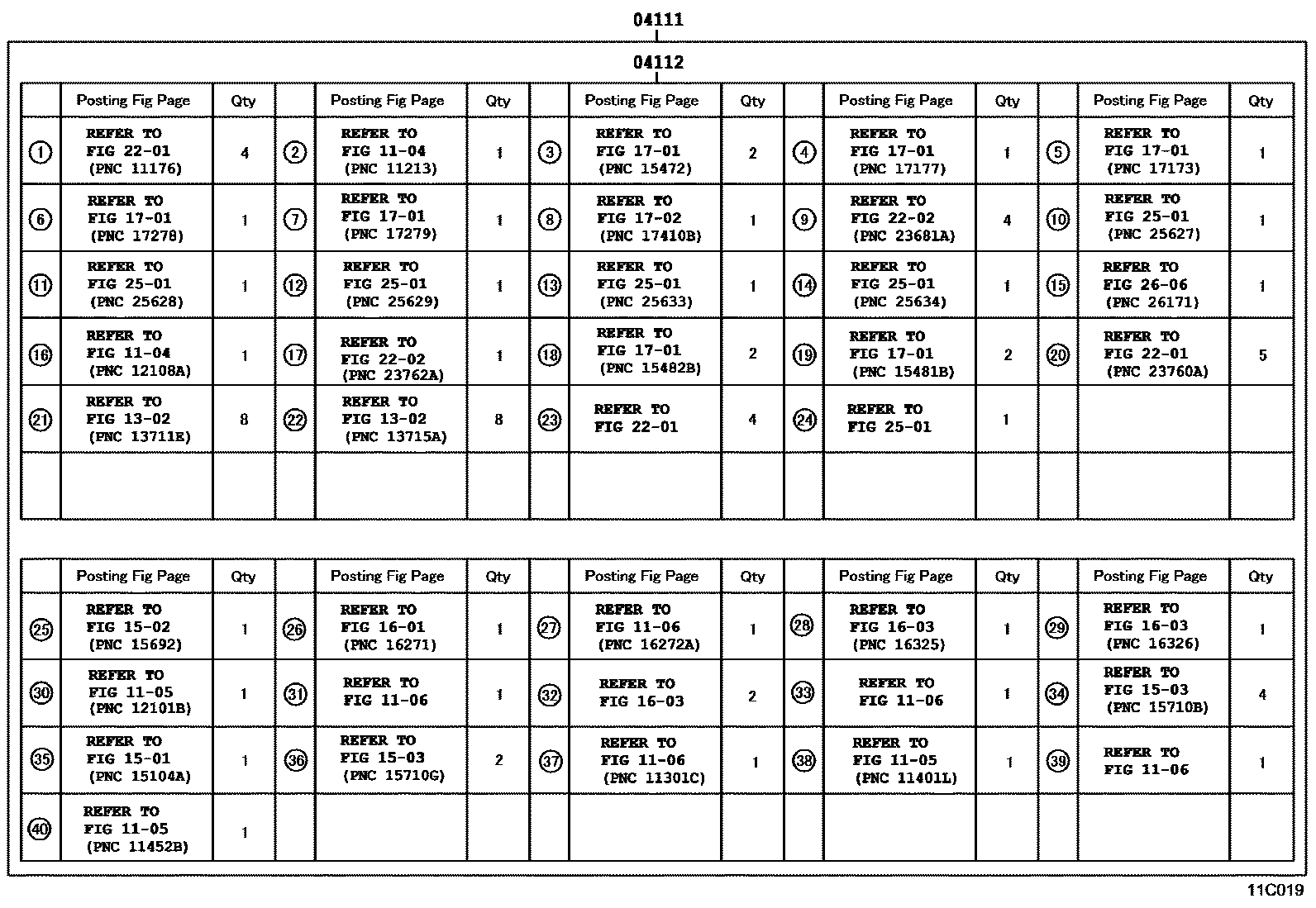

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C019
Engine Overhaul Gasket Kit — 11C019 (200707 – 200903)

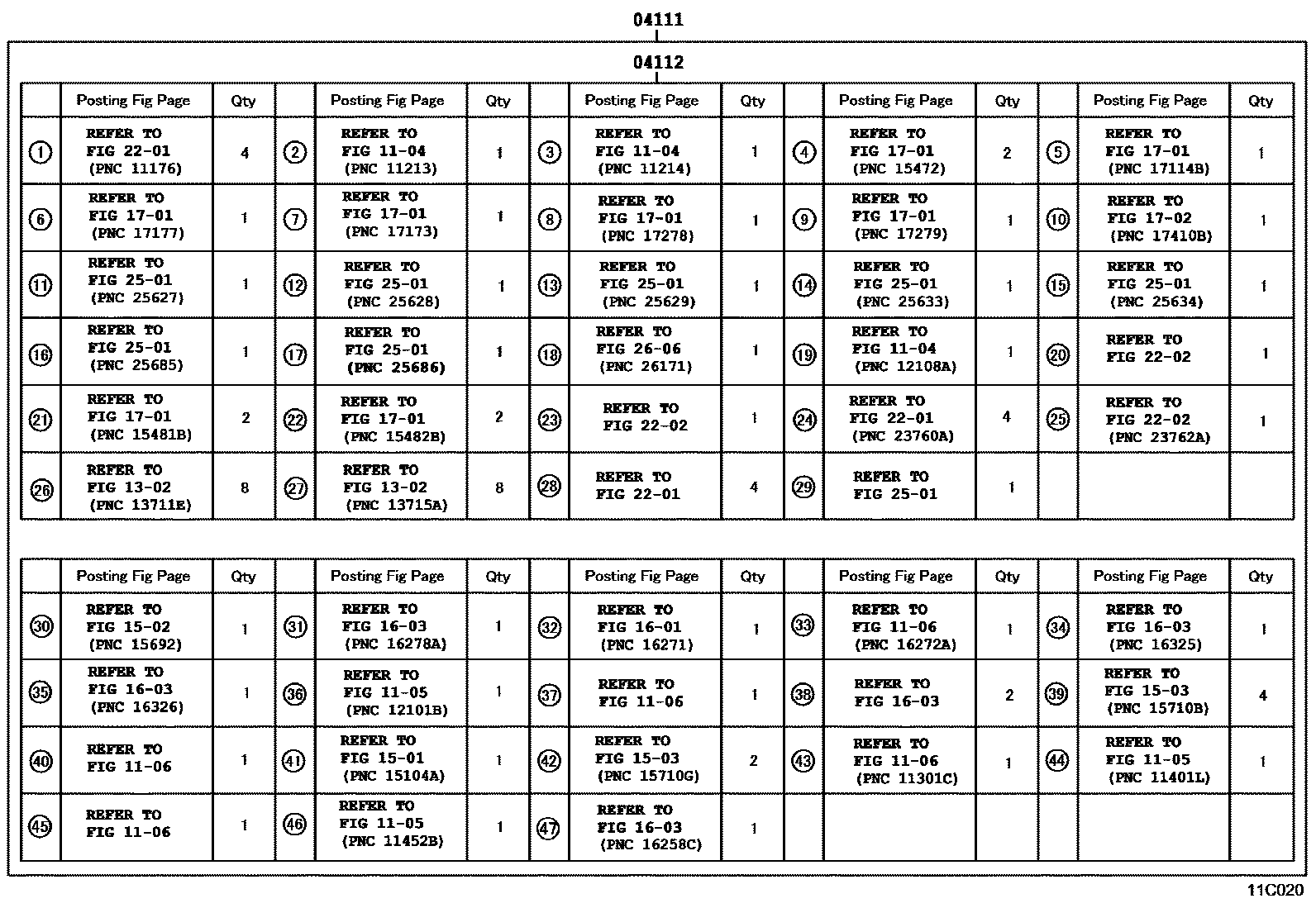

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C020
Engine Overhaul Gasket Kit — 11C020 (200903 – 999999)

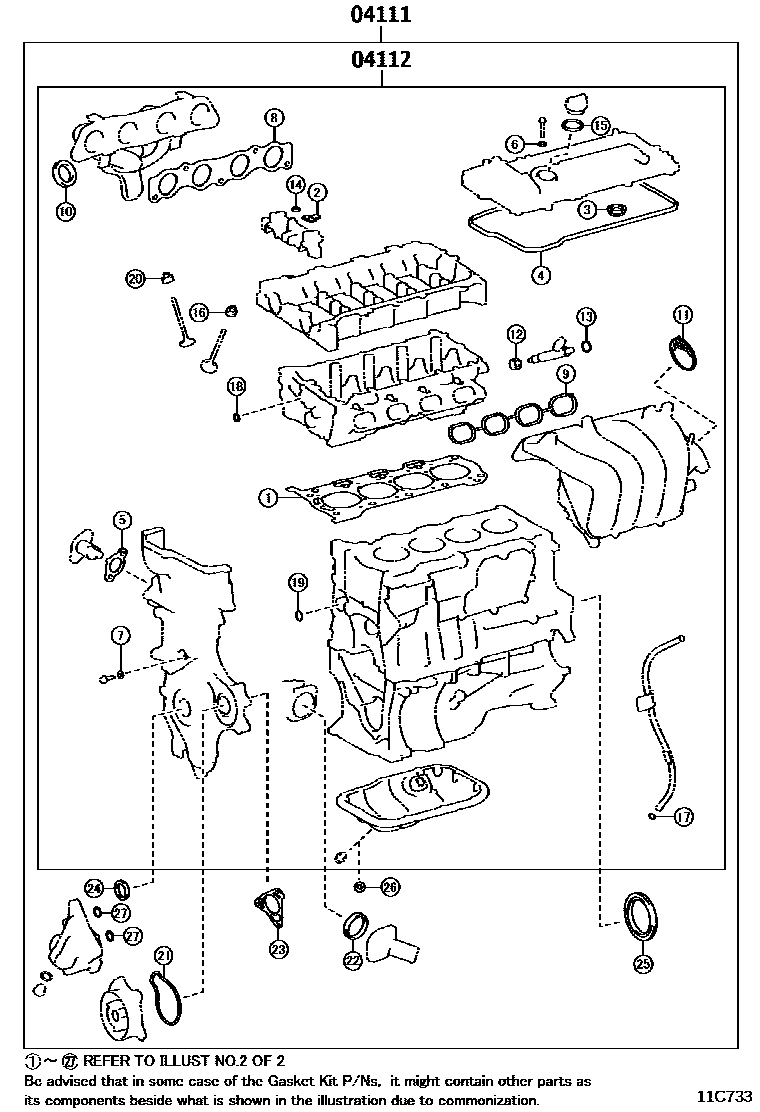

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C733
Engine Overhaul Gasket Kit — 11C733 (200707 – 999999)

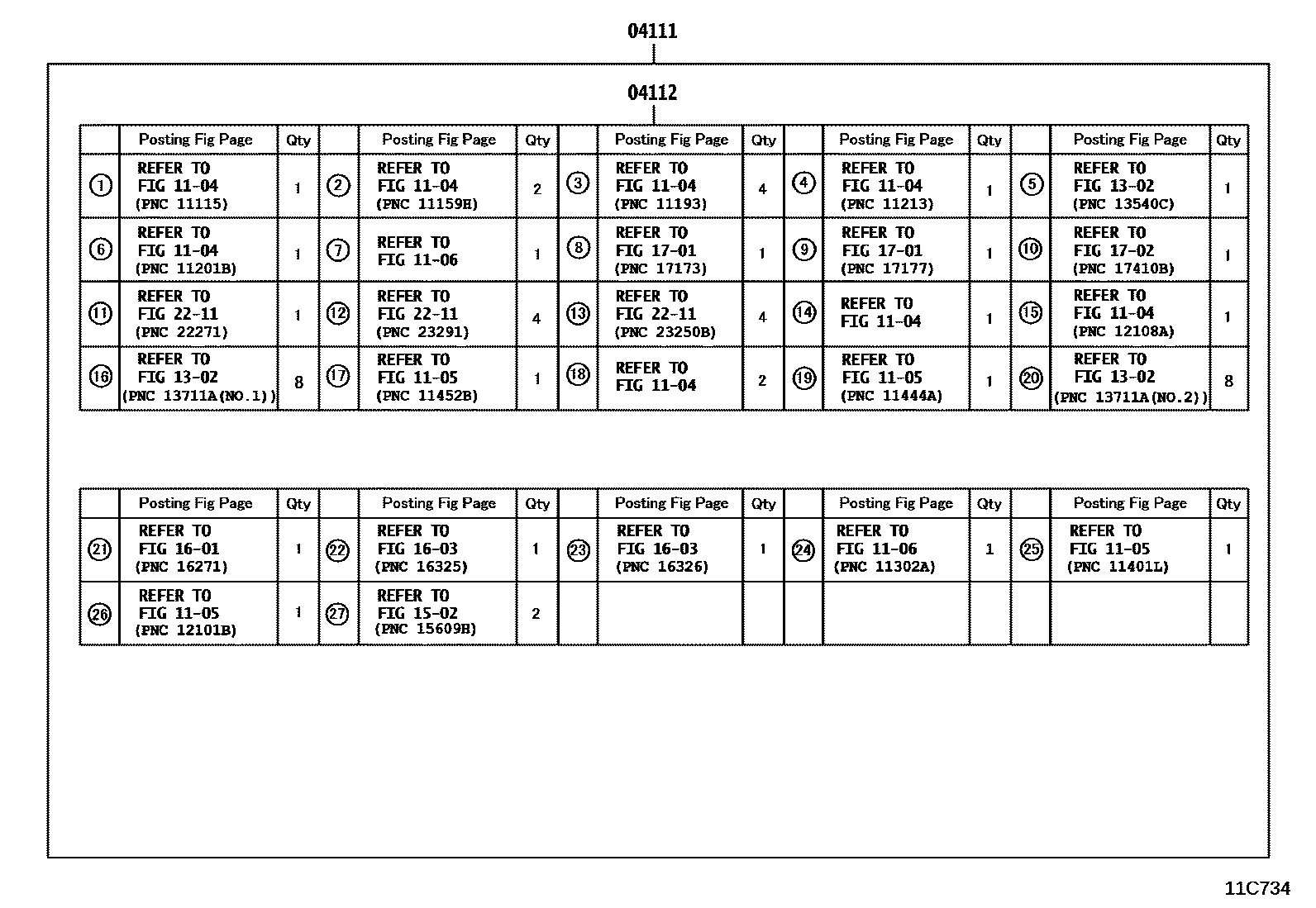

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C734
Engine Overhaul Gasket Kit — 11C734 (200707 – 999999)

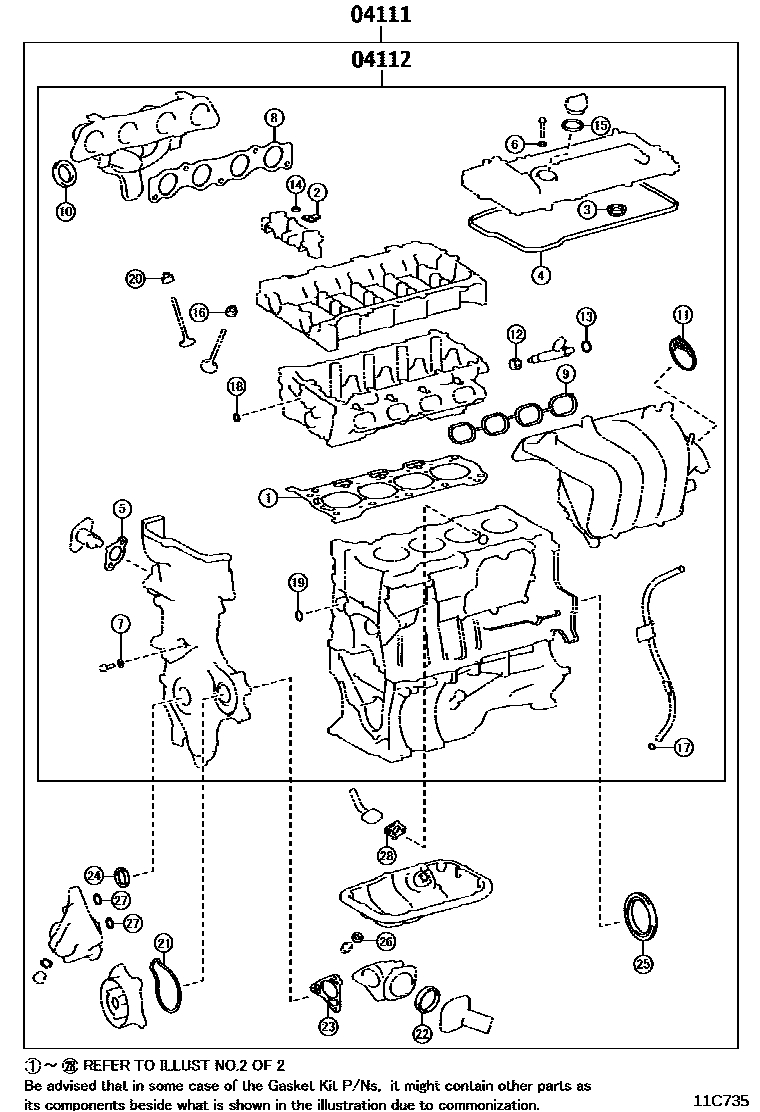

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C735
Engine Overhaul Gasket Kit — 11C735 (201010 – 201401)

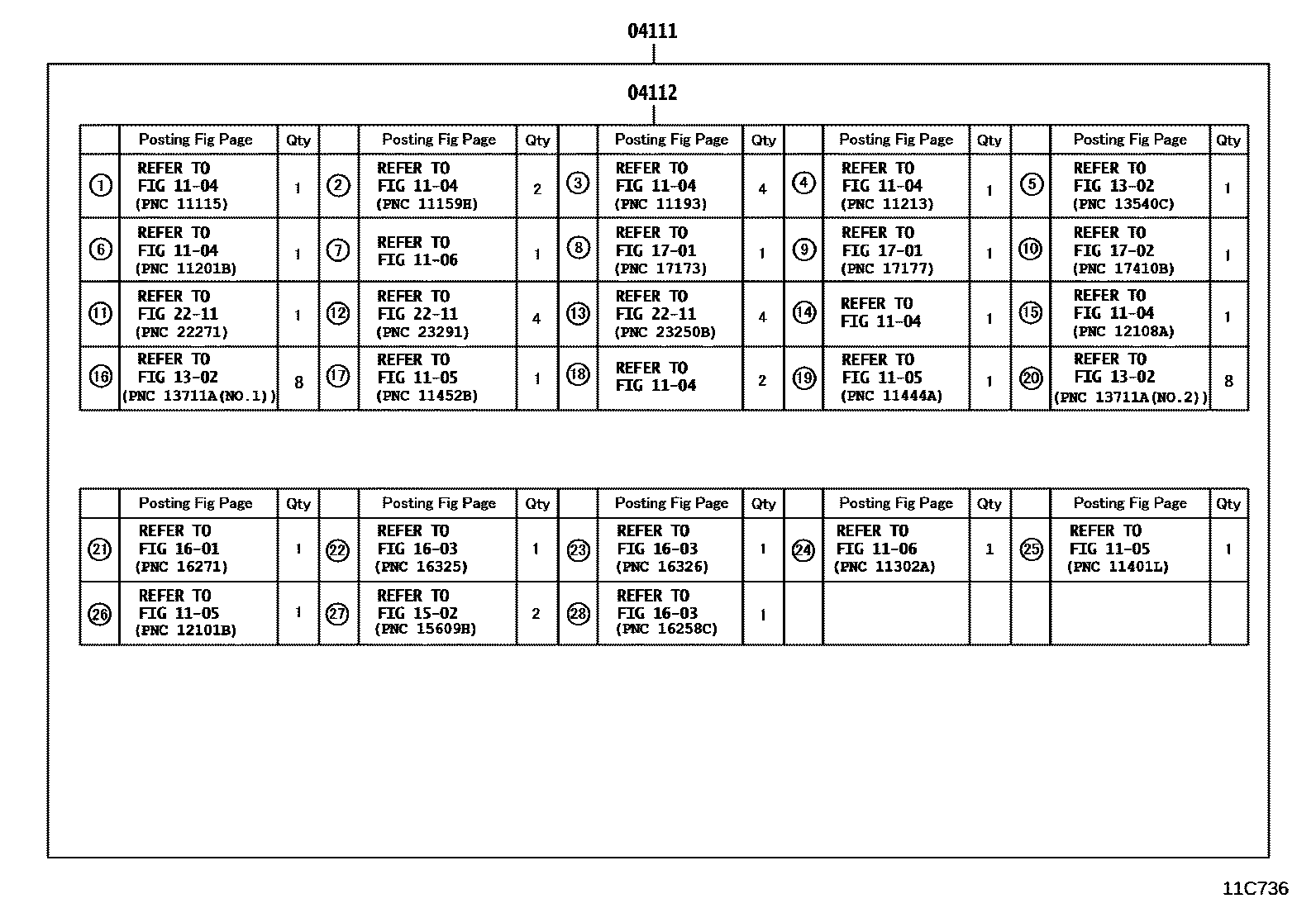

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C736
Engine Overhaul Gasket Kit — 11C736 (201010 – 201401)
Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C737
Engine Overhaul Gasket Kit — 11C737 (200707 – 200902)

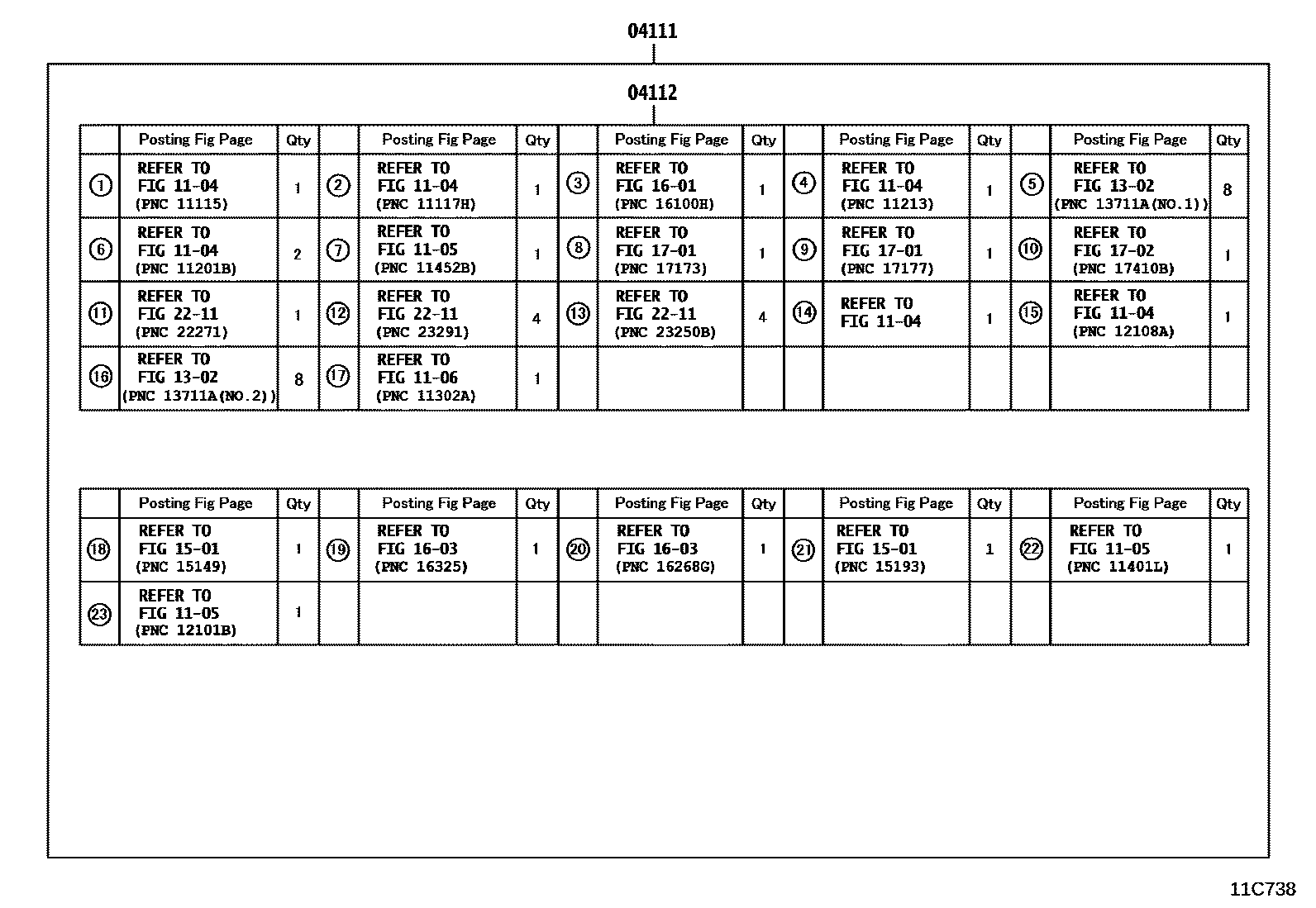

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C738
Engine Overhaul Gasket Kit — 11C738 (200707 – 200902)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0D520 · 04111-0R170 · 04111-0R180 · 04111-0R181 · 04111-0R182 · 04111-0R183 · 04111-0T050 · 04111-0T051 · 04111-0T080 · 04111-0T081 · 04111-0T082 · 04111-0T083 · 04111-0T084 · 04111-0T085 · 04111-33110 · 04111-33140 · 04111-33190 · 04111-33191 · 04111-37091 · 04111-37181 · 04111-37183 · 04111-37184 · 04111-47071 · 04111-47072 · 04111-47073 · 04111-47074 · 04111-47075 · 04111-47076 · 04111-47077 · 04111-47190
04112Engine valve grinding pad assembly04112-0D490 · 04112-0R170 · 04112-0R180 · 04112-0R181 · 04112-0T011 · 04112-0T012 · 04112-0T013 · 04112-0T014 · 04112-0T015 · 04112-0T050 · 04112-0T051 · 04112-33110 · 04112-33130 · 04112-33180 · 04112-33181 · 04112-37071 · 04112-37073 · 04112-37074 · 04112-37075 · 04112-47031 · 04112-47032 · 04112-47033 · 04112-47034 · 04112-47035 · 04112-47036 · 04112-47130
