Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 2 images and 1 PNC and OE references.

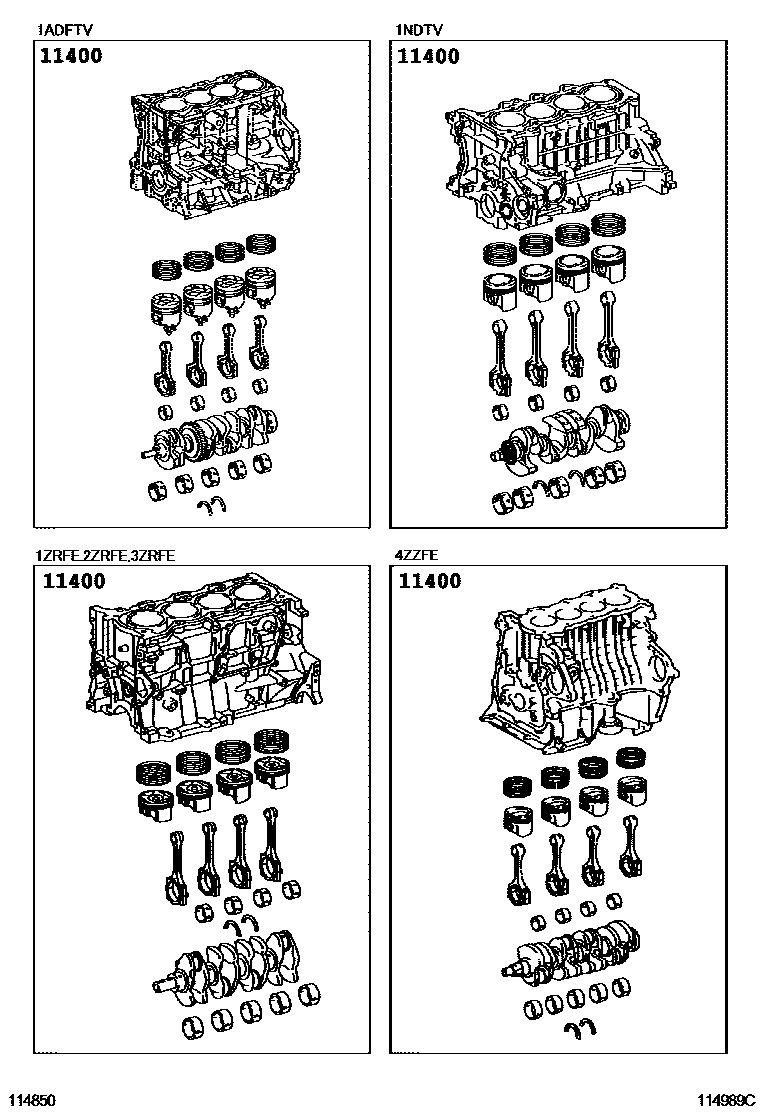

Toyota COROLLA Short Block Assembly EPC diagram — 114989C
Short Block Assembly — 114989C (200707 – 999999)

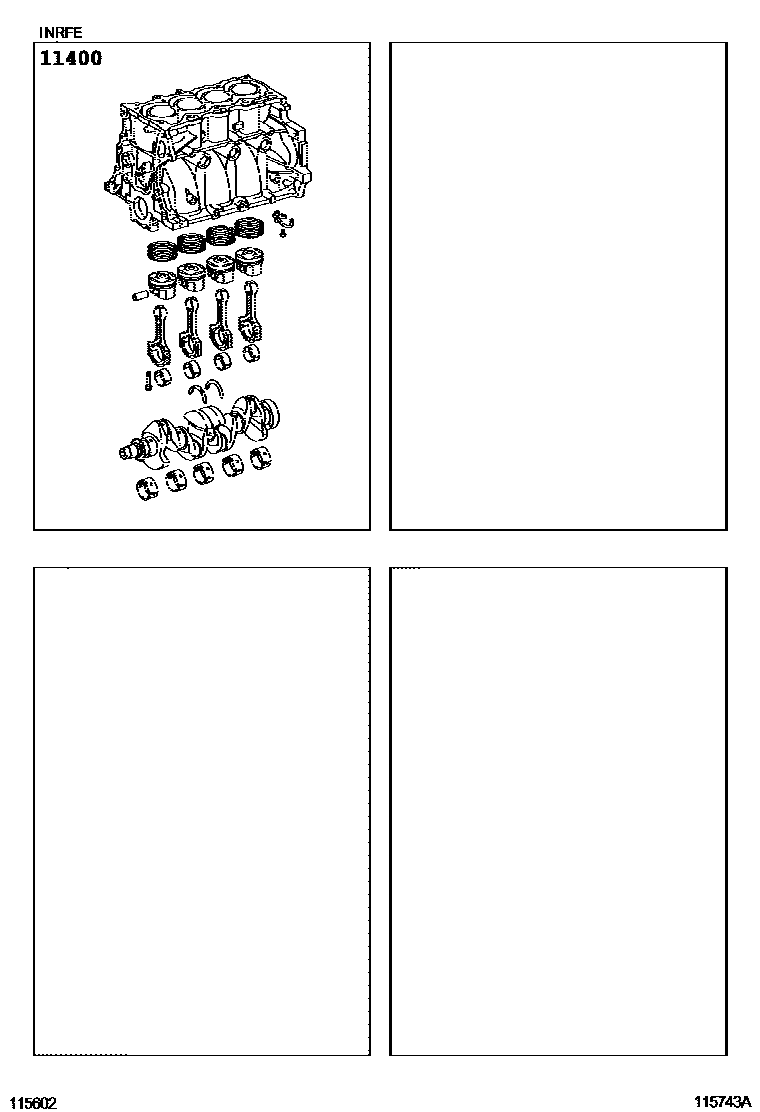

Toyota COROLLA Short Block Assembly EPC diagram — 115743A
Short Block Assembly — 115743A (200902 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-0D022 · 11400-0N030 · 11400-0N031 · 11400-0N060 · 11400-0R030 · 11400-0R040 · 11400-0R041 · 11400-0R080 · 11400-0T010 · 11400-0T011 · 11400-0T020 · 11400-0T021 · 11400-0T080 · 11400-0T090 · 11400-33090 · 11400-33140 · 11400-33141 · 11400-37070 · 11400-37080 · 11400-37090 · 11400-47030 · 11400-47031
