Toyota COROLLA 空气净化器或离子发生器 — Figure 8724

Toyota COROLLA EPC diagram 8724, 空气净化器或离子发生器, with 2 images and 4 PNC and OE references.

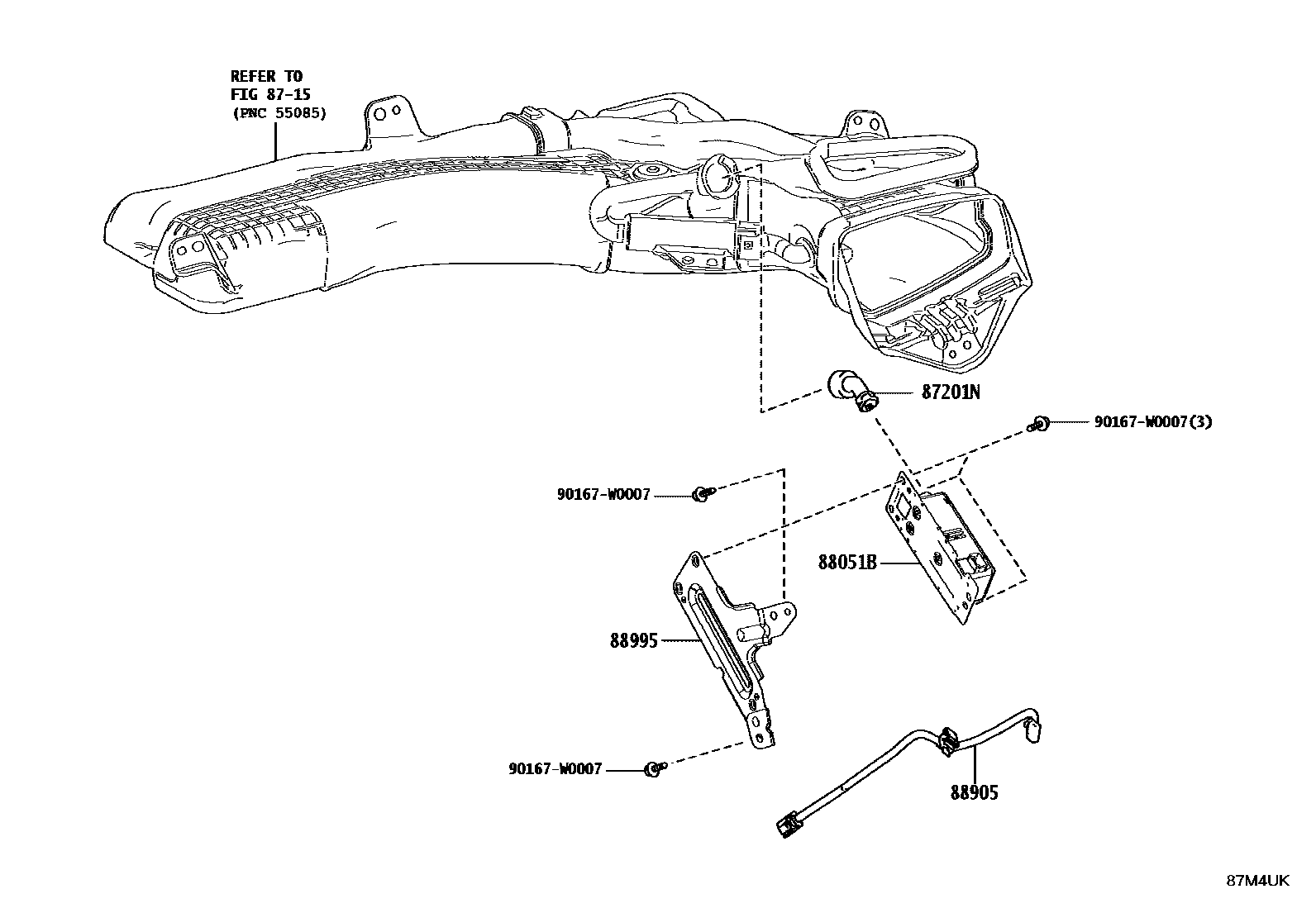

Toyota COROLLA 空气净化器或离子发生器 EPC diagram — 87M4UK
空气净化器或离子发生器 — 87M4UK (202402 – 999999)

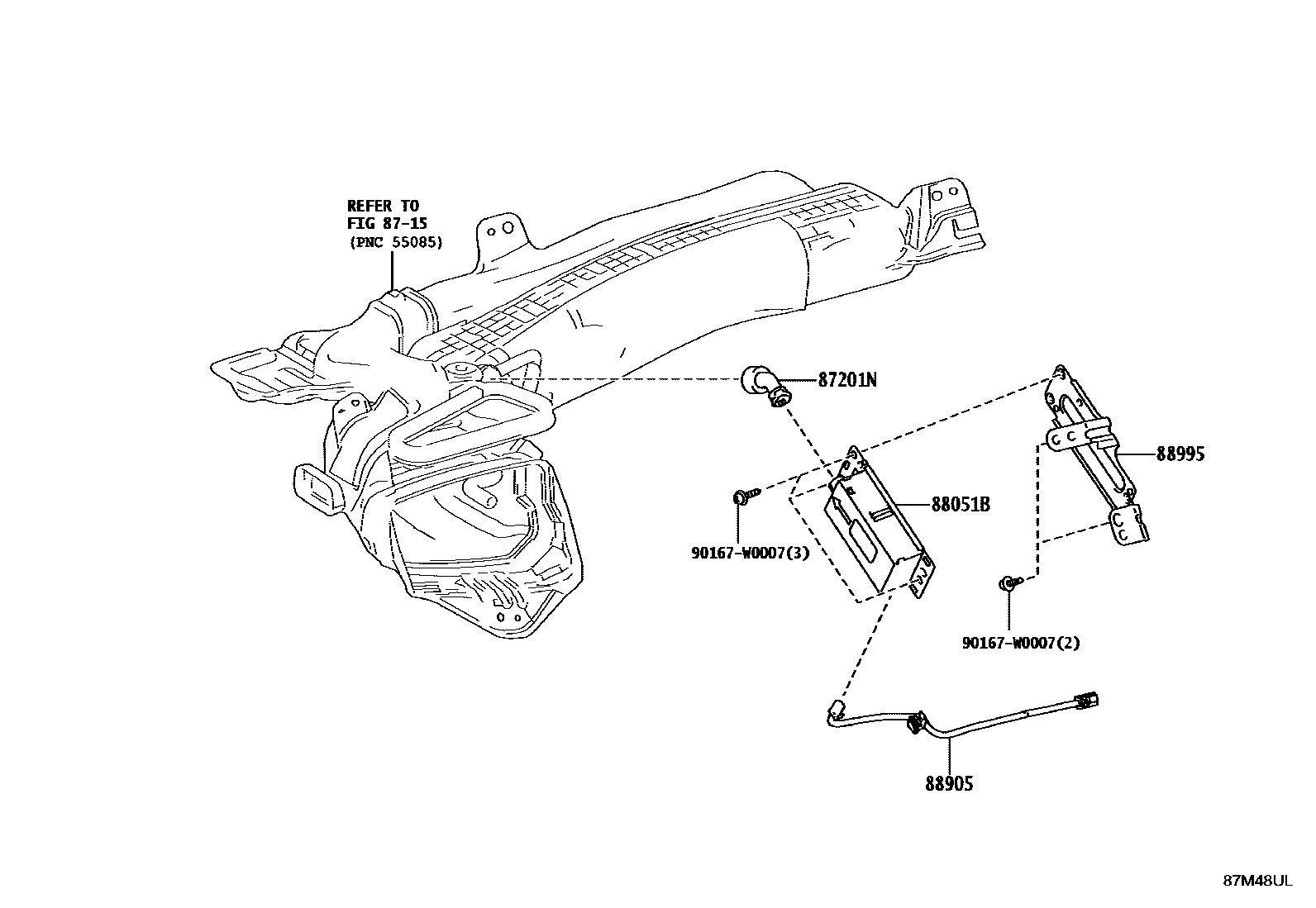

Toyota COROLLA 空气净化器或离子发生器 EPC diagram — 87M4UL
空气净化器或离子发生器 — 87M4UL (202402 – 999999)

PNC and OE references

PNCPart nameOE numbers
87201NAir duct sub-assembly87201-02290
88051BNo. 1 ion generator sub-assembly88051-48010
88905Air purifier No. 1 wiring harness sub-assembly82144-02160 · 82144-02170
88995No. 1 ion generator bracket88995-02090 · 88995-12010
