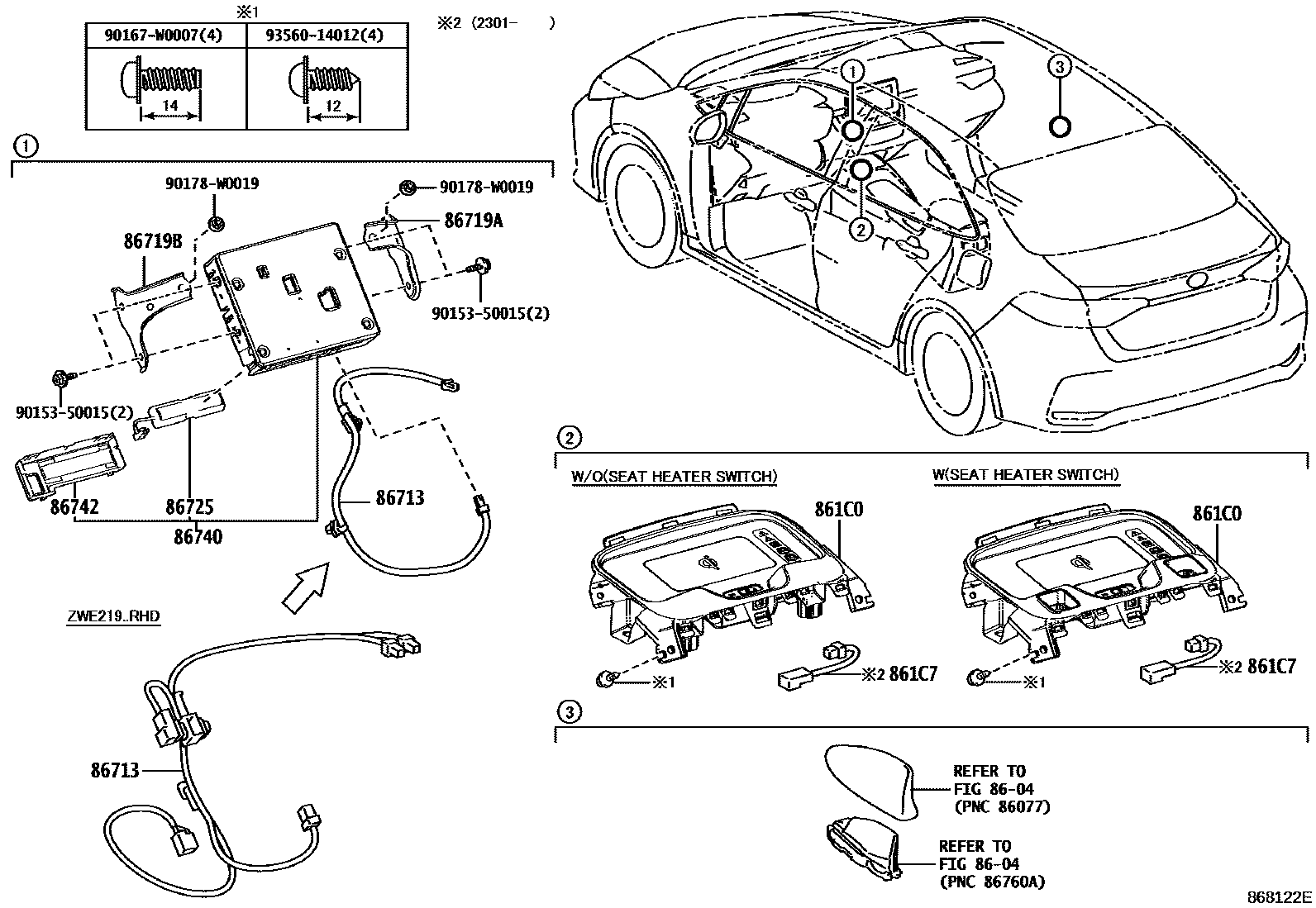

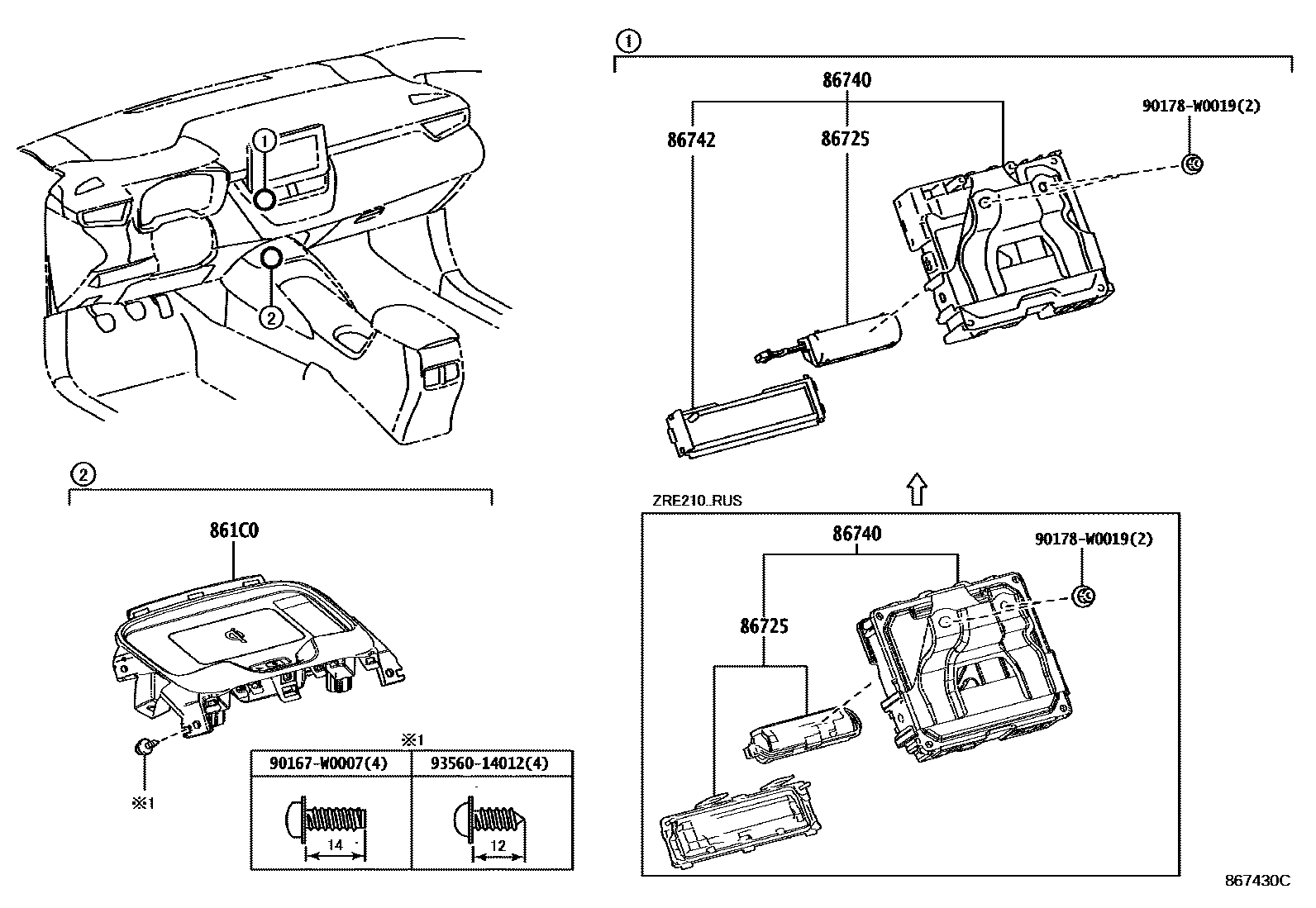

Toyota COROLLA 车载电话和呼救装置 — Figure 8615
Toyota COROLLA EPC diagram 8615, 车载电话和呼救装置, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 861C0 | Mobile wireless charger bracket assembly | 861C0-02010 · 861C0-02020 · 861C0-02070 · 861C0-02080 · 861C0-02081 · 861C0-02130 · 861C0-02140 · 861C0-02141 · 861C0-02142 |
| 861C7 | Mobile wireless charger lead | 861C7-02010 |
| 86713 | Telephone ECU wiring harness | 86713-12080 · 86713-12100 · 86713-12110 |
| 86719A | Phone holder No. 1 | 86719-02160 |
| 86719B | Phone holder No. 2 | 86719-02170 |
| 86725 | mobile phone battery | 86725-33010 · 86725-48010 · 86725-78010 · 86725-78011 |
| 86740 | Telephone transceiver assembly | 86740-02140 · 86740-02150 · 86740-02160 · 86740-02161 · 86740-02210 · 86740-02240 · 86740-02270 · 86740-02271 · 86740-02300 · 86740-02310 · 86740-0D040 · 86740-0D041 · 86740-12040 · 86740-12041 · 86740-12051 · 86740-12140 |
| 86742 | transceiver cover | 86742-0D020 · 86742-33010 |
