Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

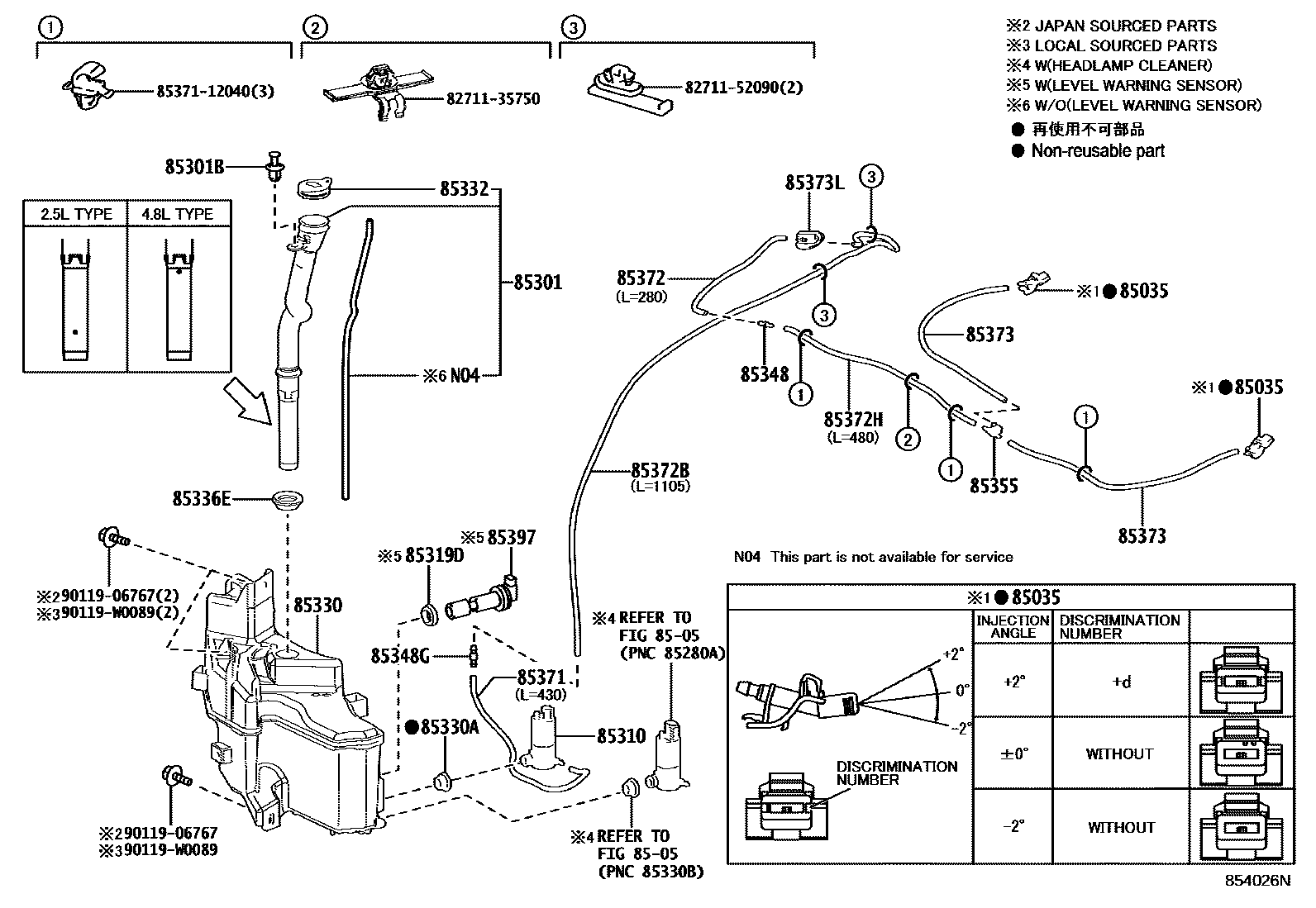

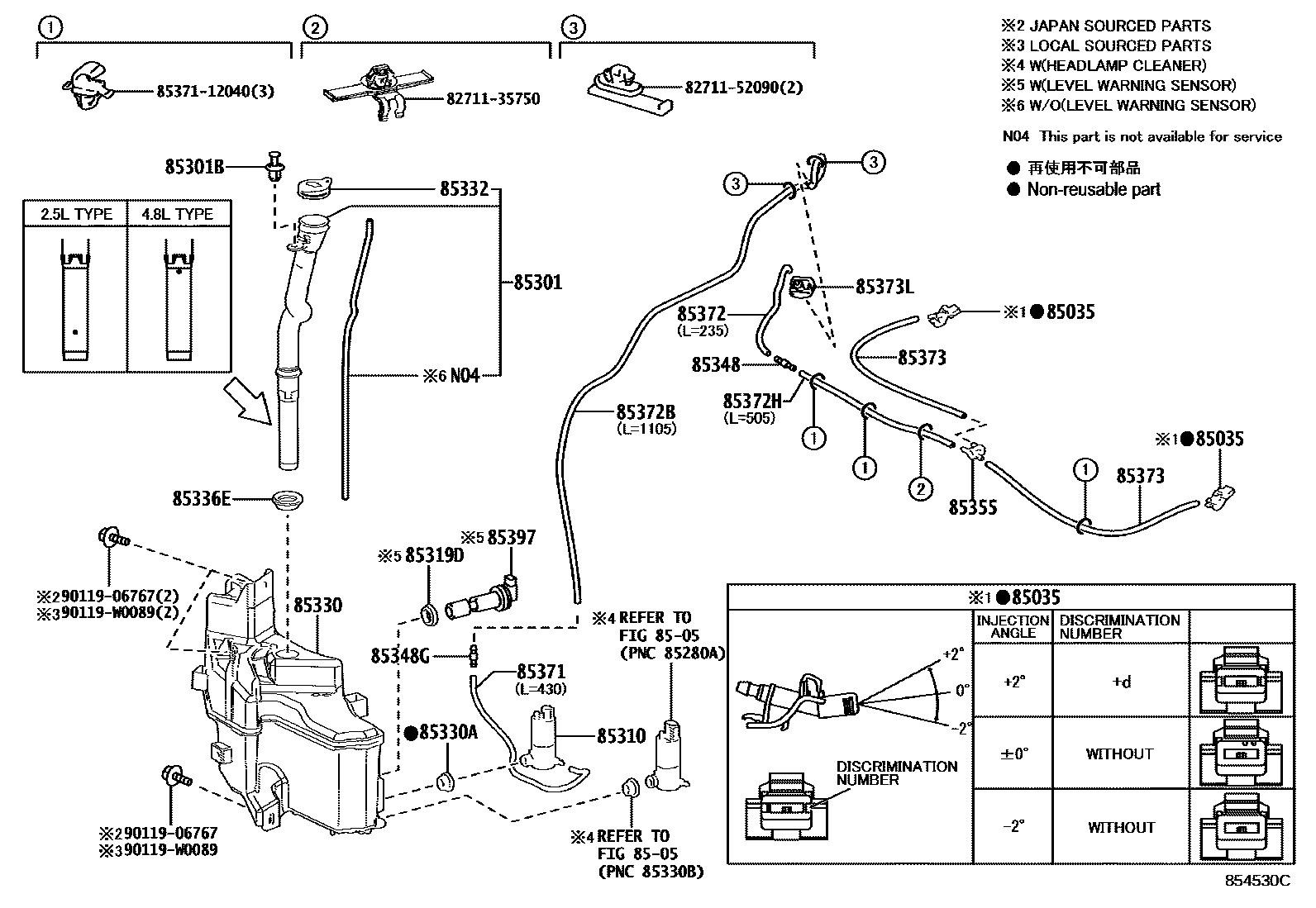

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12360 · 85381-12440 · 85381-33080 |
| 85301 | Cleaner water inlet sub-assembly | 85301-02190 · 85301-02191 · 85301-02192 · 85301-02270 · 85301-02271 · 85301-02272 · 85301-02280 · 85301-02281 · 85301-02282 |
| 85310 | Windshield washer motor and pump assembly | 85330-02080 · 85330-02081 |
| 85319D | front washer seal | 85336-02250 |
| 85330 | Windshield washer fluid tank assembly | 85315-02240 · 85315-02790 · 85315-02850 · 85315-02860 · 85325-02260 |
| 85330A | Windshield washer fluid tank bushing | 90069-20005 |
| 85332 | Windshield washer fluid tank cap | 85316-02720 · 85316-0D010 |
| 85336E | Windshield washer water inlet hose seal | 90069-50014 |
| 85348 | Windshield washer hose connector No. 1 | 85375-05050 |
| 85348G | Windshield washer hose connector No. 2 | 85375-05050 |
| 85355 | Windshield washer hose valve | 85321-28020 |
| 85371 | Windshield washer hose (from motor to connector) | 90069-16009 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90069-16009 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90069-16010 |
| 85372H | No. 3 windshield washer hose (from connector to connector) | 90069-16009 |
| 85373L | Cleaner seal | 85373-02100 |
| 85397 | Liquid level warning switch assembly | 85397-02550 |
