Toyota COROLLA HEV 逆变器 — Figure 8431

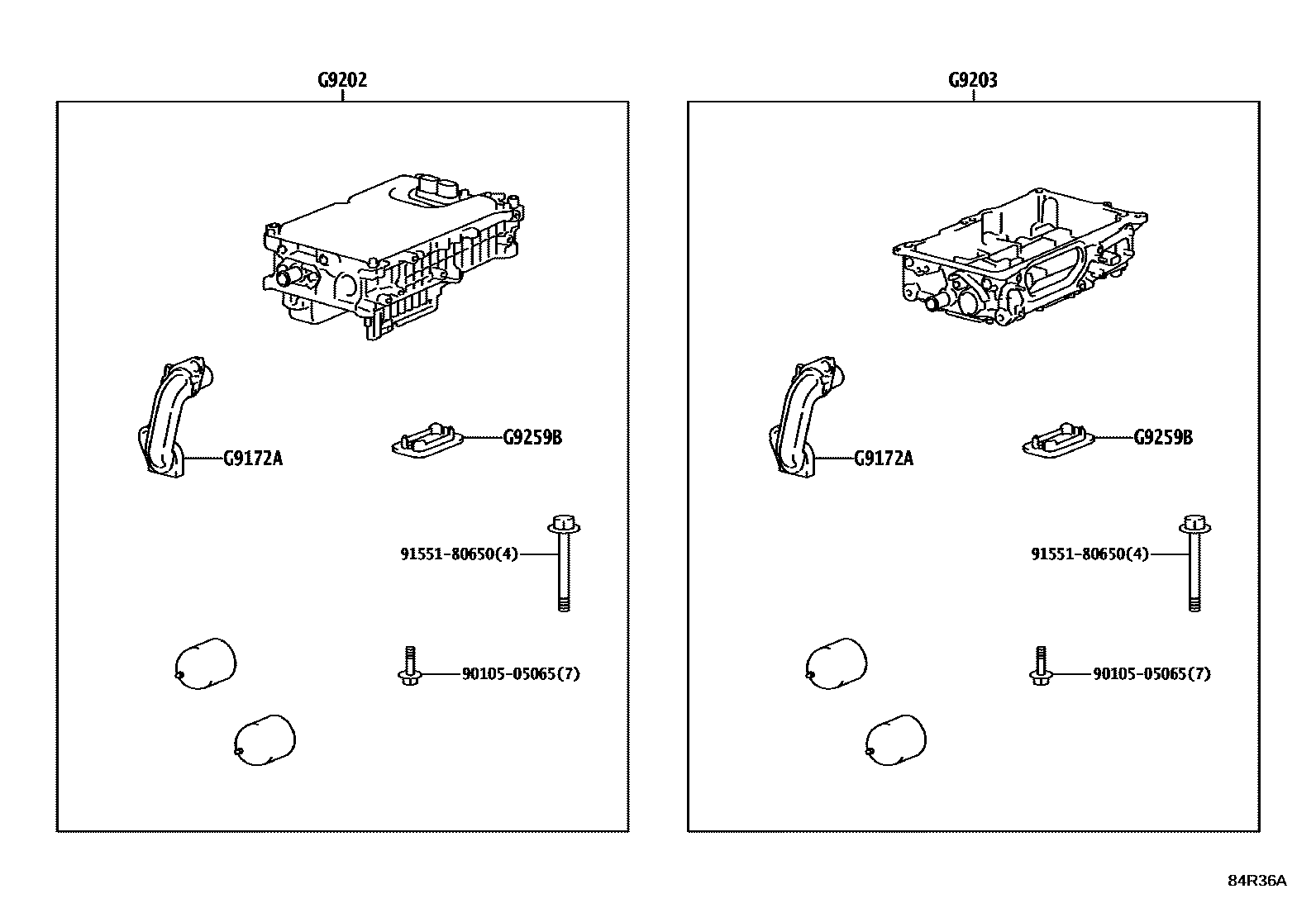

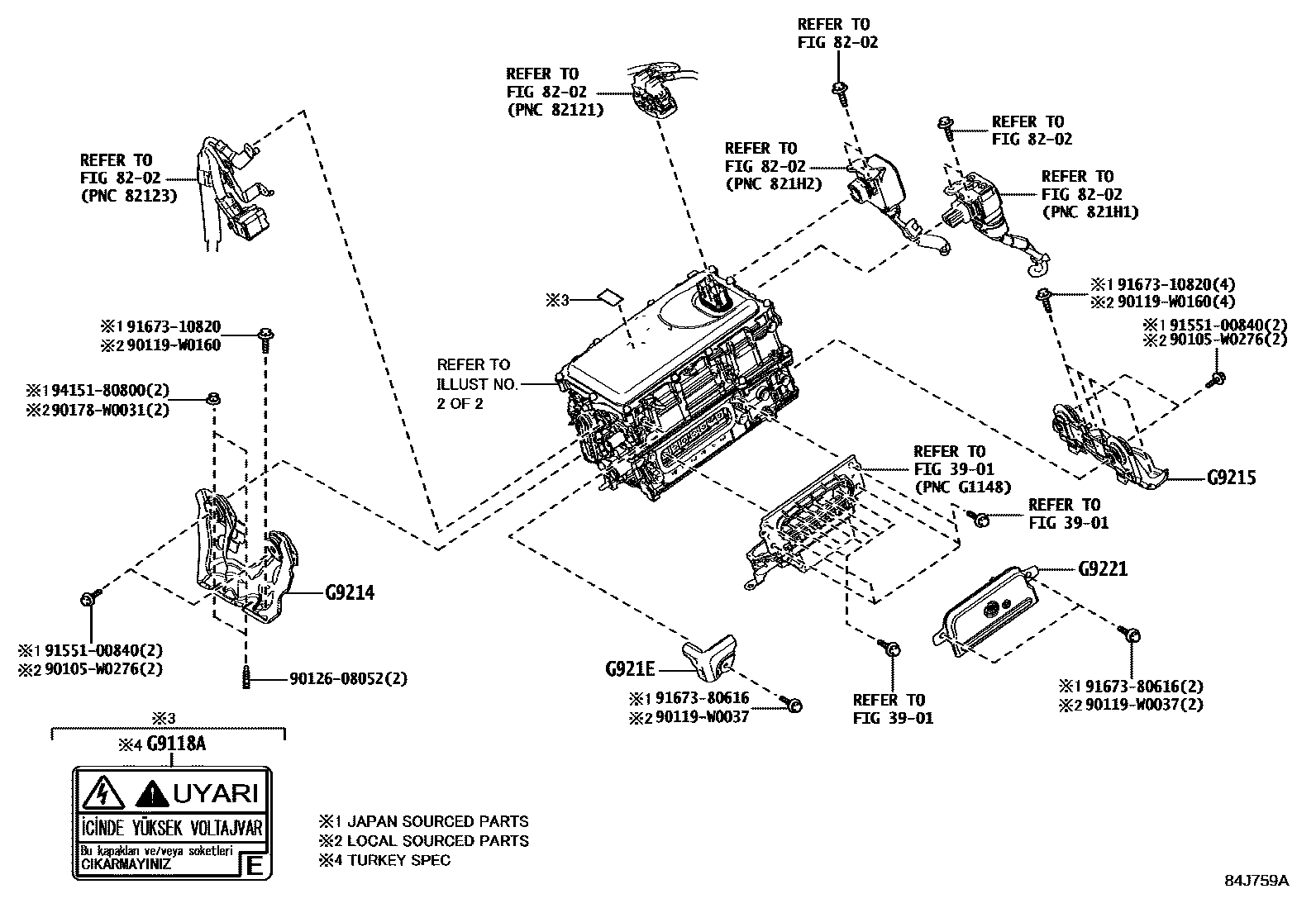

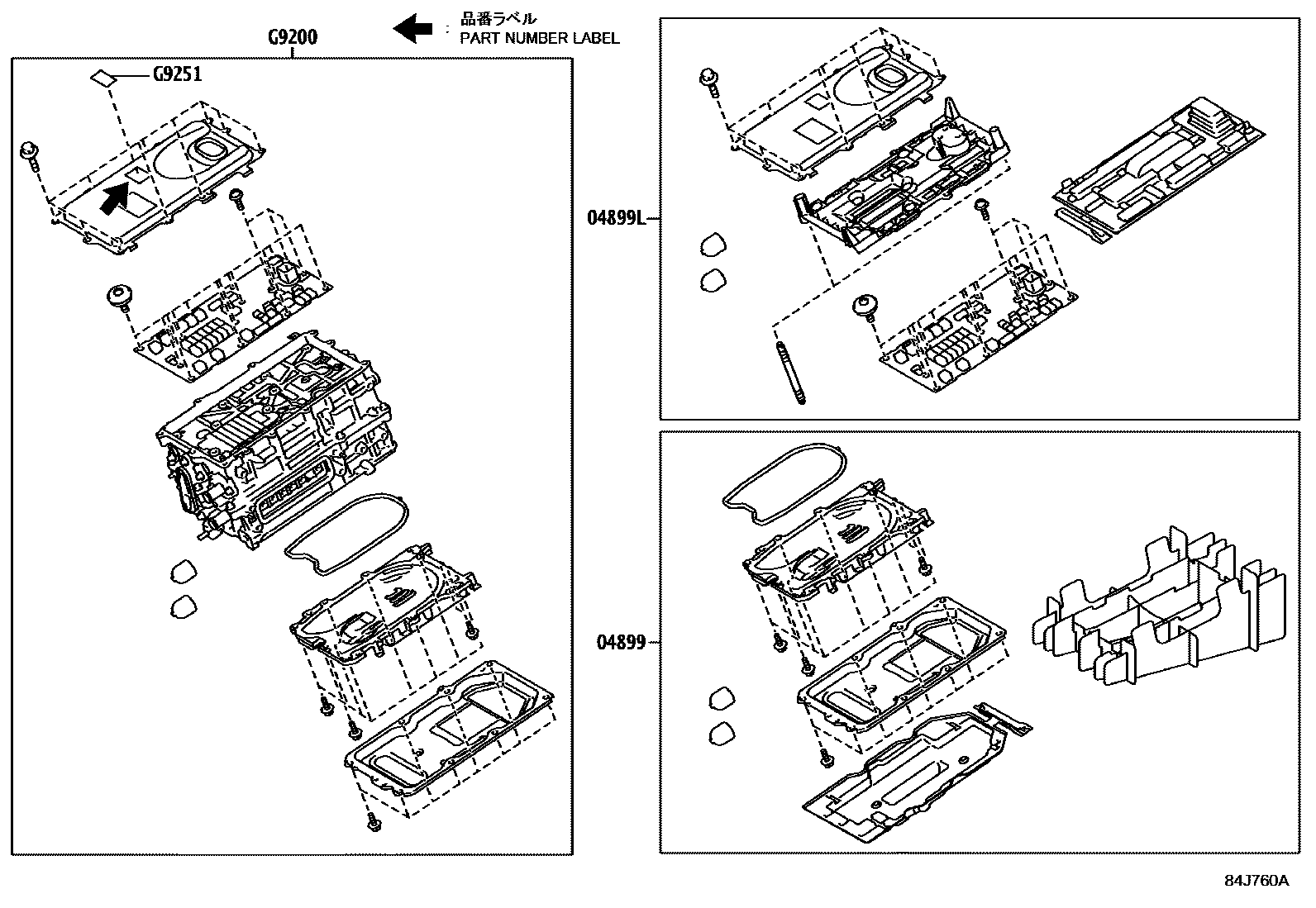

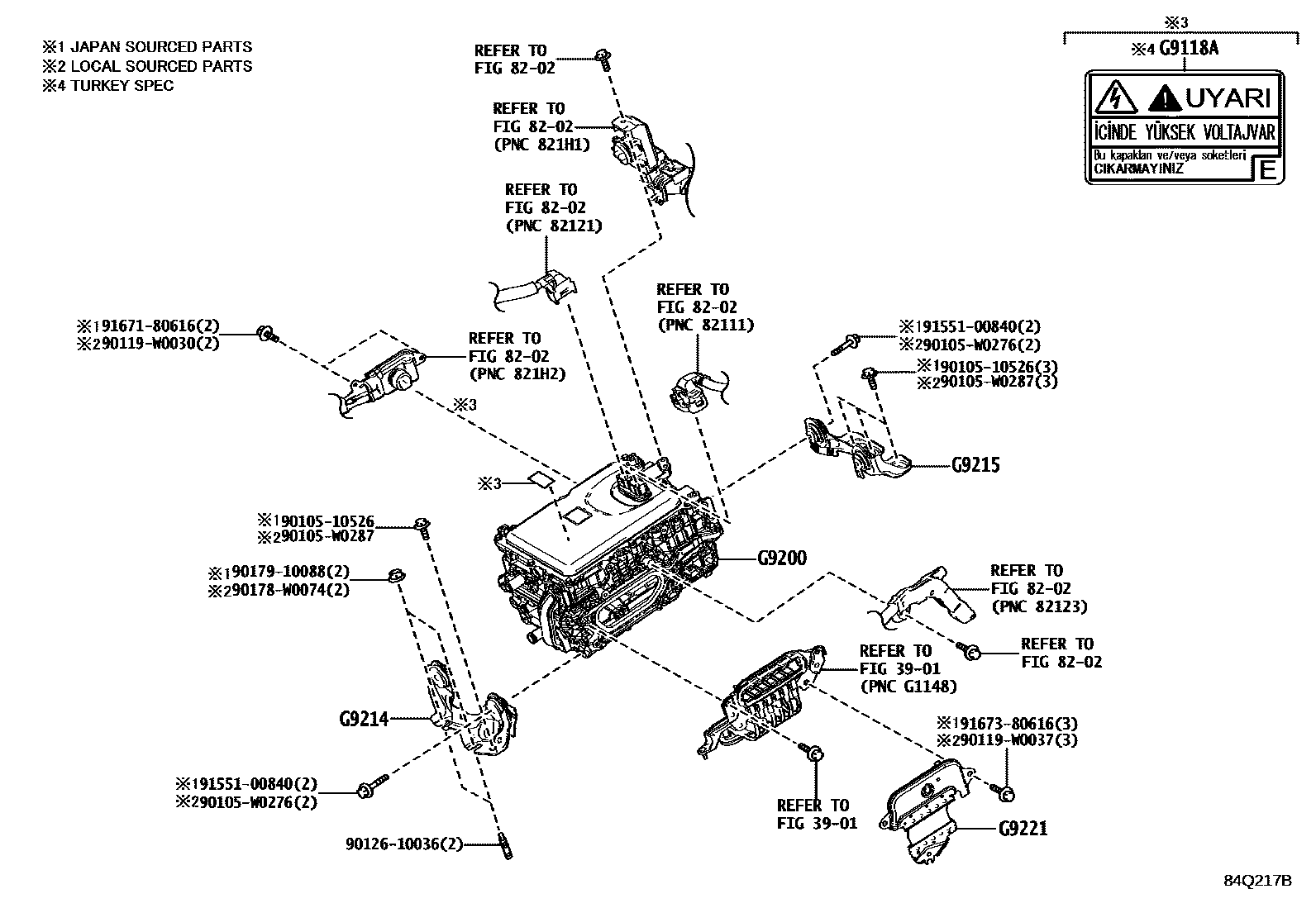

Toyota COROLLA EPC diagram 8431, HEV 逆变器, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04899 | HV converter components | 04899-47110 |
| 04899L | Motor generator control ECU component | 04899-47170 · 04899-47171 · 04899-47172 |
| G9118A | HV Motor Control Inverter Warning Labels | G9118-52010 |
| G9172A | COLLIER, CONDUIT REFROIDISSEMENT INVERSEUR | G9172-28010 |
| G9200 | Inverter assembly with converter | G9200-49116 · G9200-49135 · G9200-49136 · G92A0-47220 |
| G9202 | SOUS-ENS BOITIER, ONDULEUR | G9202-47080 |
| G9203 | SOUS-ENS BOITIER, CONVERTISSEUR | G9203-47100 |
| G9214 | No. 1 inverter bracket | G9214-28090 · G9214-47070 · G9214-F4010 |
| G9215 | No. 2 inverter bracket | G9215-28050 · G9215-47050 · G9215-F4010 |
| G921E | Inverter protection device | G921E-47010 |
| G9221 | Inverter cover | G9022-28030 · G9022-47050 |
| G9251 | Inverter nameplate | G9251-47010 |
| G9259B | Inverter drain plug | G9259-28010 |
