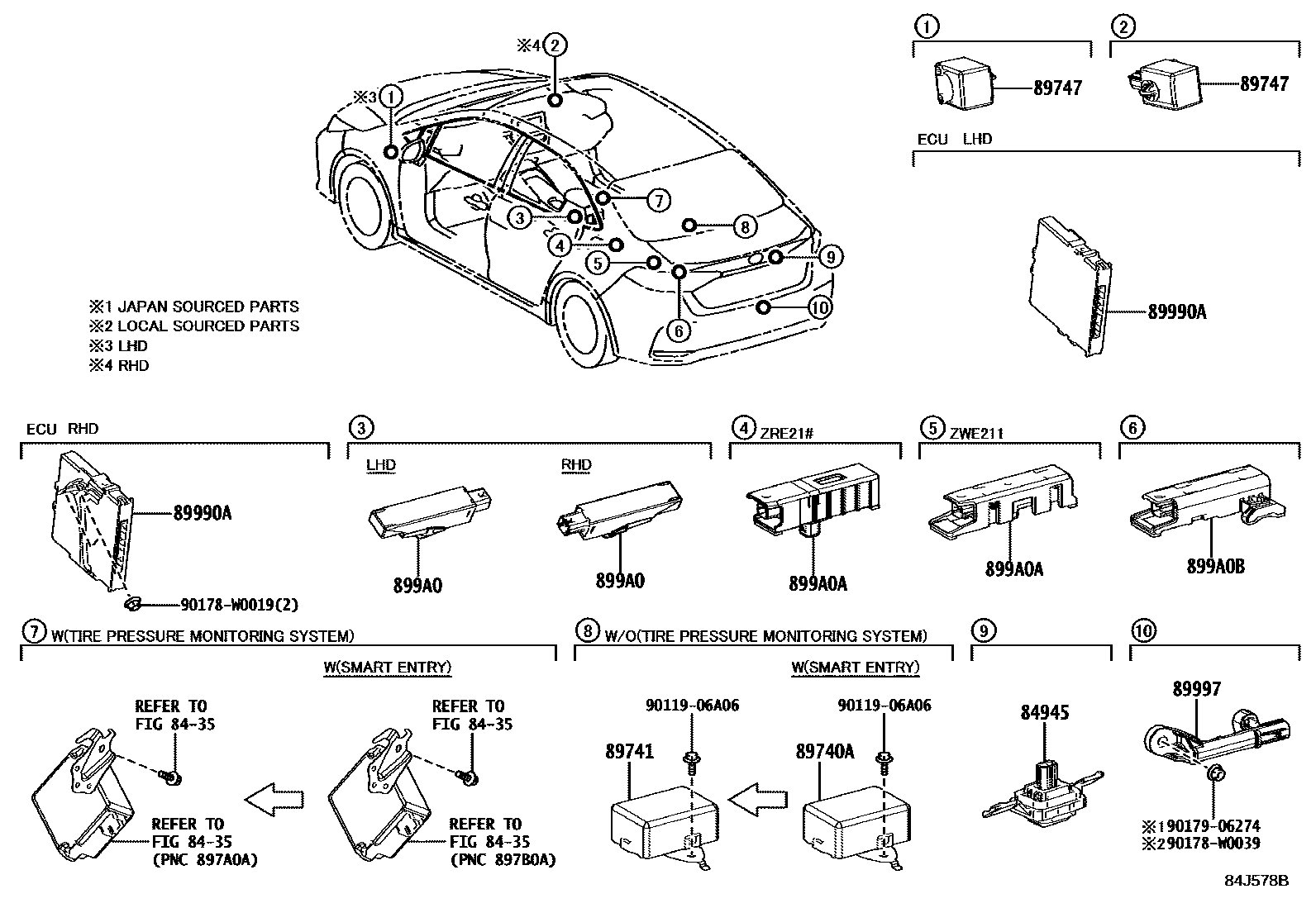

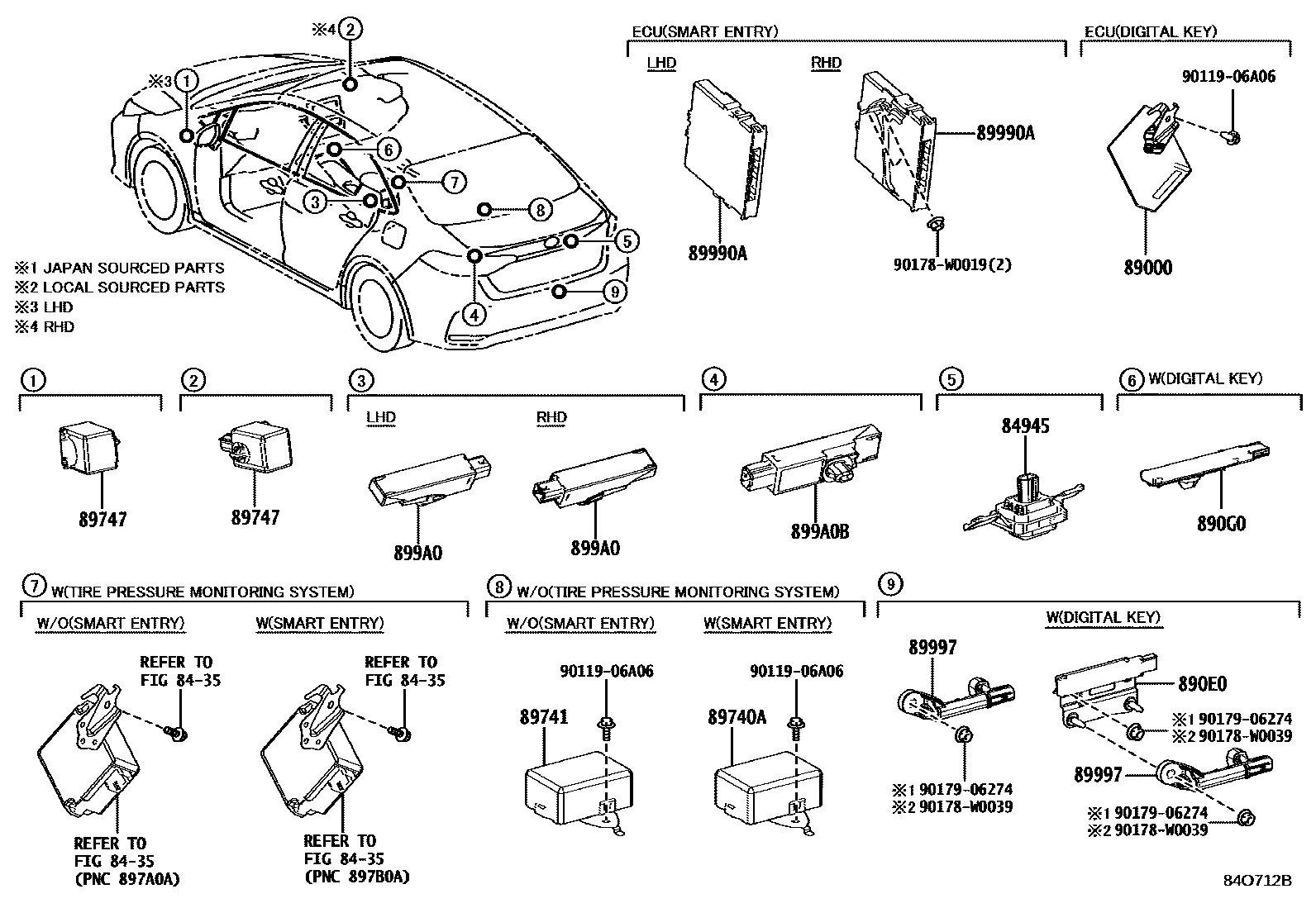

Toyota COROLLA 遥控门锁 — Figure 8420
Toyota COROLLA EPC diagram 8420, 遥控门锁, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84945 | Luggage electronic key switch | 84945-12100 |
| 89000 | Digital key ECU assembly | 89000-12110 |
| 890E0 | ENS RECEPTEUR, CLE NUMERIQUE BLE | 890E0-12010 |
| 890G0 | BLE (Bluetooth Low Energy) in-car digital key receiver assembly | 890G0-76010 |
| 89740A | Smart door control receiver assembly | 89740-02210 |
| 89741 | door control receiver | 89741-02430 · 89741-02431 · 89741-02440 · 89741-02441 |
| 89747 | Remote door lock buzzer | 89747-05010 |
| 89990A | Smart key ECU assembly | 899H0-02180 · 899H0-02190 · 899H0-02200 · 899H0-02210 · 899H0-02220 · 899H0-02230 · 899H0-02240 · 899H0-02250 · 899H0-02260 · 899H0-02261 · 899H0-02270 · 899H0-02271 · 899H0-02450 · 899H0-02451 · 899H0-02460 · 899H0-02461 · 899H0-02470 · 899H0-02471 · 899H0-02480 · 899H0-02481 · 899H0-02490 · 899H0-02491 · 899H0-02500 · 899H0-02501 · 899H0-02590 · 899H0-02591 · 899H0-02600 · 899H0-02601 · 899H0-02610 · 899H0-02611 · 899H0-02620 · 899H0-02621 · 899H0-02630 · 899H0-02631 · 899H0-02721 · 899H0-02722 · 899H0-02731 · 899H0-02732 · 899H0-02741 · 899H0-02742 |
| 89997 | electronic key antenna | 89997-30100 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-02220 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-02230 · 899A0-02240 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-02250 · 899A0-02410 |
