Toyota COROLLA 测距雷达和倒车雷达 — Figure 8417

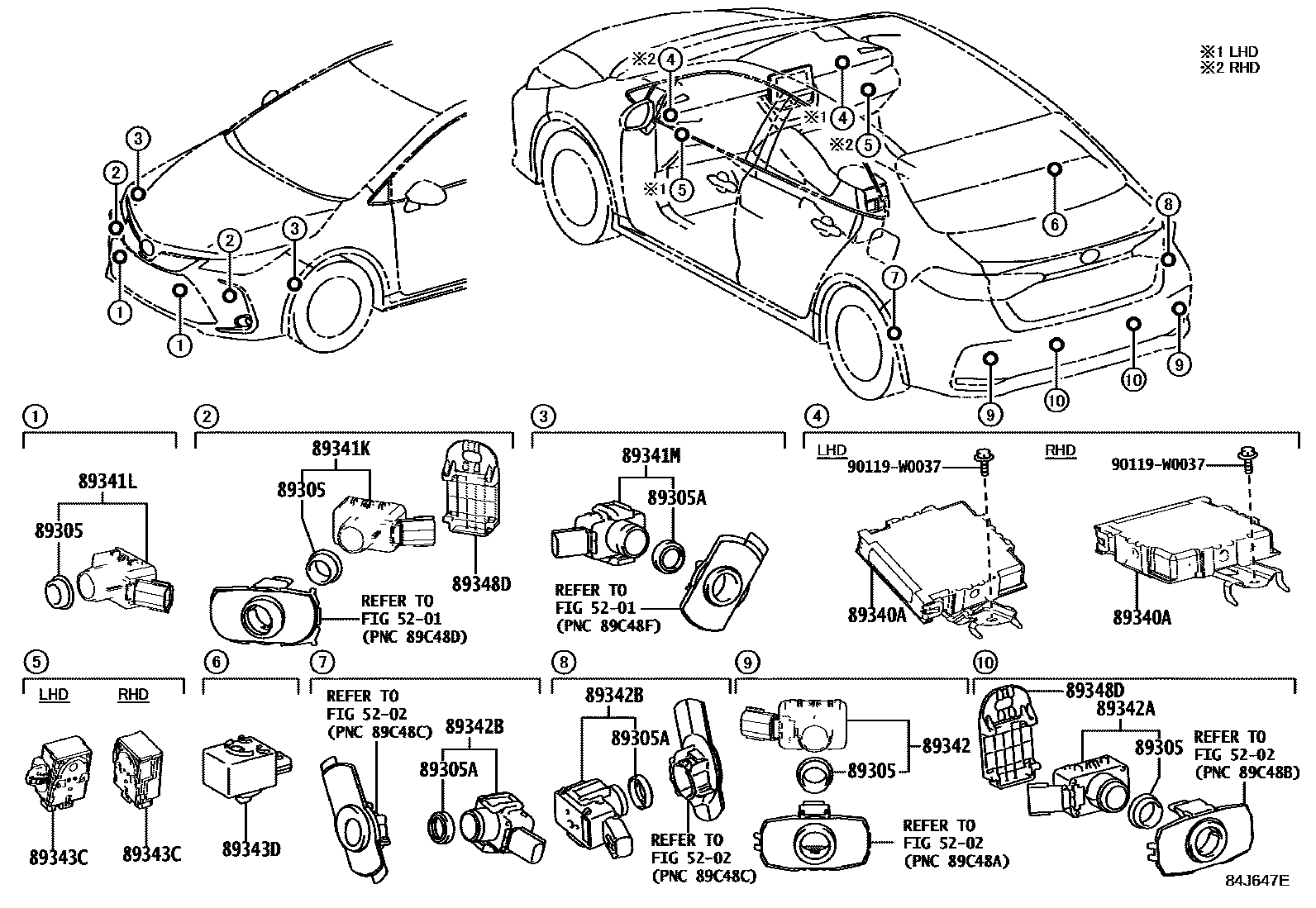

Toyota COROLLA EPC diagram 8417, 测距雷达和倒车雷达, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89305 | Ultrasonic sensor pad assembly | 89305-47010 · 89305-52010 |
| 89305A | Ultrasonic Sensor Pad Assembly No. 2 | 89305-15010 |
| 89340A | Distance warning ECU assembly | 89340-12240 · 89340-12280 · 89340-12290 · 89340-12291 · 89340-12300 · 89340-12301 · 89340-12520 · 89340-12530 · 89340-12540 · 89340-12550 · 89340-12560 · 89340-12561 · 89340-12570 · 89340-12571 · 89340-12840 · 89340-12860 |
| 89343C | No. 1 distance warning buzzer | 89343-48010 |
| 89343D | No. 2 vehicle distance warning buzzer | 89747-30040 |
| 89348D | Ultrasonic sensor clip | 89348-58130 |
