Toyota COROLLA 车内灯 — Figure 8121

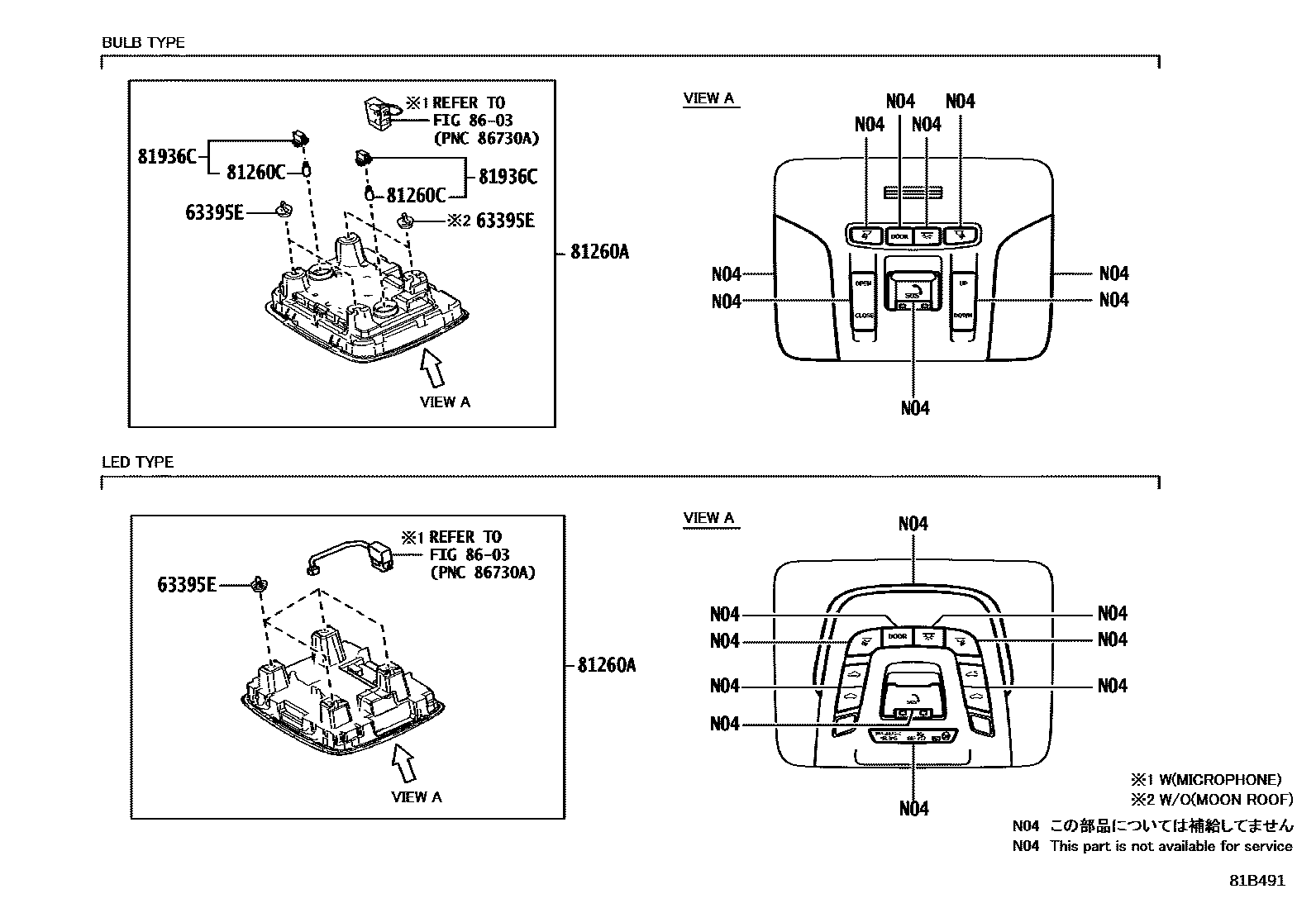

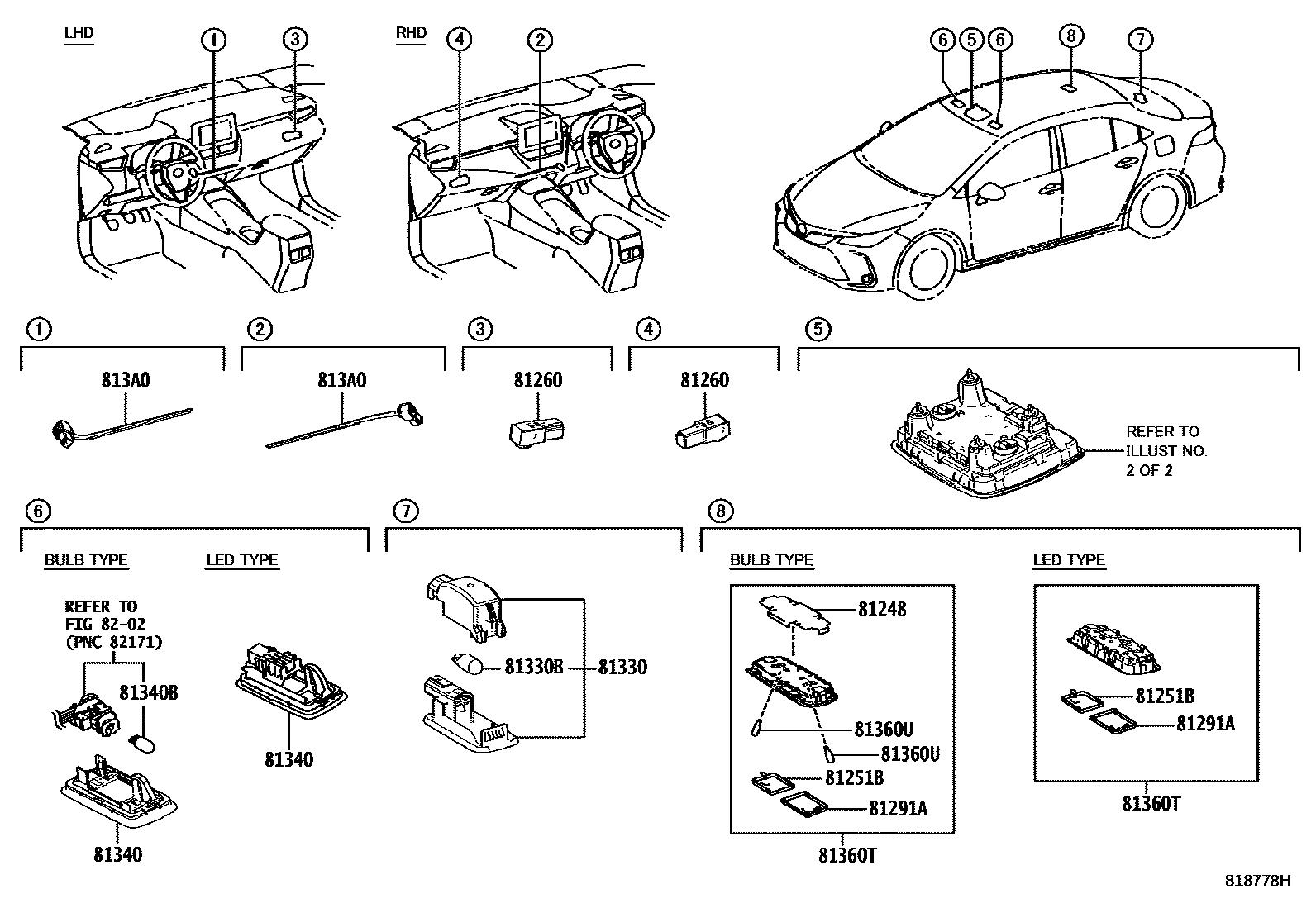

Toyota COROLLA EPC diagram 8121, 车内灯, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63395E | Clip (for reading lamp) | 63395-12150 · 90467-09240 · 90467-09245 · 90467-10167 |
| 81248 | Interior light cover No. 1 | 81369-05020 |
| 81251B | Right rear interior light cover | 81251-05030 |
| 81260 | Glove box light assembly | 81080-02040 · 81080-0D010 |
| 81260C | Light bulb (for reading lamp) | 99132-12050 |
| 81291A | Left rear interior light cover | 81291-05030 |
| 81330 | No. 1 trunk light assembly | 81250-30210 · 81330-02060 |
| 81330B | trunk light bulb | 90981-WB021 · 99132-12050 |
| 81340 | Vanity light assembly | 81340-33170 · 81340-F4010 |
| 81340B | Bulb (for vanity lights) | 90981-11062 |
| 81360U | spotlight light bulb | 90981-11062 |
| 813A0 | Dashboard light assembly | 813A0-12010 · 813A0-12020 · 813A0-12030 · 813A0-12040 |
| 81936C | Bulb assembly | 90011-11060 |
