Toyota COROLLA Headlamp — Figure 8101

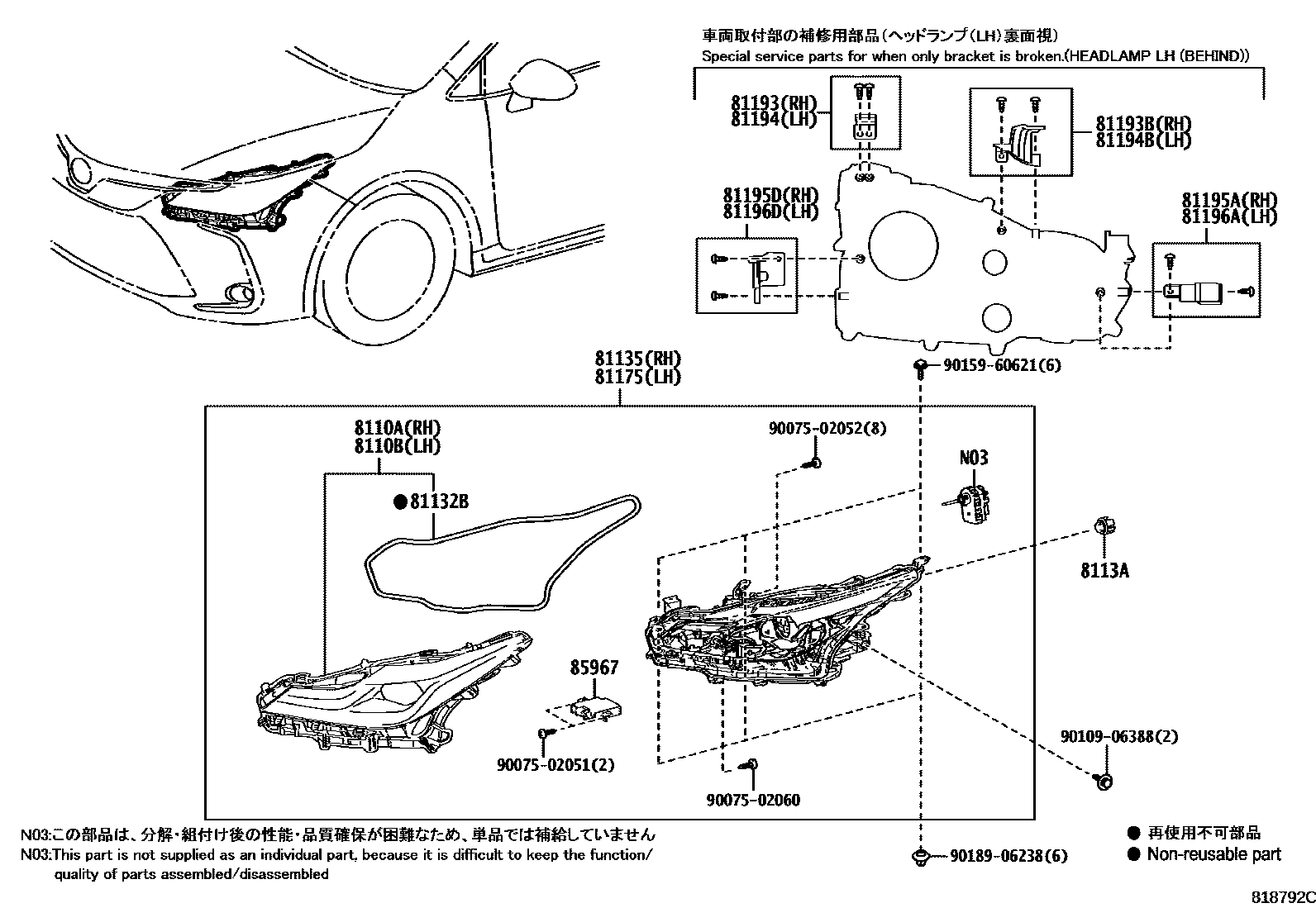

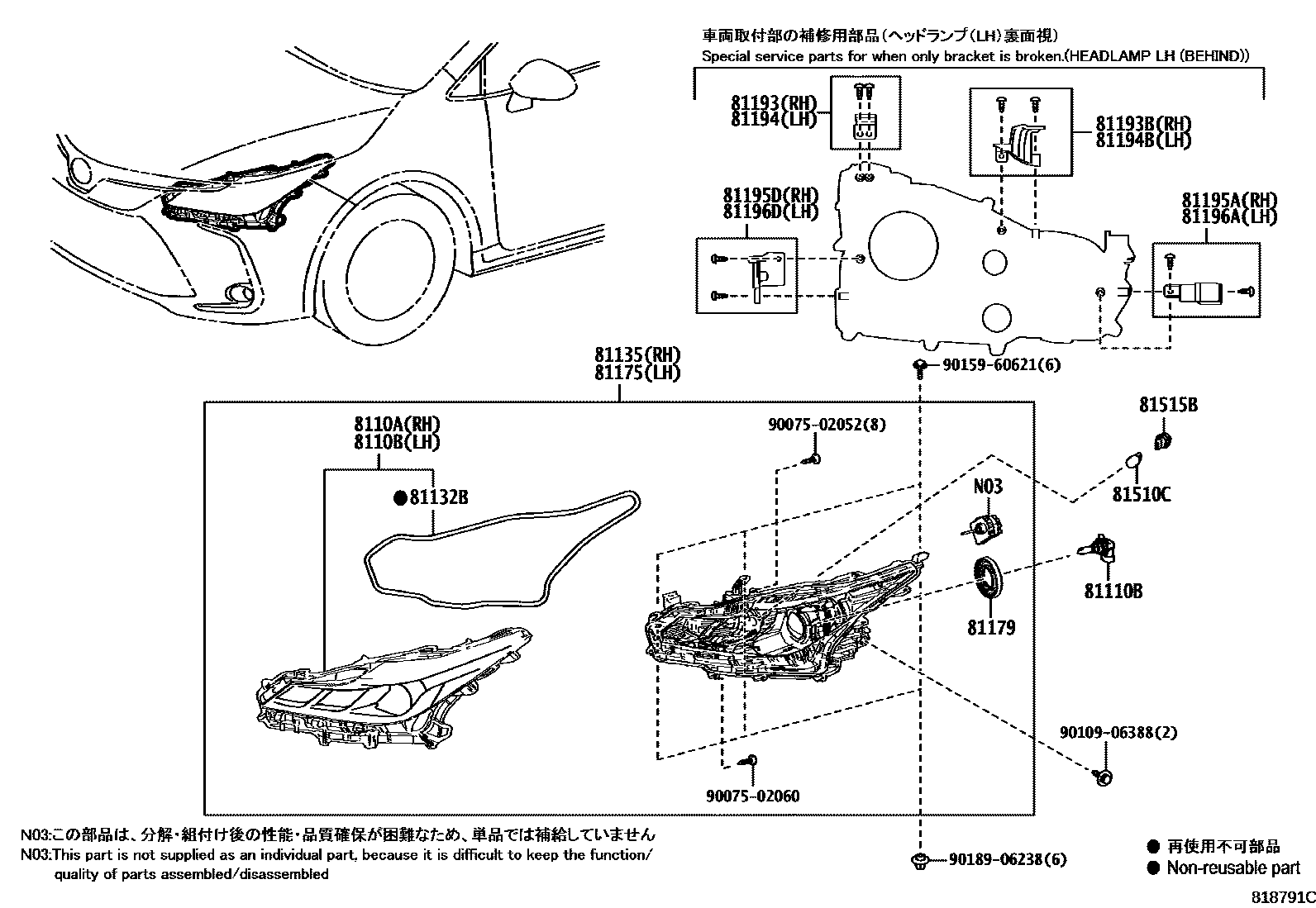

Toyota COROLLA EPC diagram 8101, Headlamp, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 8110A | Right headlight cover sub-assembly | 8110A-02T30 · 8110A-02T31 · 8110A-02T50 · 8110A-02T51 |
| 8110B | Left headlight cover sub-assembly | 8110B-02T30 · 8110B-02T31 · 8110B-02T50 · 8110B-02T51 |
| 81110B | Bulb (for headlight No. 1) | 90981-13091 |
| 81132B | Headlight cover gasket | 81132-02T30 |
| 81135 | Right headlight assembly assembly | 81130-02T30 · 81130-02T31 · 81130-02T40 · 81130-02T41 · 81145-02T50 · 81145-02T51 · 81145-02T60 · 81145-02T61 |
| 8113A | Headlight turn signal LED | 81536-12D30 |
| 81175 | Left headlight assembly assembly | 81170-02T30 · 81170-02T31 · 81170-02T40 · 81170-02T41 · 81185-02T50 · 81185-02T51 · 81185-02T60 · 81185-02T61 |
| 81179 | Headlight lamp holder cover | 90075-65006 |
| 81193 | Right headlight upper protective ring | 81193-02310 |
| 81193B | No. 2 headlight upper protection ring on the right | 81193-02330 |
| 81194 | Left headlight upper protective ring | 81194-02310 |
| 81194B | No. 2 headlight upper protective ring on the left | 81194-02330 |
| 81195A | Right headlight lower protection ring | 81193-02320 |
| 81195D | Right No. 2 headlight lower protection ring | 81193-02300 |
| 81196A | Left headlight lower protection ring | 81194-02320 |
| 81196D | No. 2 left headlight lower protection ring | 81194-02300 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 85967 | Light control ECU | 85967-12050 |
