Toyota COROLLA 挡泥板和扰流板 — Figure 7601

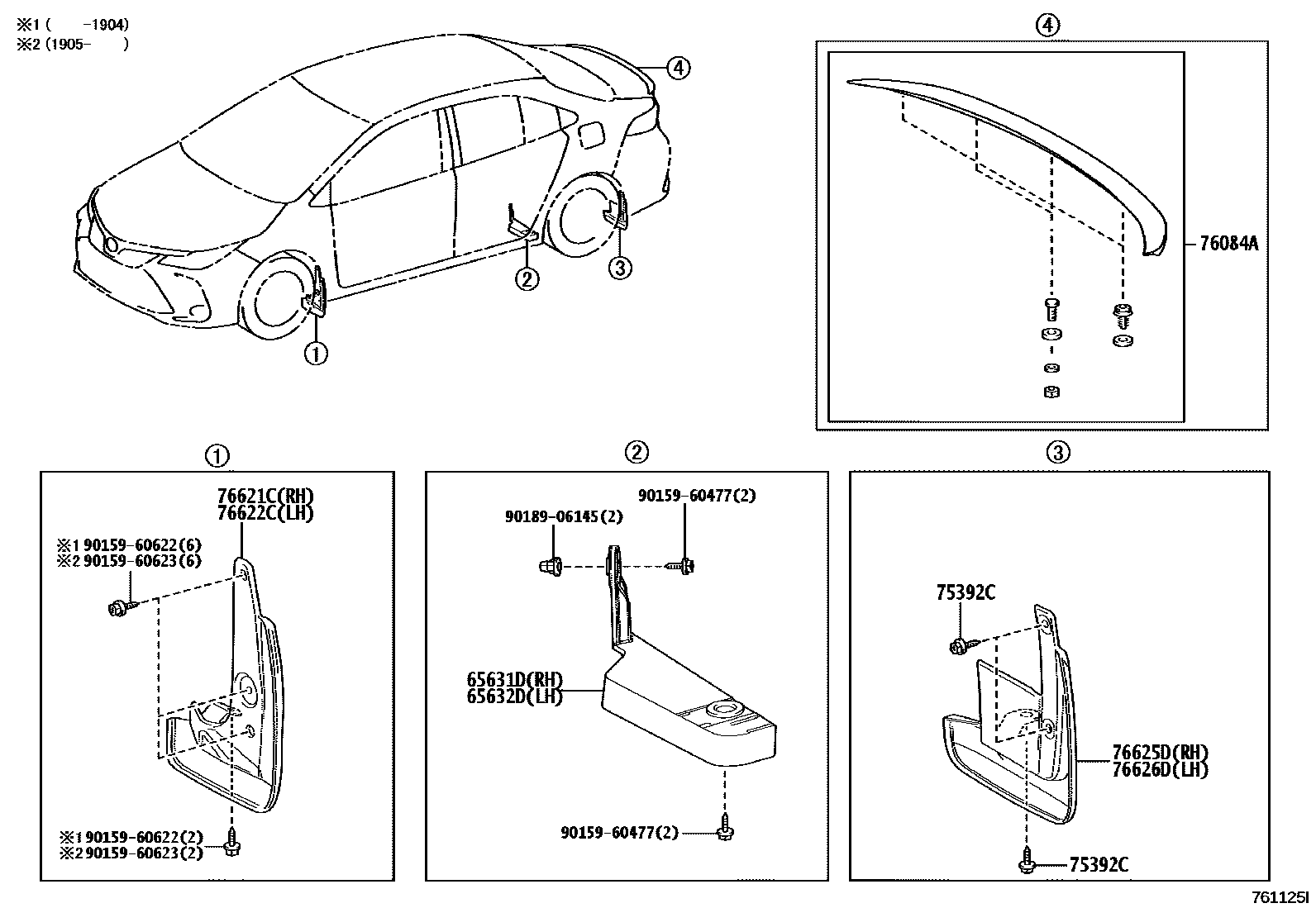

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-02320 |
| 65632D | Left rear wheel house front panel | 65632-02320 |
| 75392C | External protective strip fixings | 75392-42030 |
| 76084A | spoiler assembly | 76085-YY903 |
| 76621C | Right front fender fender | 76621-02230 |
| 76622C | Left front fender fender | 76622-02230 |
| 76625D | Right rear side fender | 76625-02420 |
| 76626D | Left rear side fender | 76626-02410 |
