Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

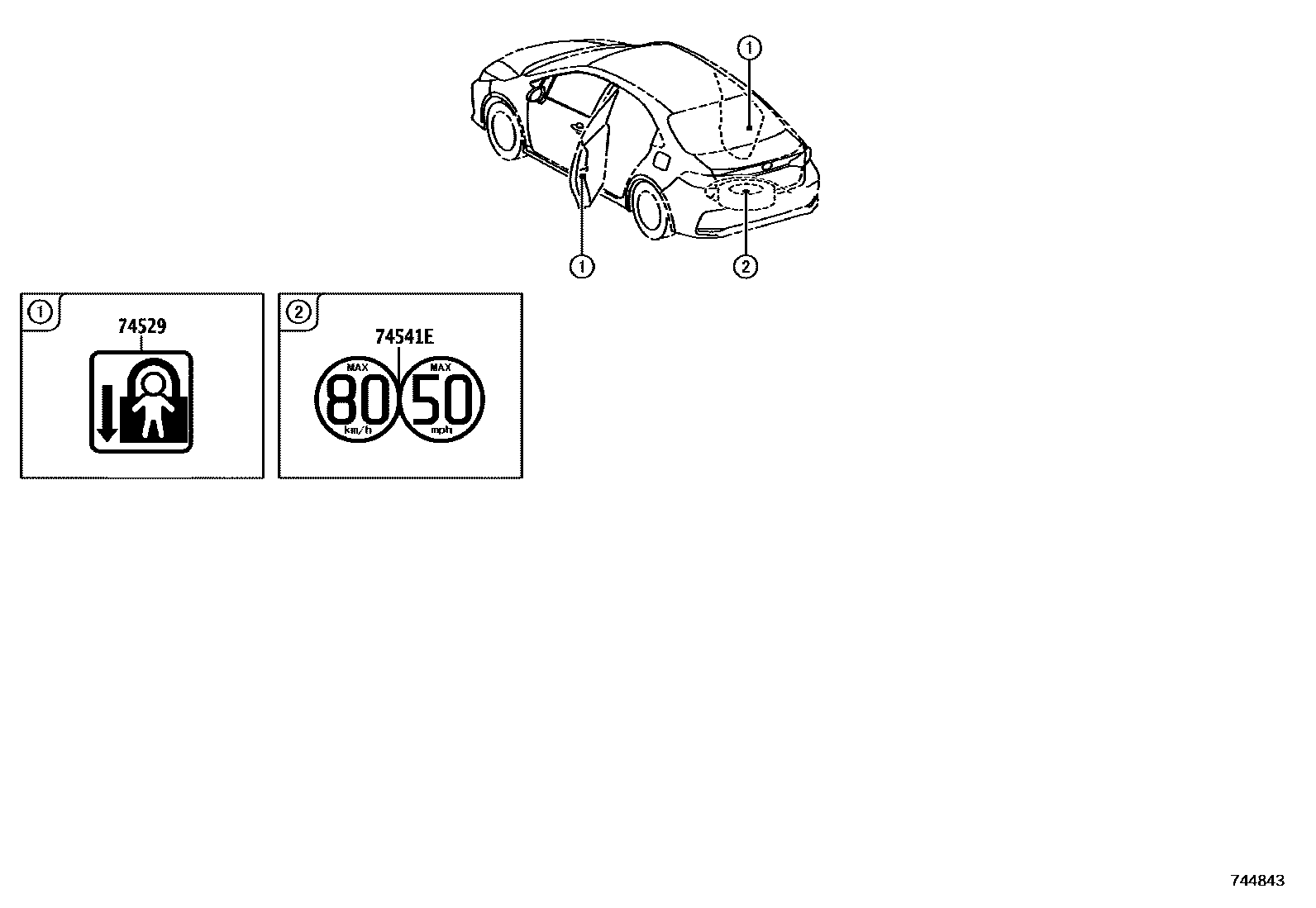

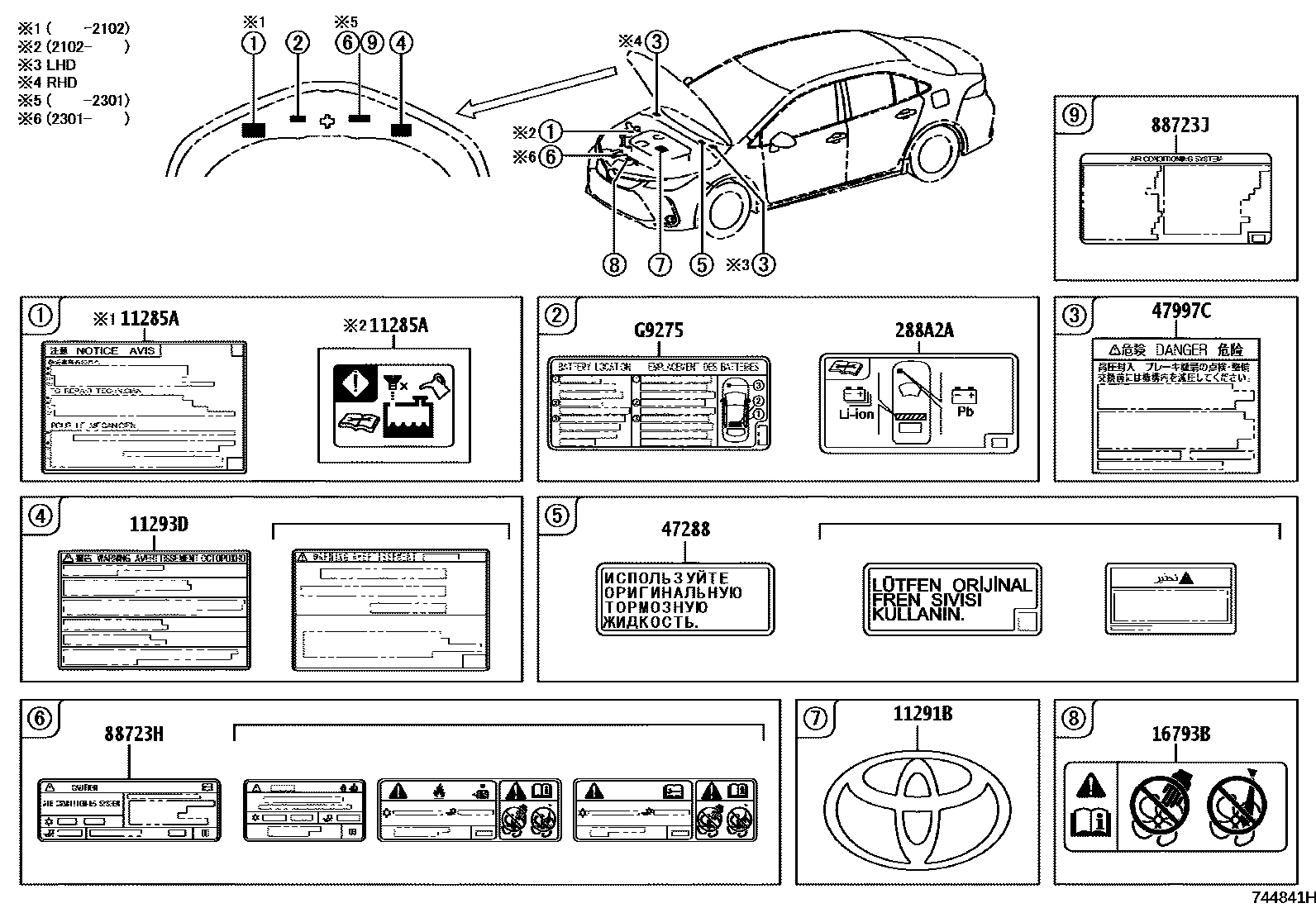

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-0T110 · 11285-0T120 · 11285-33030 · 11285-33040 |
| 11291B | Engine name plate | 11290-37010 · 11291-37100 · 11291-37130 |
| 11293D | engine warning label | 11293-36070 · 11293-37060 |
| 16793B | Cooling fan information label | 16793-36030 |
| 288A2A | No. 2 battery location label | 288A2-0T010 |
| 47288 | Brake Fluid Caution Label | 47288-52010 · 47288-64010 · 47288-71010 · 47288-F4010 |
| 47997C | Accumulator No. 1 Warning Label | 47997-76010 · 47997-F4010 |
| 74515C | Anti-theft warning information label | 74515-0D010 · 74515-42010 · 74515-50070 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-0D040 |
| 74541E | Small spare tire warning plate | 42668-0F030 |
| 74559B | fuel information label | 74559-11030 · 74559-20140 · 74559-60030 |
| 74751 | tire pressure information label | 42661-02Q80 · 42661-02Q90 · 42661-02R00 · 42661-02R10 · 42661-02R20 · 42661-02R30 · 42661-02R40 · 42661-02R50 |
| 88723H | Cooler maintenance warning label | 88723-02350 · 88723-02410 · 88723-02420 · 88723-02580 · 88723-02610 · 88723-02770 · 88723-02780 · 88723-02790 · 88723-02800 · 88723-F4100 |
| 88723J | Cooler No. 2 maintenance warning label | 88733-0H010 · 88733-0H011 |
| 89356A | distance warning information label | 89356-47020 |
| G9275 | No. 1 battery warning label | G9275-02070 · G9275-47110 · G9275-47140 |
