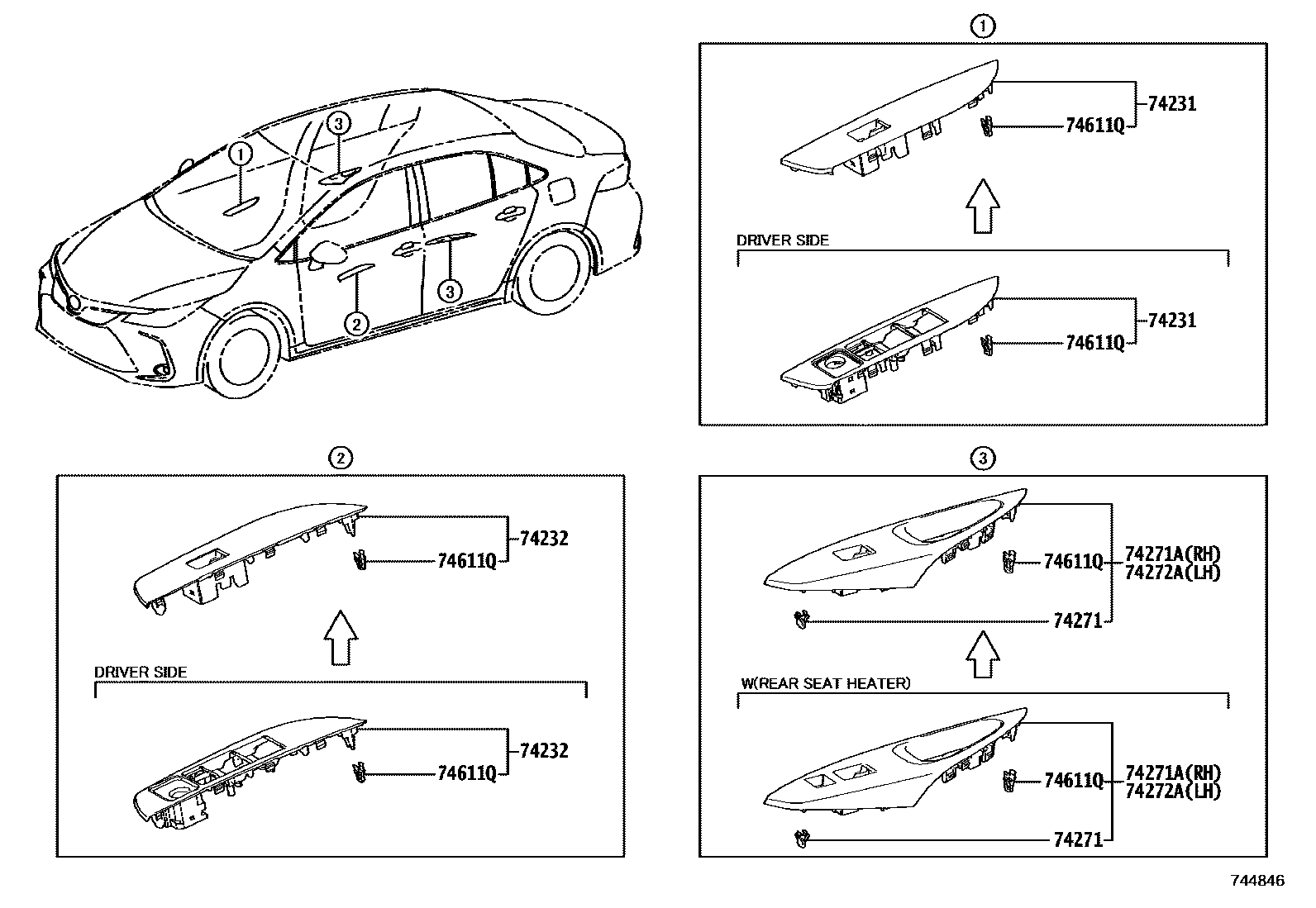

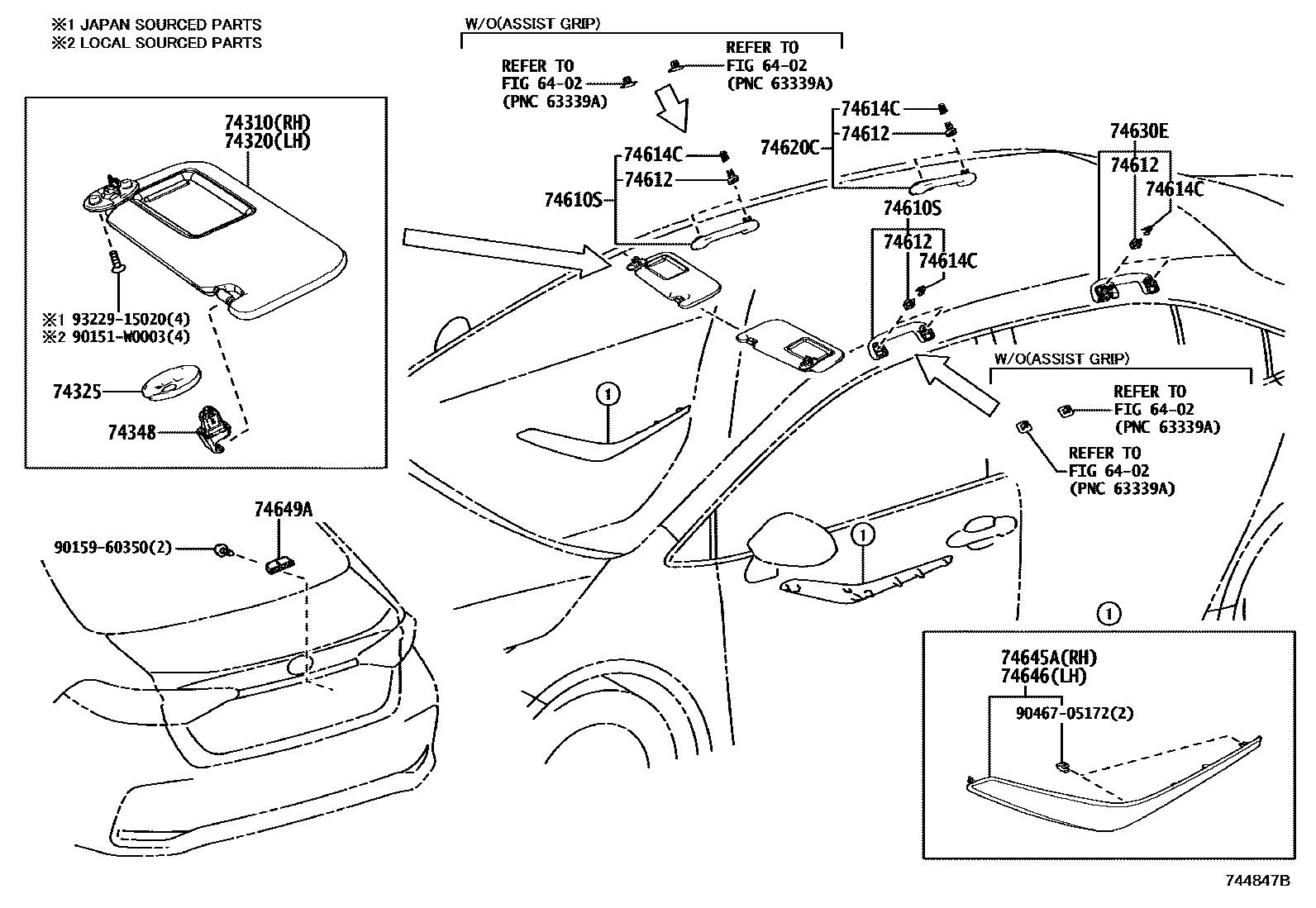

Toyota COROLLA 扶手和遮阳板 — Figure 7401
Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-02F60 · 74231-02F80 · 74231-02J10 |
| 74232 | Left front armrest upper panel | 74232-02G20 · 74232-02G40 · 74232-02J70 |
| 74271 | door armrest fixings | 55416-60030 |
| 74271A | Right rear door armrest upper panel | 74271-02830 · 74271-02A30 |
| 74272A | Left rear door armrest upper panel | 74272-02820 · 74272-02A20 |
| 74611Q | clip | 90467-10203 |
| 74614C | Auxiliary handle locking plate | 74614-12020 |
| 74645A | Right door auxiliary handle cover | 74630-02240 · 74645-02480 |
| 74646 | Left door auxiliary handle cover | 74640-02230 · 74646-02480 |
