Toyota COROLLA 锁芯组件 — Figure 6712

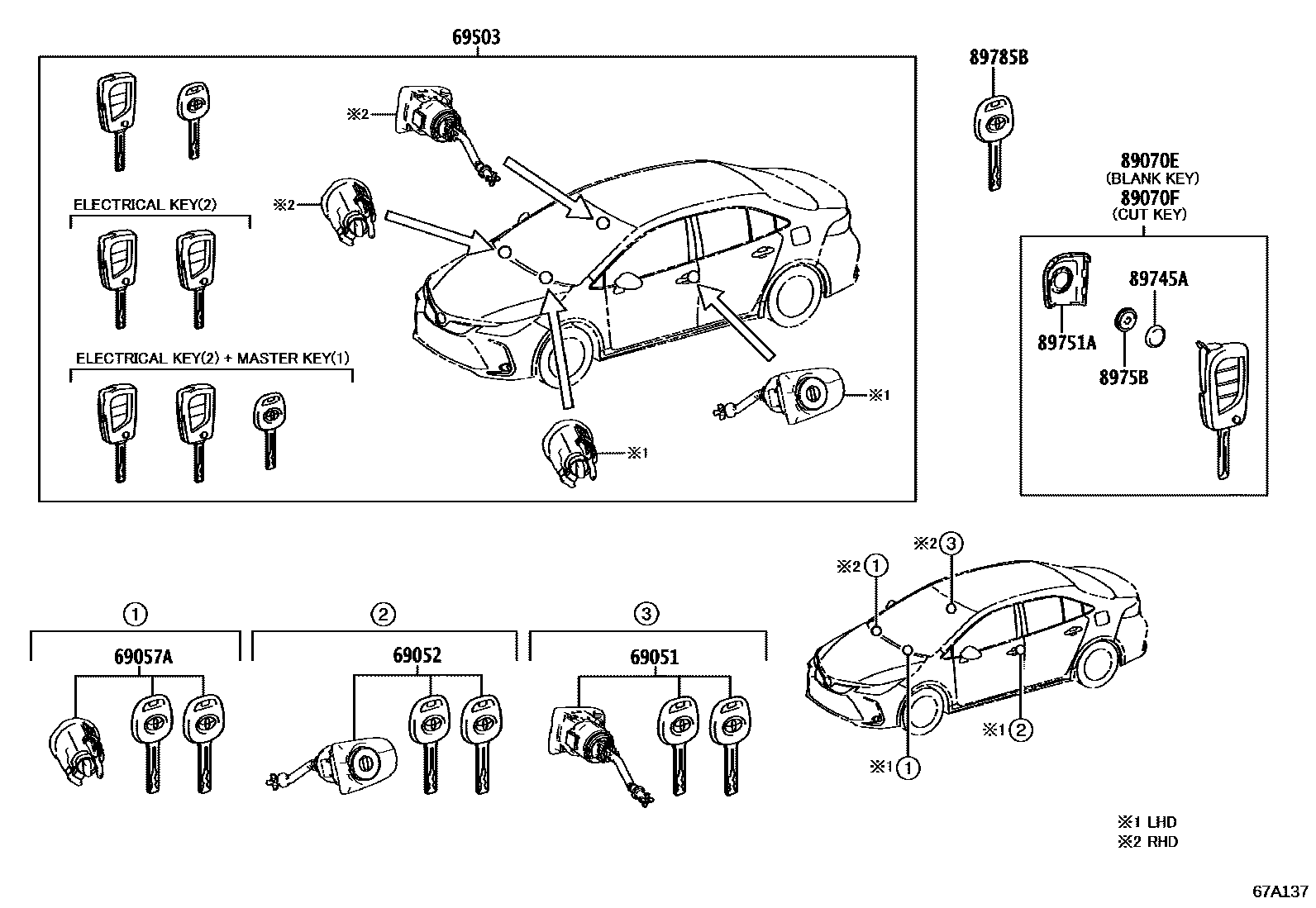

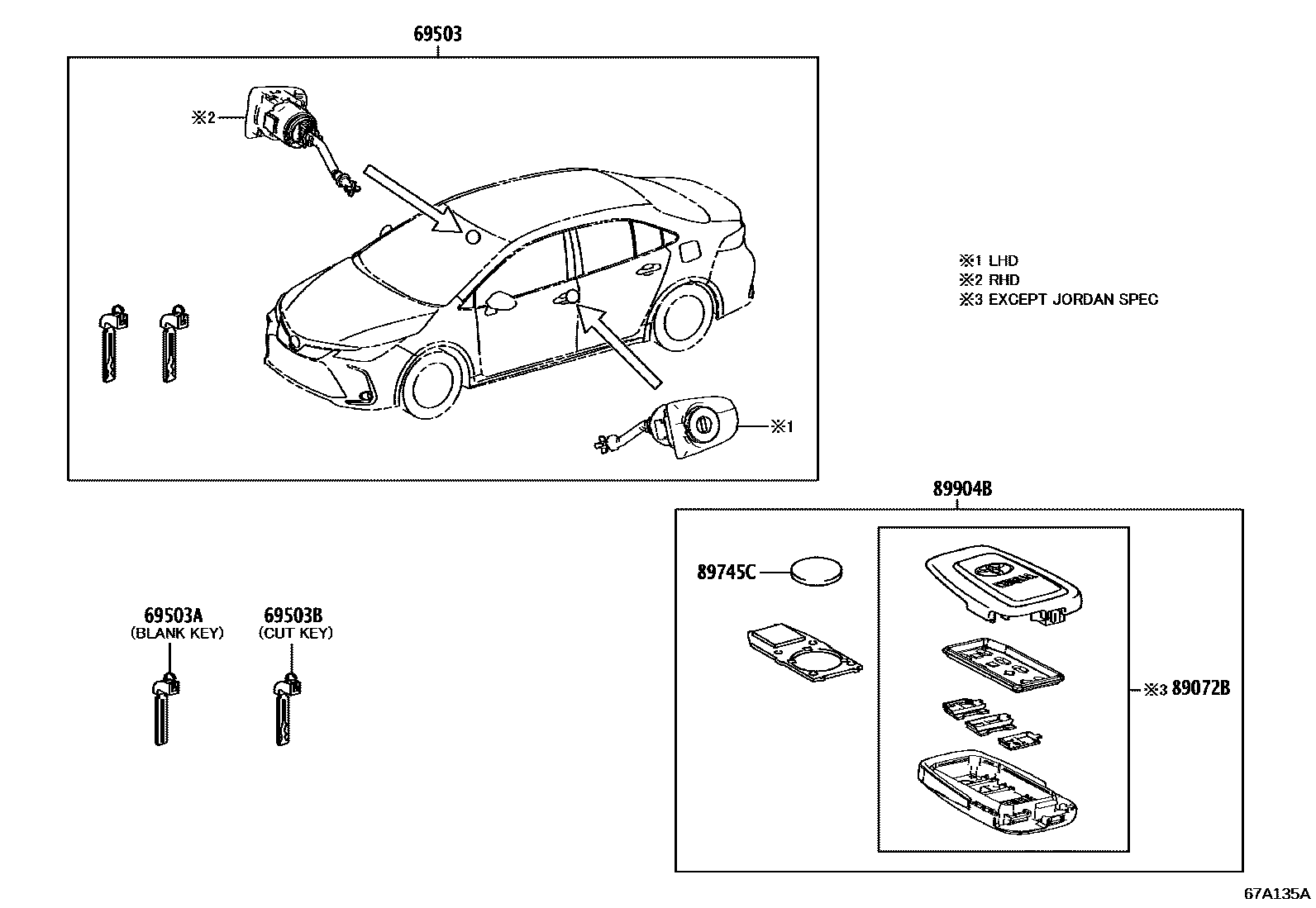

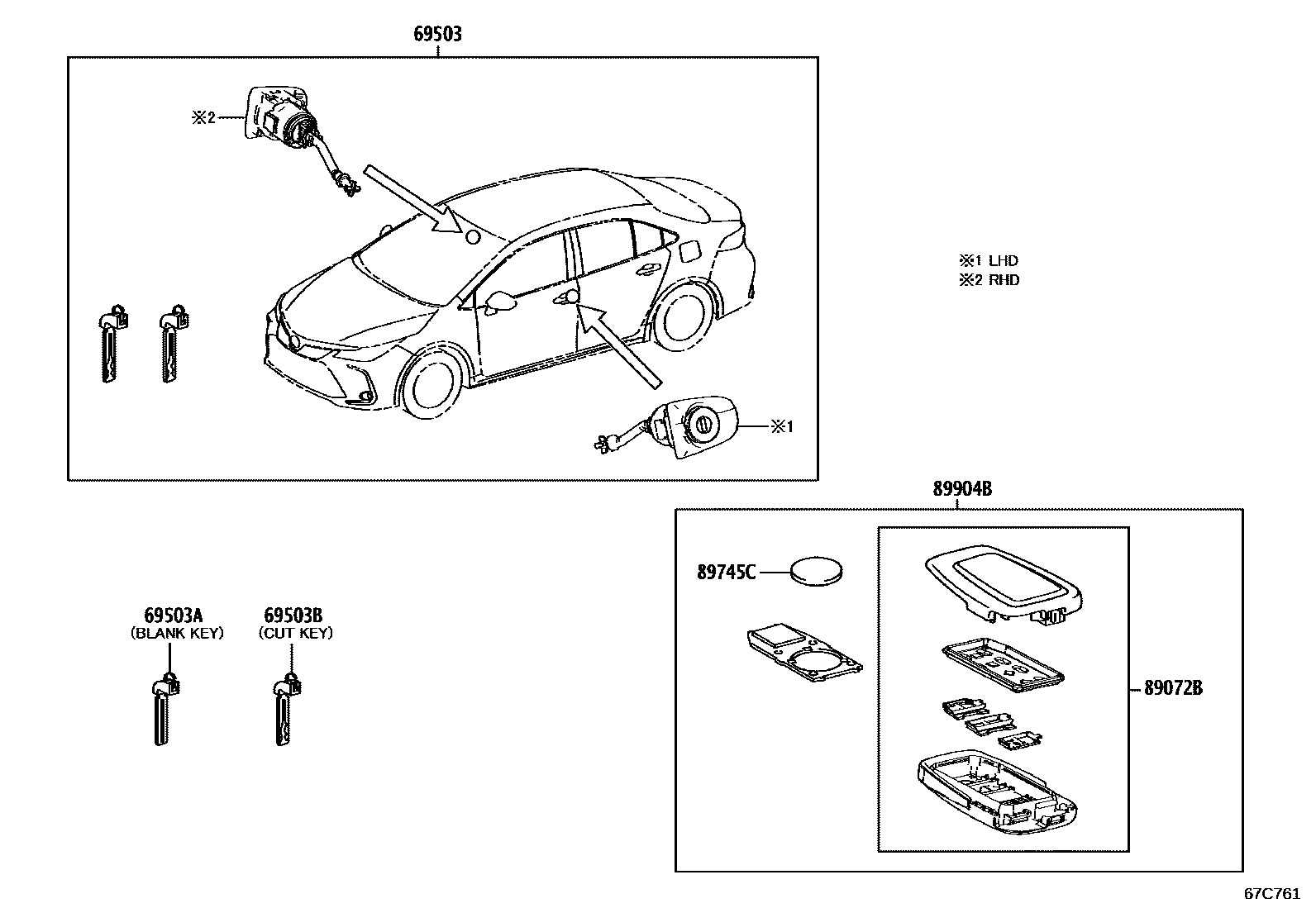

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-02400 |
| 69052 | Left door lock cylinder and key assembly | 69052-02510 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-02C20 |
| 69503 | Door lock cylinder components | 69005-02F50 · 69005-02F51 · 69005-02F60 · 69005-02F61 · 89704-02D20 · 89704-02D21 · 89704-02D30 · 89704-02D40 · 89704-02D41 · 89704-02D50 · 89704-02D60 · 89704-02D61 · 89704-02D70 · 89704-02D80 · 89704-02D81 · 89704-02D90 · 89704-02D91 · 89704-02E80 · 89704-02E90 · 89704-02F10 |
| 69503A | external tooth key | 69515-16110 · 69515-47030 · 69515-K0020 |
| 69503B | internal tooth key | 69515-16100 · 69515-47020 · 69515-K0010 |
| 89070E | Remote key assembly | 89070-02F10 · 89070-02F11 · 89070-02F20 |
| 89070F | Remote key assembly (internal tooth key) | 89070-02F30 · 89070-02F31 · 89070-02F40 |
| 89072B | Remote key shell assembly (for smart key) | 89072-02790 · 89072-02800 · 89072-02C00 |
| 89745A | Transmitter battery | 89745-02080 |
| 89745C | Transmitter battery | 89745-02080 · 89745-K0020 |
| 89751A | Transmitter housing cover | 89751-02250 |
| 8975B | Remote control battery case cover | 8975B-02040 |
| 89785B | transceiver key master transmitter | 89785-K0050 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-02040 · 8990H-02050 · 8990H-02080 · 8990H-02090 · 8990H-02200 · 8990H-02201 · 8990H-02370 · 8990H-02380 |
