Toyota COROLLA 前门锁和车门把手 — Figure 6703

Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 22 PNC and OE references.

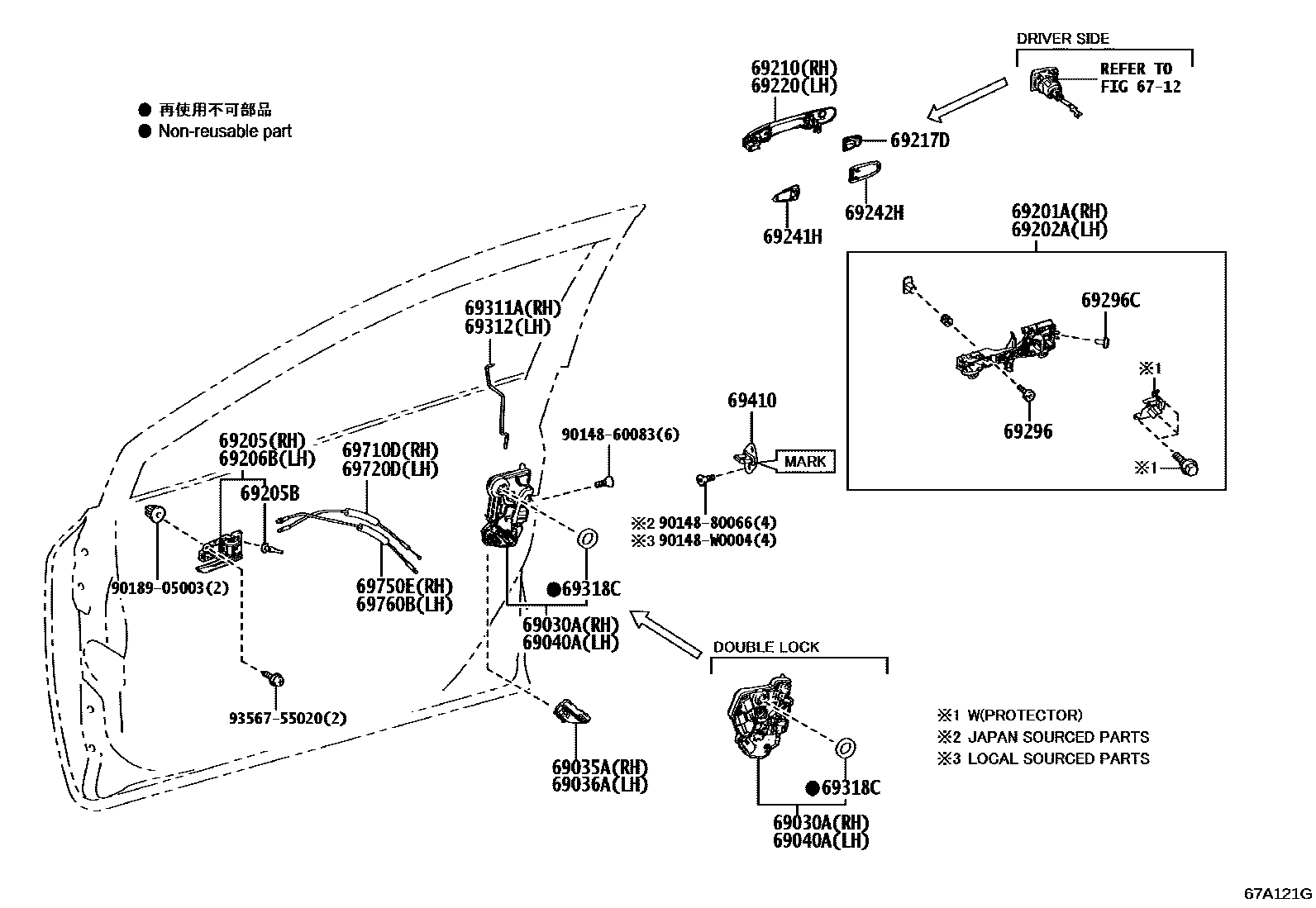

Toyota COROLLA 前门锁和车门把手 EPC diagram — 67A121G
前门锁和车门把手 — 67A121G (201901 – 999999)

PNC and OE references

PNCPart nameOE numbers
69030ARight front door lock assembly with motor69030-02250 · 69030-02501 · 69030-02511 · 69030-02521 · 69030-02560 · 69030-02570 · 69030-F4020
69035ARight front door lock cover sub-assembly69035-02020
69036ALeft front door lock cover sub-assembly69036-02020
69040ALeft front door door lock assembly with motor69040-02491 · 69040-02501 · 69040-02530 · 69040-05150 · 69040-0H050 · 69040-F4020
69201ARight front door outer handle frame sub-assembly69201-02320 · 69201-02380
69202ALeft front door outer handle frame sub-assembly69202-02260
69205BCushion pad (for inner front door handle)90541-04014
69210Right front door outer handle assembly69211-02934 · 69211-02935
69217DFront door outer handle cover69217-02580
69220Left front door outer handle assembly69211-02934 · 69211-02935
69241HFront door exterior handle pad69241-02250
69242HFront door rear outer handle pad69242-02240
69296Car door inner handle screws69296-30010 · 90148-50006
69296CCar door inner handle screws90148-50003 · 90148-50008 · 90148-W0013
69311ARight front door lock opening lever69311-02350 · 69311-02420
69312Left front door lock opening lever69312-02350 · 69312-02420
69318Cdoor lock harness seal69318-51010
69410Front door lock plate assembly69410-0D090 · 69410-0H020 · 69410-20110
69710DRight front door lock remote control cable (for opening lever)69710-02360 · 69710-02440
69720DLeft front door lock remote control cable (for opening lever)69710-02360 · 69710-02440
69750ERight front door inner locking cable (for locking/unlocking handle)69750-02390 · 69750-02470
69760BLeft front door inner locking cable (for locking/unlocking handle)69750-02390 · 69750-02470
