Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403

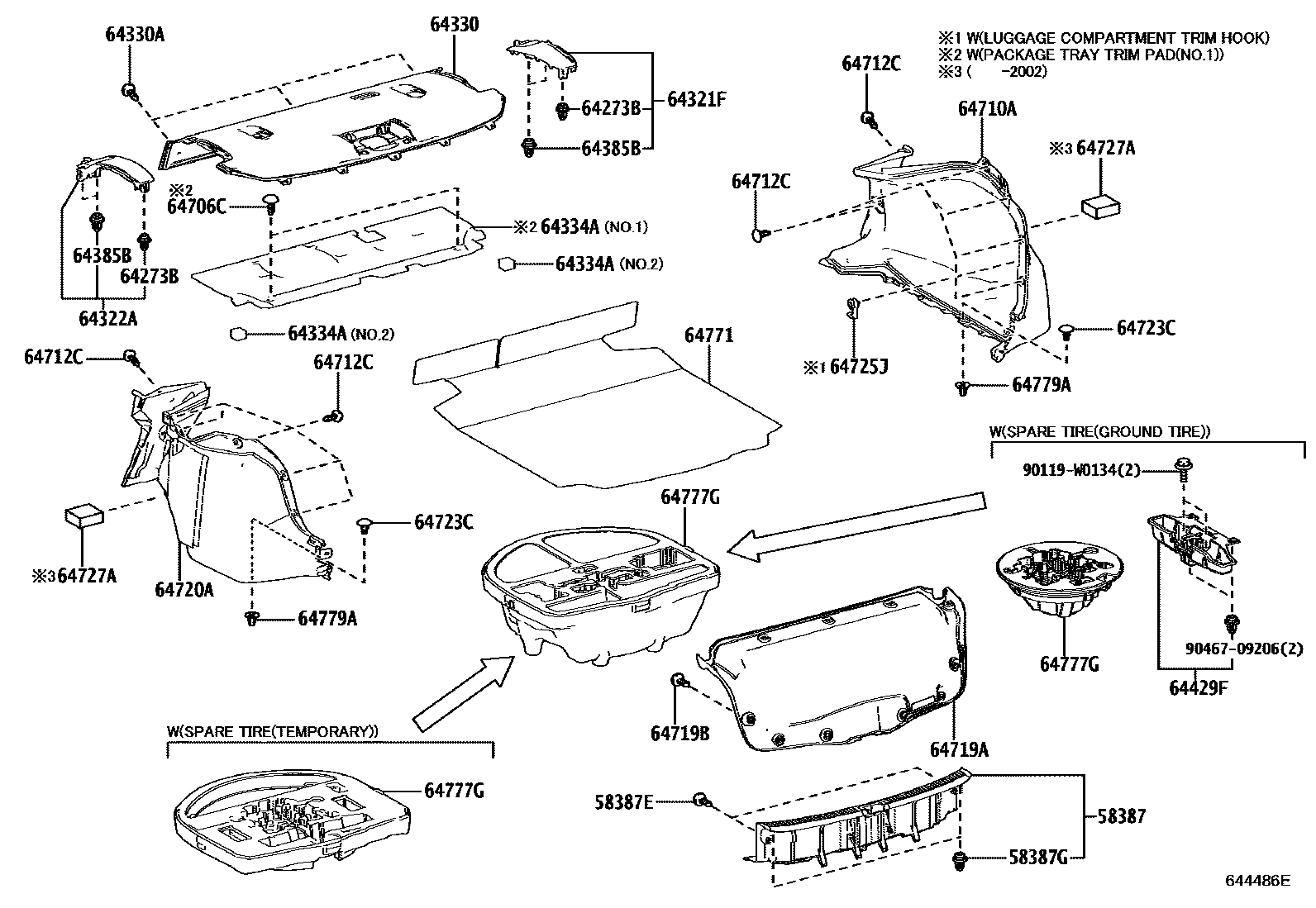

Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58387E | Clip (for rear floor trim panel) | 90467-W0007 |
| 58387G | Clip (for rear floor trim panel) | 90467-W0005 |
| 64273B | clip | 90467-09240 |
| 64330A | Clip (for glove box decorative panel) | 90467-W0007 |
| 64334A | Glove box decorative mat | 64334-02370 · 64334-02480 · 64334-02490 |
| 64385B | clip | 90467-10161 · 90467-W0005 |
| 64429F | suitcase decorative box | 64429-02030 |
| 64712C | Clip (for trunk decorative cover) | 90467-W0007 |
| 64719B | Catch (for trunk door) | 90467-W0007 |
| 64727A | Luggage interior decorative mat | 64727-02110 |
| 64777G | Spare tire cushion | 64777-02370 · 64777-02380 · 64777-02390 |
| 64779A | Spare tire cover stop | 64779-26010 |
