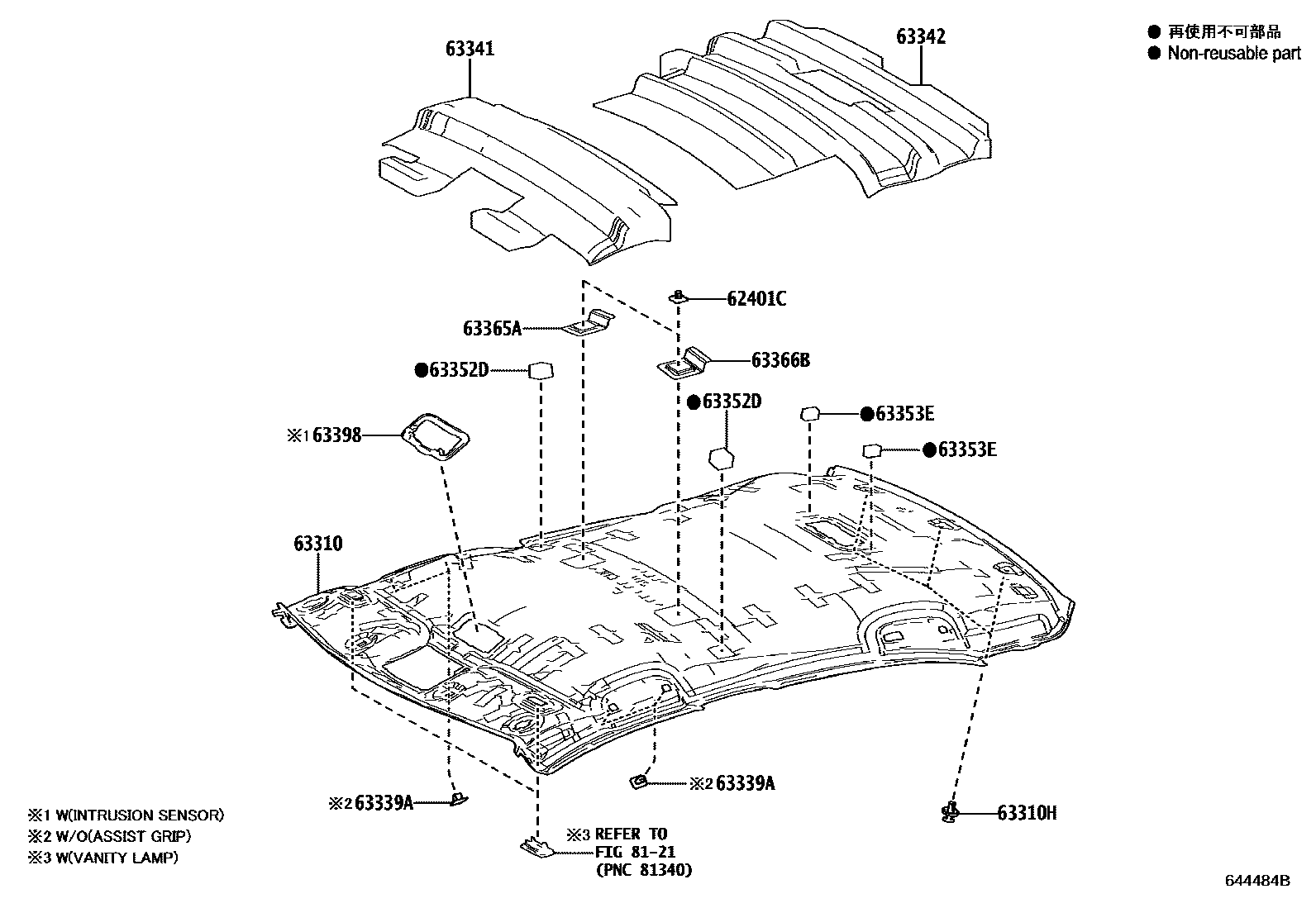

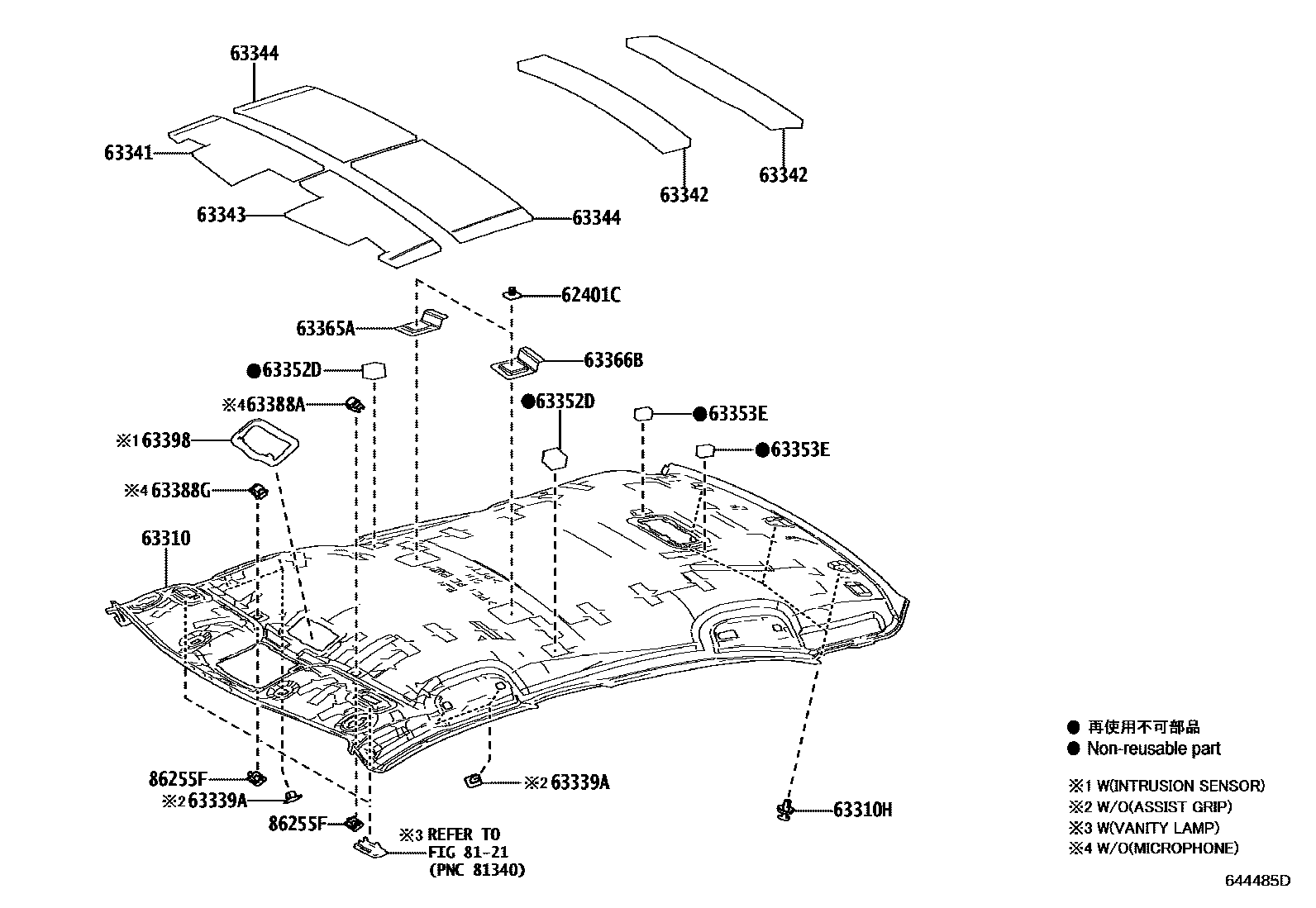

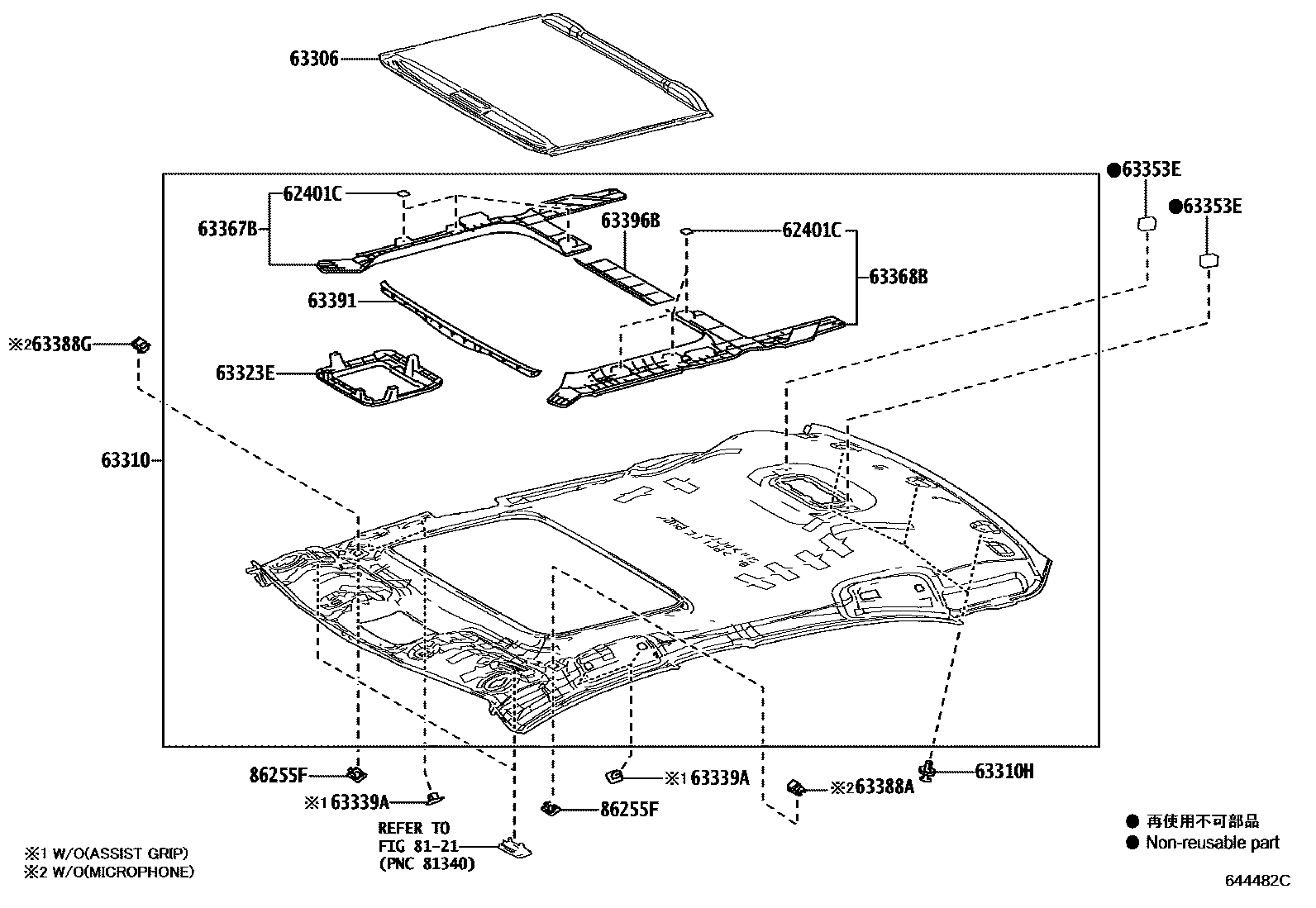

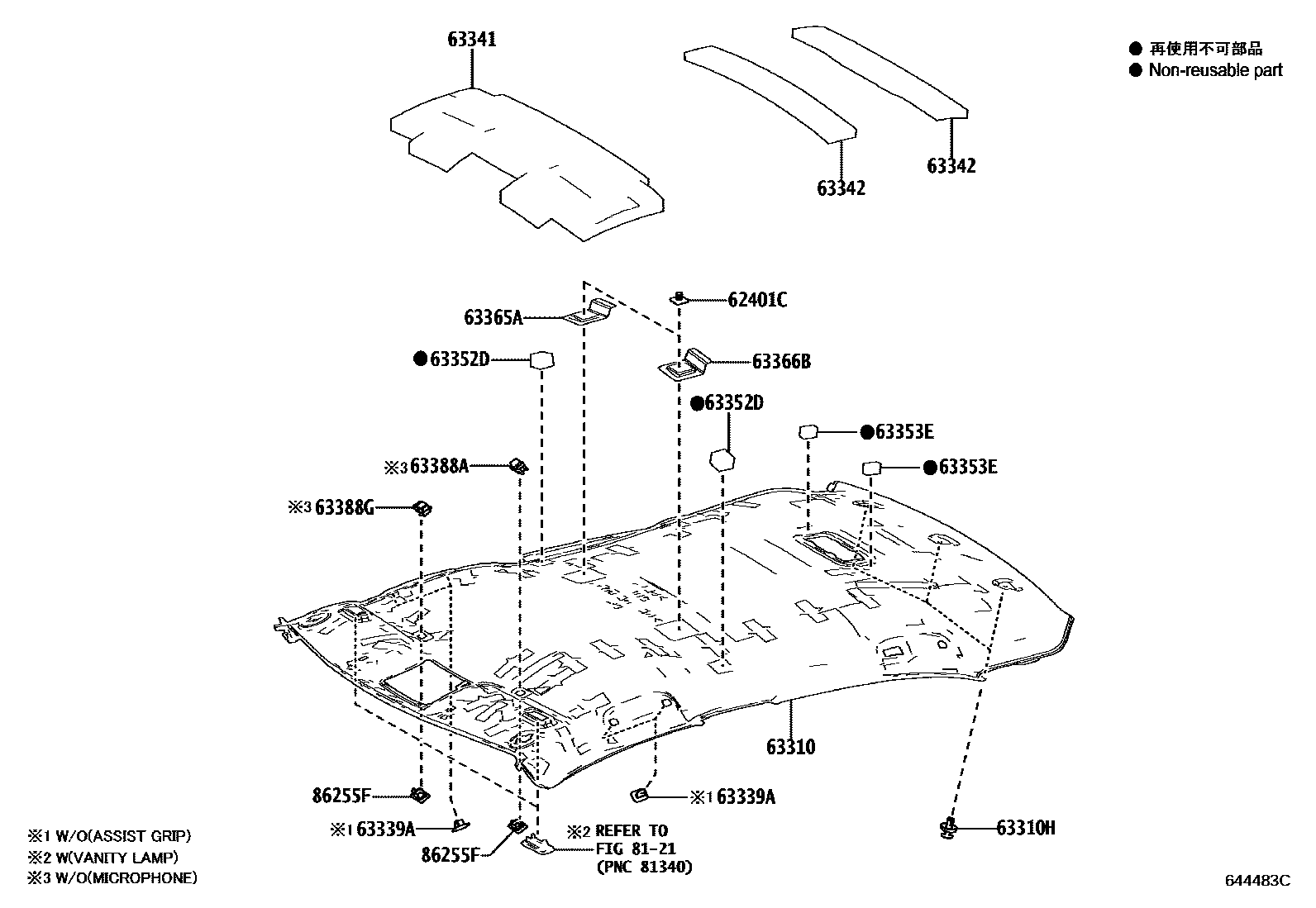

Toyota COROLLA 车顶内衬和消声垫 — Figure 6402
Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62401C | hook fasteners | 90530-20022 · 90530-20027 |
| 63323E | Lined lamp housing | 63323-02060 |
| 63341 | No. 1 roof silencer mat | 63341-02590 · 63341-02591 · 63341-02600 · 63341-02601 · 63341-02620 |
| 63342 | No. 2 roof muffler pad | 63342-02810 · 63342-02820 |
| 63343 | No. 3 roof muffler pad | 63341-02630 |
| 63344 | No. 4 roof silencer mat | 63341-02640 |
| 63352D | No. 2 roof lining lining block | 63352-02090 |
| 63353E | Center roof lining lining | 63353-02150 |
| 63365A | Headlining fixing plate | 63365-02010 |
| 63366B | Roof left inner lining fixing plate | 63366-02010 |
| 63367B | No. 2 roof right side inner lining fixing plate | 63367-02020 · 63367-02021 |
| 63368B | No. 2 roof left lining fixing plate | 63368-02020 · 63368-02021 |
| 63388A | headliner fixing cover | 63388-02010 |
| 63388G | Headlining fixing cover No. 2 | 63388-02010 |
| 63391 | Front headliner trim panel | 63391-02040 |
| 63396B | Rear center roof lining trim panel | 63396-02010 |
| 63398 | roof lining support panel | 63398-02010 |
