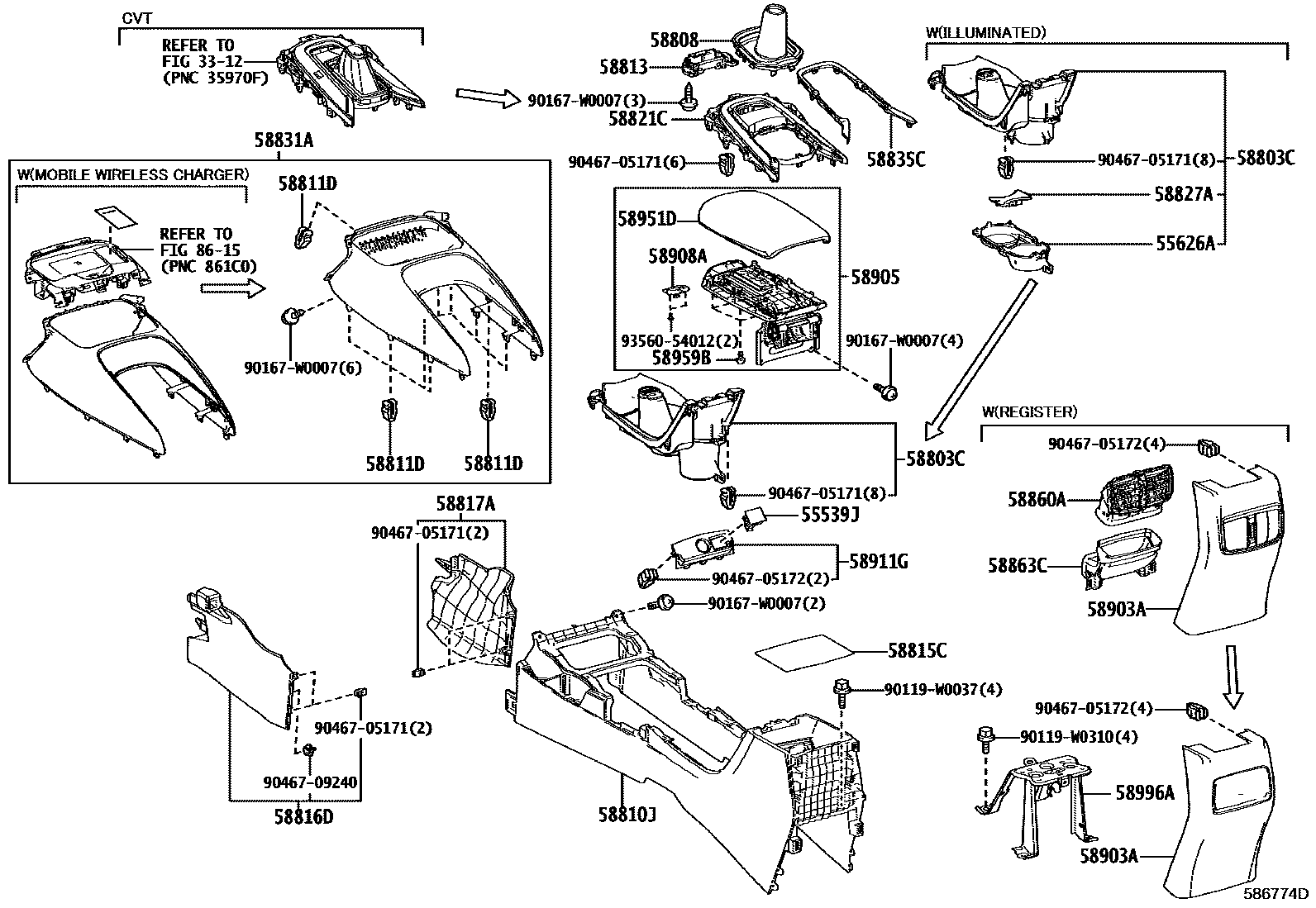

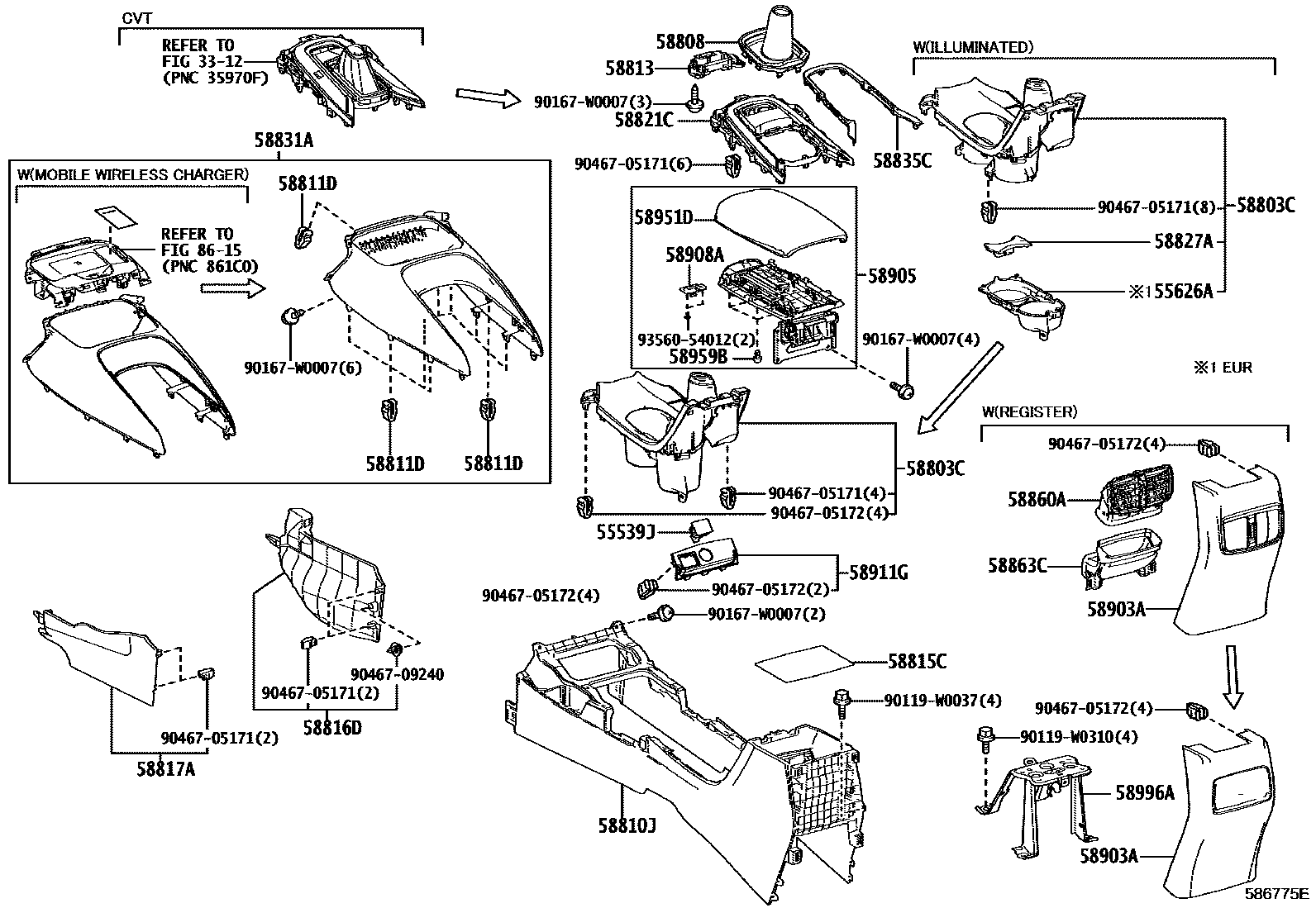

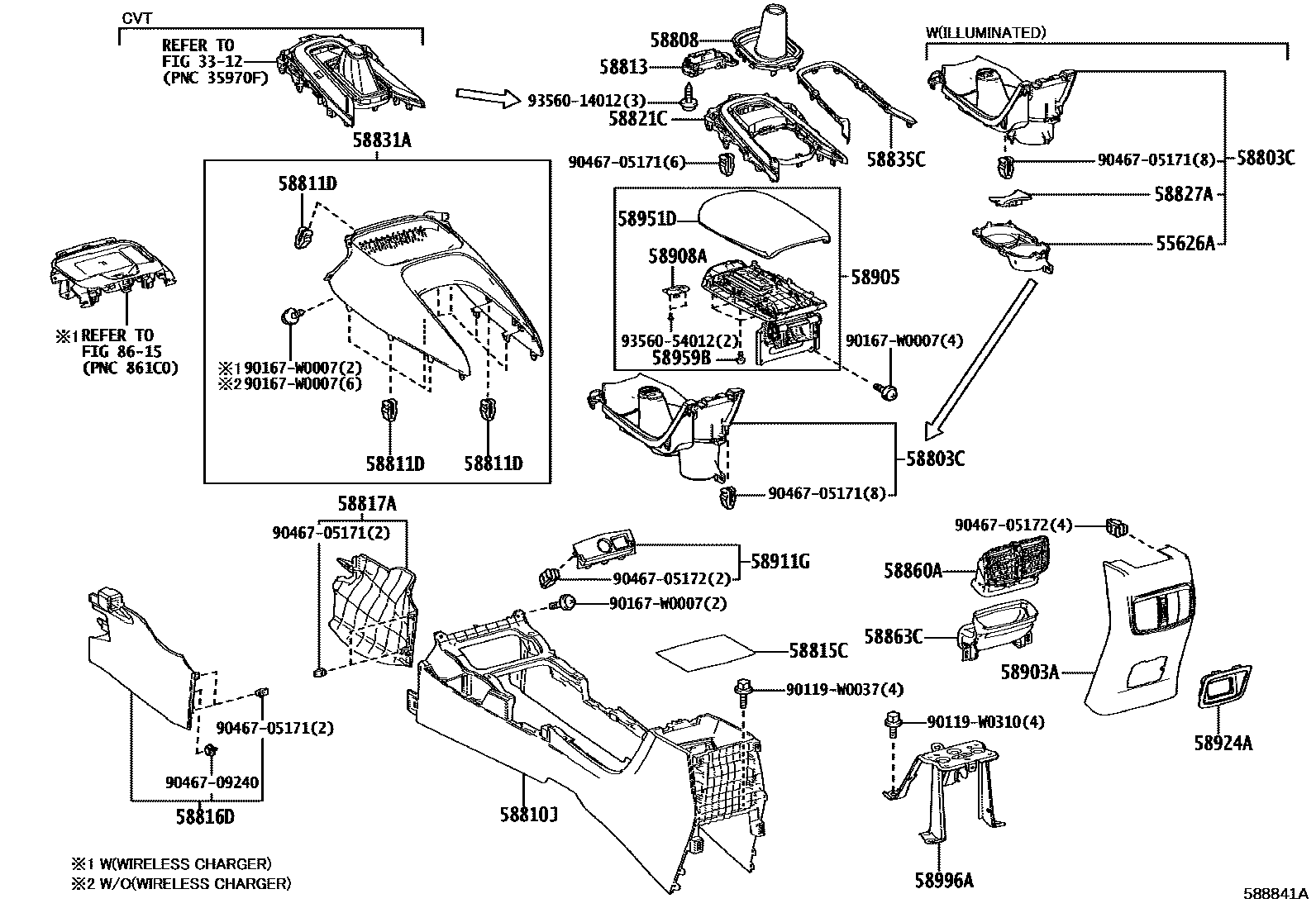

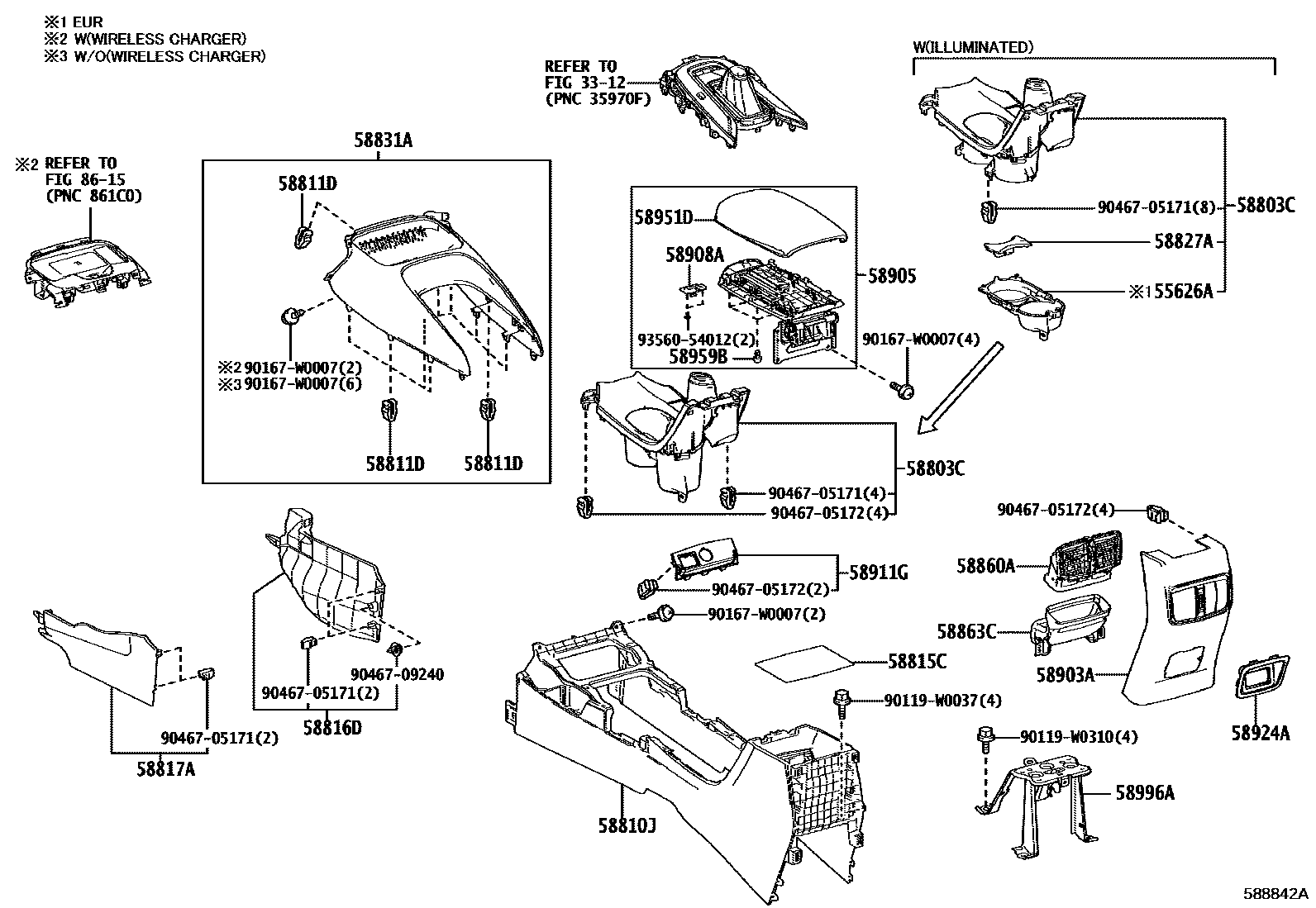

Toyota COROLLA 中央扶手箱和支架 — Figure 5806
Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55626A | Instrument panel bottom bracket partition fastener | 55626-02190 · 55626-02200 · 55626-02210 |
| 58803C | Armrest box cup holder sub-assembly | 58803-02050 · 58803-02110 · 58803-02130 · 58803-02210 · 58803-02410 · 58803-02570 · 58803-02690 · 58803-02710 · 58803-02720 · 58803-02740 |
| 58811D | Clip (for armrest box) | 90467-05171 |
| 58813 | Upper armrest box | 58813-02250 |
| 58815C | Armrest box felt pad | 58815-02410 |
| 58821C | Armrest box upper panel | 58821-02A80 |
| 58827A | Armrest box groove decorative parts | 58827-02260 · 58827-02330 · 58827-12020 |
| 58835C | Armrest box decorative parts | 58835-02060 · 58835-02100 |
| 58860A | Armrest box air regulator assembly | 58860-02080 · 58860-02081 |
| 58863C | Armrest box No. 3 air duct | 58863-02030 |
| 58908A | Armrest box lid lock assembly | 58908-33030 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-02180 · 58996-02181 |
