Toyota COROLLA 地板隔热垫 — Figure 5802

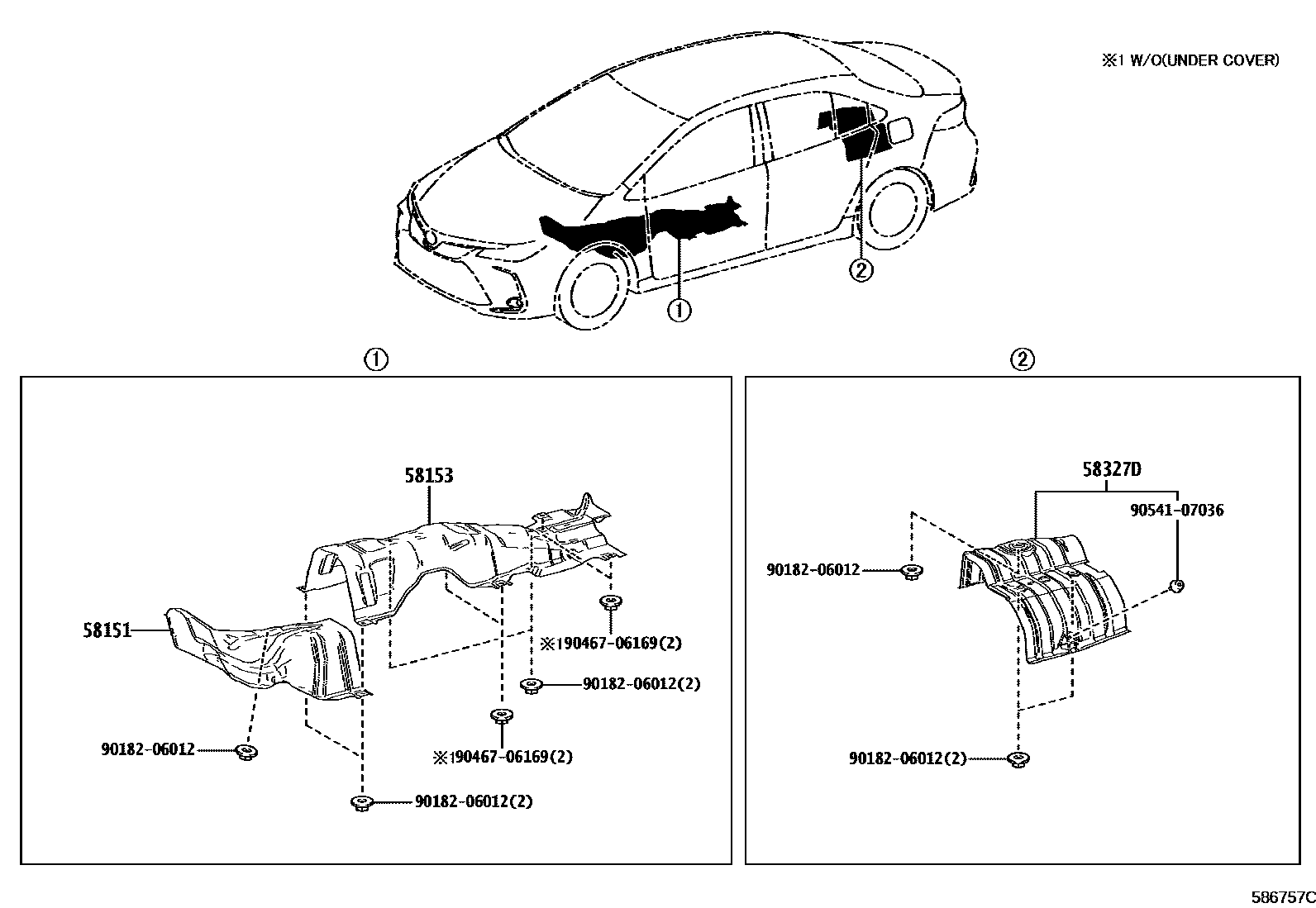

Toyota COROLLA EPC diagram 5802, 地板隔热垫, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58151-02530 · 58151-02540 · 58151-02550 · 58151-02580 · 58151-F4090 |
| 58153 | Front floor insulation mat No. 2 | 58153-02380 |
| 58327D | Heat insulation pad on main muffler | 58327-02270 · 58327-02271 |
