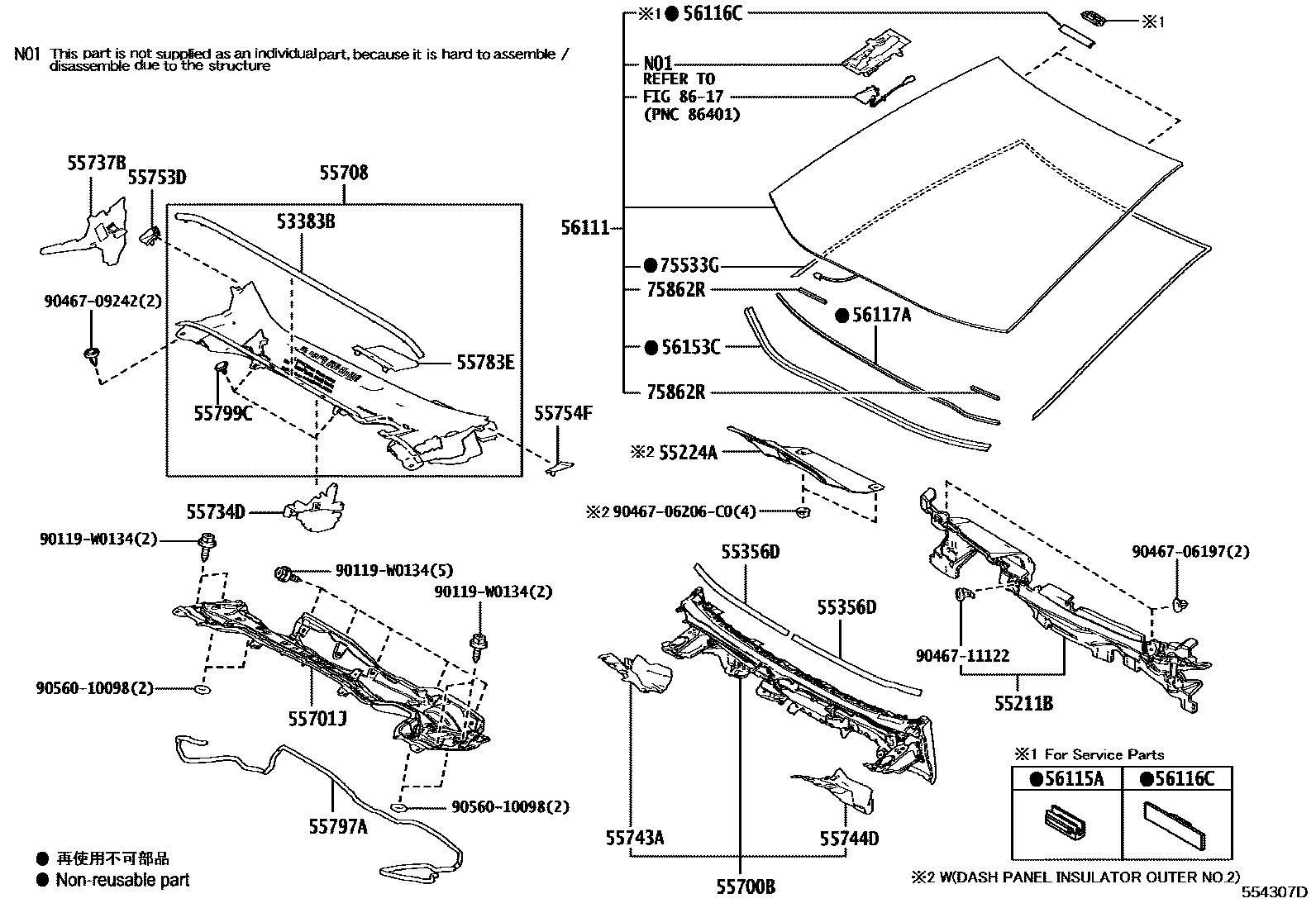

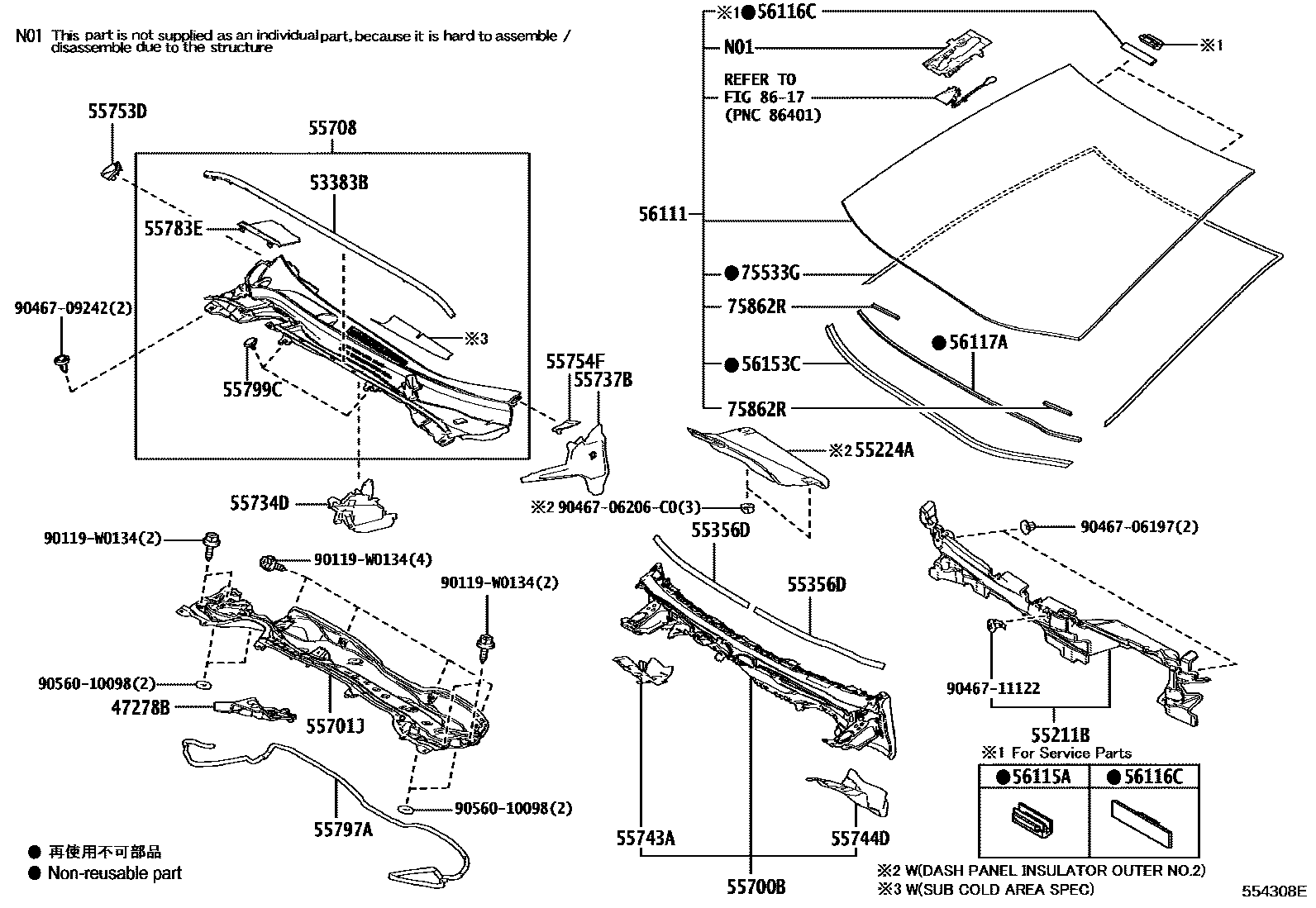

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47278B | brake master cylinder cover | 47278-12030 · 47278-12040 |
| 53383B | Engine cover to cowl upper cover seal | 53383-02350 |
| 55211B | Front panel silencer | 55211-02260 · 55211-02270 · 55211-02340 · 55211-02440 |
| 55224A | No. 2 outer insulation pad for front wall | 55224-02180 · 55224-02190 |
| 55356D | Dashboard No. 2 Cushion Pad | 55356-02520 |
| 55700B | Front apron assembly | 55700-02660 · 55700-02670 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-02590 · 55701-02600 |
| 55708 | Ventilation grille sub-assembly on front apron | 55708-02770 · 55708-02780 · 55708-02850 · 55708-02B50 |
| 55734D | Waterproof cover panel | 55734-02390 · 55734-02400 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-02250 · 55737-02260 |
| 55743A | Right front wall to front wall side extension | 55743-02180 · 55743-02190 |
| 55744D | Left front wall to front wall side extension | 55744-02150 · 55744-02160 |
| 55753D | Right front water pumping device guard | 55753-02150 |
| 55754F | Left front water pumping device guard | 55754-02160 |
| 55783E | Ventilation grille on center cowl | 55783-02310 · 55783-02320 |
| 55797A | Front wall pumping device seal | 55797-02220 · 55797-02230 |
| 55799C | Ventilation grille clips on front apron | 90467-07224 |
| 56111 | windshield | 56101-02S30 · 56101-02S60 · 56101-02S61 · 56101-02S70 · 56101-02T00 · 56101-02T01 · 56101-02T10 · 56101-02T12 · 56101-02T40 · 56101-02T42 · 56101-02T50 · 56101-02T52 · 56101-02T80 · 56101-02T82 · 56101-02T90 · 56101-02U40 · 56101-02U70 · 56101-02U72 · 56101-02V20 · 56101-02V22 · 56101-0Z230 · 56101-0Z250 · 56101-0Z270 · 56101-0Z272 · 56101-0Z290 · 56101-0Z292 · 56101-0Z310 · 56101-0Z312 · 56101-0Z320 · 56101-0Z322 · 56101-0Z460 · 56101-0Z462 · 56101-0Z470 · 56101-0Z472 · 56101-0Z830 · 56101-0Z840 · 56101-0Z850 · 56101-0Z870 · 56101-0Z880 · 56101-0ZA10 · 56101-0ZA40 · 56101-0ZJ20 · 56101-0ZJ40 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56153C | Front center window inner protective strip | 56153-12010 · 56153-12020 · 56153-12030 · 56153-12040 |
| 75533G | Windshield outer protective strip | 75533-02290 |
| 75862R | No. 2 door sill panel protective cover | 75862-24030 |
