Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

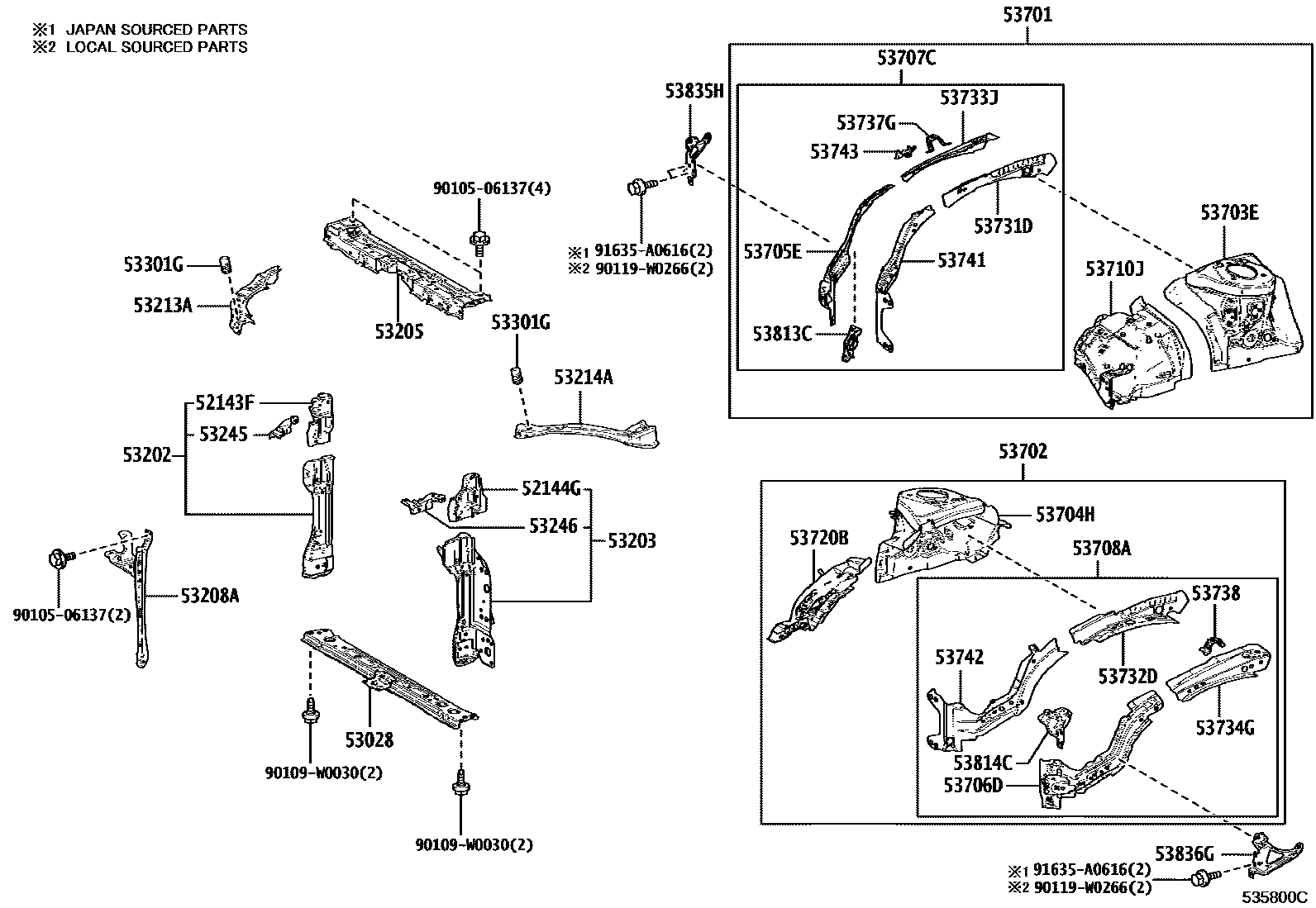

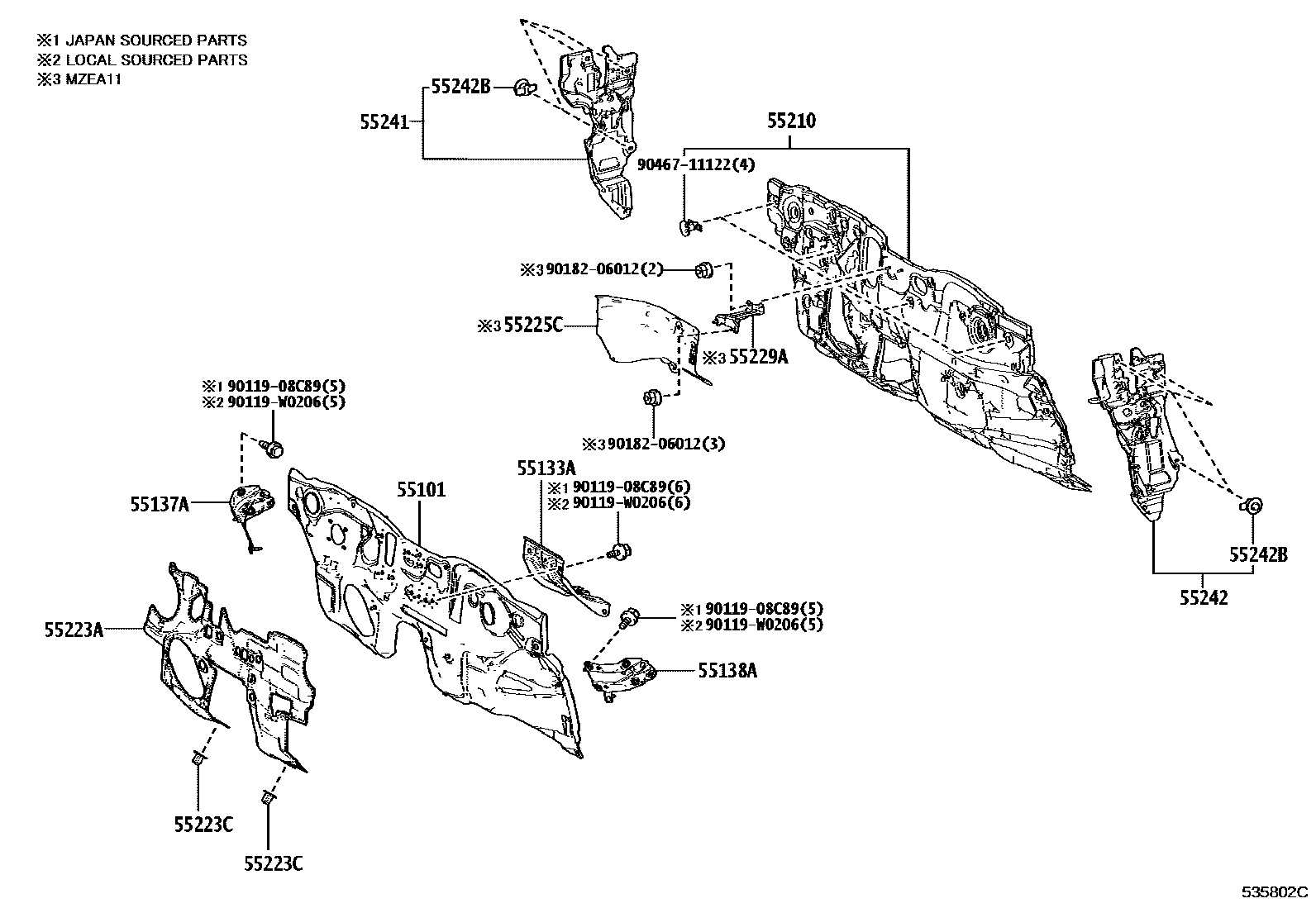

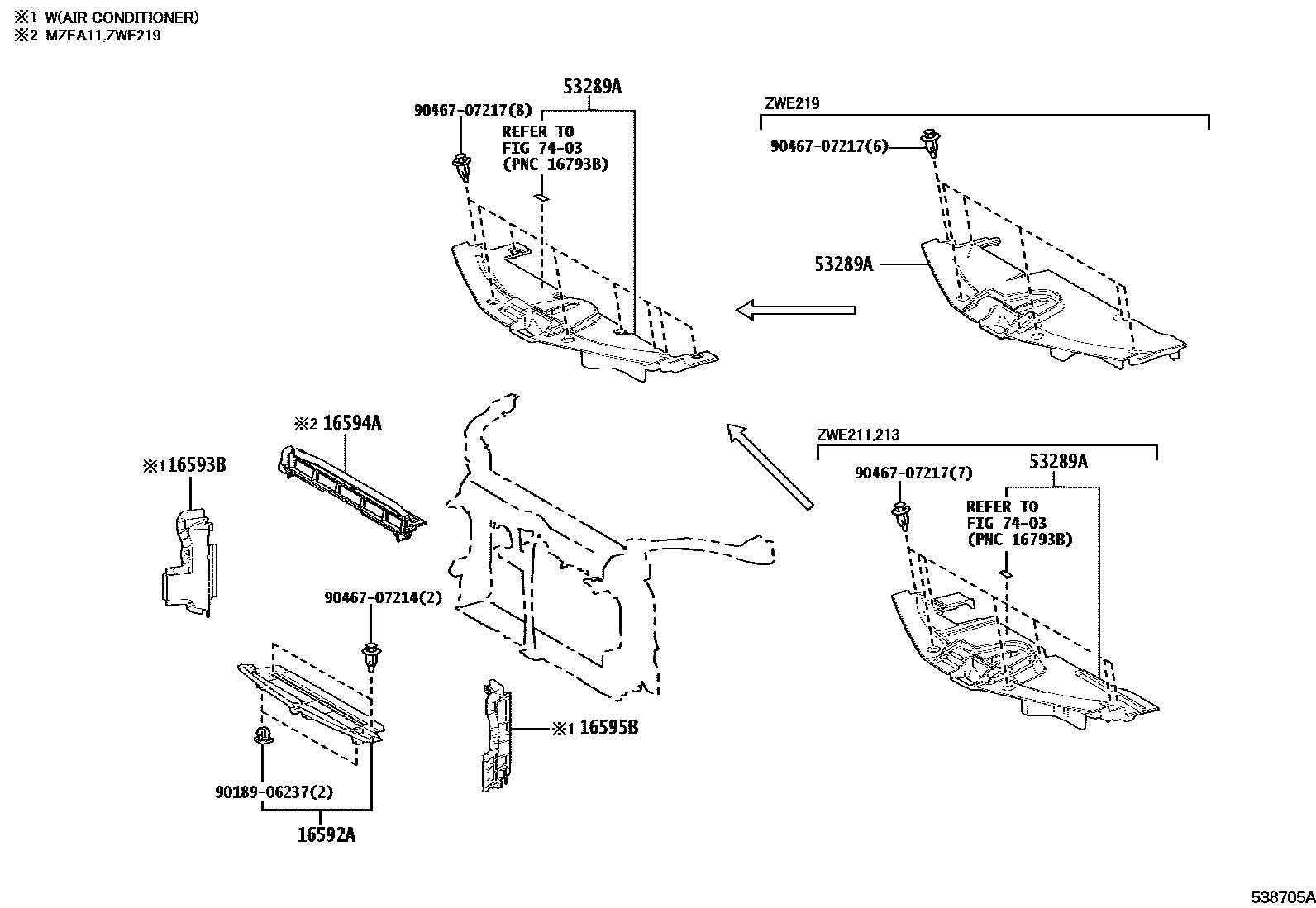

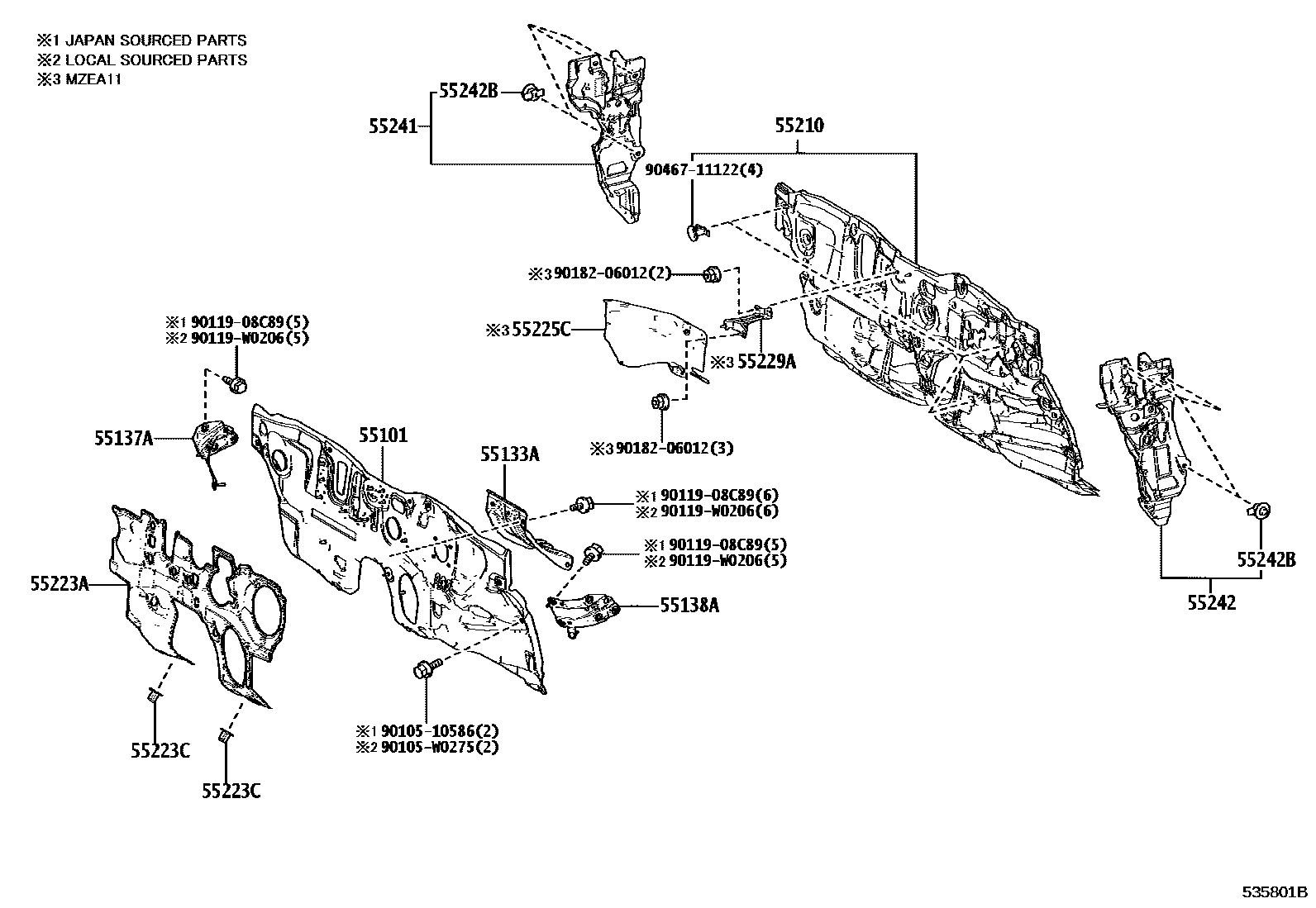

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 4 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16592A | Radiator deflector No. 3 | 16592-0T110 · 16592-0T150 |
| 16593B | No. 1 radiator right deflector | 16593-0T150 · 16593-F2050 |
| 16594A | Radiator deflector No. 2 | 16594-F2020 · 16594-F3040 |
| 16595B | No. 1 radiator left deflector | 16595-0T160 · 16595-0T170 · 16595-F2050 |
| 52143F | Front bumper right side bracket | 52143-02070 |
| 52144G | Front bumper left bracket | 52144-02060 |
| 53028 | Radiator lower bracket sub-assembly | 53028-02150 · 53028-F4060 |
| 53202 | Radiator right side bracket sub-assembly | 53202-02904 |
| 53203 | Radiator left bracket sub-assembly | 53203-02901 |
| 53205 | Radiator upper bracket sub-assembly | 53205-02340 · 53205-02450 · 53205-02480 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-02260 |
| 53213A | Radiator upper right bracket | 53213-02210 · 53213-02300 |
| 53214A | Radiator upper left bracket | 53214-02200 · 53214-02210 |
| 53245 | Right headlight bracket | 53245-02050 |
| 53246 | Left headlight bracket | 53246-02050 |
| 53289A | Radiator bracket opening cover | 53289-02150 · 53289-02151 · 53289-02160 · 53289-02240 · 53289-02250 |
| 53301G | engine cover cushion | 90541-15037 |
| 53701 | Right front fender fender sub-assembly | 53701-02420 |
| 53702 | Left front fender fender sub-assembly | 53702-02350 |
| 53703E | Right front fender, rear fender sub-assembly | 53703-F4010 |
| 53704H | Left front fender rear fender sub-assembly | 53704-F4010 |
| 53705E | Front fender to front wall right side beam sub-assembly | 53705-F4010 |
| 53706D | Front fender to front wall left side beam sub-assembly | 53706-F4010 · 53706-F4050 |
| 53707C | Right front fender fender front extension sub-assembly | 53707-02900 |
| 53708A | Left front fender, fender front extension sub-assembly | 53708-02900 |
| 53710J | Right front fender fender assembly | 53710-F4010 |
| 53720B | Left front fender fender assembly | 53720-F4010 |
| 53731D | Right front fender to cowl side upper beam | 53731-F4011 |
| 53732D | Left front fender to cowl side upper beam | 53732-F4010 |
| 53733J | Right front fender to front wall side outer beam | 53733-F4010 |
| 53734G | Left front fender to front wall side outer beam | 53734-F4010 |
| 53737G | Right front fender to front wall side sill | 53737-02220 |
| 53738 | Left front fender to front wall side sill | 53738-02190 |
| 53741 | Right front fender fender air deflector | 53741-F4011 |
| 53742 | Left front fender fender air deflector | 53742-F4011 |
| 53743 | Front fender fender extension reinforcement | 53743-F4010 |
| 53813C | Right front fender extension | 53813-F4010 |
| 53814C | Left front fender extension | 53814-F4010 |
| 53835H | Right front fender to extension stay | 53835-02050 |
| 53836G | Left front fender to extension stay | 53836-02050 |
| 55101 | Front apron sub-assembly | 55101-F4010 · 55101-F4011 · 55101-F4020 · 55101-F4021 · 55101-F4031 · 55101-F4041 |
| 55133A | Right reinforcement (front wall to floor) | 55133-F4010 |
| 55137A | Right side bracket (front wall to frame) | 55137-02210 |
| 55138A | Left side bracket (front wall to frame) | 55138-02200 |
| 55210 | Front wall insulation pad assembly | 55210-02690 · 55210-02700 |
| 55223A | Front wall outer heat insulation pad | 55223-F4010 · 55223-F4011 · 55223-F4020 · 55223-F4021 |
| 55223C | clip | 90467-06197 |
| 55225C | Front wall insulation pad | 55225-02110 · 55225-02120 |
| 55229A | Footrest No. 1, front floor | 55229-F4010 |
| 55241 | Front panel No. 1 right side silencer | 55241-02040 · 55241-02050 |
| 55242 | Front panel No. 1 left side silencer | 55242-02030 · 55242-02040 |
| 55242B | Front panel side muffler clip | 90467-13079 |
