Toyota COROLLA 后保险杠及附件 — Figure 5202

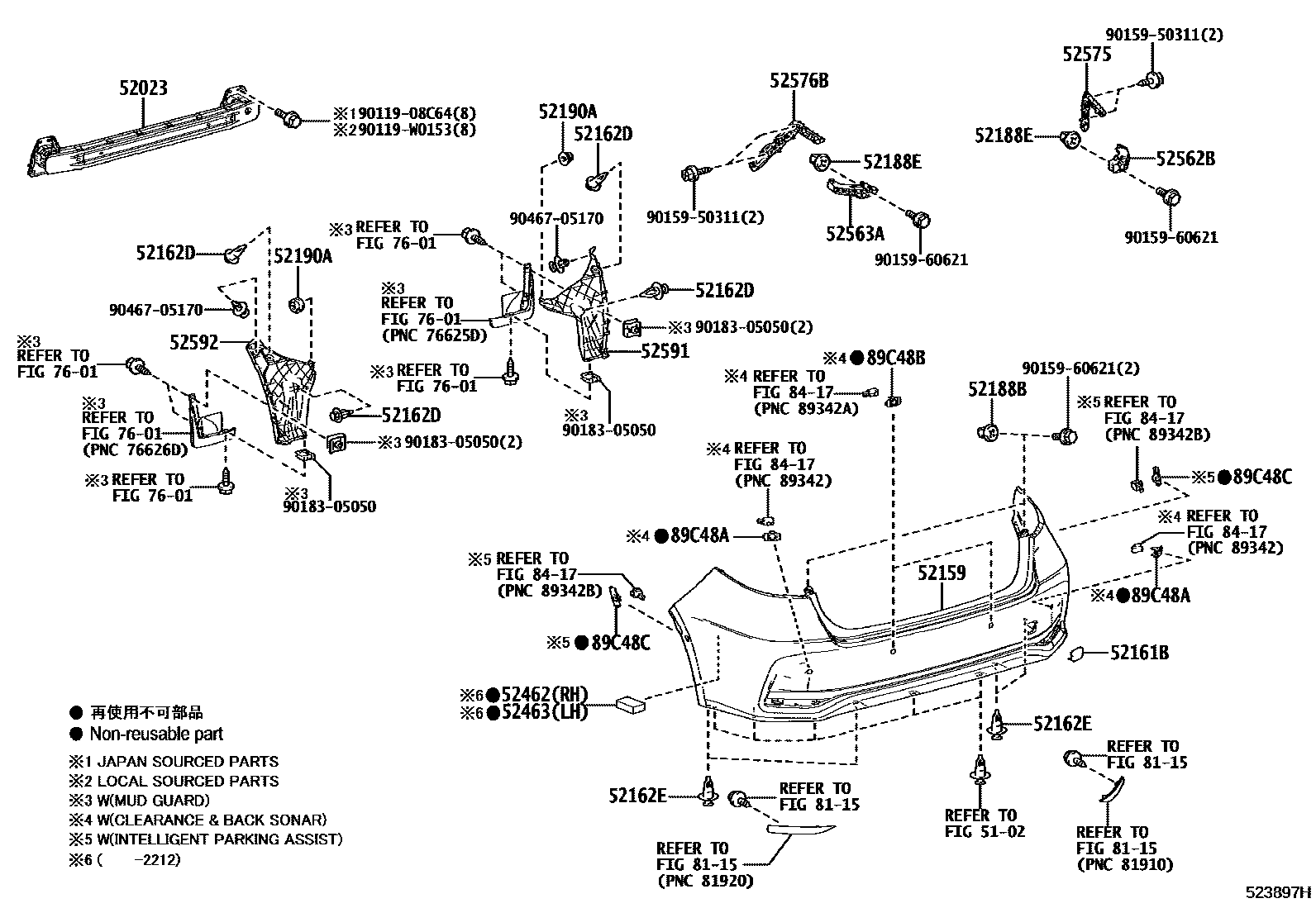

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-02170 · 52023-02320 |
| 52159 | rear bumper cover | 52159-0Z953 · 52159-0Z954 · 52159-0Z955 · 52159-0Z978 |
| 52161B | Rear bumper insert | 52161-02900 |
| 52162D | Rear bumper insert | 52161-02030 |
| 52162E | Rear bumper insert | 52161-02030 |
| 52188B | Rear bumper installation spacer | 52188-33040 |
| 52188E | Rear bumper installation spacer | 52188-33040 |
| 52462 | Rear bumper right side lining | 52462-02290 |
| 52463 | Rear bumper left lining | 52462-02290 |
| 52562B | Rear bumper upper right fixing bracket | 52562-02310 |
| 52563A | Rear bumper upper left fixing bracket | 52563-02180 |
| 52575 | Rear bumper right side fixing bracket | 52575-02210 |
| 52576B | Rear bumper left side fixing bracket | 52576-02210 |
| 52591 | Rear bumper right seal | 52591-02410 |
| 52592 | Rear bumper left seal | 52592-02380 |
