Toyota COROLLA 前保险杠及附件 — Figure 5201

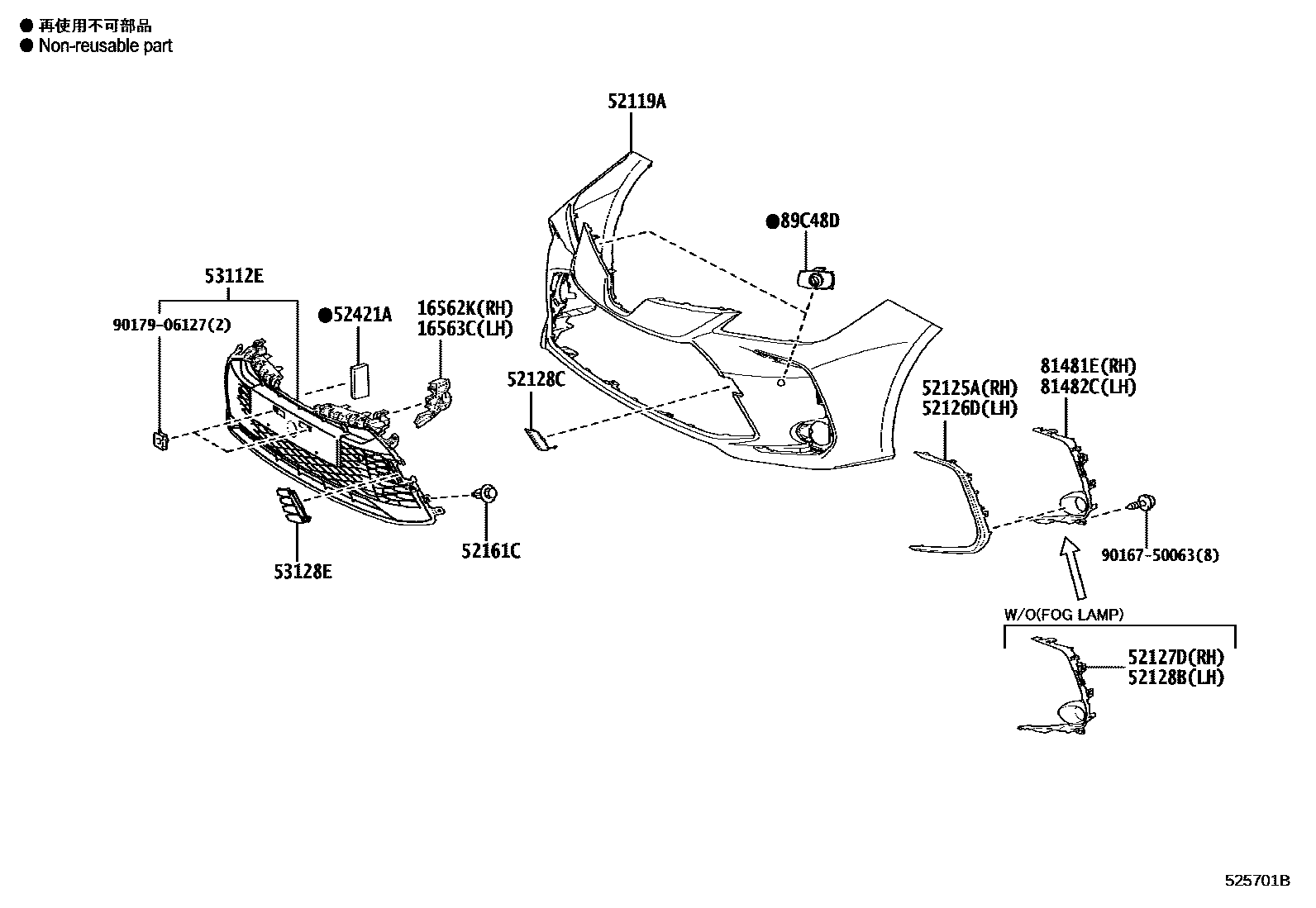

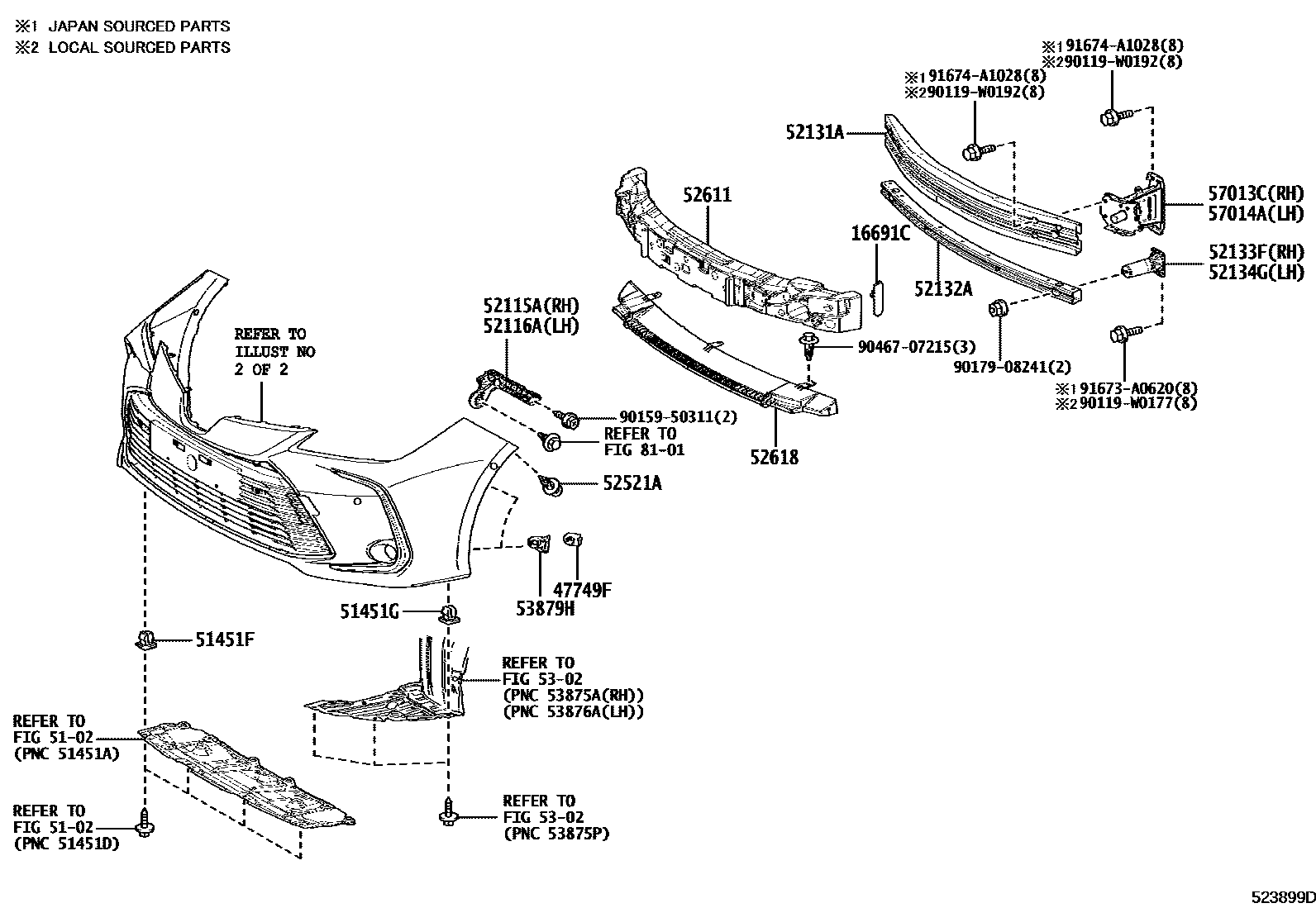

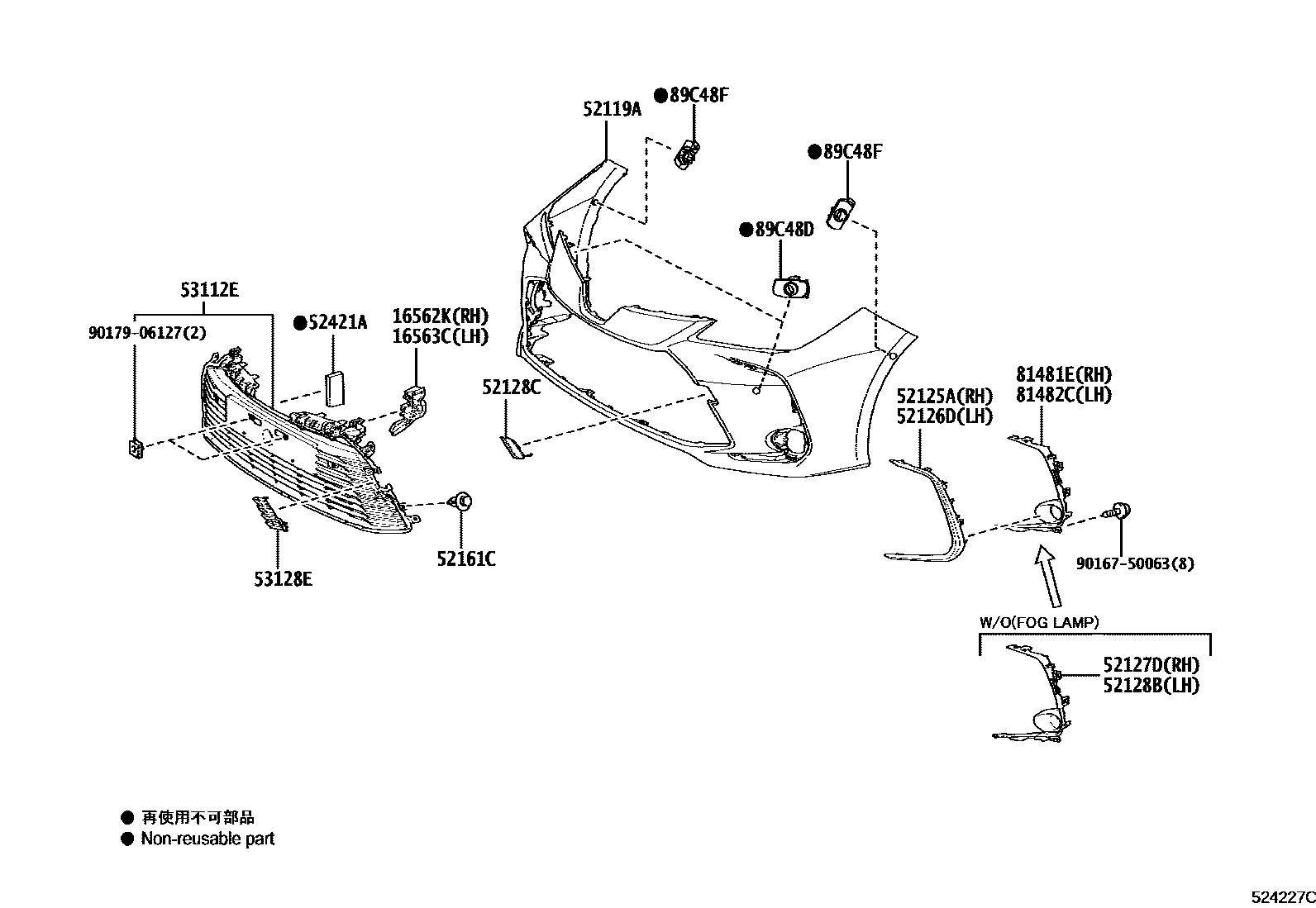

Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 3 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16562K | Seal No. 2 (radiator to bracket) | 16562-0T050 |
| 16563C | Seal No. 3 (radiator to bracket) | 16563-0T050 |
| 16691C | Radiator front deflector | 16691-0T030 |
| 47749F | pin fixing clip | 47749-02040 |
| 51451F | Gasket No. 1 | 90189-06193 · 90189-06237 |
| 51451G | Gasket No. 2 | 90189-06237 |
| 52115A | Front bumper right side bracket | 52115-02490 |
| 52116A | Front bumper left bracket | 52116-02480 |
| 52119A | front bumper cover | 52119-F2911 · 52119-F2912 · 52119-F2913 · 52119-F2914 · 52119-F2915 · 52119-F2916 · 52119-F2942 · 52119-F2943 |
| 52125A | Right fog light mounting bracket | 52125-02330 · 52125-02370 · 52125-02380 · 52125-02390 · 52125-02400 |
| 52126D | Left fog light mounting bracket | 52126-02320 · 52126-02360 · 52126-02370 · 52126-02380 · 52126-02390 |
| 52127D | Front bumper right hole cover | 81481-02A70 |
| 52128B | Front bumper left hole cover | 81482-02A60 |
| 52128C | Front bumper left hole cover | 52128-02920 |
| 52131A | Front bumper reinforcement | 52131-02290 |
| 52132A | No. 2 front bumper reinforcement | 52132-02140 |
| 52133F | Front bumper right side bracket | 52133-02110 |
| 52134G | Front bumper left bracket | 52133-02110 |
| 52161C | front bumper insert | 52161-02030 · 52161-16010 |
| 52421A | front bumper lining | 52421-02070 |
| 52521A | Clip (for front bumper mount) | 90467-05170 |
| 52611 | front bumper energy absorber | 52611-02530 |
| 52618 | Front bumper lower shock absorber | 52618-02190 |
| 53112E | No. 1 radiator lower grille | 53102-02430 · 53102-02440 · 53102-02610 · 53102-02901 · 53102-02902 · 53112-02902 · 53112-02B50 · 53112-02D60 |
| 53128E | Lower left radiator grille | 53128-02200 · 53128-02210 · 53128-02380 · 53128-02390 · 53128-02901 |
| 53879H | Front fender lining fixing parts | 53879-02160 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-02190 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-02190 |
| 81481E | Right fog light cover | 81481-02A80 |
| 81482C | Left fog light cover | 81482-02A70 |
