Toyota COROLLA 制动助力器和真空管 — Figure 4703

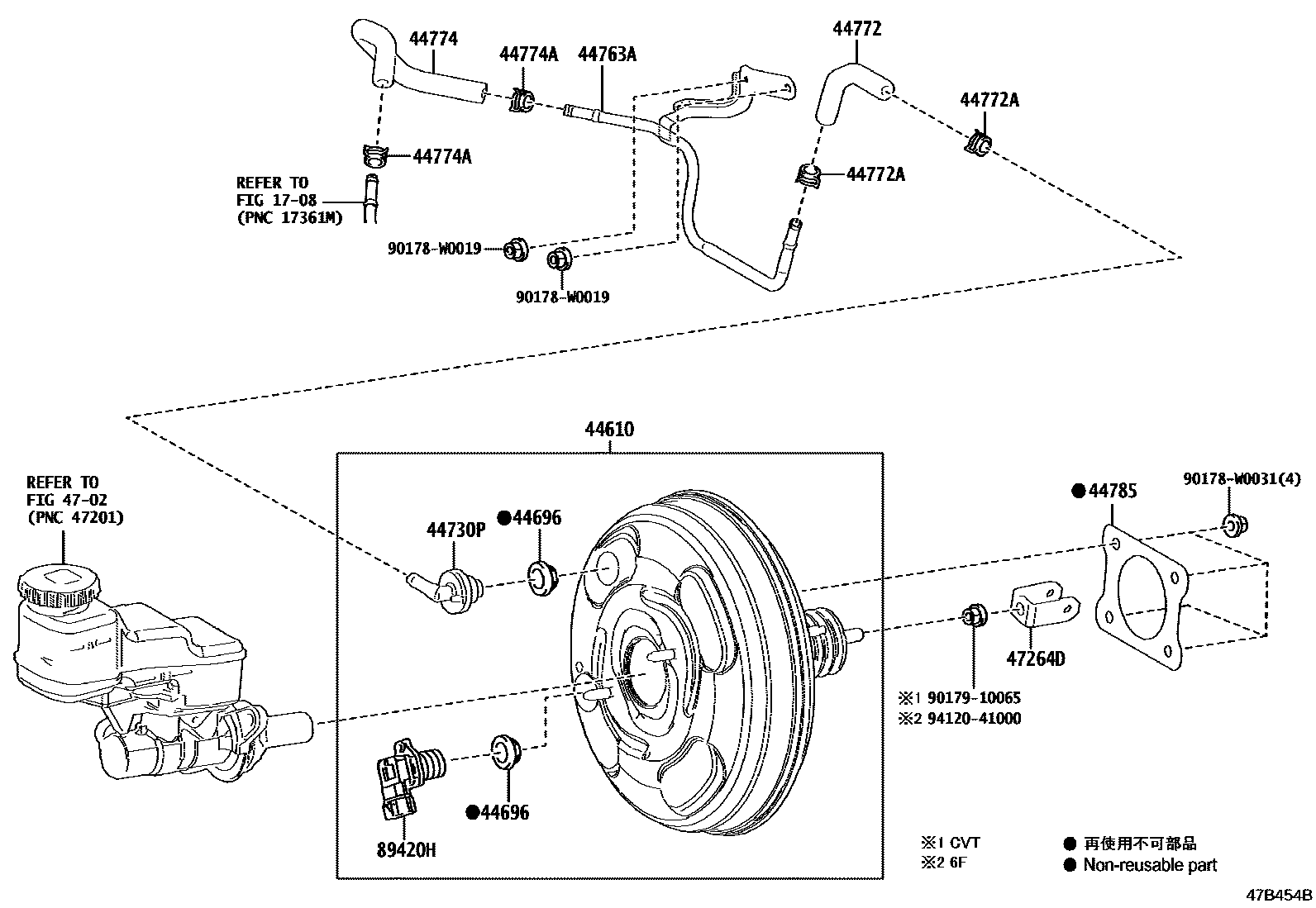

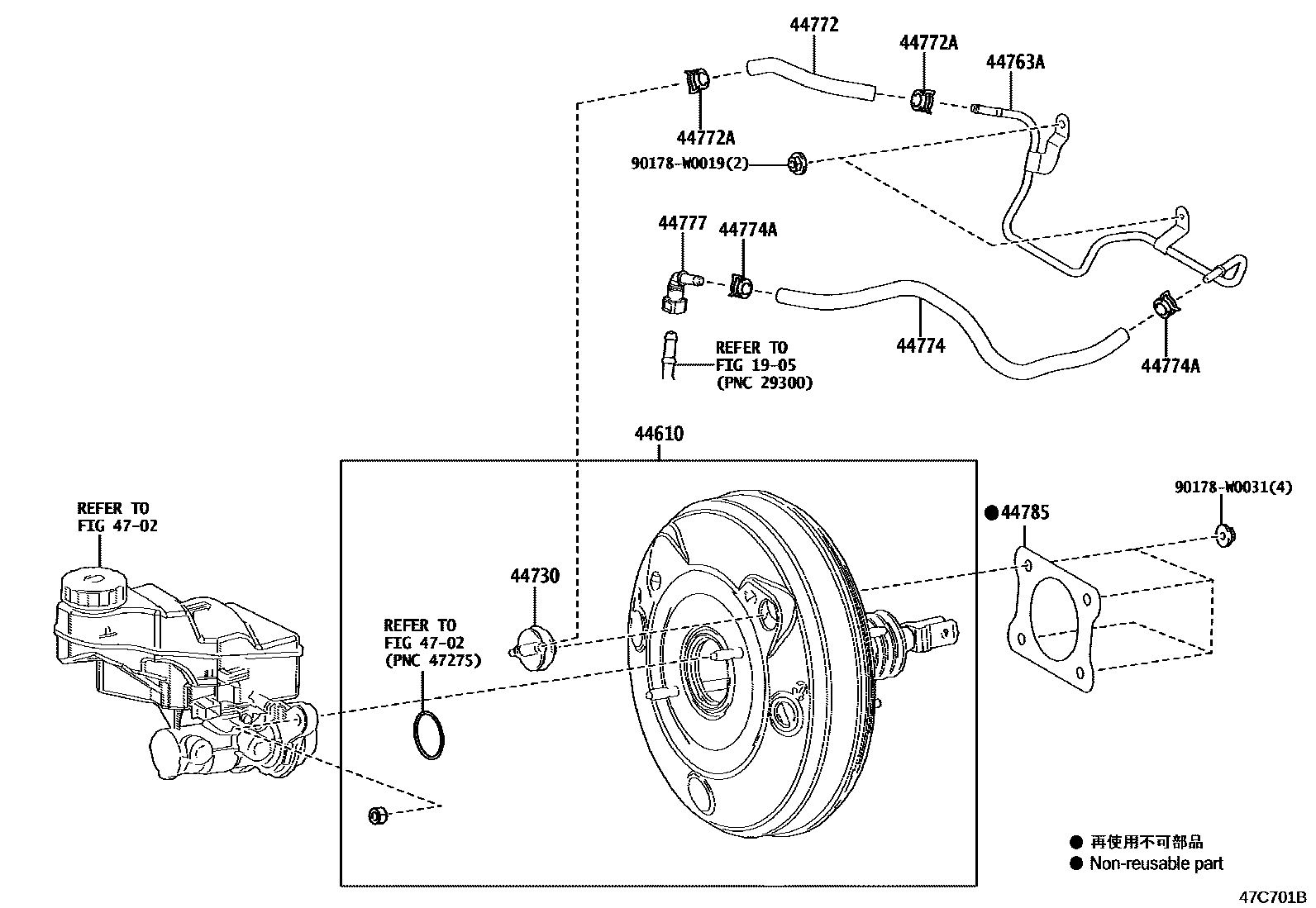

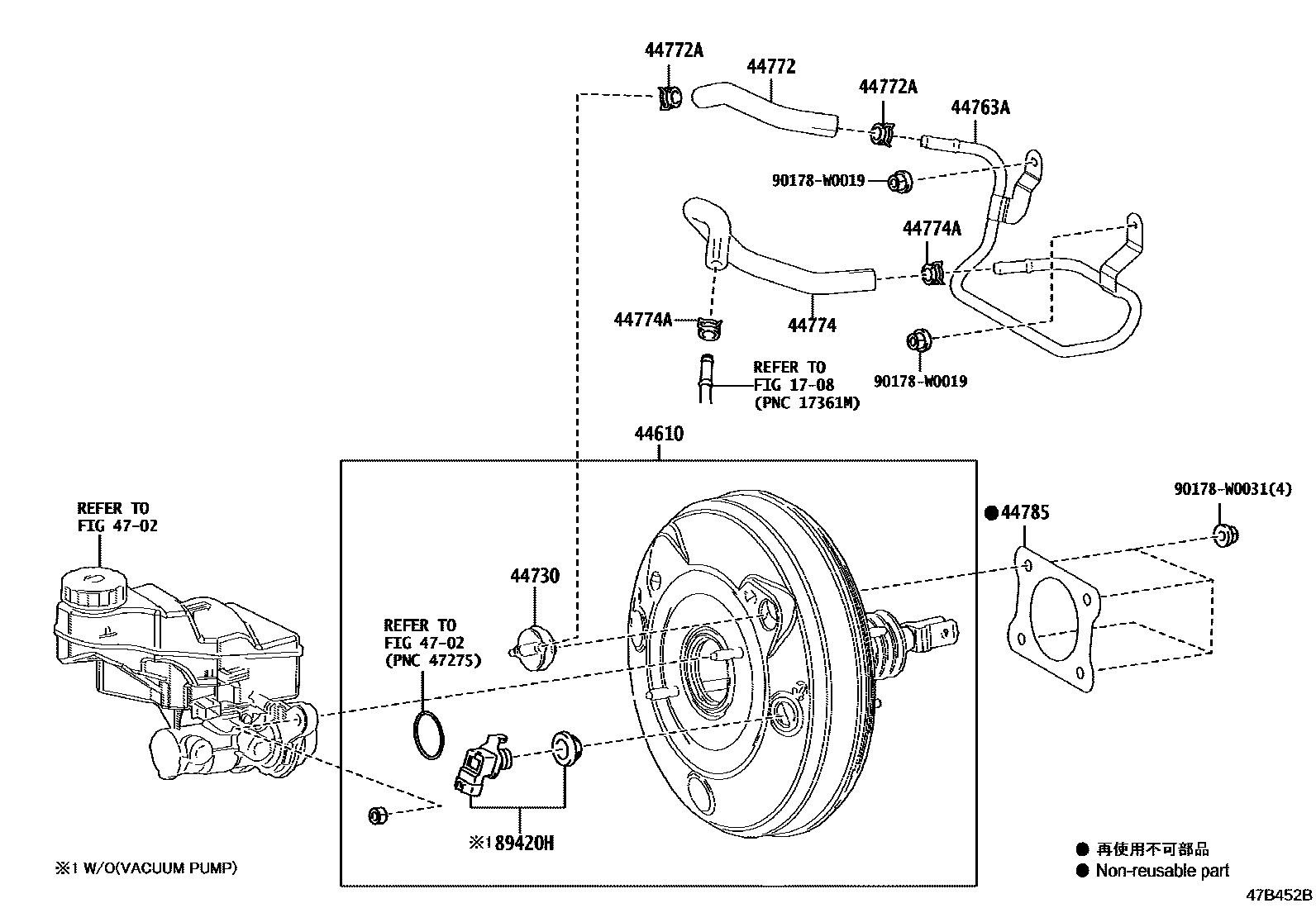

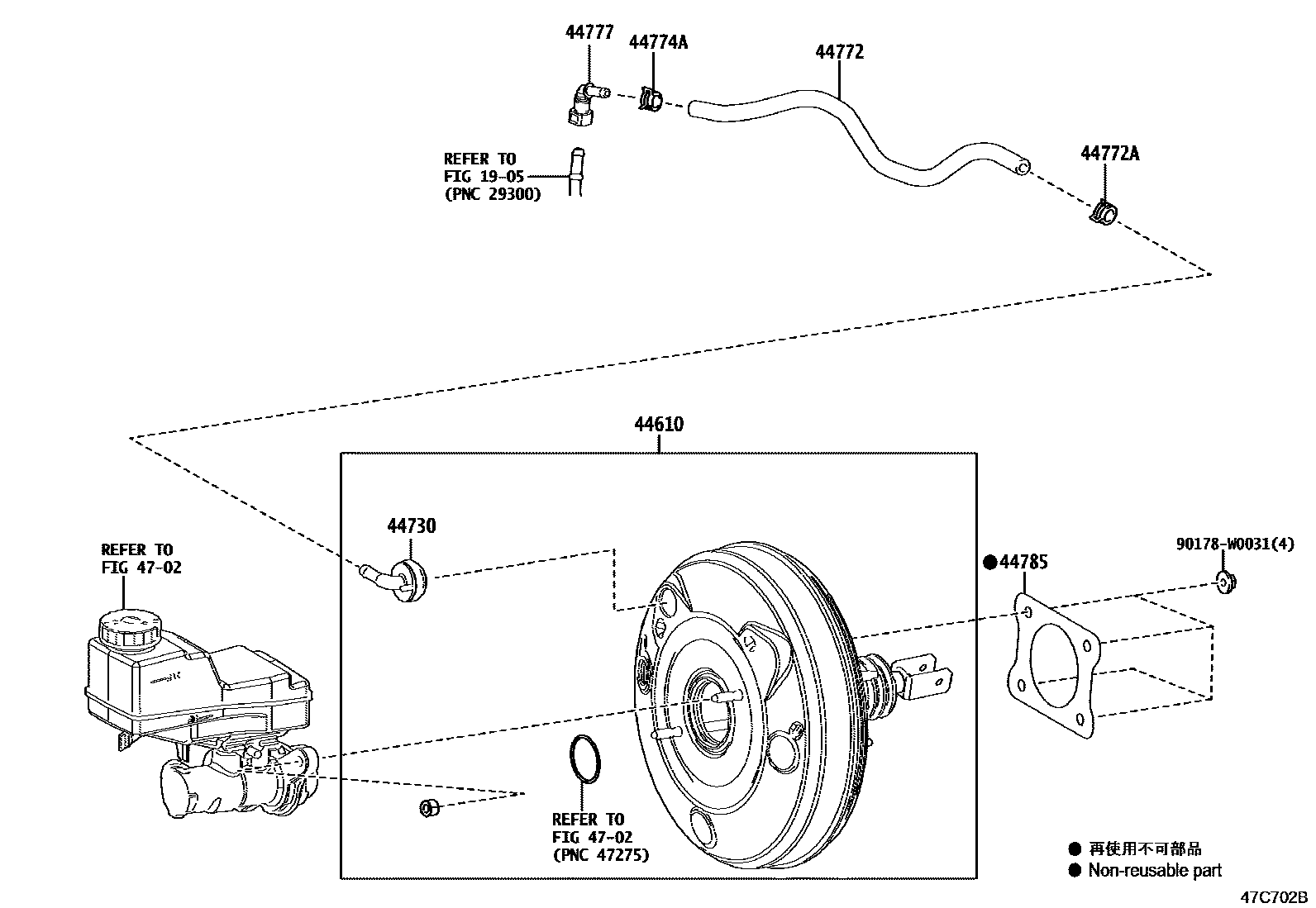

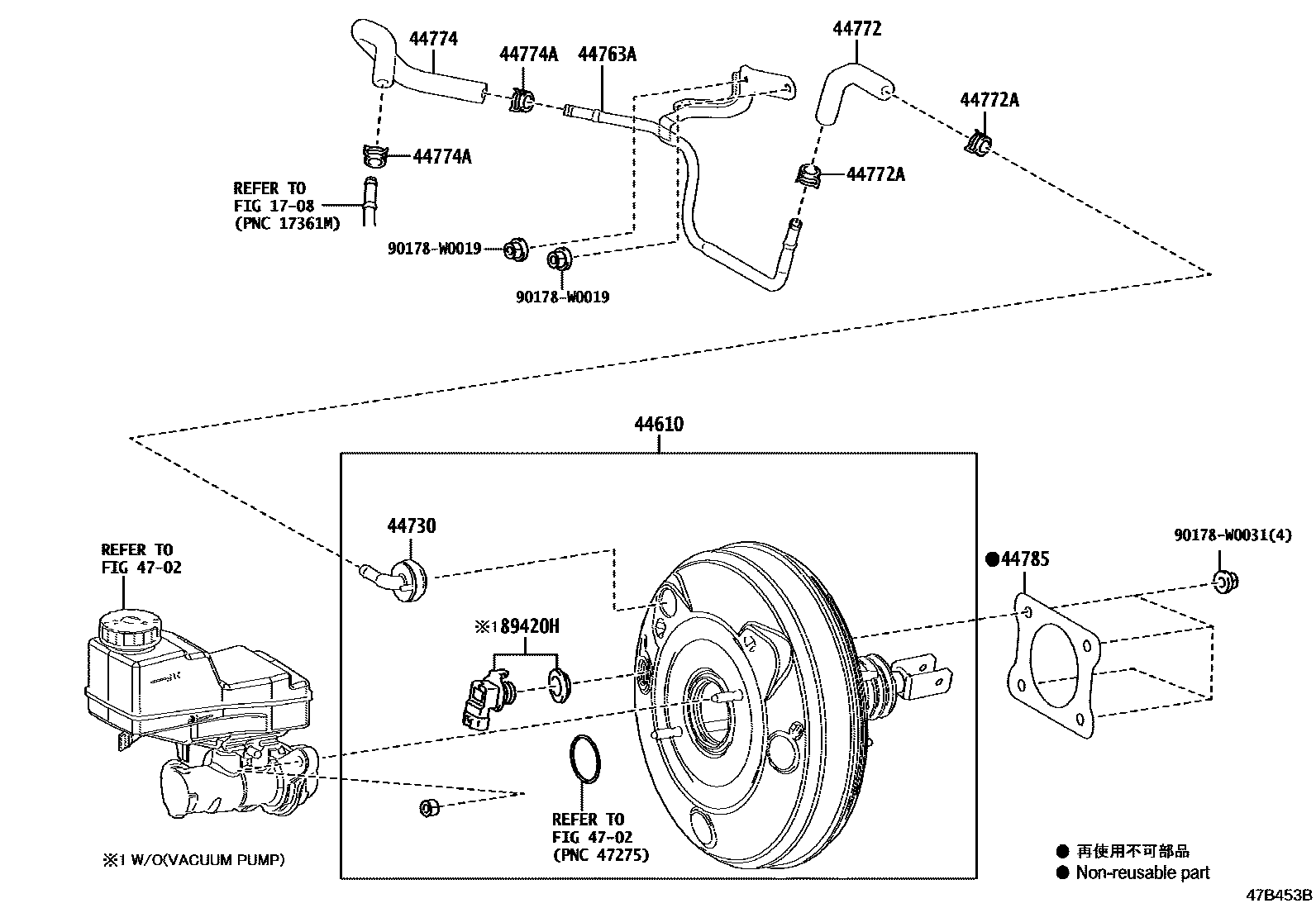

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 5 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-09F90 · 44610-09G00 · 44610-09G20 · 44610-09G30 · 44610-09G40 · 44610-09G50 · 44610-12N70 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-F9010 |
| 44730P | No. 1 vacuum check valve assembly | 44730-52010 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-12570 · 44763-12600 · 44763-12610 |
| 44772 | Hoses (check valve to connector tube) | 44772-10220 · 44772-12800 · 44772-12860 · 44772-12870 |
| 44772A | Clip (for check valve to connector tube) | 90467-16014 |
| 44774 | Hoses (joints to connector tubes) | 44774-12A30 · 44774-12A40 · 44774-12B00 |
| 44774A | Clip (for fitting to connector tube hose) | 90467-16014 |
| 44777 | No. 1 Vacuum Hose Connector | 44777-12010 |
| 44785 | brake booster pad | 44785-05020 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-52060 · 47264-63020 |
| 89420H | Vacuum sensor assembly | 89421-09010 · 89421-52020 |
