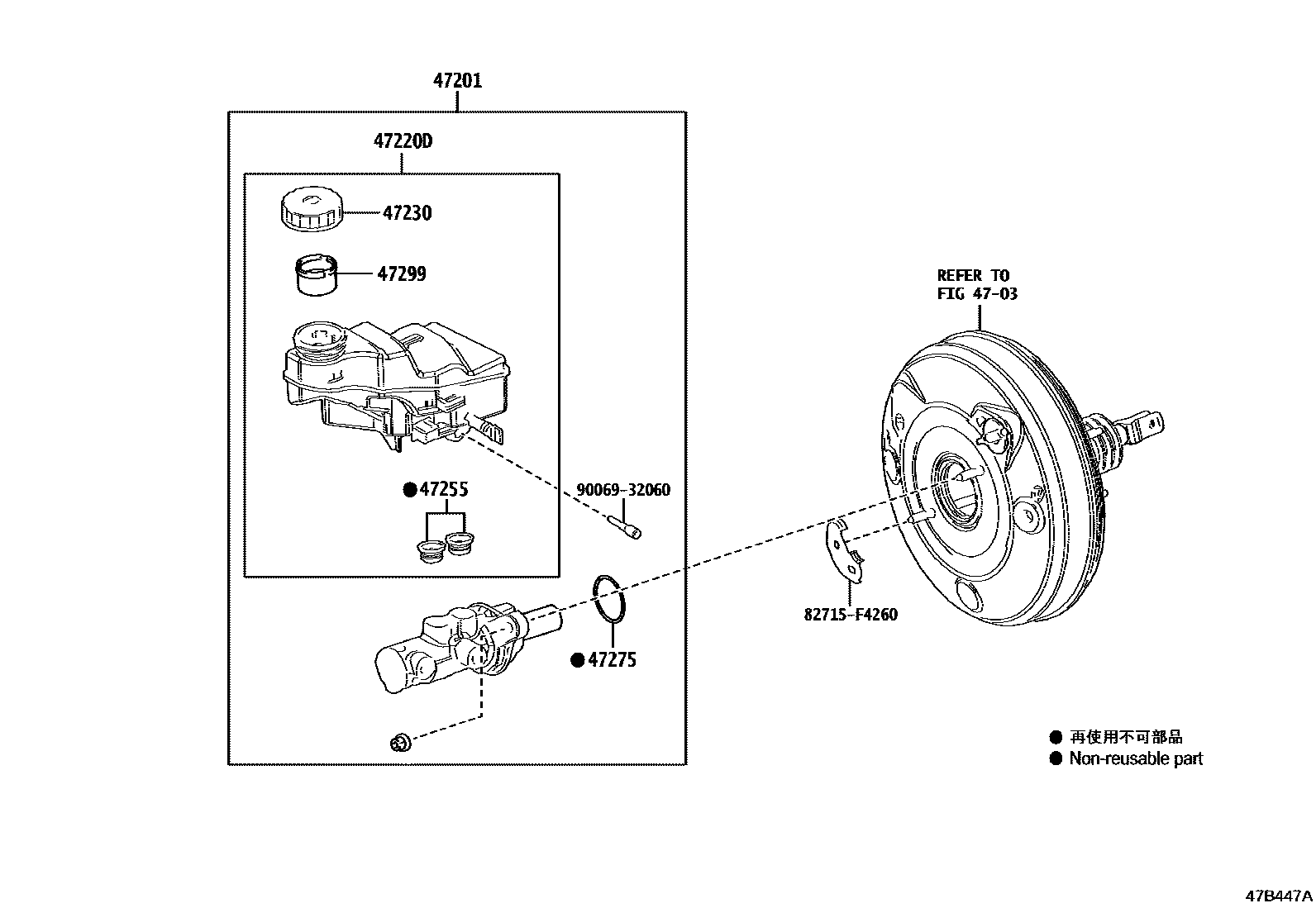

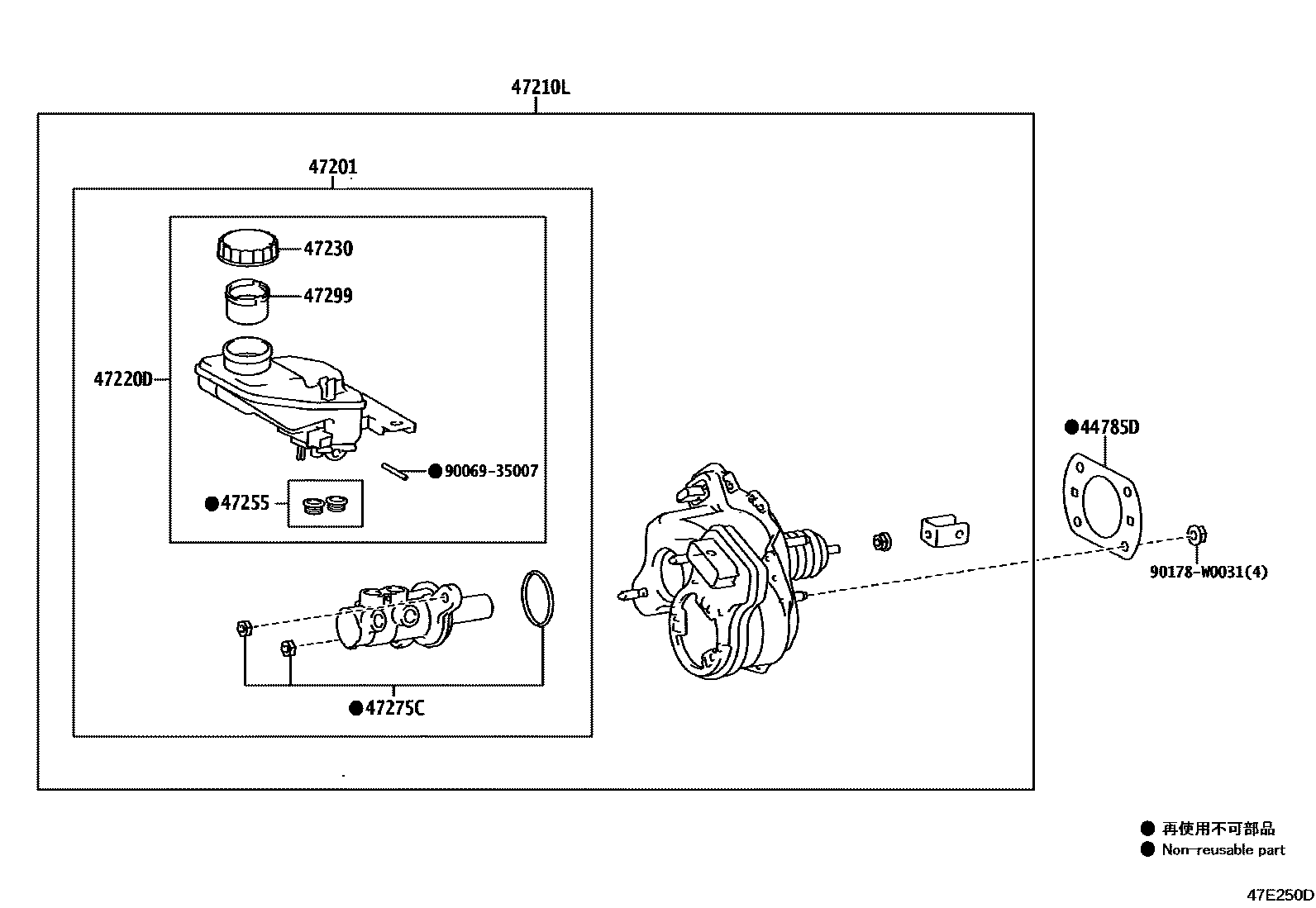

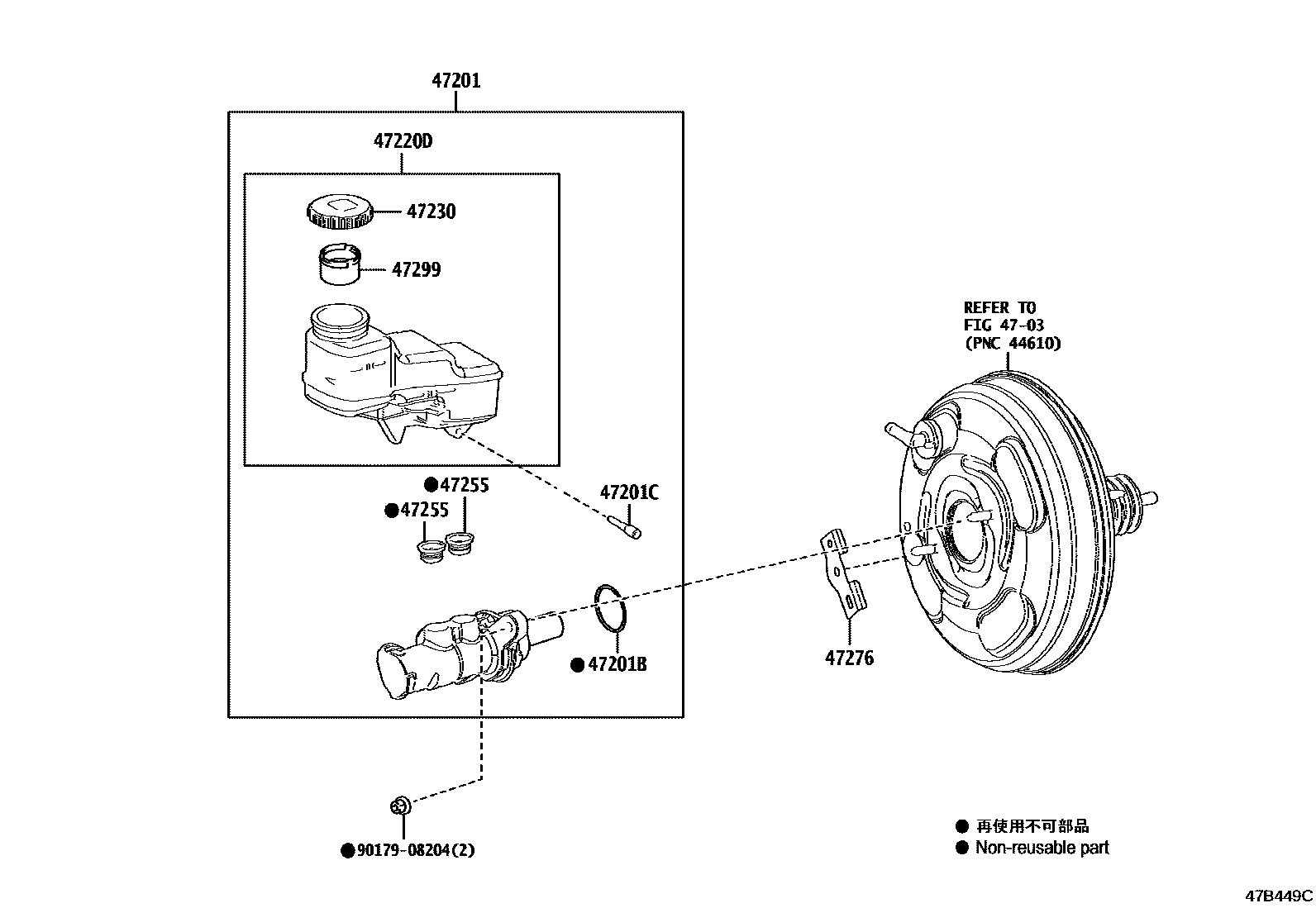

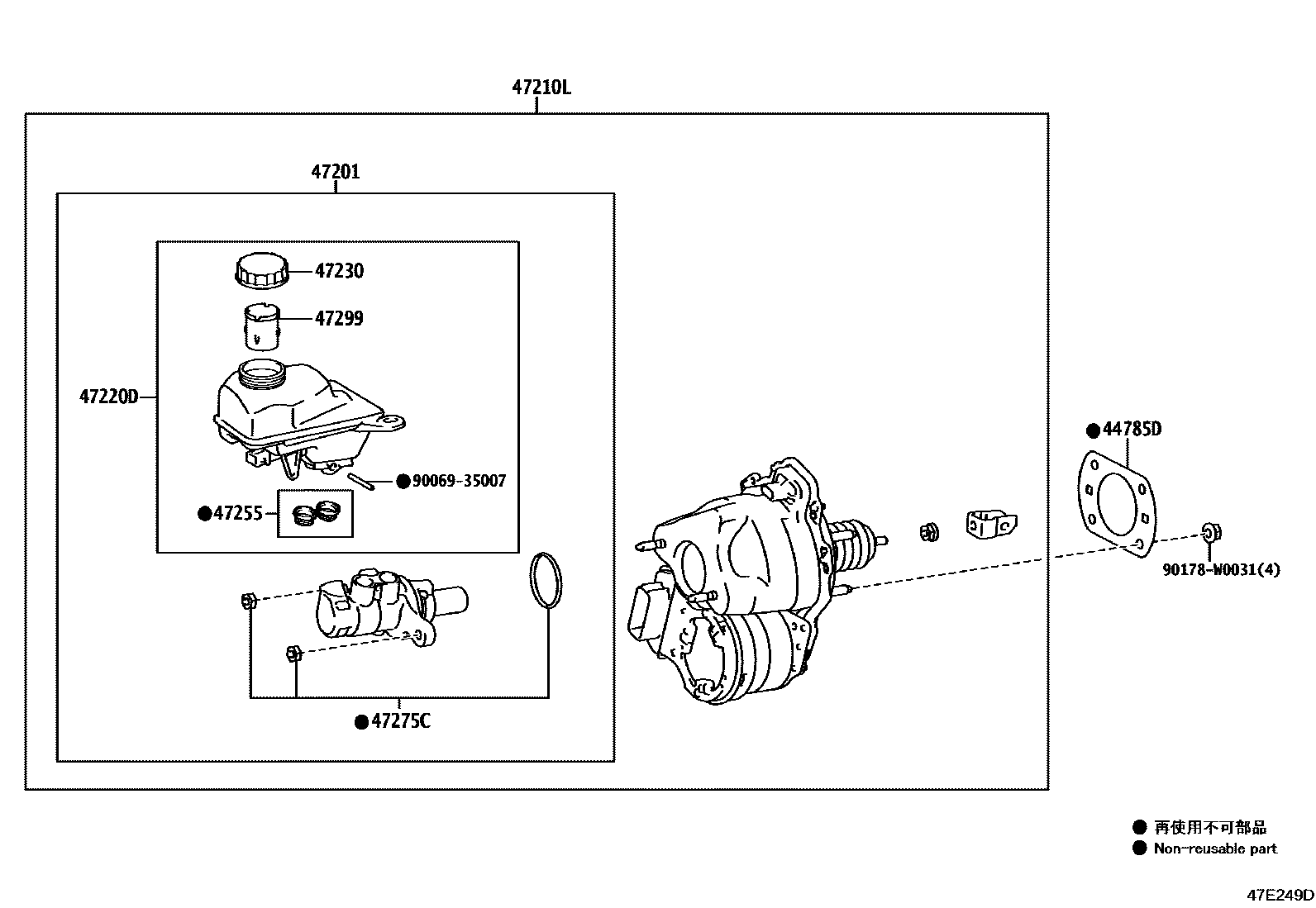

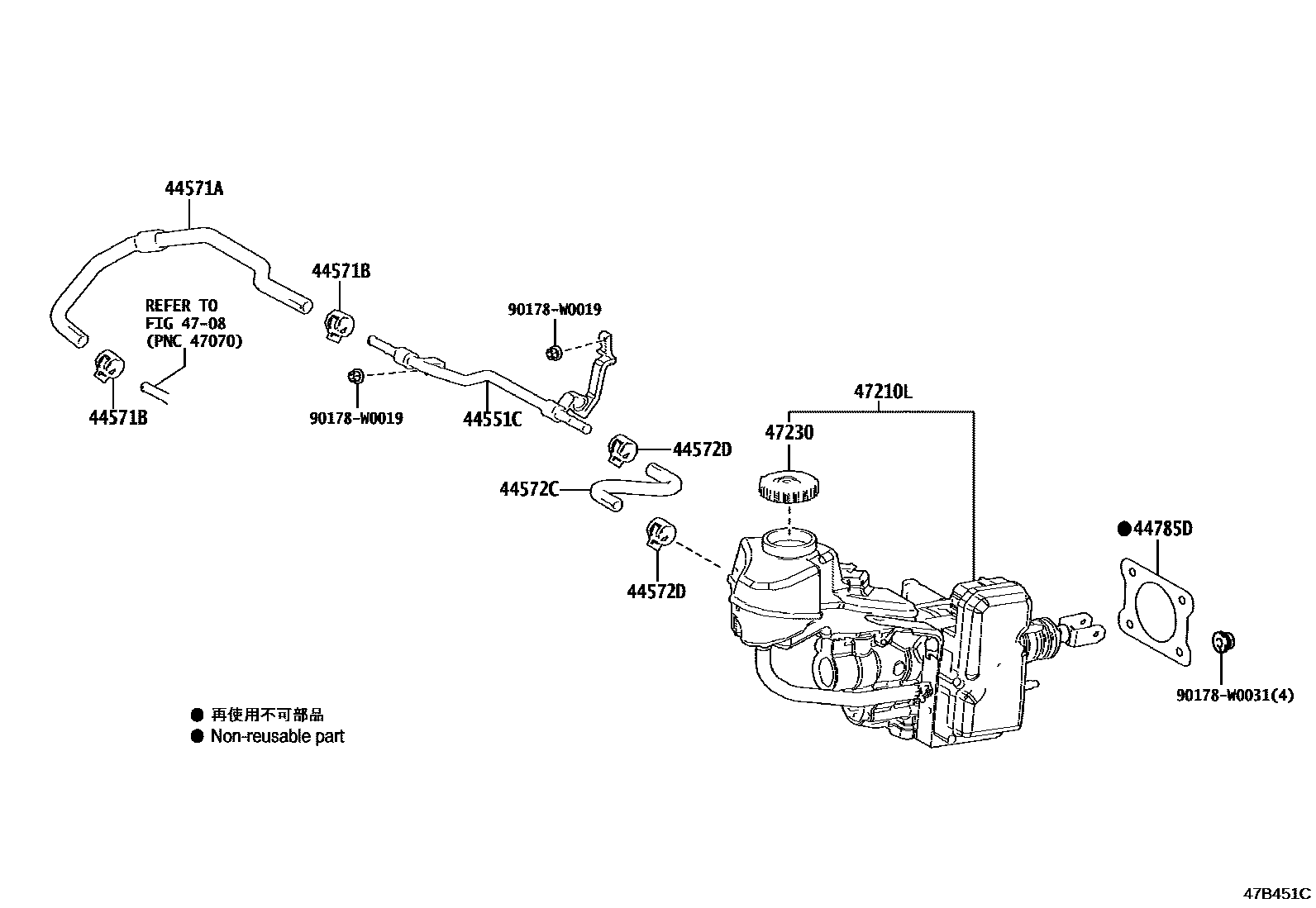

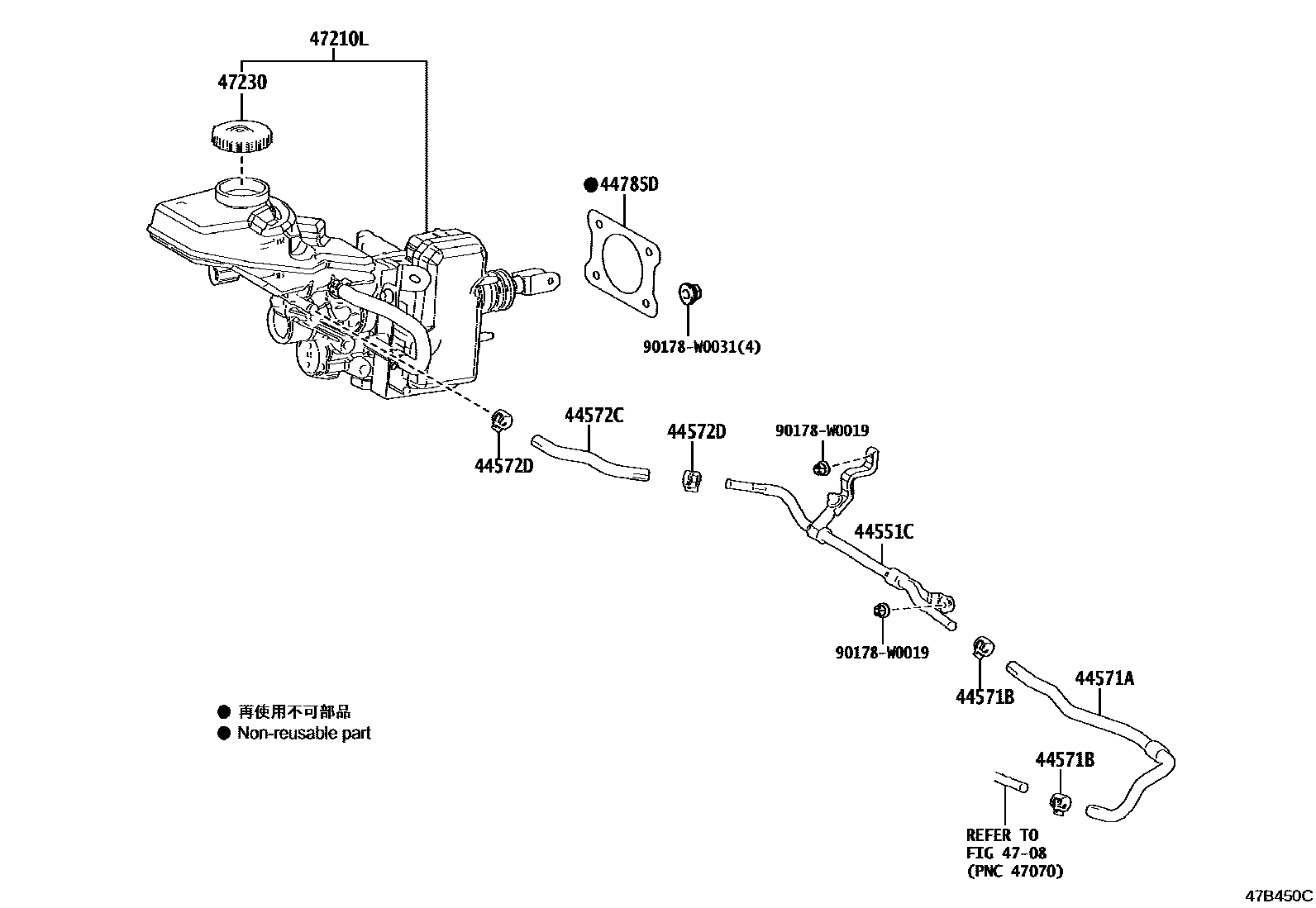

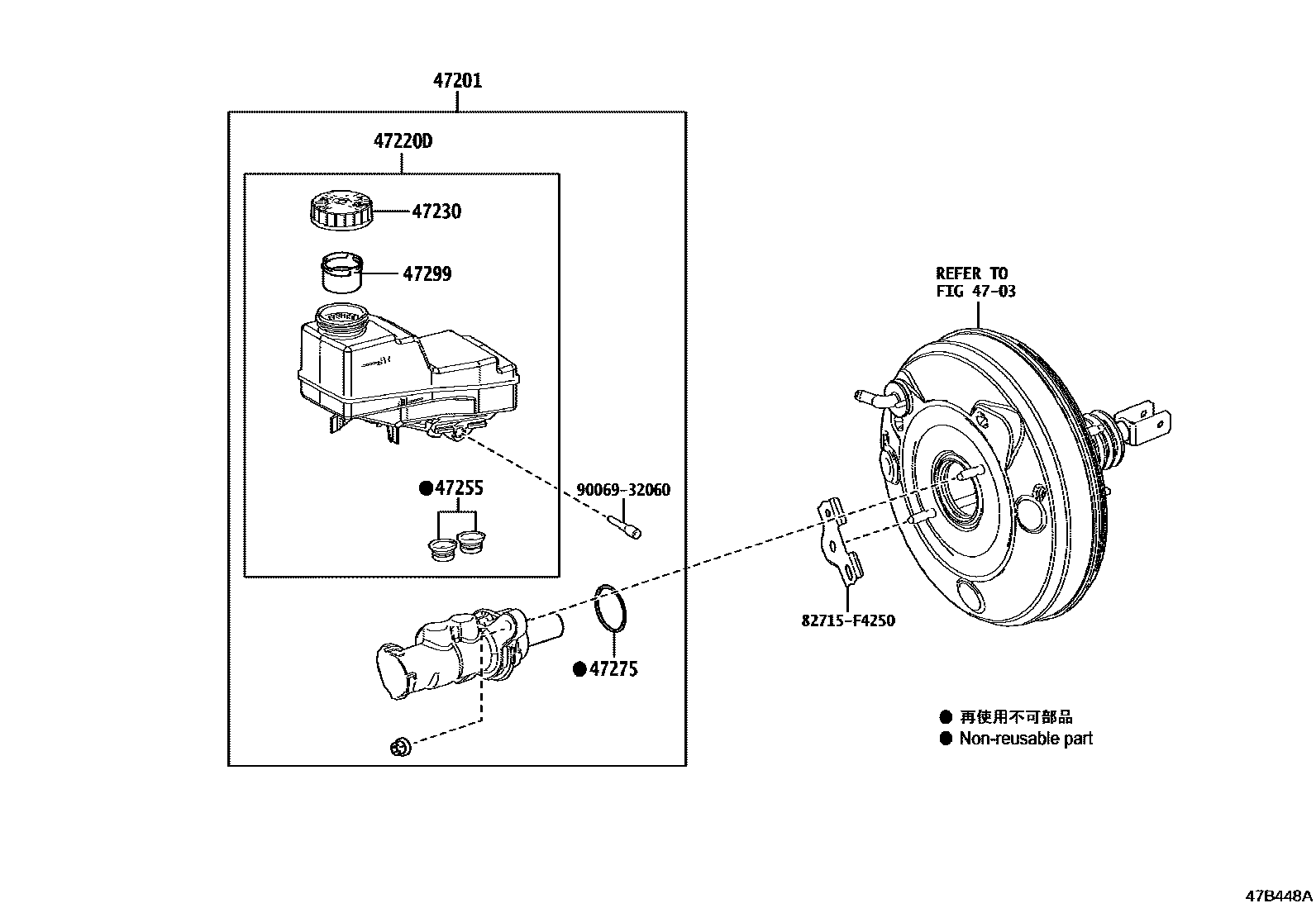

Toyota COROLLA 制动总泵 — Figure 4702
Toyota COROLLA EPC diagram 4702, 制动总泵, with 7 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44551C | No. 1 brake actuator pipe | 44551-47050 · 44551-47060 |
| 44571A | No. 1 brake actuator hose | 44571-47070 · 44571-47080 |
| 44571B | Hose clip (for brake actuator hose No. 1) | 96137-41501 |
| 44572C | No. 2 brake actuator hose | 44572-47050 · 44572-47060 |
| 44572D | Hose clip (for brake actuator hose No. 2) | 96137-41501 |
| 44785D | brake master cylinder gasket | 44785-02090 · 44785-05020 |
| 47201 | Brake master cylinder sub-assembly | 47201-09A00 · 47201-09B10 · 47201-09B20 · 47201-12C30 · 47201-12C40 · 47201-F9020 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 |
| 47201C | Brake master cylinder ring pin | 90029-15803 |
| 47210L | Brake booster assembly with master cylinder | 47050-12570 · 47050-12580 · 47050-12590 · 47050-12600 · 47050-12B60 · 47050-12B70 · 47050-12B80 · 47050-12B90 · 47210-02070 · 47210-02071 · 47210-02080 · 47210-02081 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-09270 · 47220-09330 · 47220-09340 · 47220-12320 · 47220-12330 · 47220-F9020 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-47090 · 47230-F4010 |
| 47255 | Master pump reservoir seal | 47255-09040 · 90029-48001 |
| 47275 | brake master cylinder gasket | 47275-09010 |
| 47275C | JEU REVISION, MAITRE CYLINDRE | 47275-09010 |
| 47276 | brake master cylinder bracket | 47276-12050 |
| 47299 | Brake master cylinder reservoir filter | 47299-02160 · 47299-20060 |
