Toyota COROLLA Steering Column & Shaft — Figure 4501

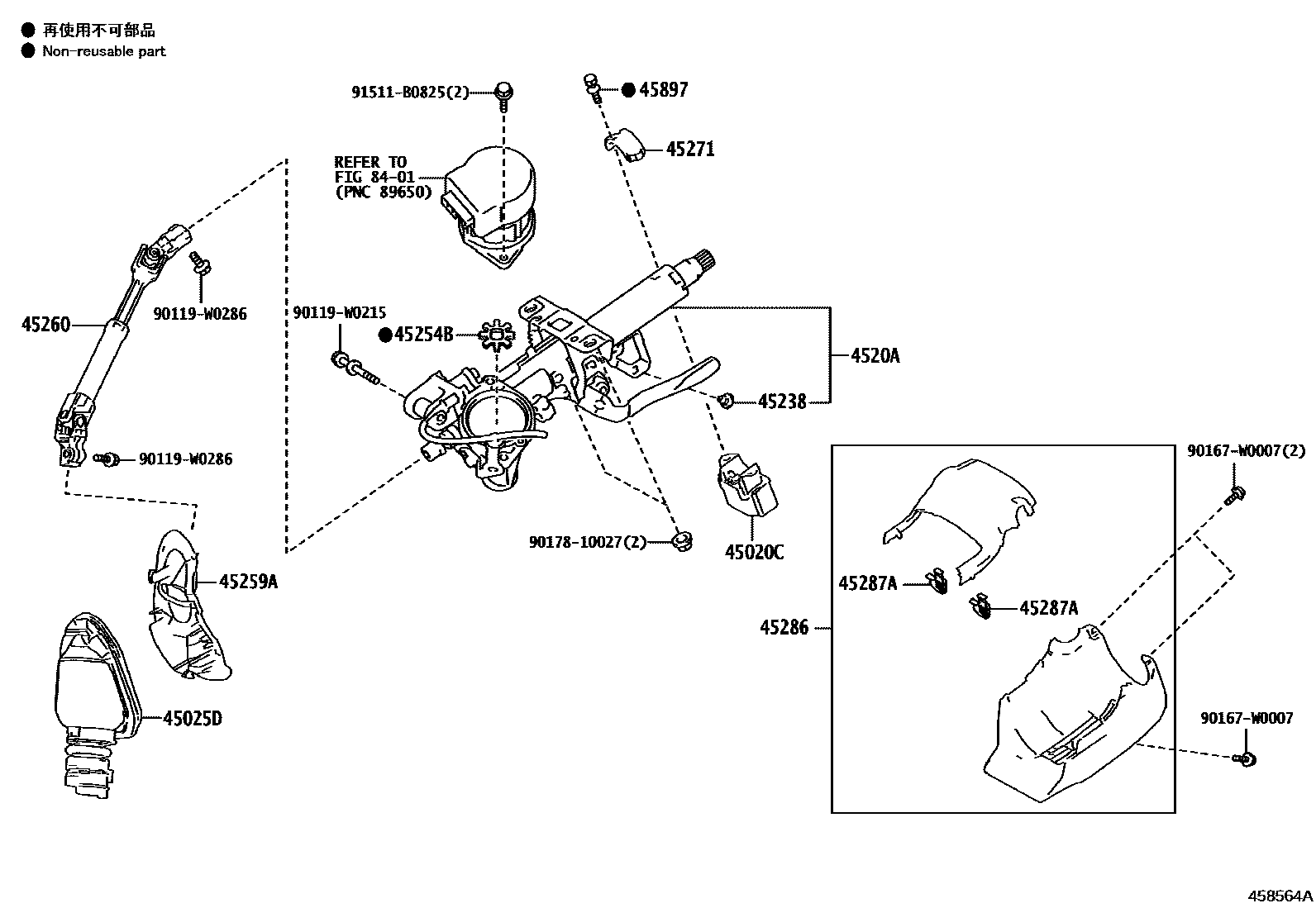

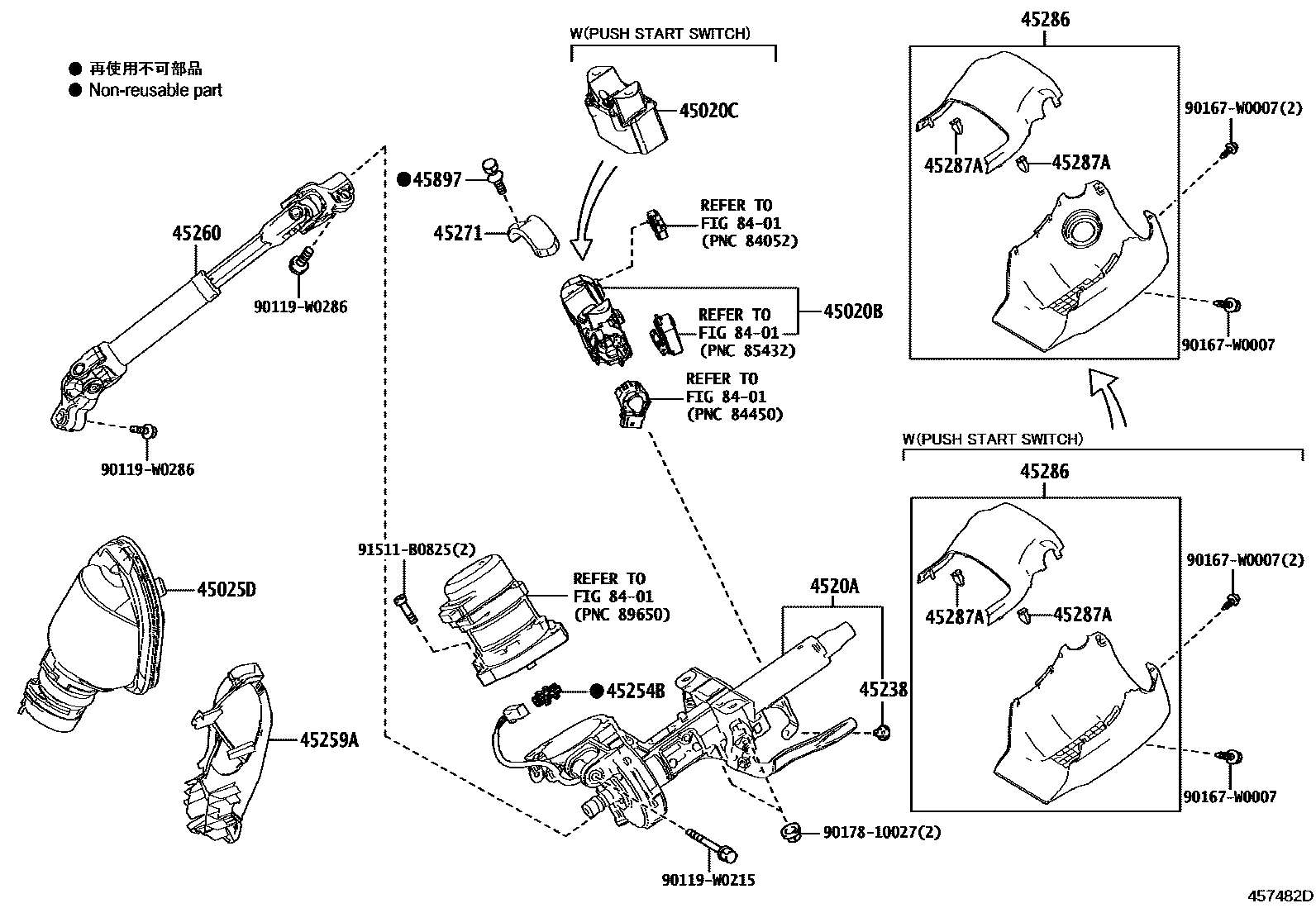

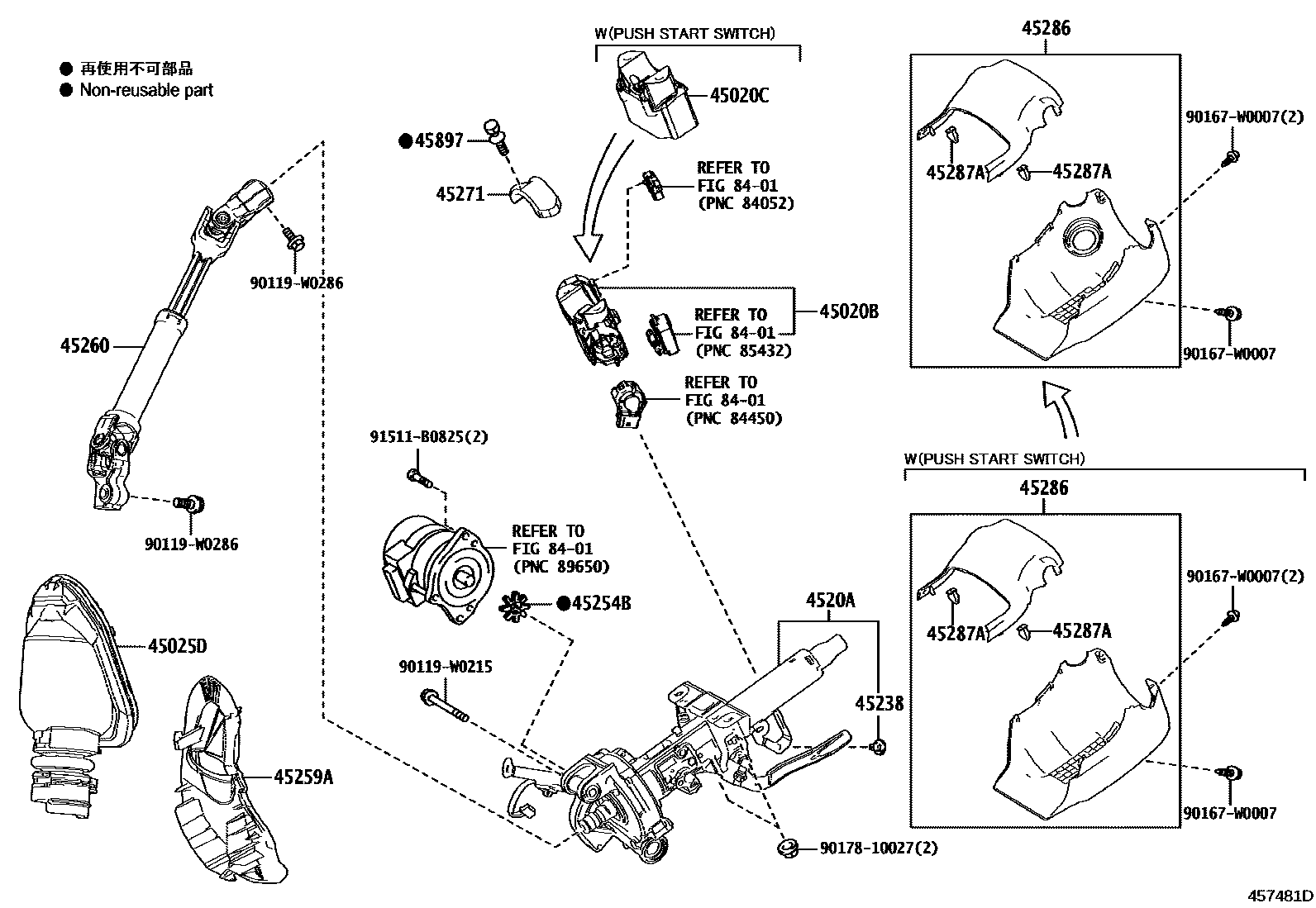

Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020B | Steering lock actuator or upper bracket assembly | 45280-02420 · 45280-02430 · 45280-02540 · 45280-02550 |
| 45020C | Steering lock actuator assembly with ECU | 45020-02790 · 45020-02A20 · 45020-K0020 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-02270 · 45025-02271 · 45025-02280 · 45025-02281 |
| 4520A | Electric steering column sub-assembly | 4520A-02190 · 4520A-02370 · 4520A-02380 · 4520A-02390 · 4520A-02400 · 4520A-02610 · 4520A-02611 · 4520A-02620 · 4520A-02621 · 4520A-02630 · 4520A-02631 · 4520A-02690 · 4520A-02691 · 4520A-02700 · 4520A-02701 · 4520A-02710 · 4520A-02711 · 4520A-02740 · 4520A-02741 · 4520A-02750 · 4520A-02751 |
| 45238 | Bolt clamp (for steering flex coupling) | 45238-52010 |
| 45254B | Electric steering motor shaft shock absorber | 45254-28040 |
| 45259A | Steering column hole cover silencer plate | 45259-02260 · 45259-02270 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-02200 · 45260-02270 |
| 45271 | Clamp on steering column | 45271-52030 |
| 45286 | steering column cover | 45286-02951 |
| 45287A | Clip (for steering column cover) | 90467-05171 |
| 45897 | Steering lock fixing bolt | 45897-12020 · 45897-12050 |
