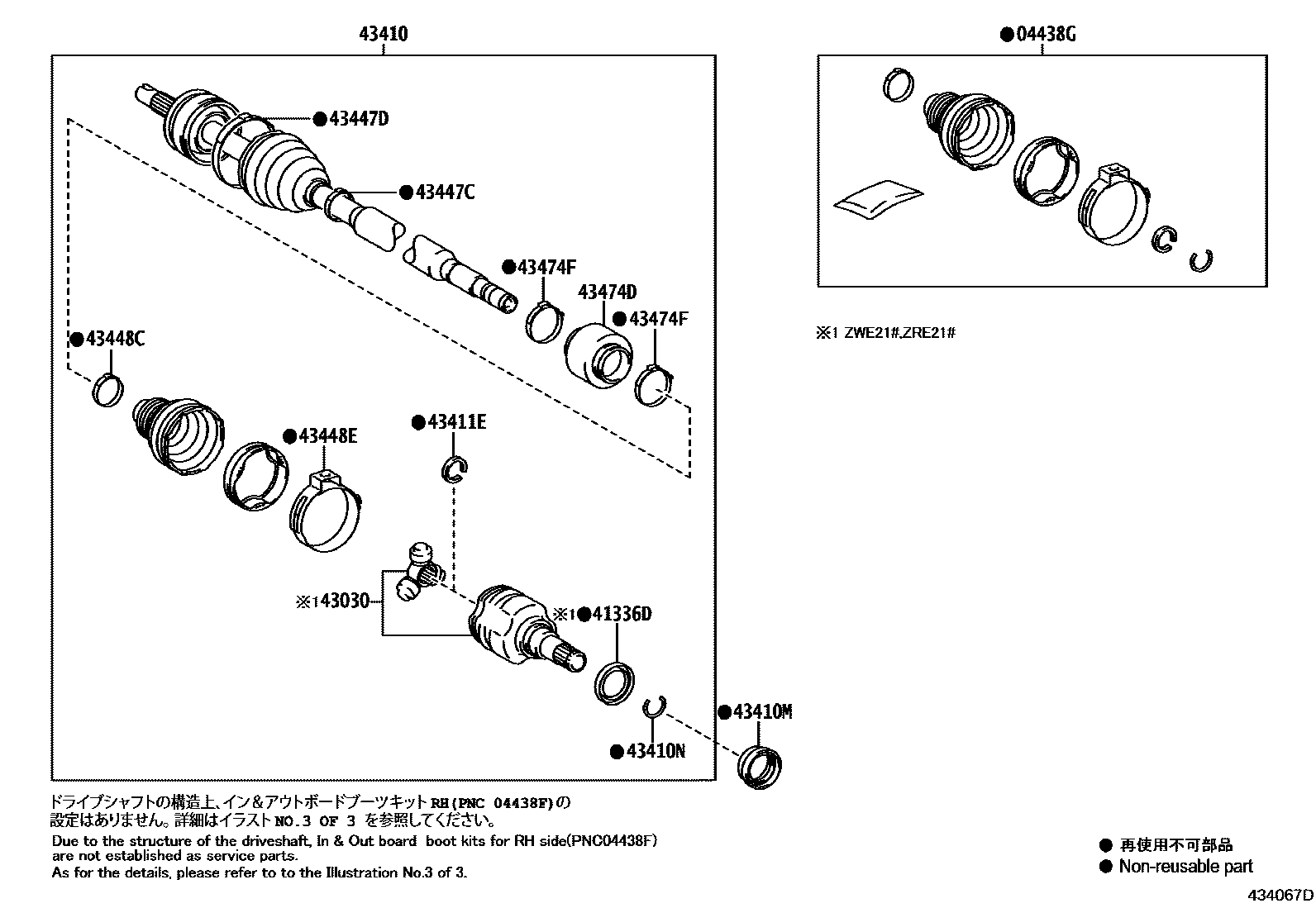

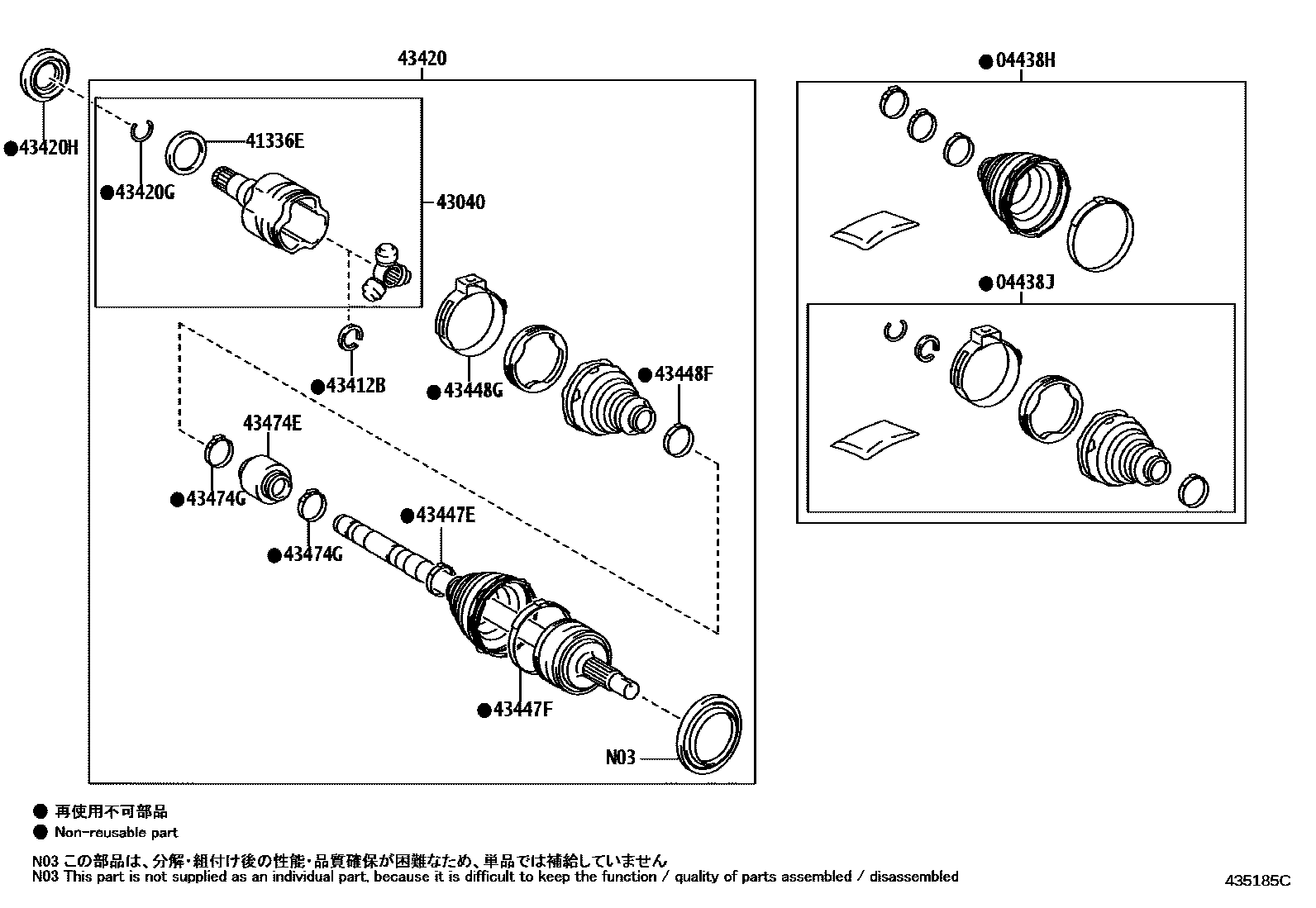

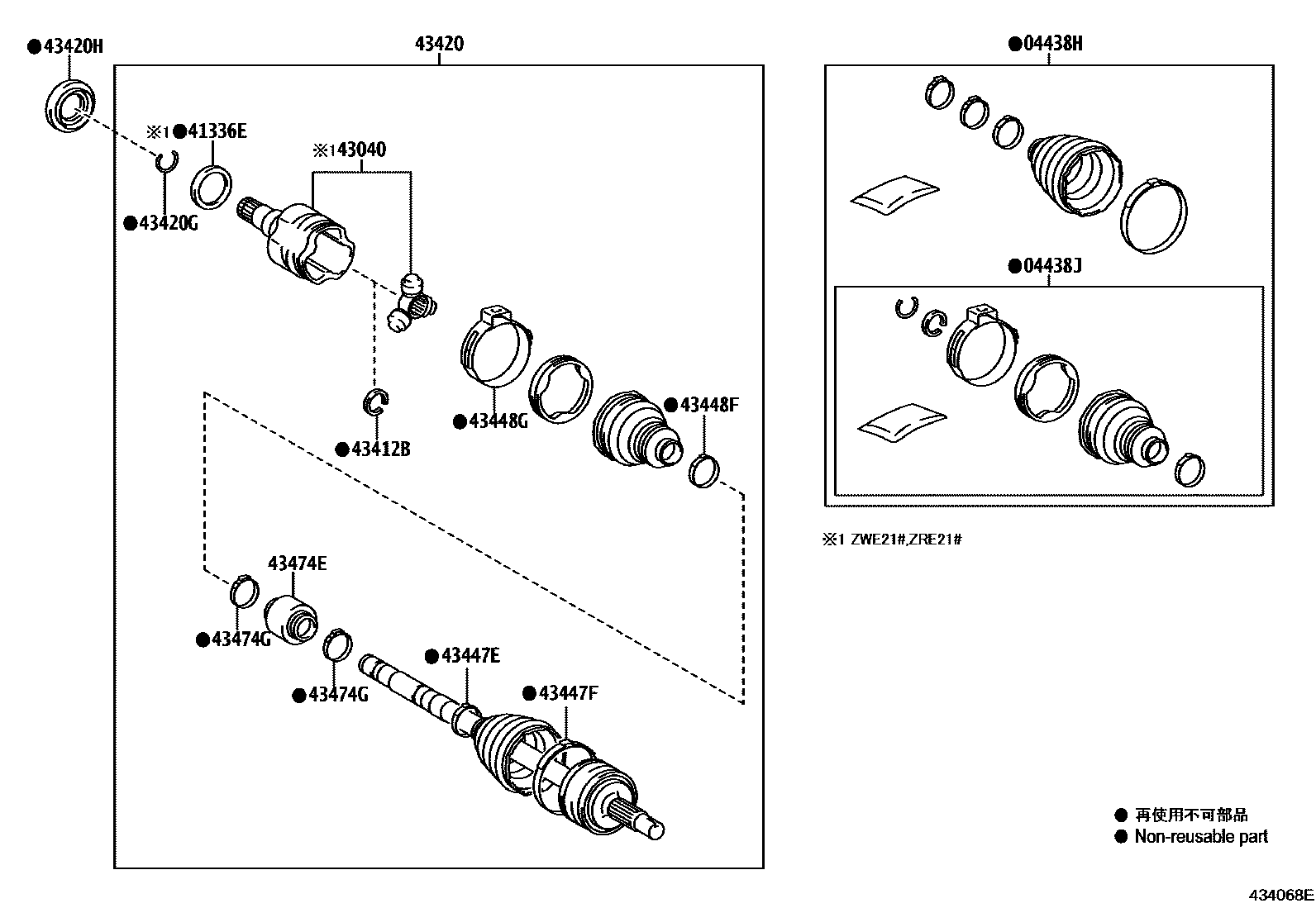

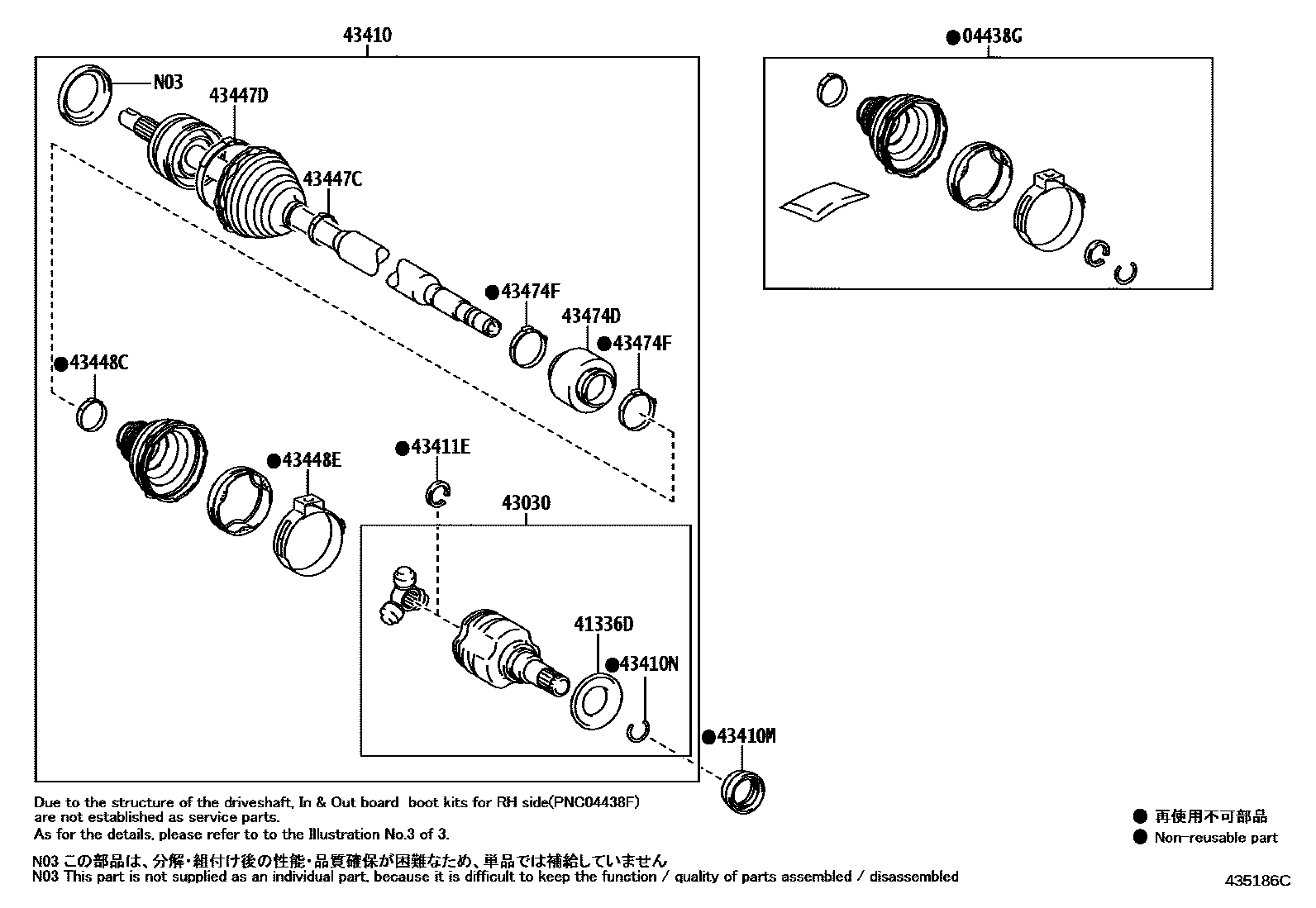

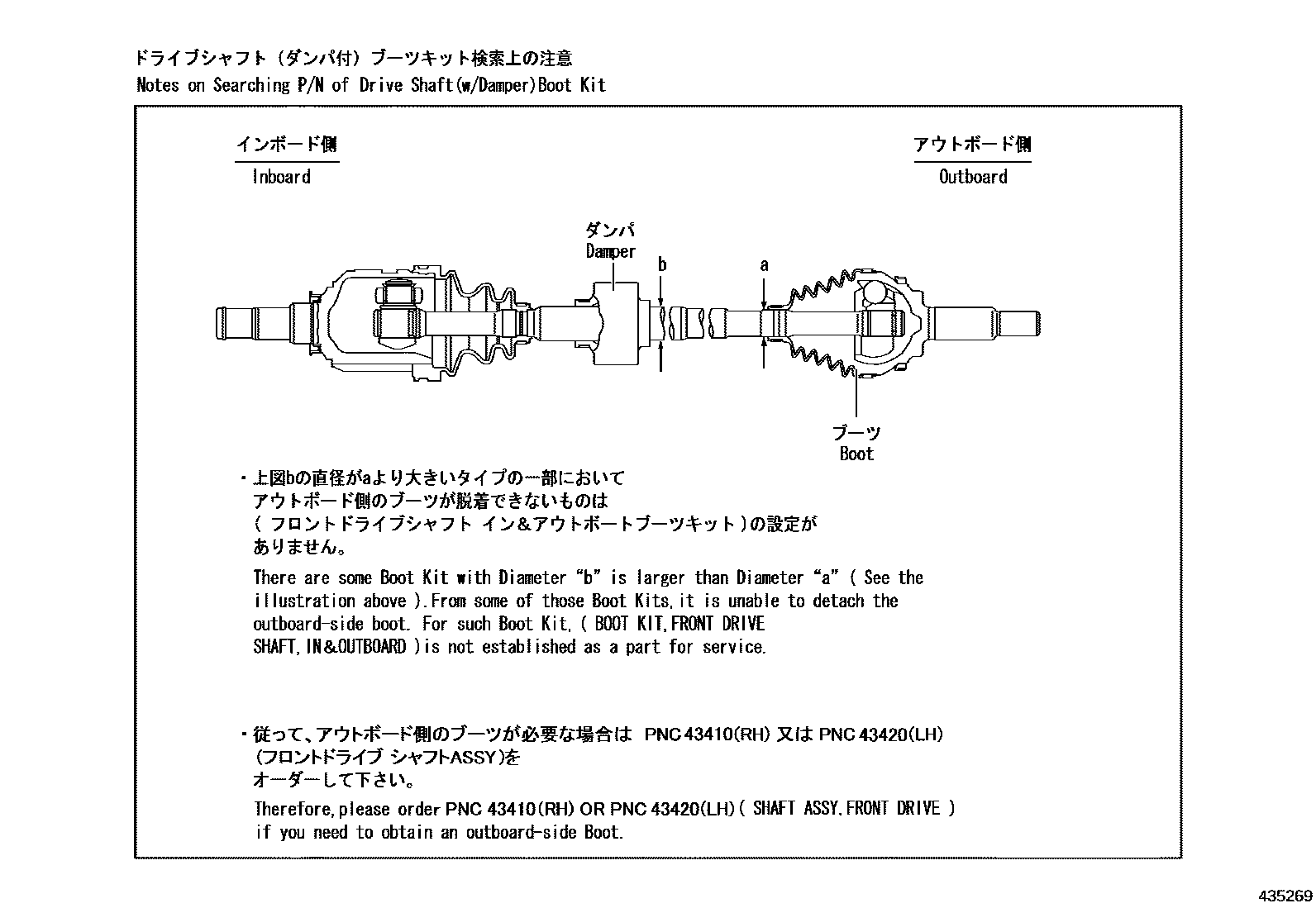

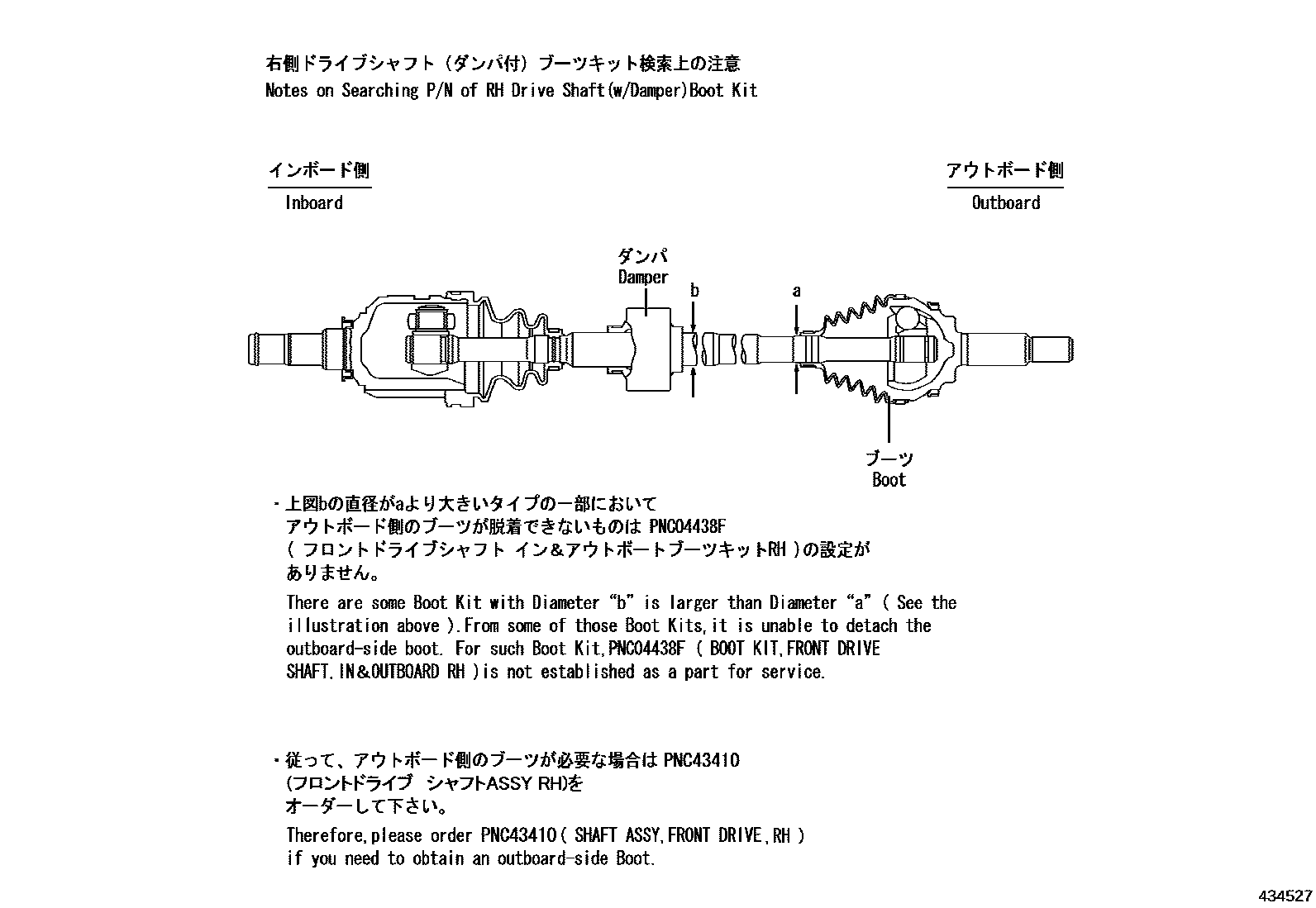

Toyota COROLLA Front Drive Shaft — Figure 4302
Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 6 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-02740 · 04438-02630 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-02A50 · 04428-02A60 · 04428-02B31 · 04428-02B90 · 04428-02C00 · 04428-02C10 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-02740 · 04438-02630 |
| 41336D | Right front driveshaft dust cover | 41336-05080 · 41336-05140 |
| 41336E | Left front driveshaft dust cover | 41336-02290 · 41336-05140 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-02150 · 43040-02450 · 43403-02190 · 43403-02210 · 43404-02120 · 43404-02130 · 43404-02160 · 43404-02170 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-02410 · 43040-02450 · 43404-02110 · 43404-02120 · 43404-02130 · 43404-02150 · 43404-02160 · 43404-02170 |
| 43410 | Right front driveshaft assembly | 43410-02A10 · 43410-02E10 · 43410-02E90 · 43410-02F10 · 43410-02F80 · 43410-02G40 · 43410-02G50 · 43410-02G60 · 43410-02G70 |
| 43410M | Front drive shaft right oil seal | 90311-35065 · 90311-35076 · 90311-35081 · 90311-35083 · 90311-40038 · 90311-40051 |
| 43410N | Hole snap ring (for right front driveshaft) | 90080-52017 · 90080-52055 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-05080 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-05080 |
| 43420 | Left front drive shaft assembly | 43420-02F50 · 43420-02J30 · 43420-02K00 · 43420-02K20 · 43420-02K70 · 43420-02L30 · 43420-02L40 · 43420-02L50 · 43420-02L60 |
| 43420G | Hole snap ring (for left front driveshaft) | 90080-52017 · 90080-52055 |
| 43420H | Front drive shaft left oil seal | 90311-35075 · 90311-35080 · 90311-35082 · 90311-50045 · 90311-50062 · 90311-50064 · 90311-9U001 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-02C50 · 42345-02J30 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-02C60 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-02C50 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-02C60 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-02C50 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-02G70 · 42345-0D620 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-02C50 · 42345-02J30 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-02G70 · 42345-0D620 |
| 43474D | Right front driveshaft shock absorber | 43474-02600 · 43474-02A10 |
| 43474E | Left front driveshaft shock absorber | 43474-02610 · 43474-02A20 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-02F70 · 42345-0DD10 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-02C80 · 42345-02F80 |
