Toyota COROLLA vacuum tube — Figure 1708

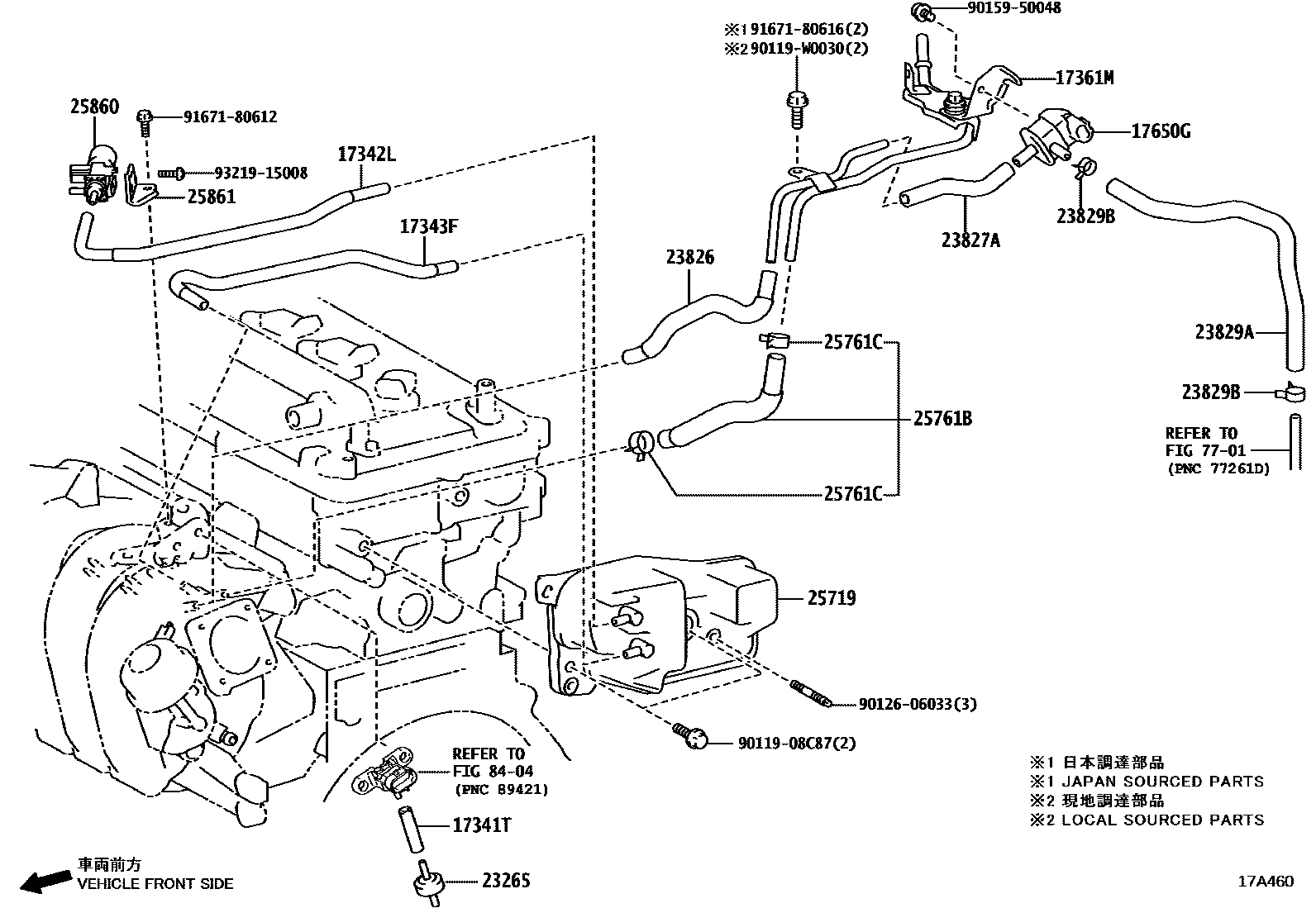

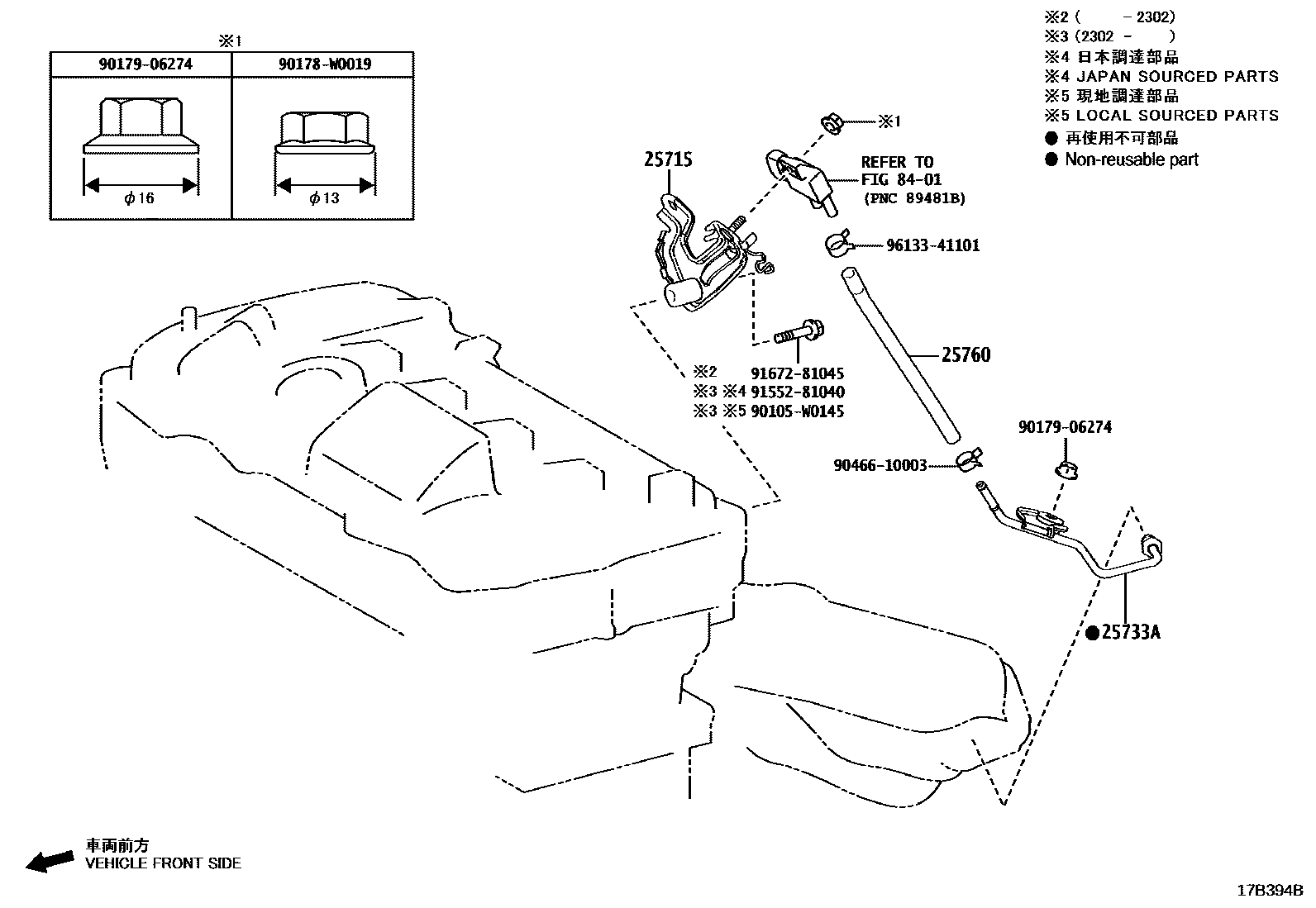

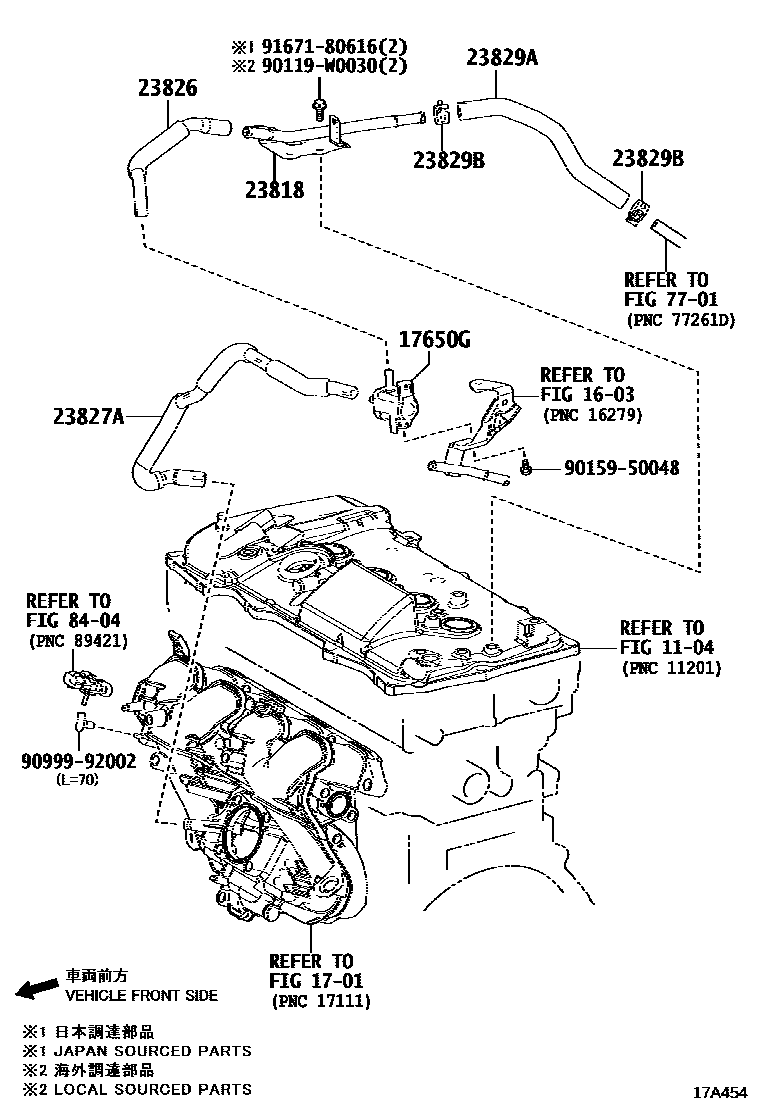

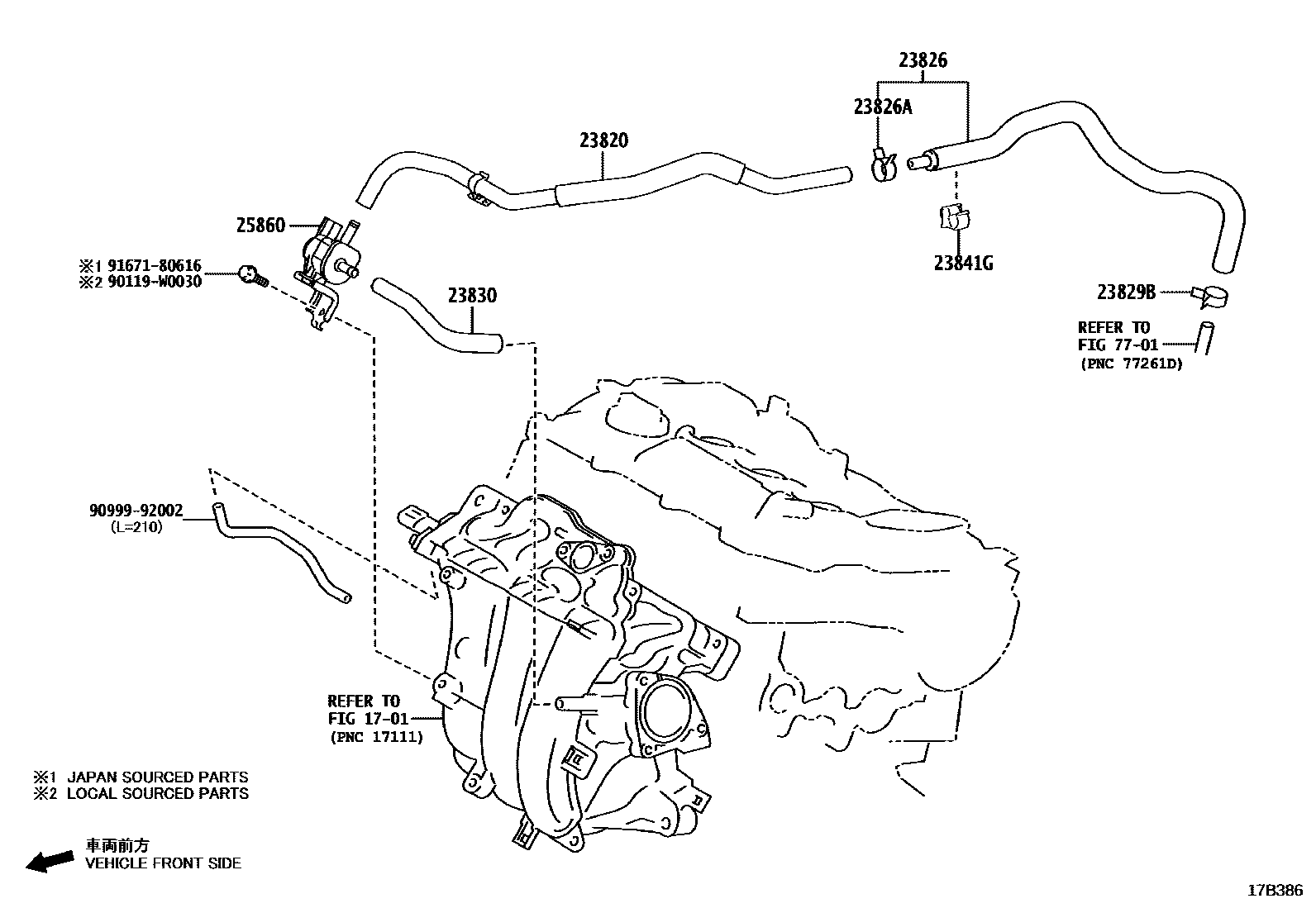

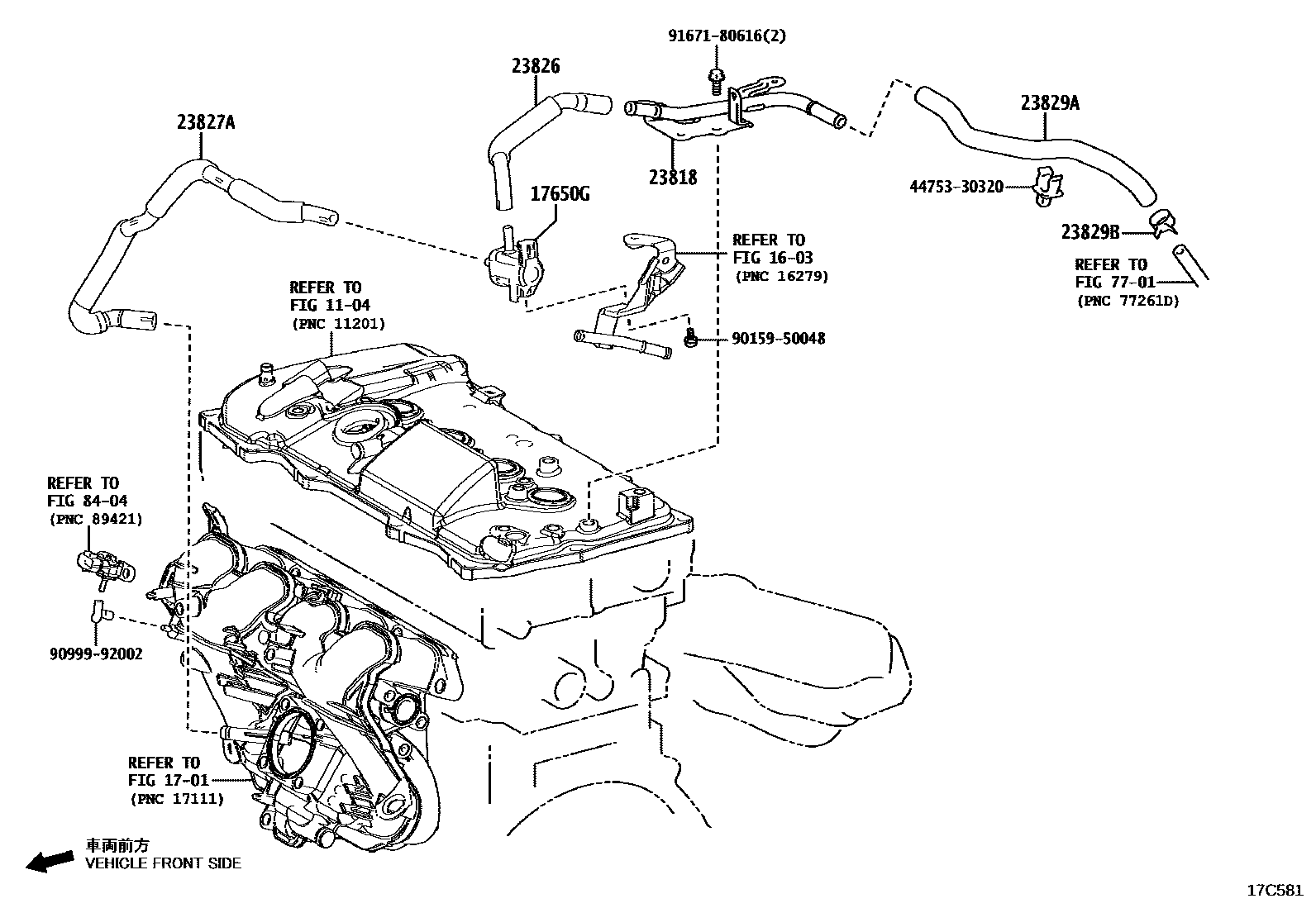

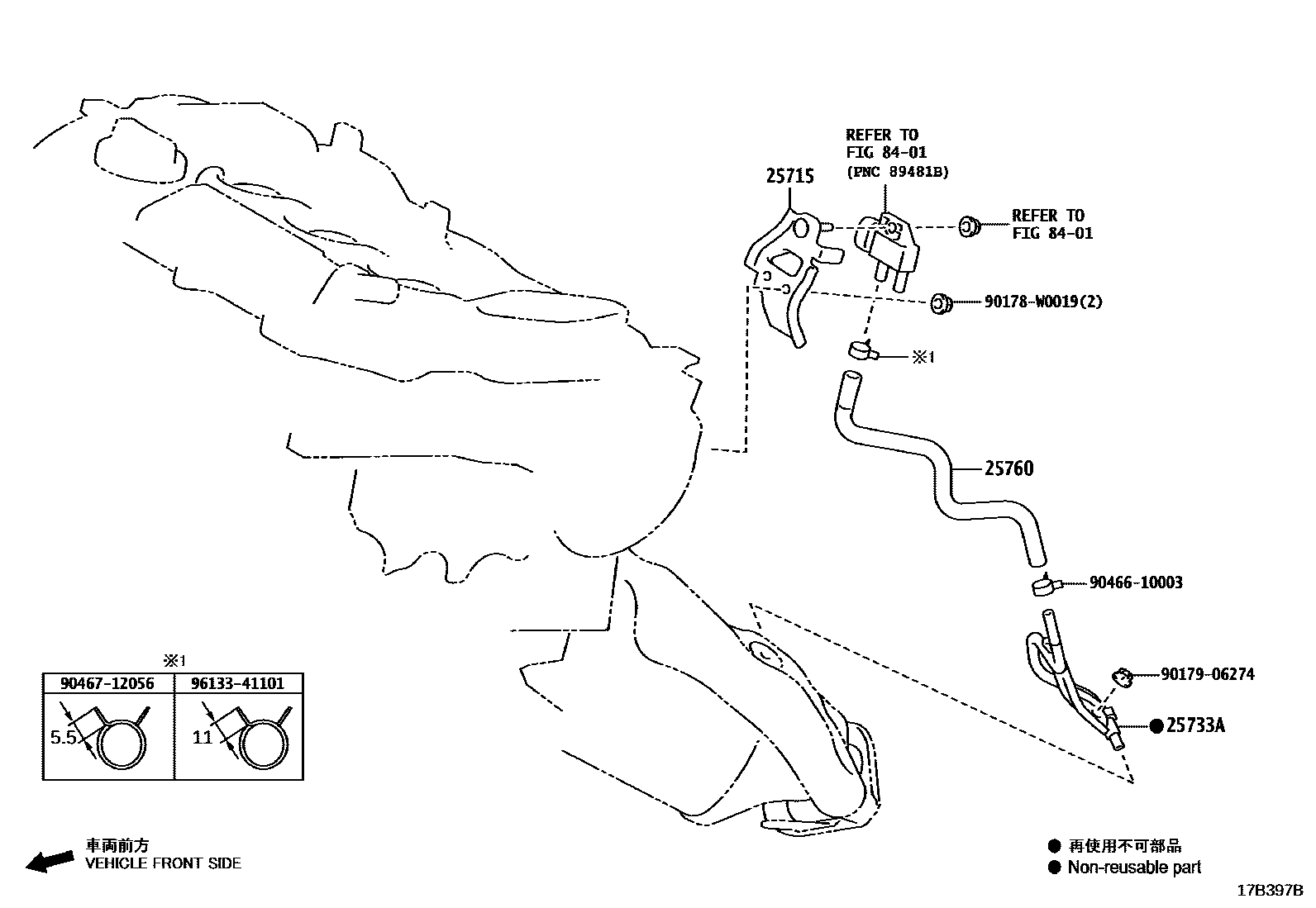

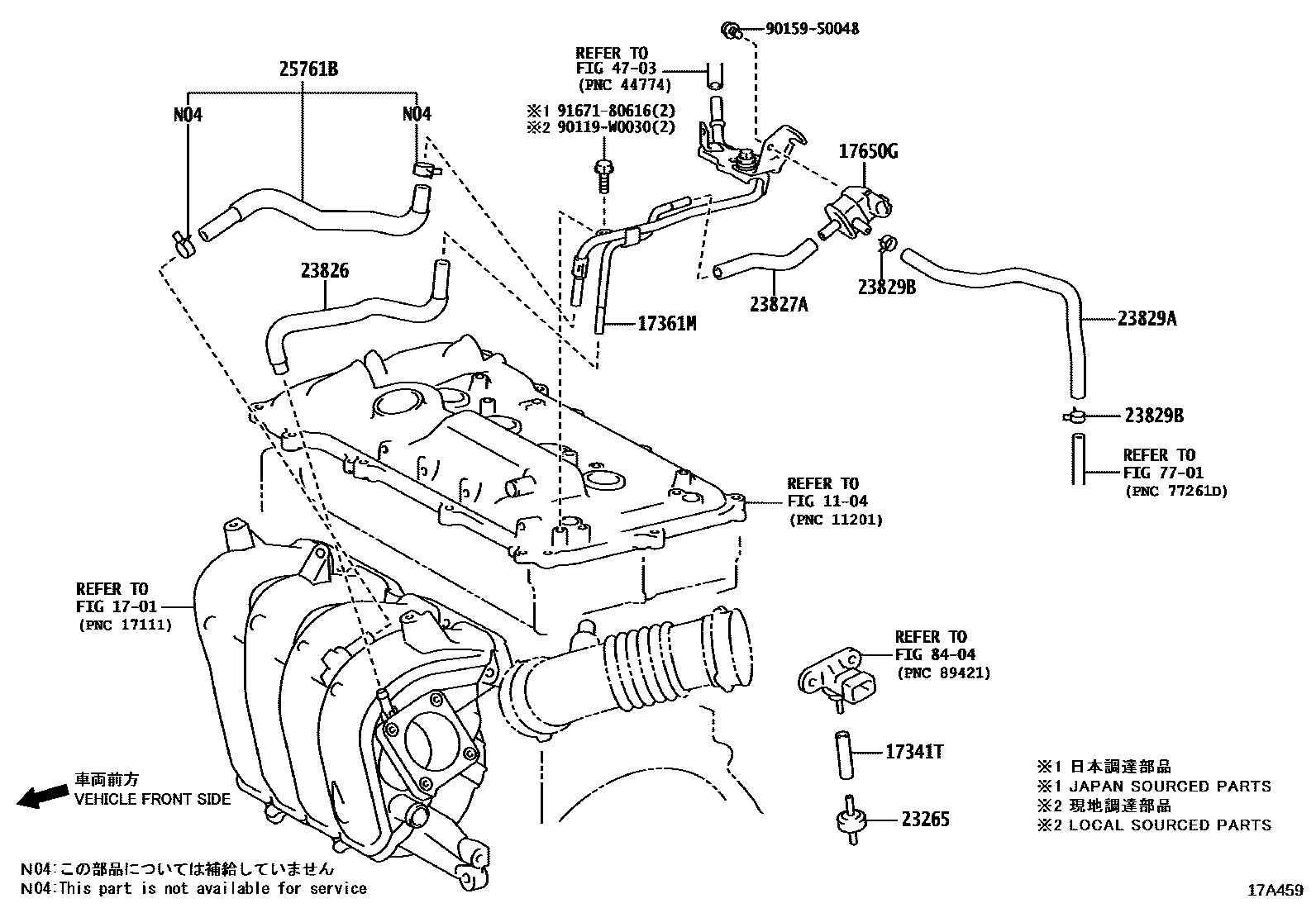

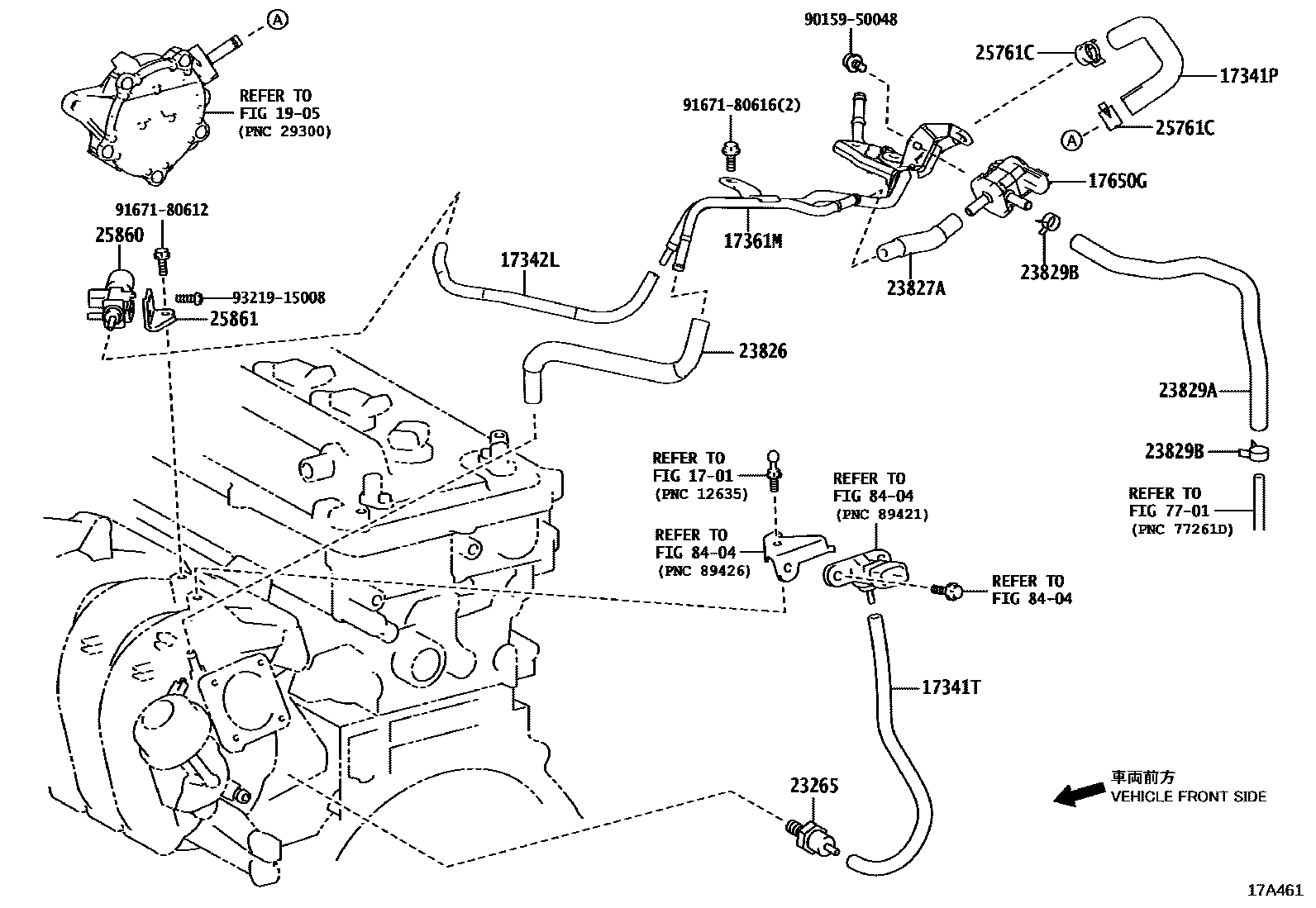

Toyota COROLLA EPC diagram 1708, vacuum tube, with 8 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341P | air hose | 17341-37090 |
| 17341T | Air hose No. 1 | 17341-37060 · 17341-37080 |
| 17342L | Air hose No. 2 | 17342-37050 · 17342-37060 |
| 17343F | No. 3 air hose | 17343-37040 |
| 17361M | air tube | 17361-37011 · 17361-37070 · 17361-37140 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12276 · 90910-TC001 |
| 23265 | No. 1 gas filter | 90917-11022 · 90917-11030 |
| 23818 | Fuel vapor supply pipe | 23818-0T030 · 23818-37030 · 23818-37040 |
| 23820 | Fuel vapor supply hose assembly | 23820-F3090 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0T300 · 23826-0T551 · 23826-37021 · 23826-37050 · 23826-37190 · 23826-37250 · 23826-37340 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 96136-41901 |
| 23827A | No. 2 fuel vapor supply hose | 23827-0T050 · 23827-37020 · 23827-37030 · 23827-37060 · 23827-37070 |
| 23829A | Fuel vapor supply hose | 23826-0T260 · 23826-0T390 · 23826-0T590 · 23826-37420 |
| 23829B | Clamp (for fuel vapor supply hose) | 96132-51300 · 96136-41901 |
| 23830 | No. 2 fuel vapor supply hose assembly | 23826-F3070 |
| 23841G | fuel hose clamp | 77196-33040 |
| 25715 | Emission control valve bracket | 25715-0T010 · 25715-37040 · 25715-37041 · 25715-F3010 |
| 25719 | Vacuum pressure tank | 25719-37011 |
| 25733A | No. 1 vacuum tube | 25733-0T010 · 25733-0T020 · 25733-37010 · 25733-37020 · 25733-F3010 |
| 25760 | Vacuum transfer hose assembly | 25760-0T010 · 25760-15040 · 25760-37030 · 25760-F3040 |
| 25761B | No. 1 Vacuum Transfer Hose | 25761-37011 · 25761-37080 |
| 25761C | Clamp (No. 1 vacuum transfer hose) | 96133-41500 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-F3030 · 90910-12281 |
| 25861 | Vacuum switch valve bracket | 25861-37010 |
