Toyota COROLLA Engine Mounting — Figure 1107

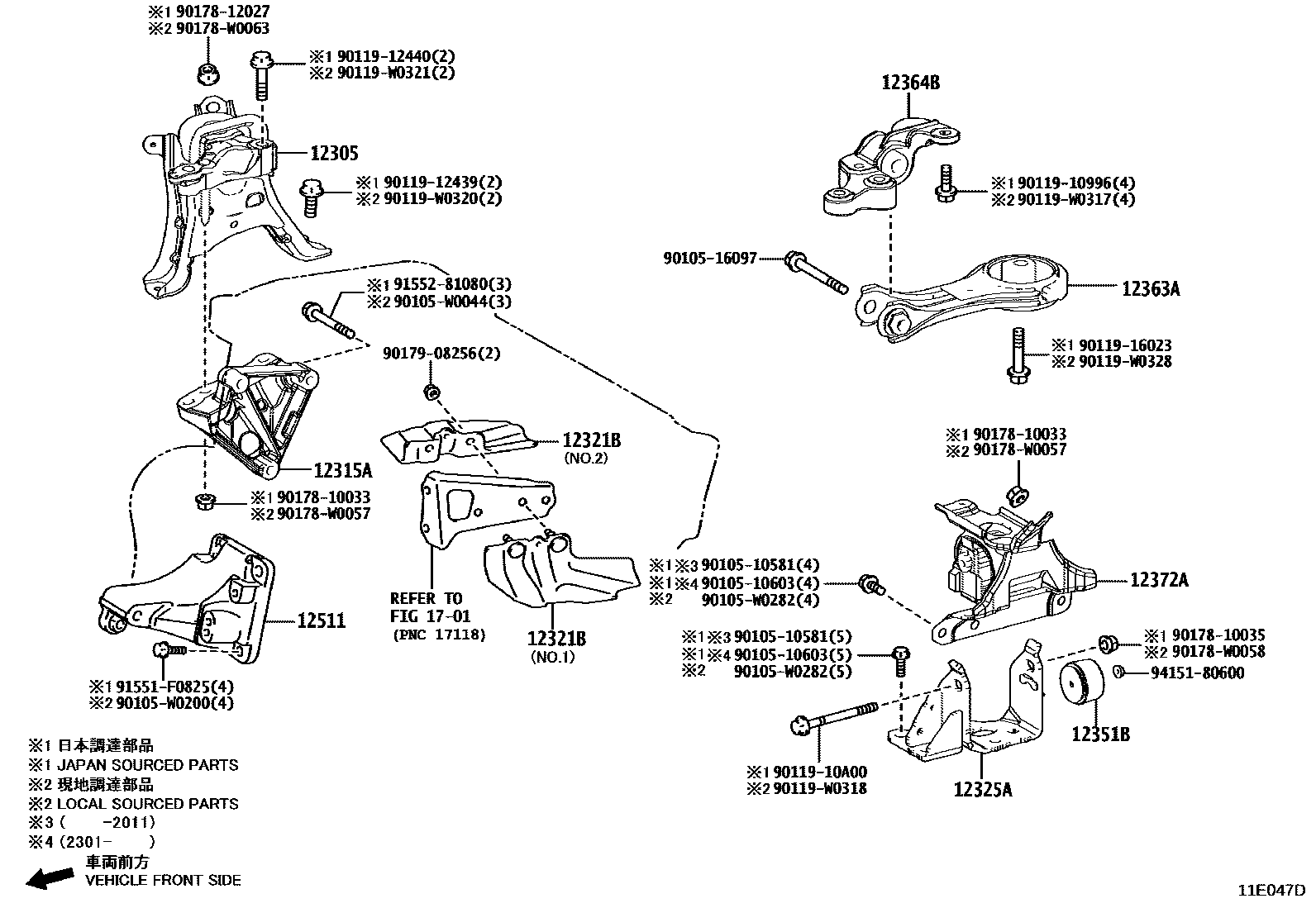

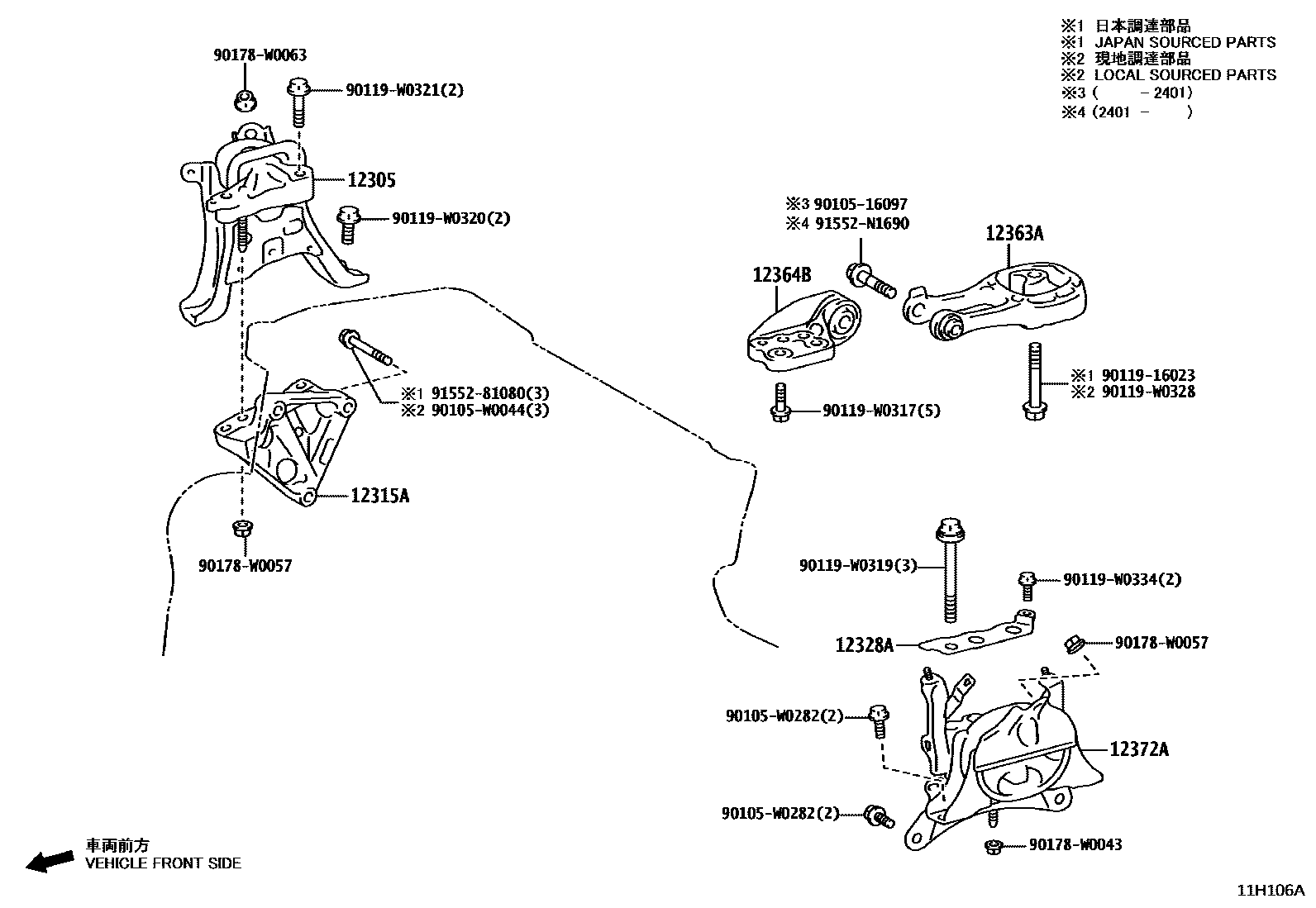

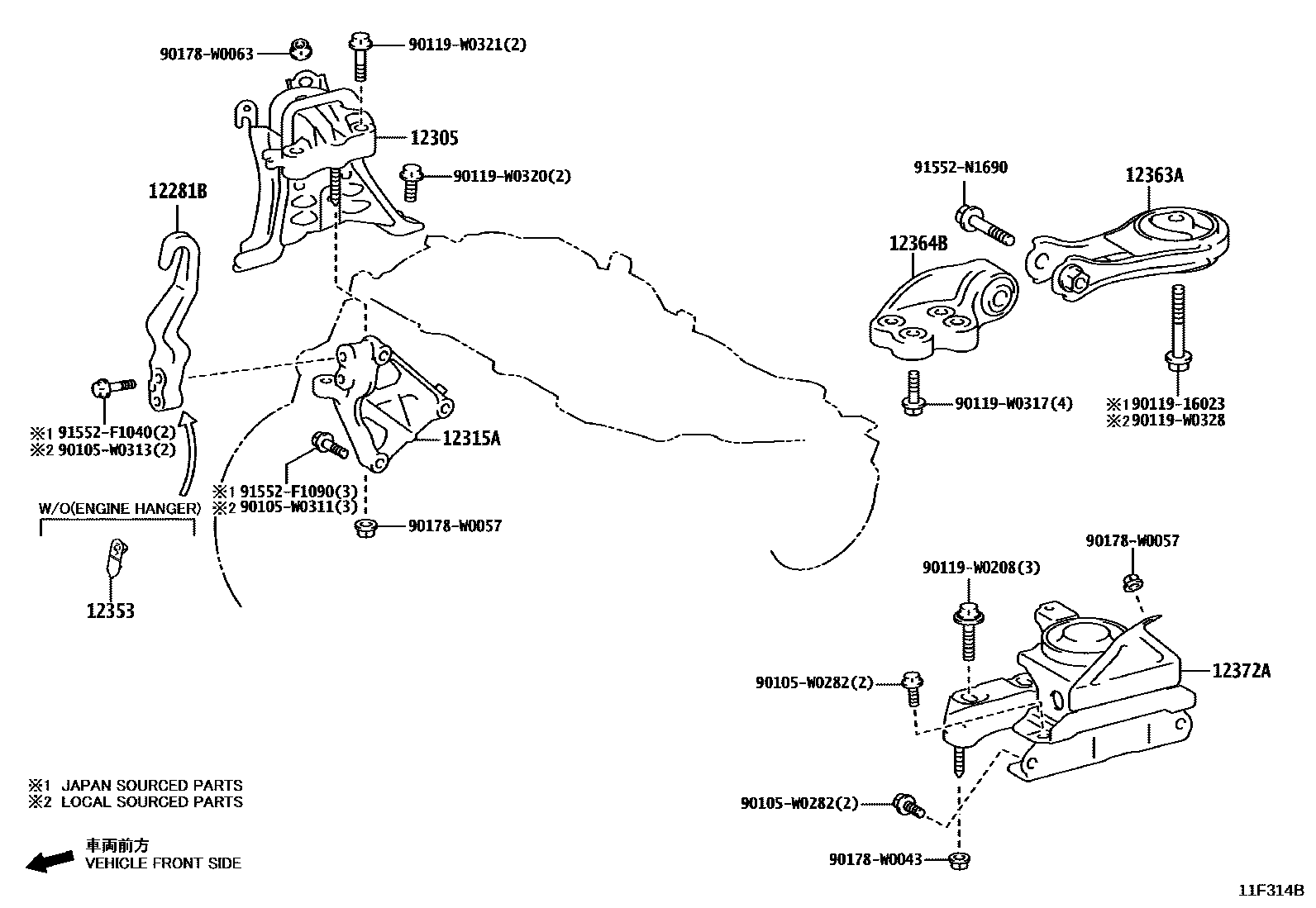

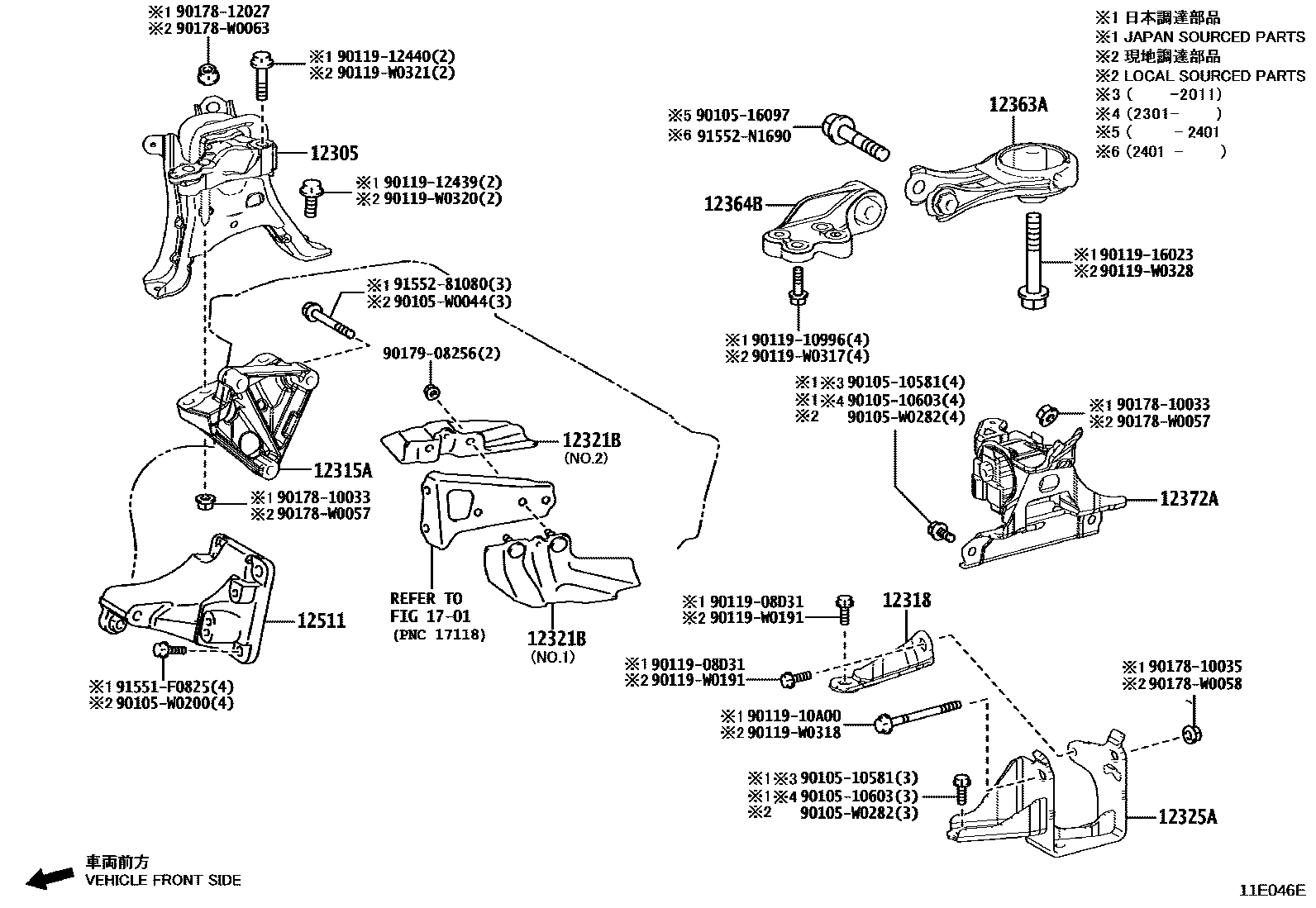

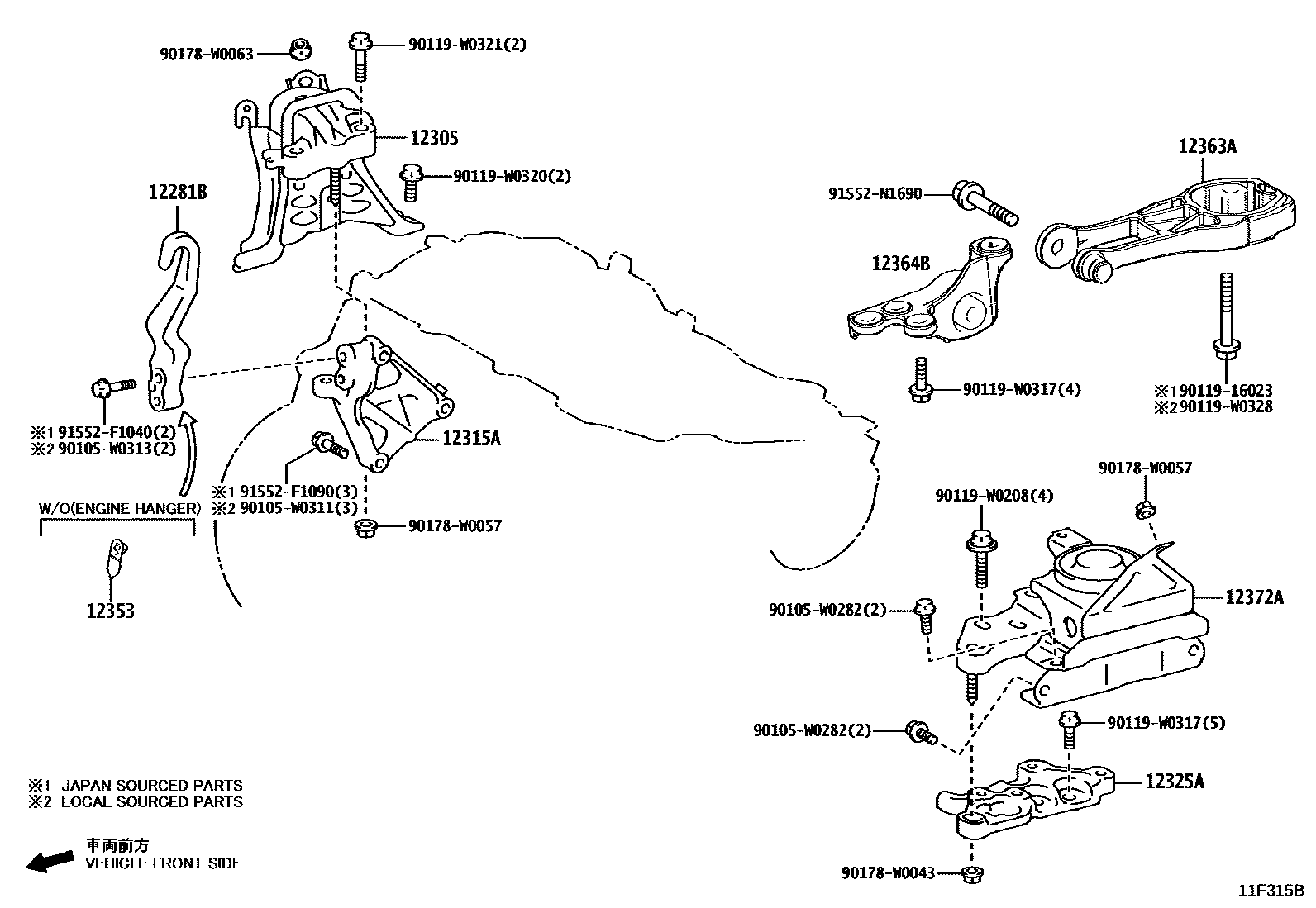

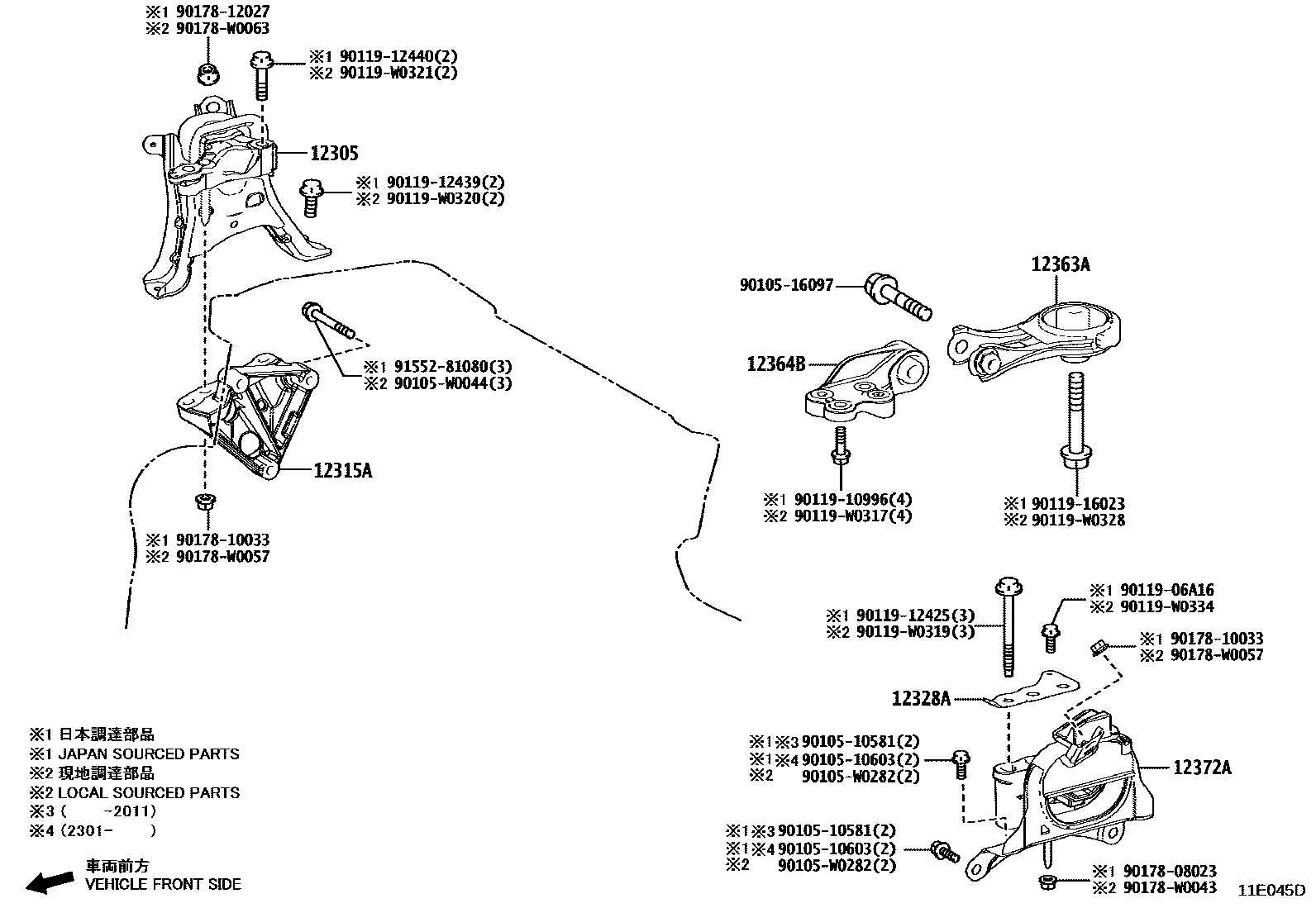

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 6 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12281B | Engine No. 1 hanger | 12281-25030 |
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-0T331 · 12305-0T332 · 12305-0T371 · 12305-0T420 · 12305-F3030 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-37060 · 12315-37070 · 12315-F3010 |
| 12318 | Engine left mounting bracket | 12318-0Y010 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-12060 · 43498-12051 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-0Y210 · 12325-0Y220 · 12325-F3010 · 12325-F3020 |
| 12328A | Engine No. 2 left side mounting bracket | 12328-0T050 · 12328-0T070 |
| 12351B | engine mount shock absorber | 12351-0T070 |
| 12353 | Engine mounting bracket cover | 12353-15010 |
| 12363A | Engine movement control lever | 12363-0T060 · 12363-0T070 · 12363-0T130 · 12363-0T140 · 12363-F3010 · 12363-F3020 · 12363-F3040 |
| 12364B | Engine No. 2 motion control lever | 12364-0T070 · 12364-0T080 · 12364-0T090 · 12364-F3010 · 12364-F3020 · 12364-F3040 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0T571 · 12372-0T610 · 12372-0T620 · 12372-0T680 · 12372-F3020 · 12372-F3060 |
| 12511 | No. 1 generator bracket | 12511-0T020 · 12511-37010 |
