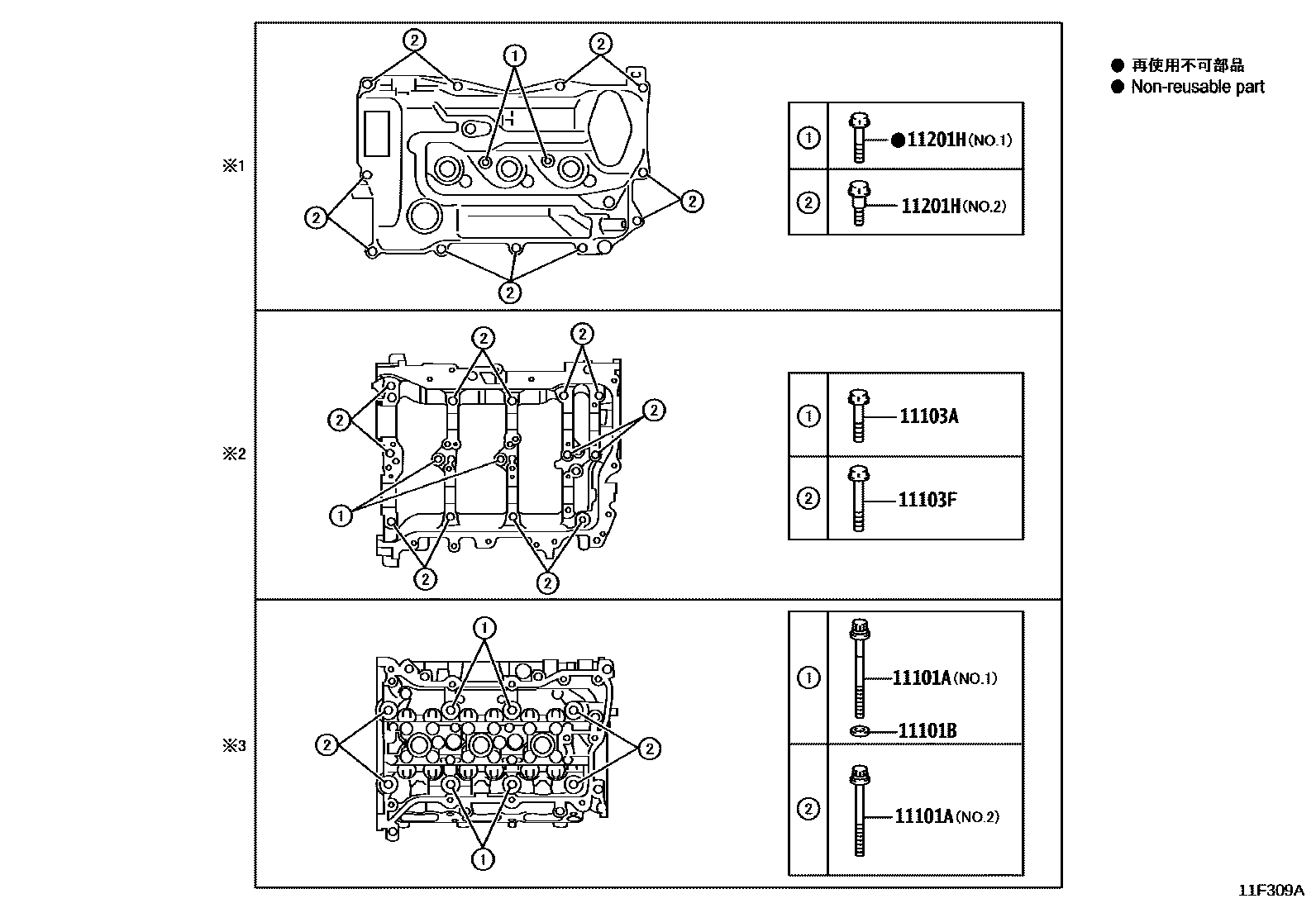

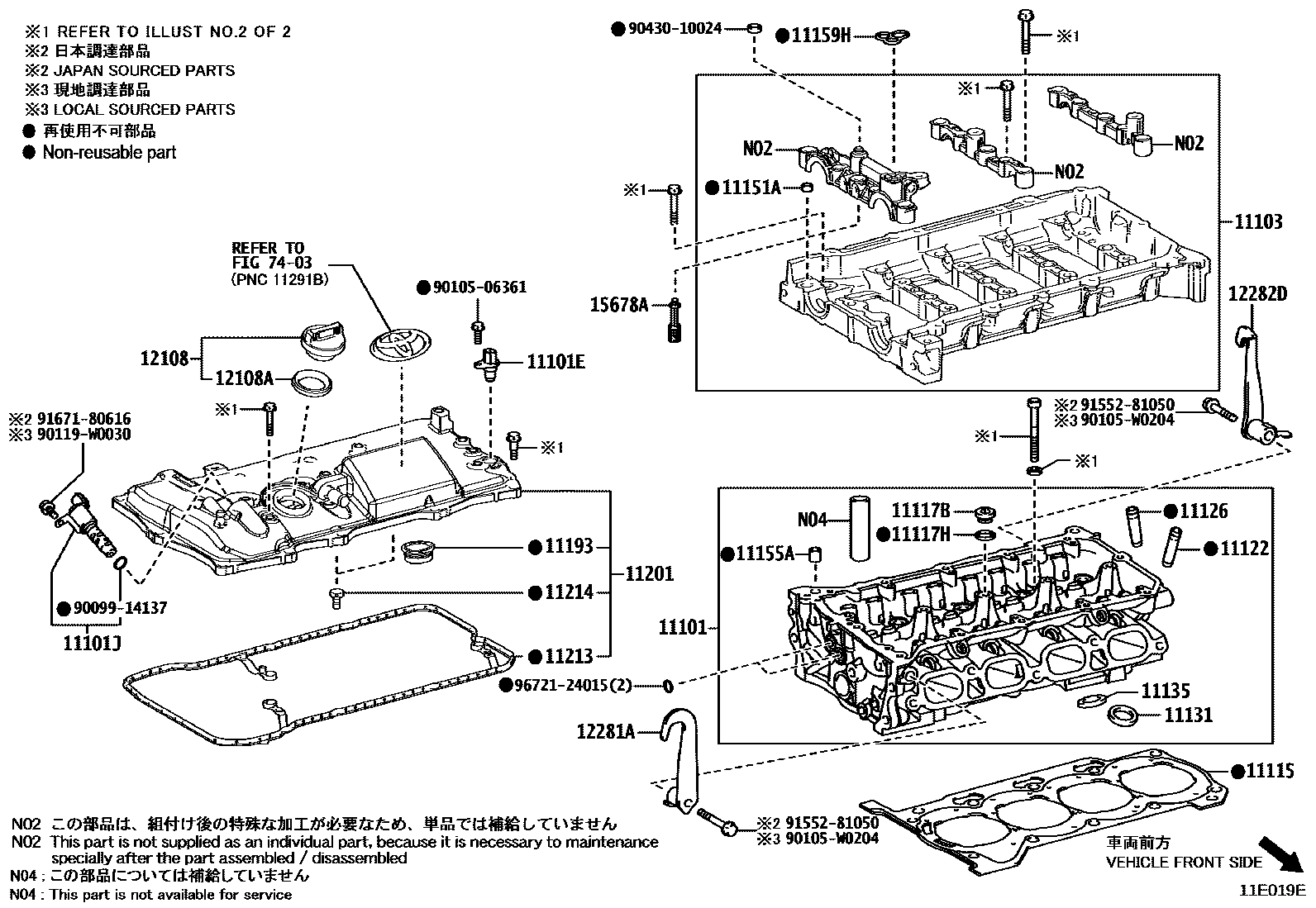

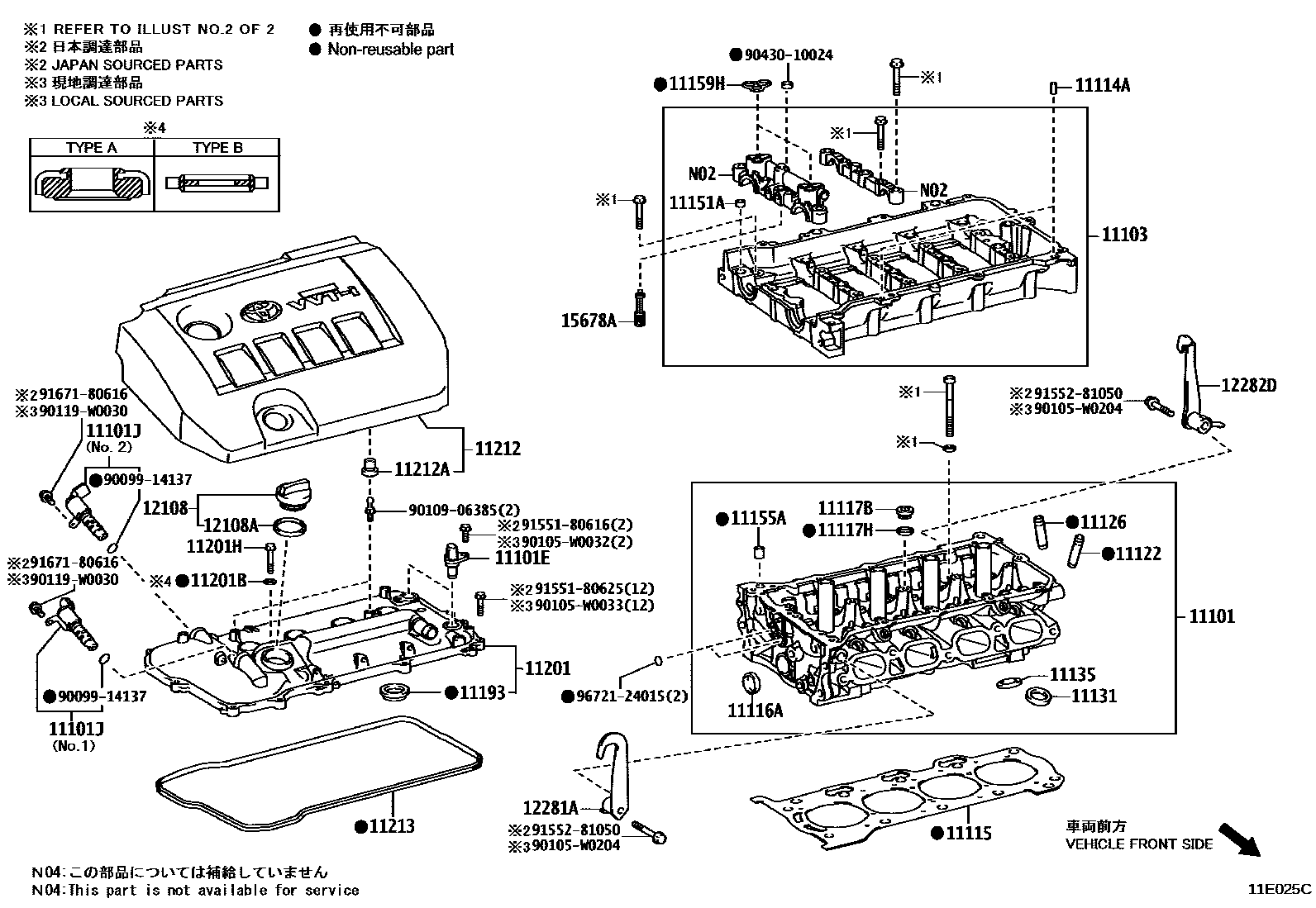

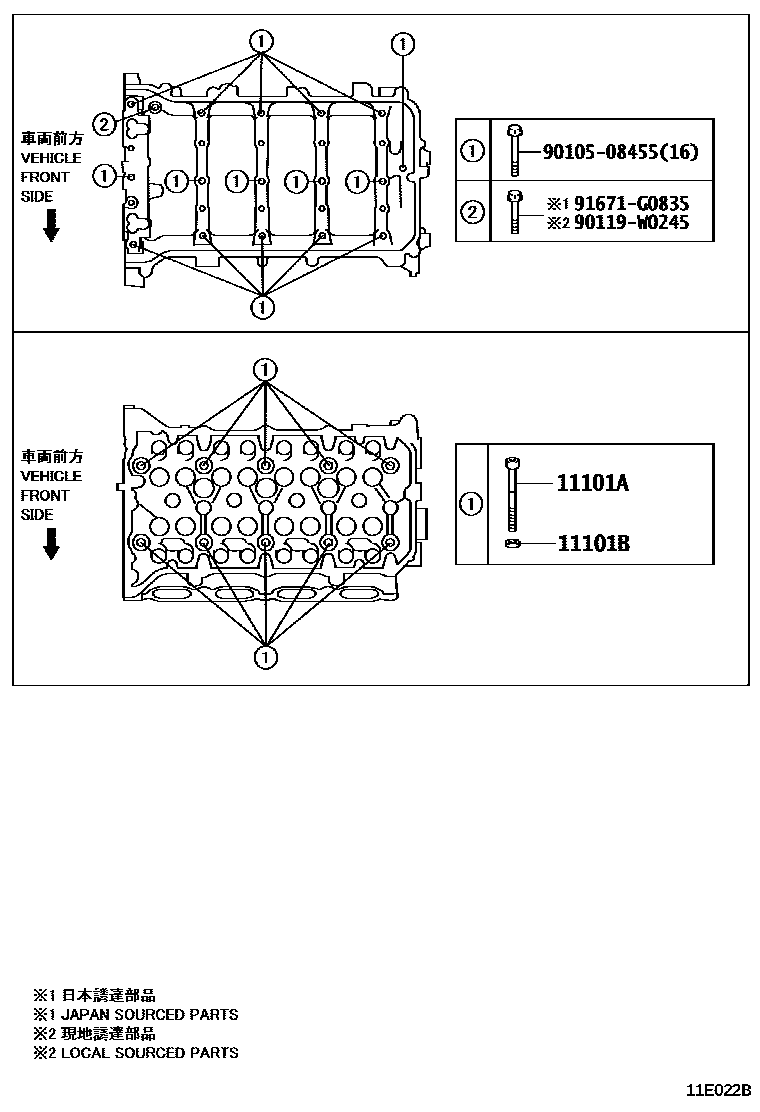

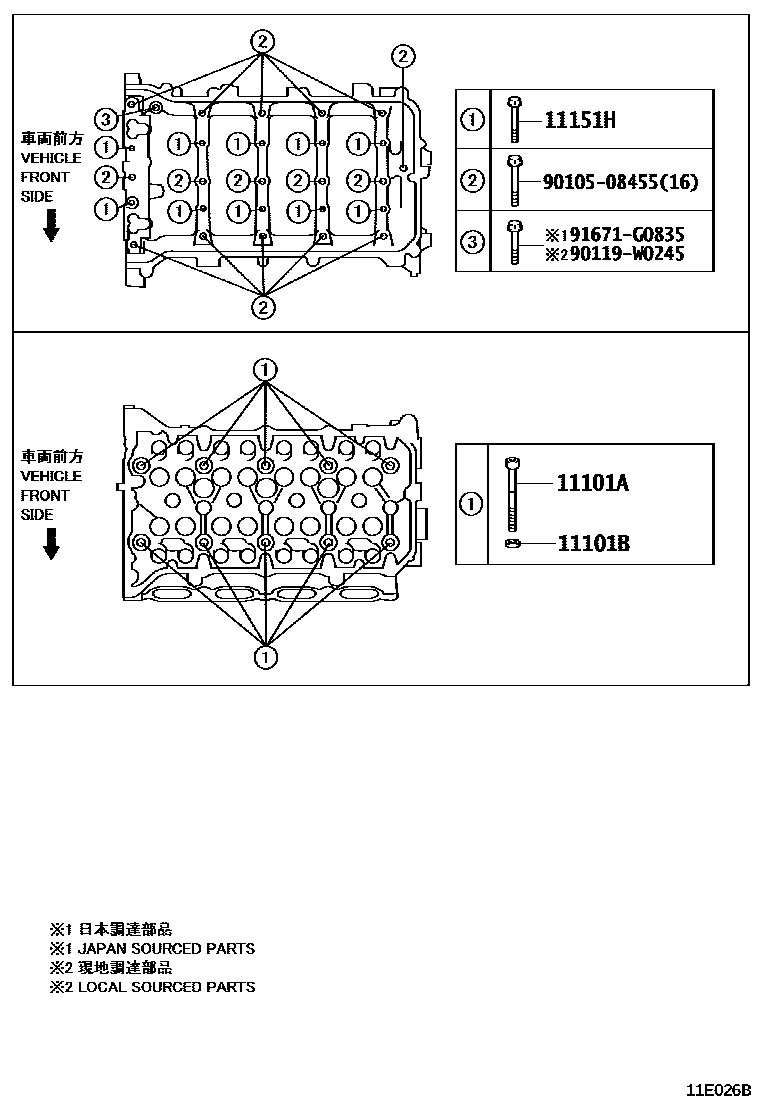

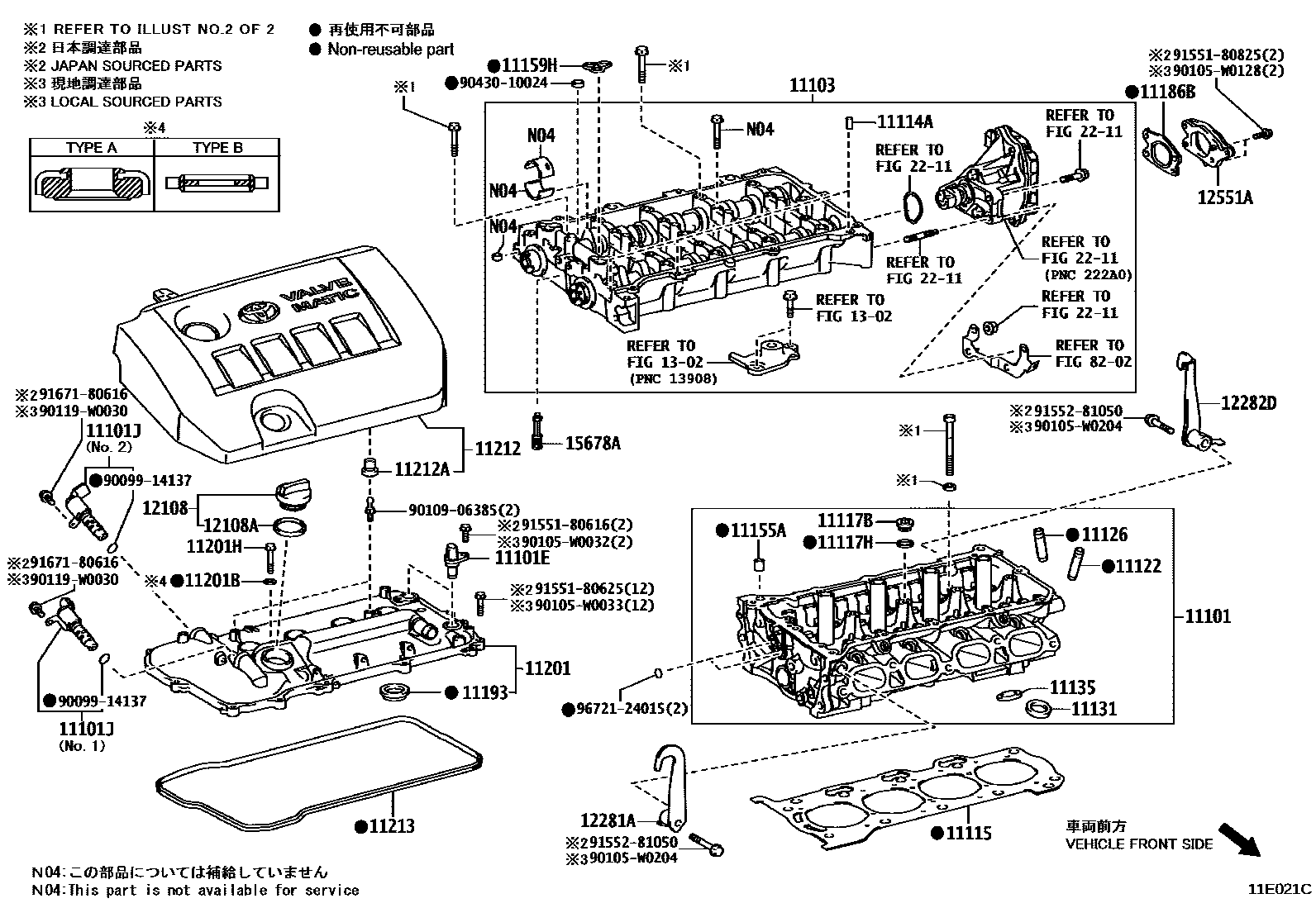

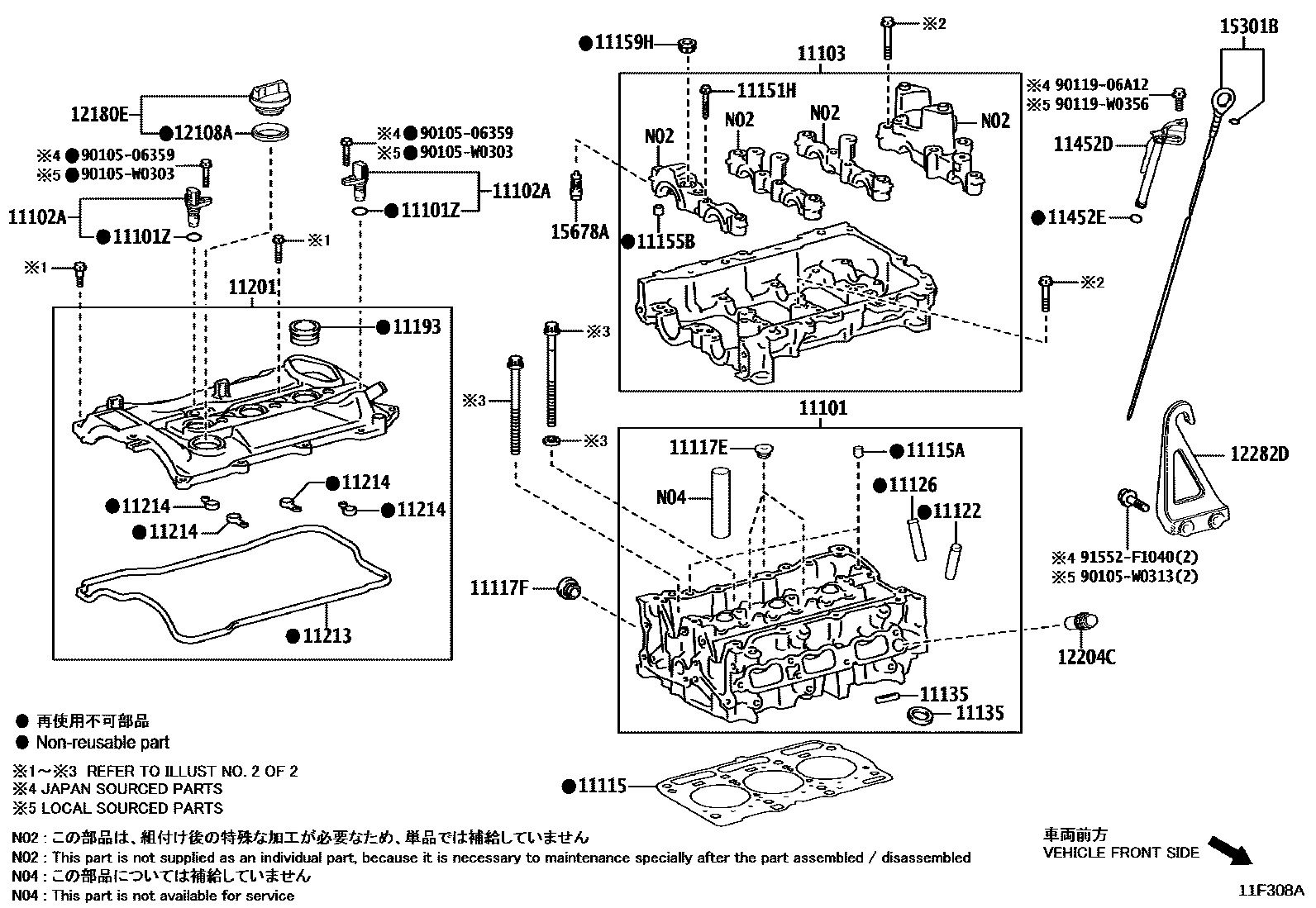

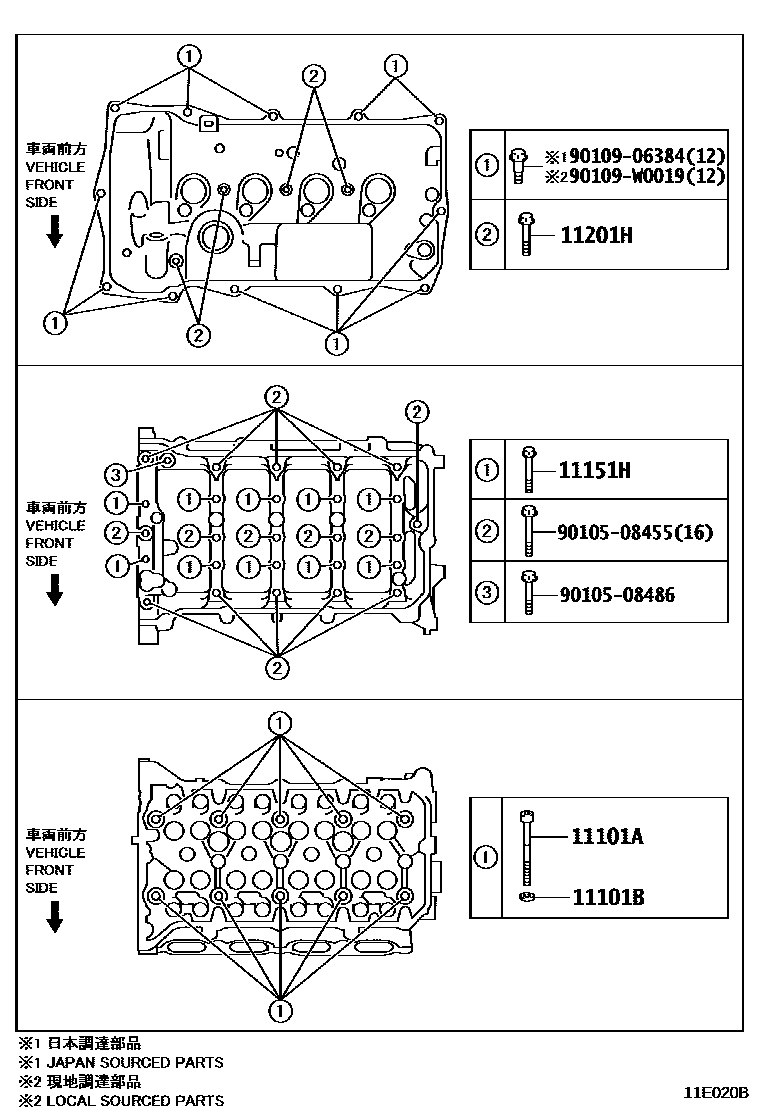

Toyota COROLLA Cylinder Head — Figure 1104
Toyota COROLLA EPC diagram 1104, Cylinder Head, with 8 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-09640 · 11101-09710 · 11101-09760 · 11101-39675 · 11101-80000 · 11101-80008 · 11101-F9070 · 11101-F9071 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02166 · 90910-02202 · 90910-02205 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-10344 · 90201-12079 |
| 11101E | Cam position sensor | 90919-05060 |
| 11101J | Camshaft timing oil control valve assembly | 15330-0T050 · 15330-0T060 · 15330-37010 · 15330-37020 |
| 11101Z | Cam position sensor O-ring | 90301-11038 |
| 11102A | Camshaft position sensor | 90919-05096 |
| 11103 | Camshaft housing sub-assembly | 11103-0T021 · 11103-0T090 · 11103-37021 · 11103-37040 · 11103-F3010 · 11107-37017 |
| 11103A | Bolts (for camshaft housing assembly) | 90105-W0307 · 91551-G0840 |
| 11103F | Bolts (for camshaft housing assembly) | 90105-W0309 · 91551-G0865 |
| 11114A | direct selling | 90250-06001 |
| 11115 | GASKET, CYLINDER HEAD | 11115-15100 · 11115-37061 · 11115-37062 · 11115-37070 · 11115-37071 |
| 11115A | PIN, RING | 90253-12002 |
| 11116A | No. 1 sealing plug | 96411-62500 |
| 11117B | No. 2 headed tapered thread plug | 90341-20002 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-14015 |
| 11117F | No. 2 headed straight thread plug | 90341-20012 |
| 11117H | Gasket (for coolant hole) | 90430-20004 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-31050 · 11122-31090 · 11123-31050 · 11123-31090 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-47010 · 11123-47010 · 11126-31030 · 11126-31040 · 11127-31030 · 11127-31040 |
| 11131 | intake valve seat | 11131-0T090 · 11131-37040 · 11131-37050 · 11131-37110 · 11132-37040 · 11132-37050 |
| 11135 | Exhaust valve seat | 11135-37020 · 11135-F2020 · 11136-37020 · 11136-37040 |
| 11151A | Ring pin (for securing camshaft bearing cap) | 90253-13005 |
| 11151H | Bolts (for mounting camshaft bearing cap to camshaft housing) | 90119-07009 |
| 11155A | PIN, RING W/HEAD | 90253-12002 |
| 11155B | PIN, RING | 90253-13005 |
| 11159H | Camshaft bearing cover oil hole gasket | 11159-31040 · 11159-37010 |
| 11186B | Camshaft housing rear cover gasket | 11186-37010 |
| 11193 | spark plug bushing gasket | 11193-0T010 · 11193-37020 · 11193-37030 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-0T040 · 11201-0T050 · 11201-0T120 · 11201-37022 · 11201-F3010 |
| 11201B | Gasket (for cylinder head cover) | 16258-37010 · 90210-06013 |
| 11201H | Bolts (for cylinder head cover) | 90105-06359 · 90105-06361 · 90105-W0220 · 90105-W0303 · 90109-06384 · 90109-W0019 · 91551-80630 · 91551-80670 |
| 11212 | No. 2 cylinder head cover | 11212-0T110 · 11212-37180 |
| 11212A | Cylinder head cover cushion | 90480-07008 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-0T021 · 11213-37021 · 11213-37050 · 11213-F3010 |
| 11214 | No. 2 cylinder head cover gasket | 11213-31080 |
| 11452D | Engine oil level gauge guide | 11452-24020 |
| 11452E | O-ring (for oil level gauge guide) | 96741-19010 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-38010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-35001 |
| 12180E | Oil filler cap assembly | 12180-38010 |
| 12204C | Ventilation valve sub-assembly | 12204-25010 · 12204-F2020 |
| 12281A | Engine No. 1 hanger | 12281-0T040 · 12281-37021 |
| 12282D | ENGINE HANGER, NO.2 | 12282-0T040 · 12282-25010 · 12282-37011 |
| 12551A | No. 1 vacuum pump bracket | 12551-37010 |
| 15301B | Engine oil level scoring assembly | 15301-F3010 |
| 15678A | Oil control valve filter | 15678-37010 · 15678-46020 |
